PSG adjustable hinge for rivet nut M12 – galvanised steel for gates and entrances
Description

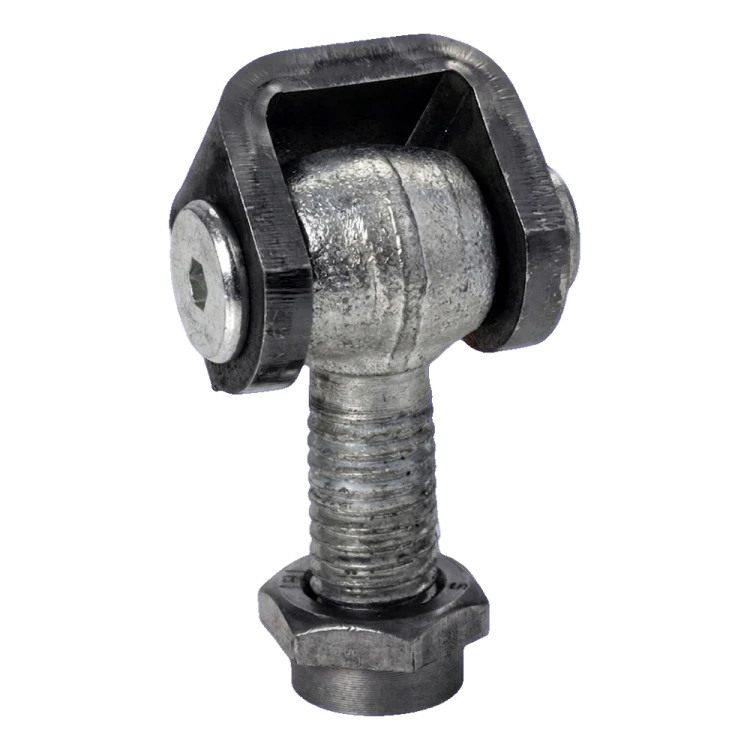

PSG adjustable hinge for rivet nut M12 – galvanised steel for gates and entrances
Adjustable hinge M12 for rivet nut is a durable hardware element designed for mounting gates and entrances. Construction from galvanised steel ensures high corrosion resistance and long-term operation in external conditions — even with constant exposure to moisture and atmospheric precipitation. Thanks to the M12 thread, the hinge mounts directly into a rivet nut embedded in the profile, which significantly speeds up installation and eliminates the need for welding.
The ball joint construction enables adjustment of wing position after completed installation, which is crucial for aligning gates and entrances on uneven posts. The hinge is resistant to mechanical damage, and compact dimensions allow application even in tight profile frames.
Advantages for the installer
- Installation in rivet nut — without welding, quick and clean installation
- Post-installation adjustment — easy alignment of gate or entrance wing
- Ball joint — freedom of movement and compensation for mounting deviations
- Galvanising — corrosion resistance in external conditions
- Compact construction — fits standard fencing profiles

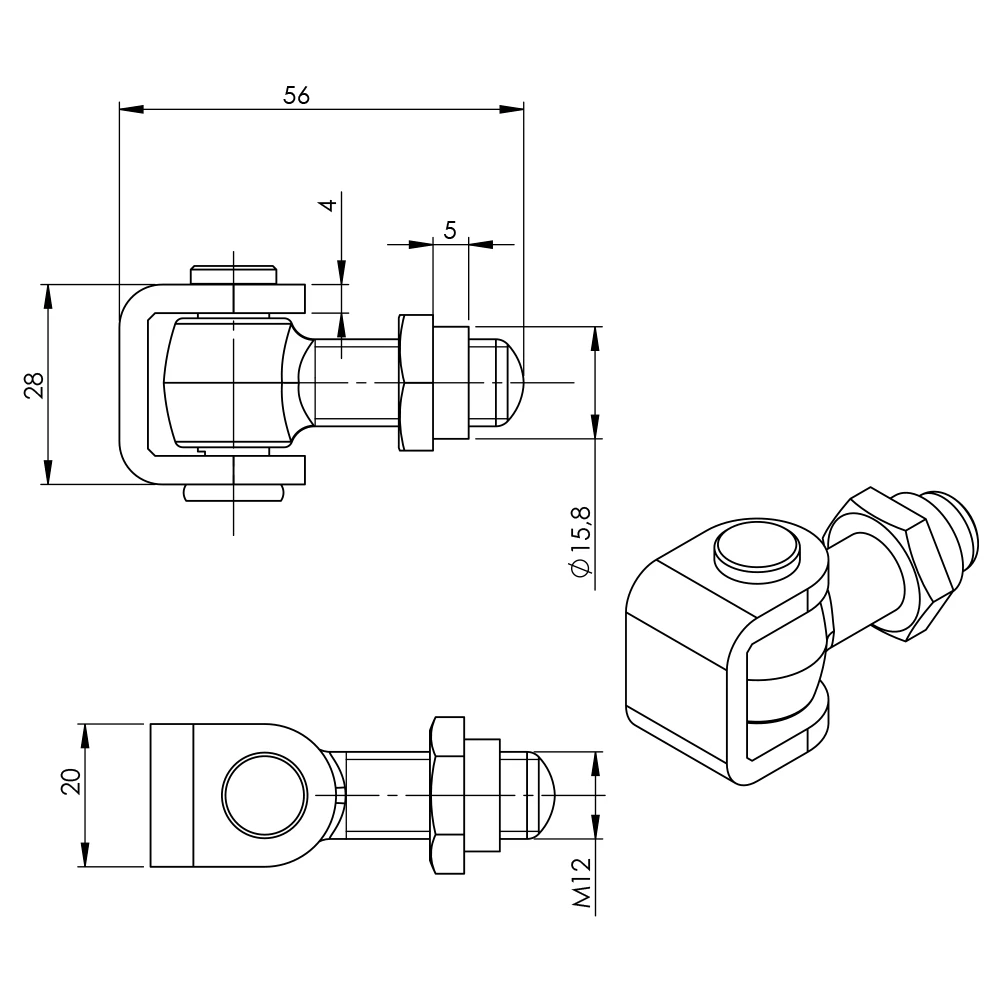

Dimensions and technical data
- Thread: M12
- Total length: 56 mm
- Lug height: 28 mm
- Lug width: 20 mm
- Lug dimensions (cross-section): 25 × 20 mm
- Lug material thickness: 4 mm
- Spacer element diameter: Ø15.8 mm
- Support washer thickness: 5 mm
- Weight: 0.11 kg
- Material: galvanised steel (lug from black steel)
- Application: mounting gates and entrances externally
Note: the set does not include rivet nut — it must be selected and installed separately in the bearing profile.

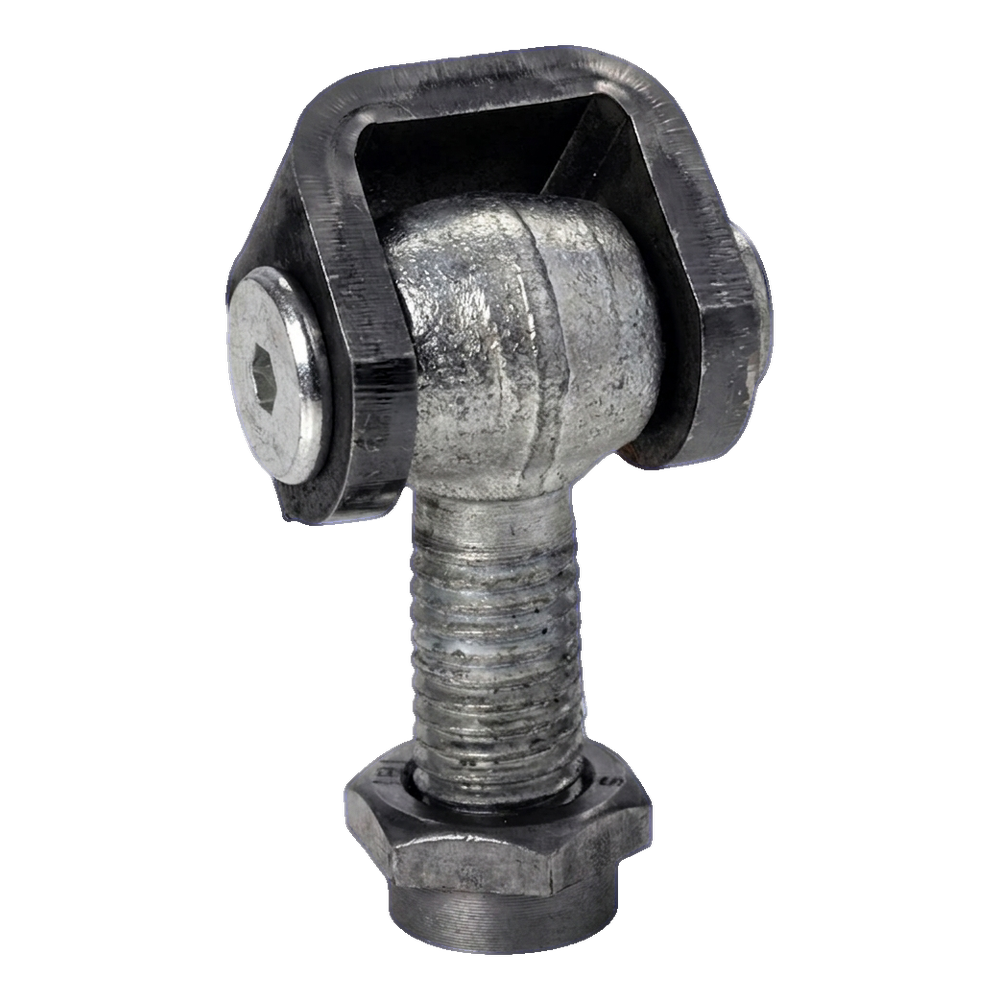

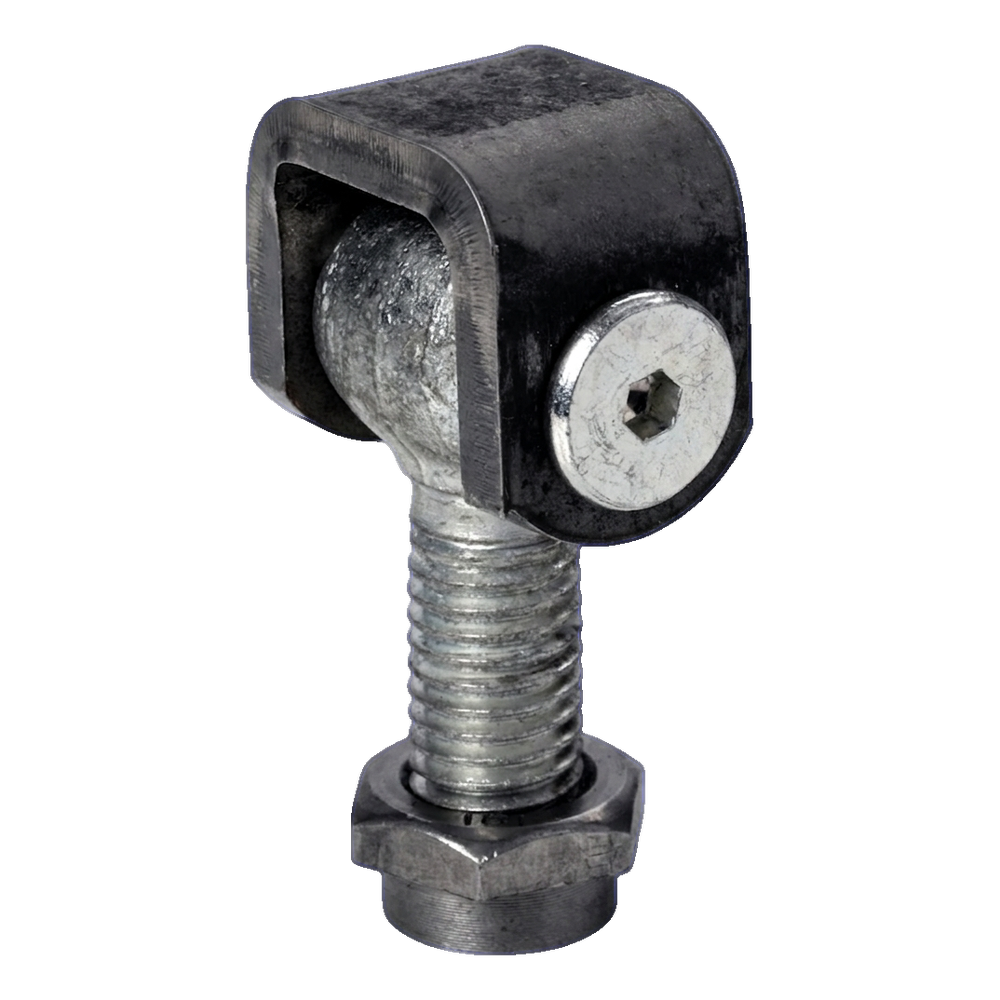

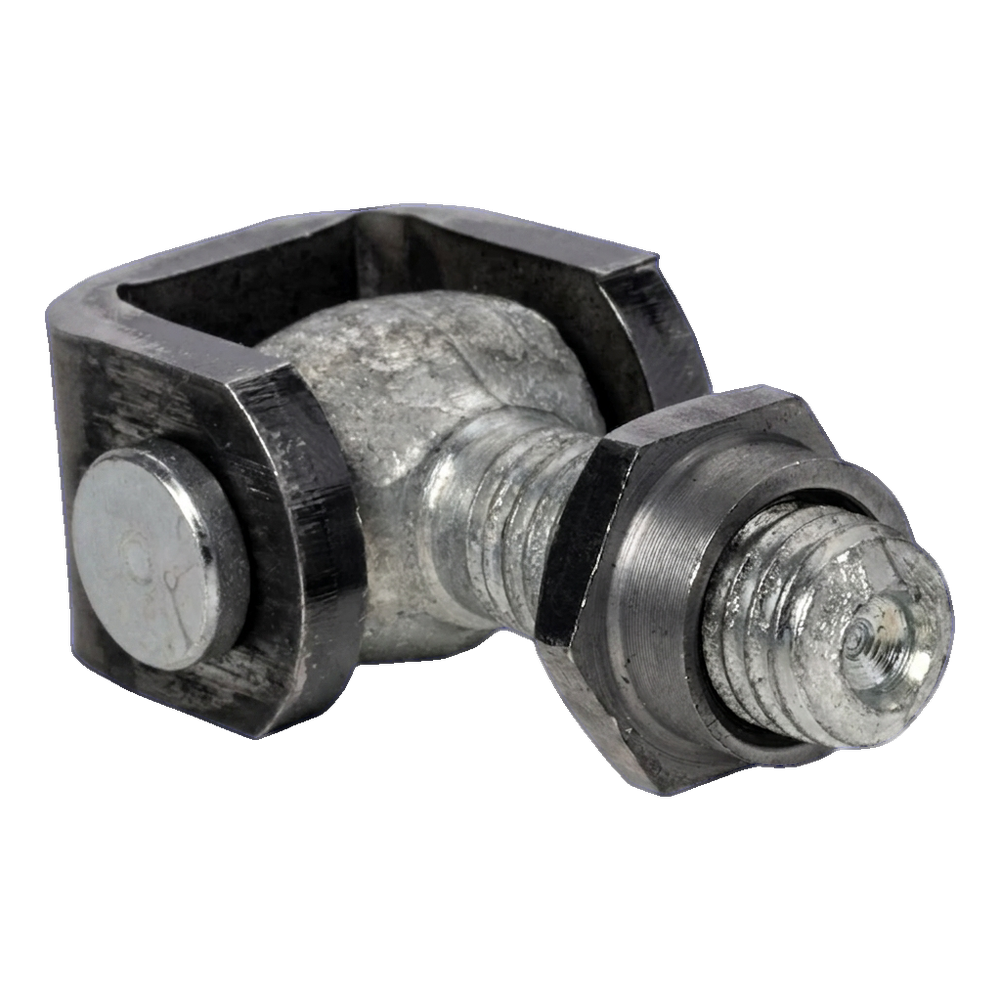

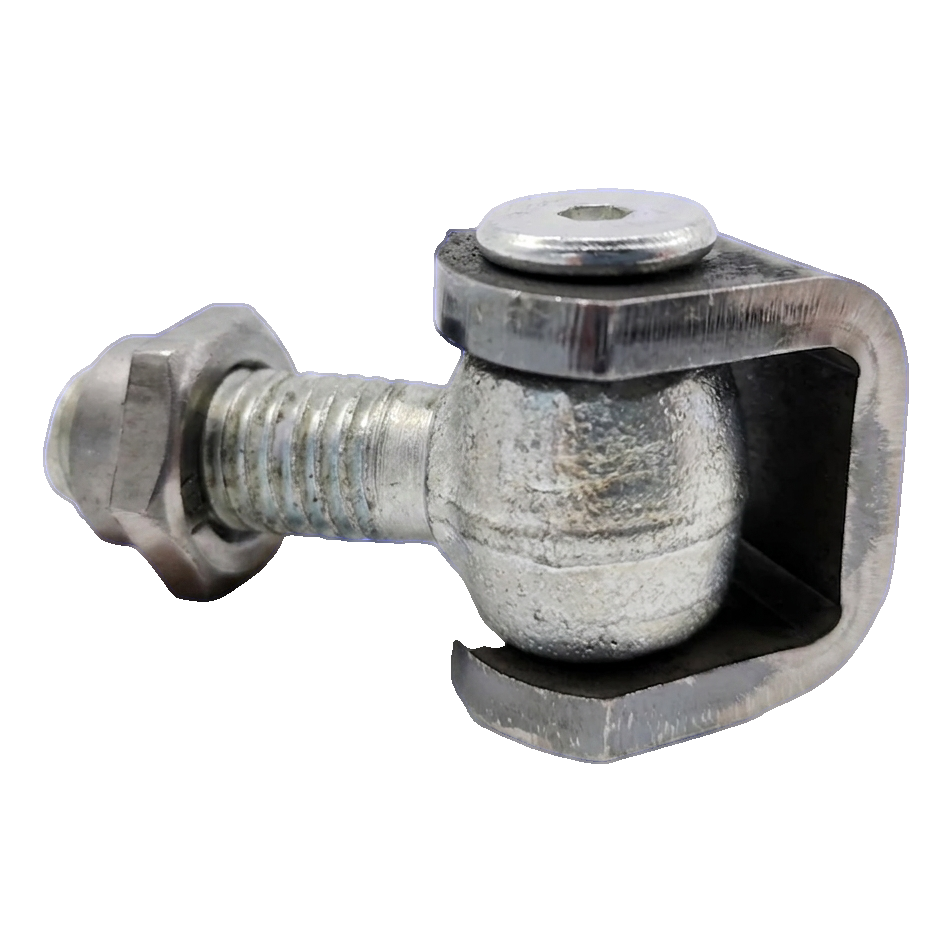

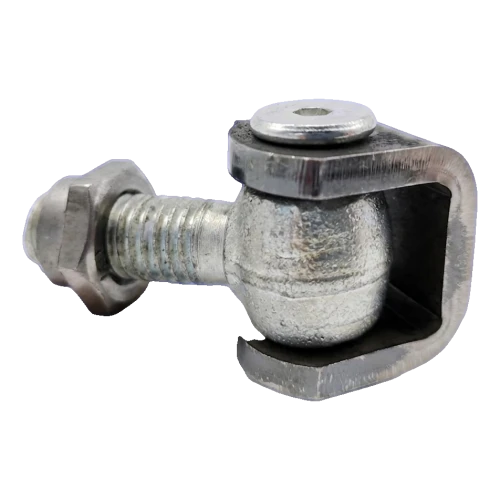

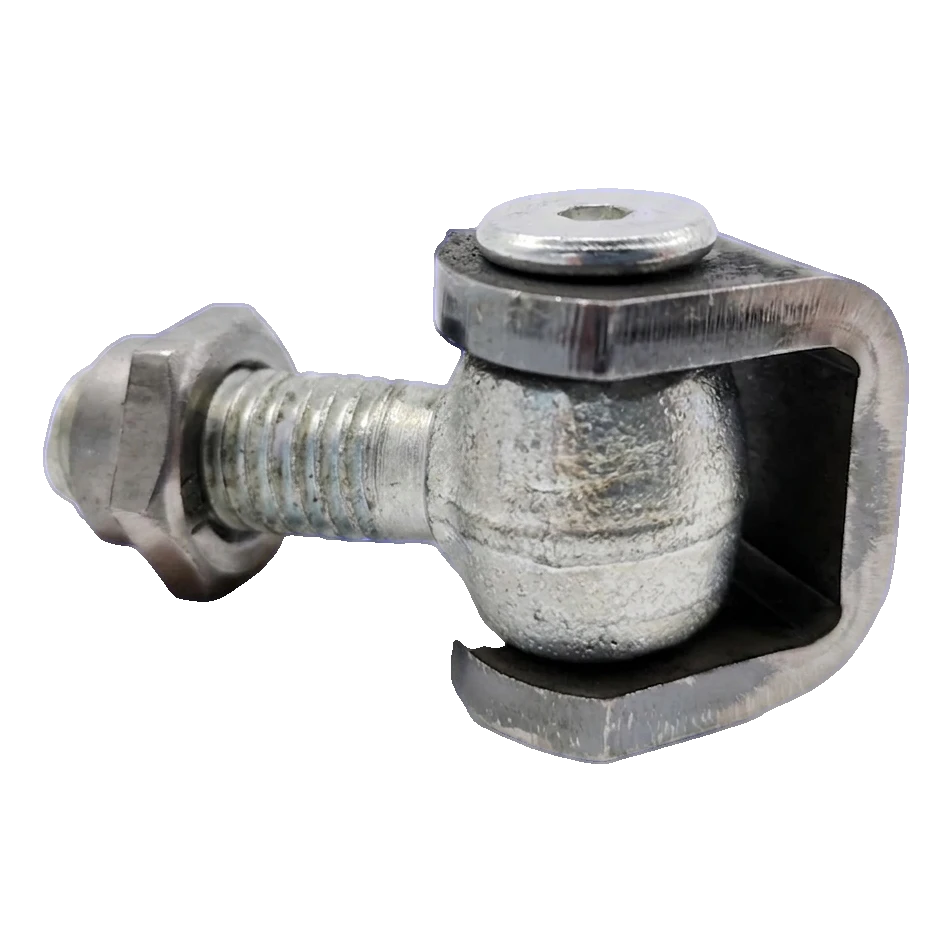

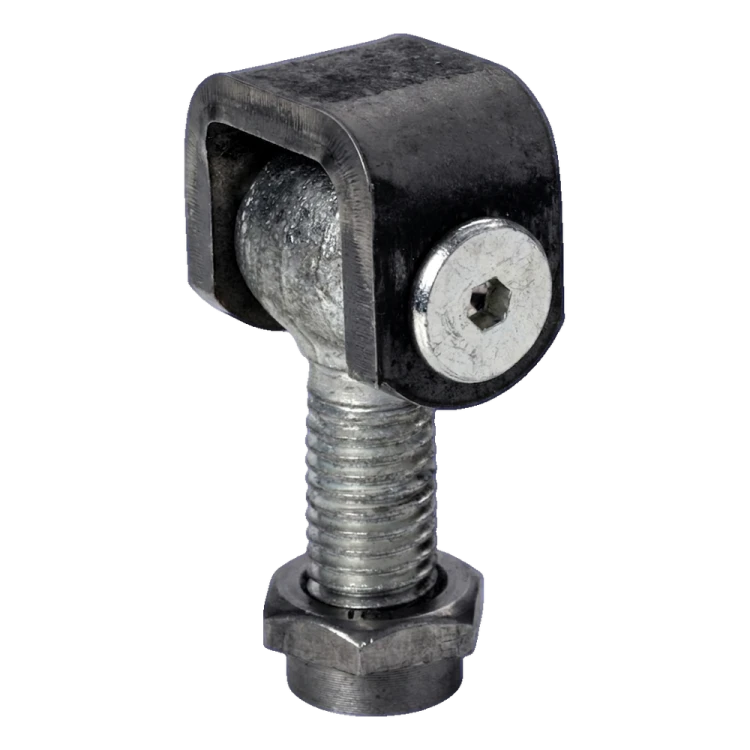

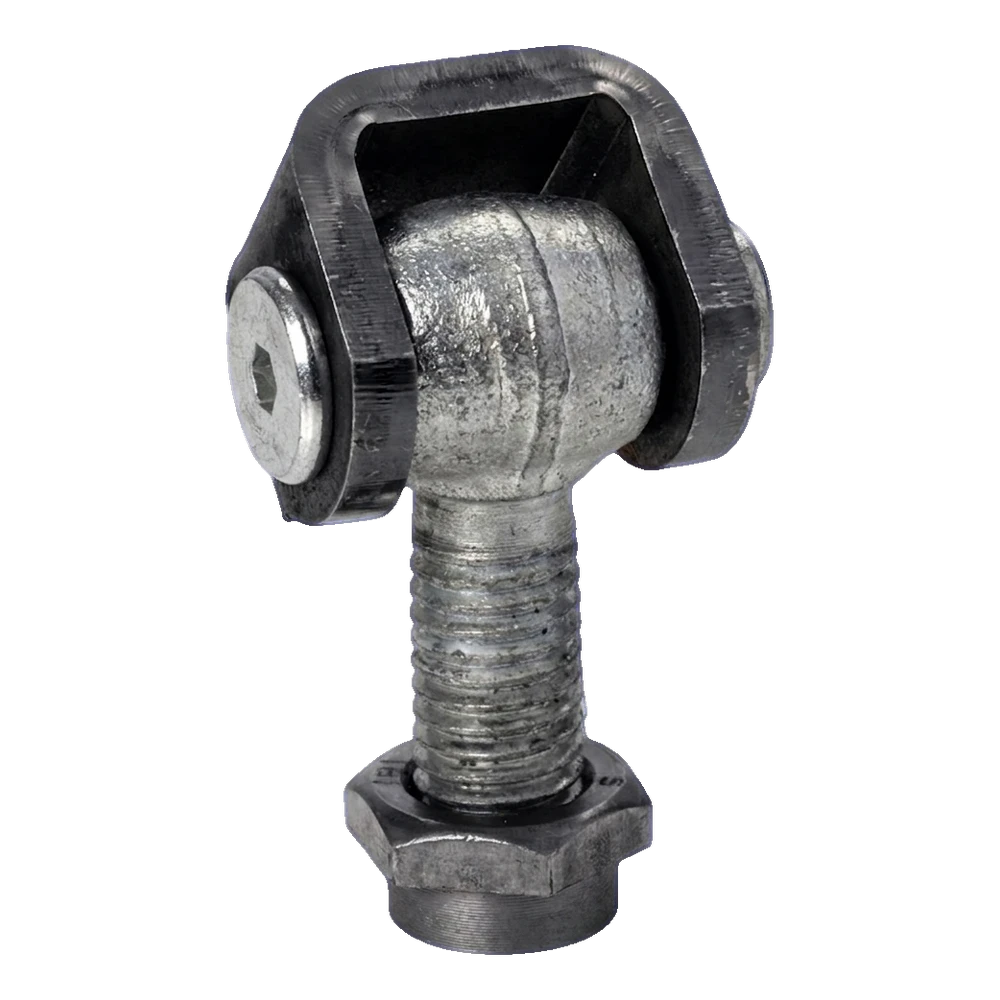

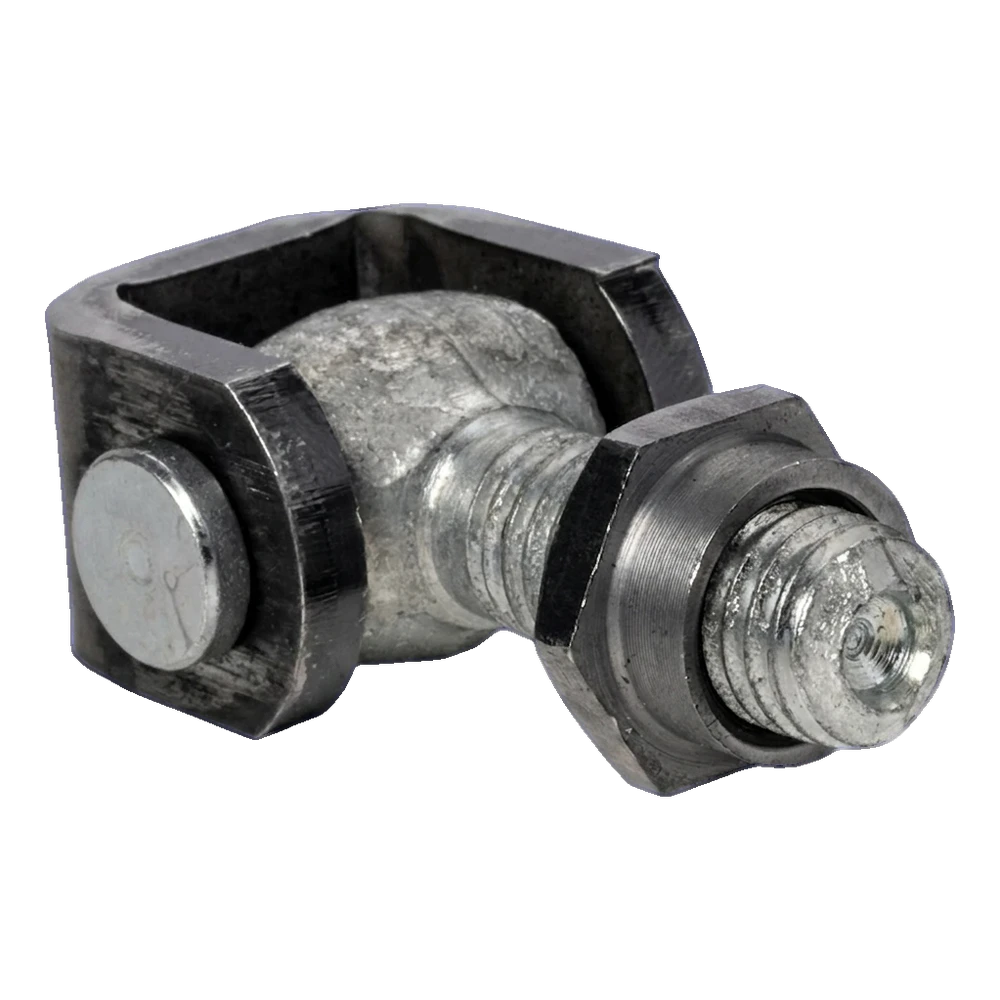

Product views from different perspectives
Technical data
| Thread type | M12 |
| Sposób montażu | Bolt-On |
| Material | Steel |
