PSG adjustable hinge for leaf gates M20 with mounting plate 100×100×4 mm
Description
PSG adjustable hinge for leaf gates M20 with mounting plate 100×100×4 mm

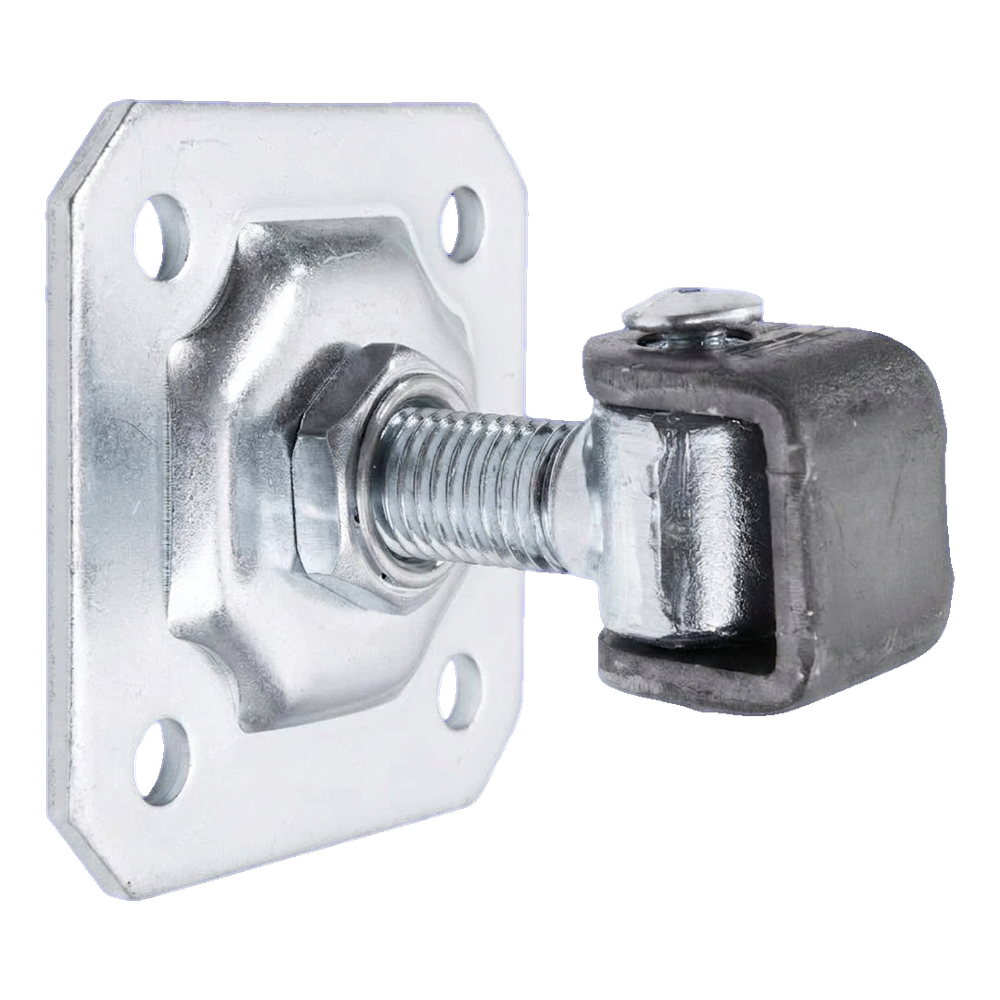

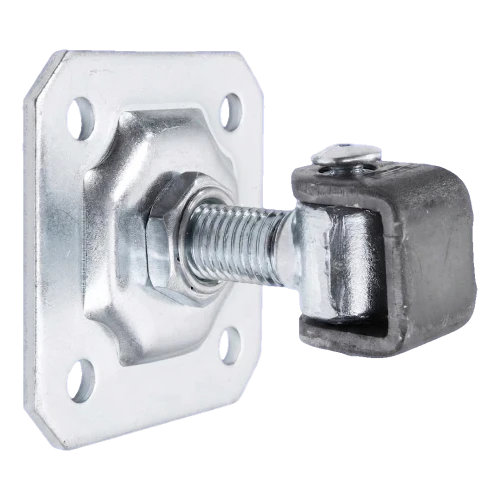

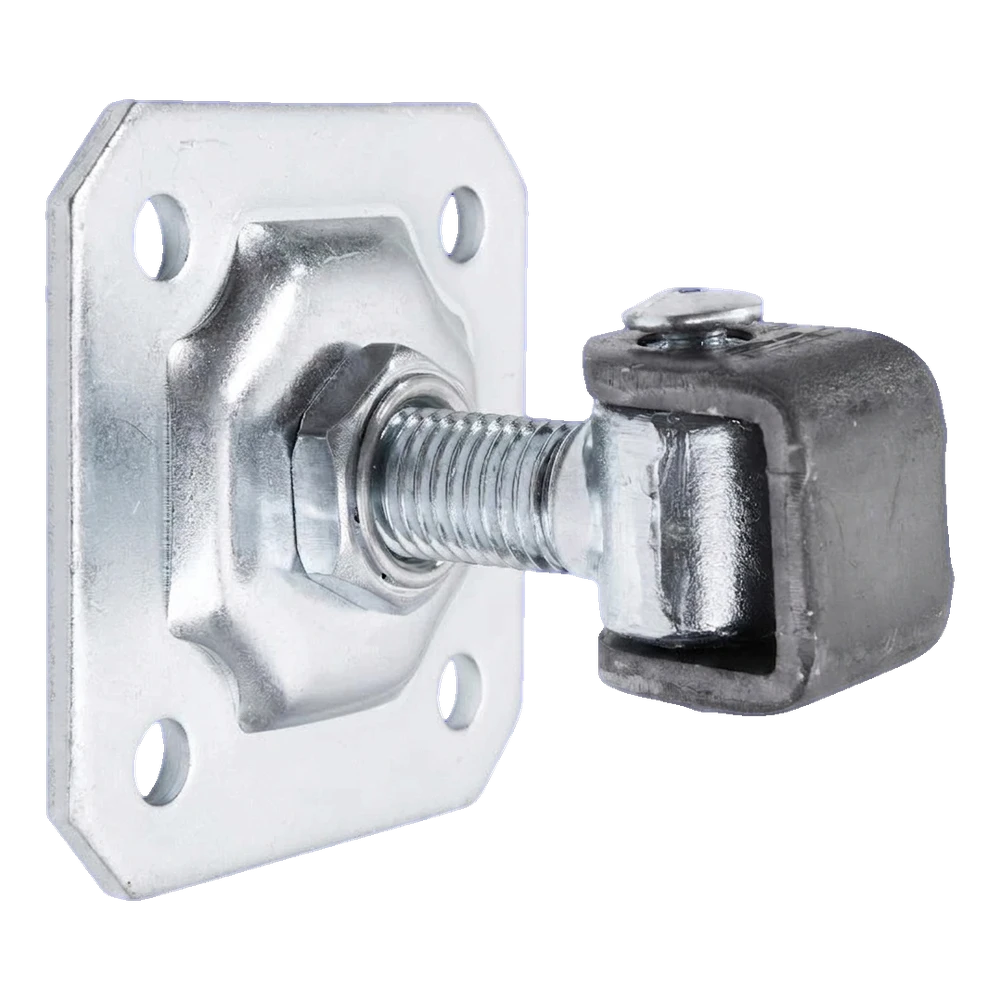

PSG M20 adjustable hinge is a robust, steel suspension component designed for leaf gates. Thanks to the M20 thread with adjustment nut, it enables precise correction of the gate leaf position at any time — both directly after installation and during operation, when the structure sags or changes geometry due to temperature effects.
The product is protected with hot-dip galvanising, which guarantees years of anti-corrosion protection in outdoor conditions. The hinge knuckle is finished in black, providing an aesthetic appearance and complementing typical perimeter gates well.
Why choose this hinge?
- Post-installation adjustment — the nut on the M20 thread allows tightening or loosening the hinge at any time, compensating for gate leaf sagging or effects of temperature changes
- High load capacity — permissible load of hinge pair on a 2m long leaf is 105 kg
- Anti-corrosion protection — galvanised mounting plate ensures outdoor durability for many seasons
- Solid construction — mounting plate thickness of 4 mm guarantees rigidity and resistance to mechanical deformation
- High wear resistance — steel components withstand intensive, daily operation
Dimensions and technical specification
- Manufacturer: PSG
- Material: steel
- Anti-corrosion protection: galvanised (knuckle black)
- Bolt diameter: M20

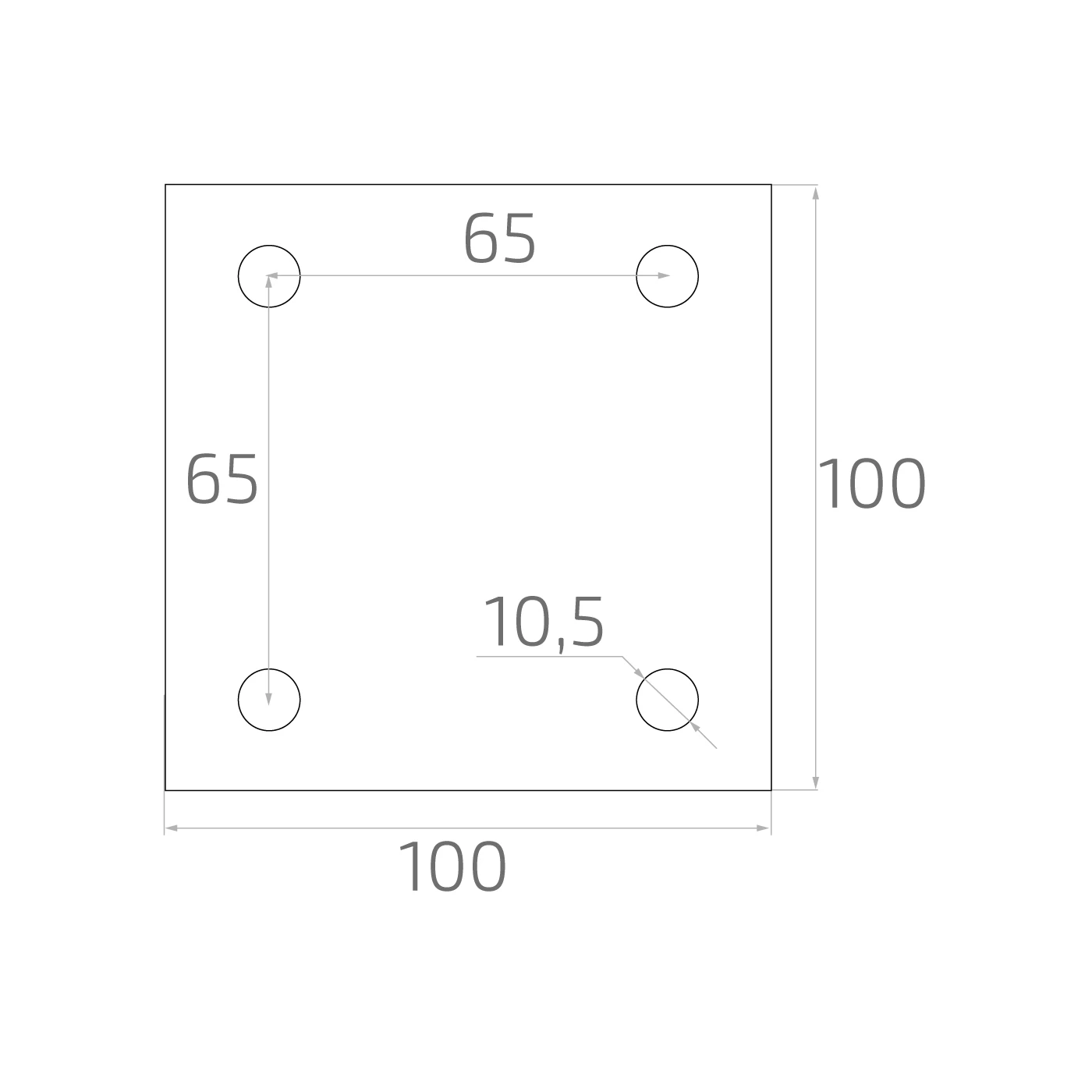

- Mounting plate: 100 × 100 × 4 mm

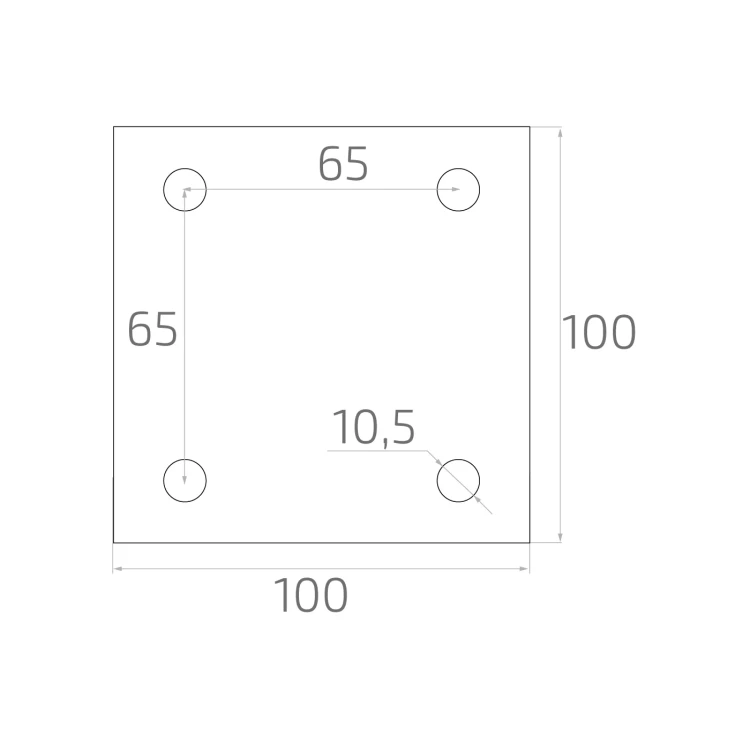

- Mounting hole spacing: 65 × 65 mm
- Mounting hole diameter: 10.5 mm

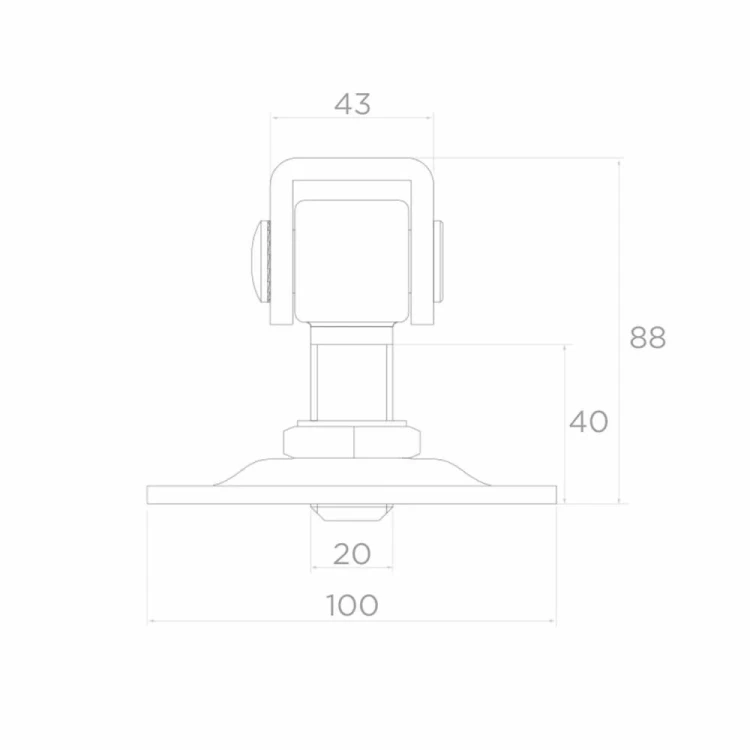

- Hinge knuckle width: 43 mm
- Hinge projection from mounting surface: 40 mm (to pin centre) / 88 mm (total)
- Total length (L): 88 mm
- Permissible load of hinge pair (2m leaf): 105 kg
- Weight: 0.76 kg
- EAN: 5901289675741
Application and installation
The hinge is designed for installation on leaf gate posts — steel, masonry or concrete. Four mounting holes in the plate (Ø 10.5 mm) allow secure fixing to the substrate using appropriate screws or anchors. After fixing the plate to the post and the knuckle to the gate leaf, simply tighten the adjustment nut on the M20 thread to set the desired leaf position. Adjustment can be repeated multiple times — this is particularly useful in winter when metal contracts in low temperatures, and in summer when it expands thermally.
Technical data
| Thread type | M20 |
| Mounting Method | With Plate |
| Material | Steel |
