PSG adjustable hinge M20 galvanised steel for gates and garden gates
Description

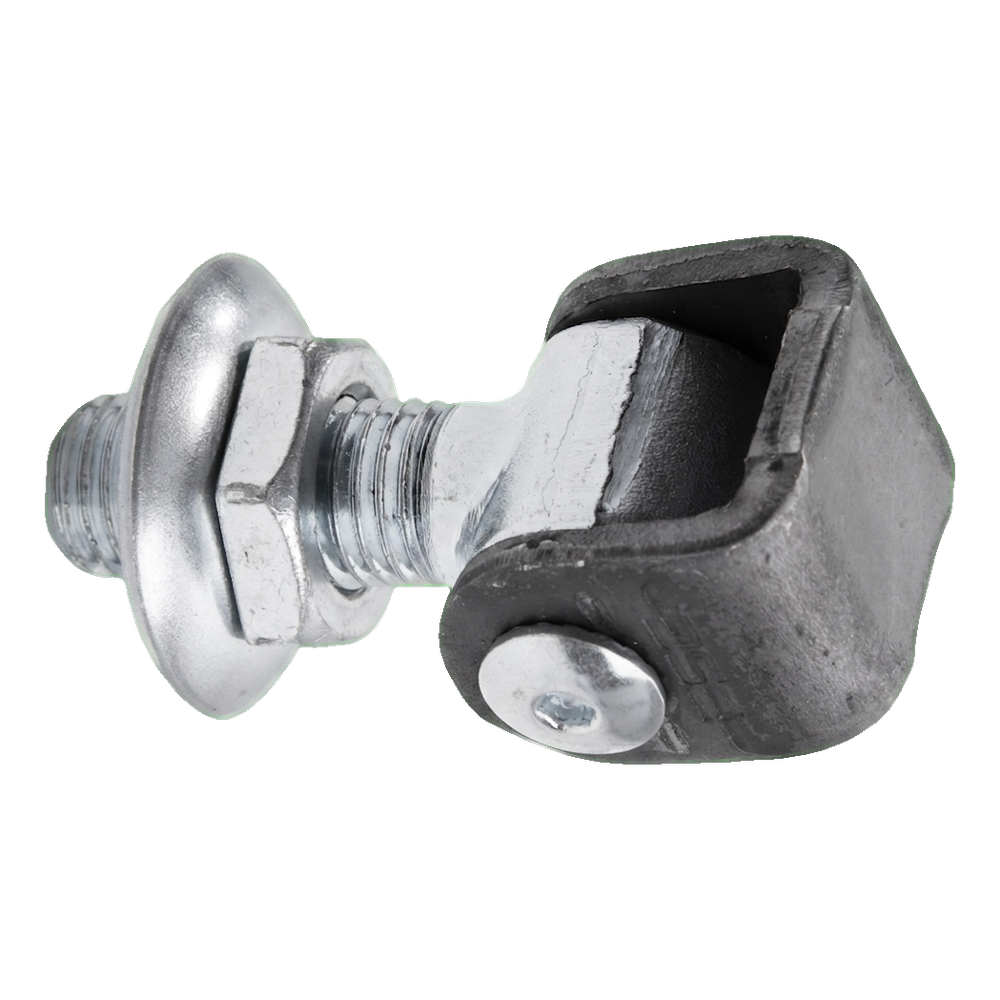

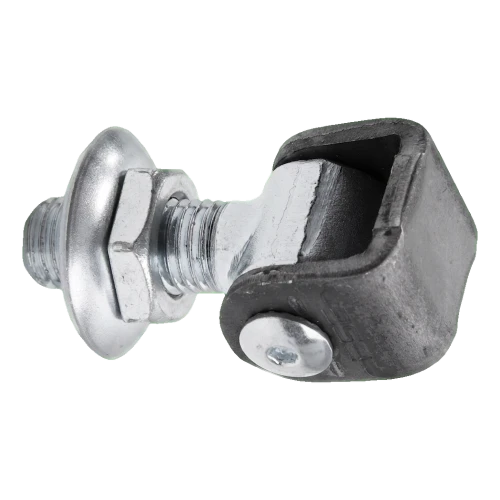

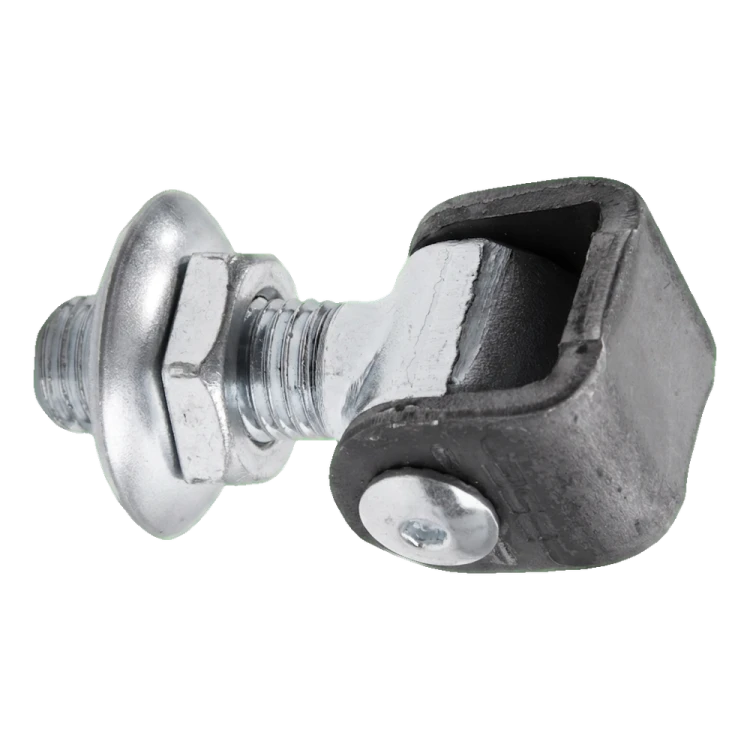

PSG adjustable hinge M20 galvanised steel for gates and garden gates
Adjustable hinge M20 by PSG is a durable mounting element designed for installation of swing gates and garden gates. Thanks to the M20 thread and adjustment nut, it enables precise correction of the leaf position both immediately after installation and during operation — for example, when the structure sags or during thermal deformation of the material in extreme weather conditions.
The steel construction with galvanised coating ensures years of corrosion resistance, allowing the hinge to be used in outdoor conditions without risk of accelerated wear. The black eye of the hinge aesthetically complements dark fencing profiles and gates.
Key advantages for the installer
- Post-installation adjustment — adjustment nut allows quick correction of leaf setting without hinge dismounting
- Corrosion resistance — galvanised steel guarantees durability in outdoor conditions for many years
- Easy installation — M20 thread and compact construction facilitate quick mounting on fence post
- High load capacity — pair of hinges on 2 m leaf will support load up to 105 kg

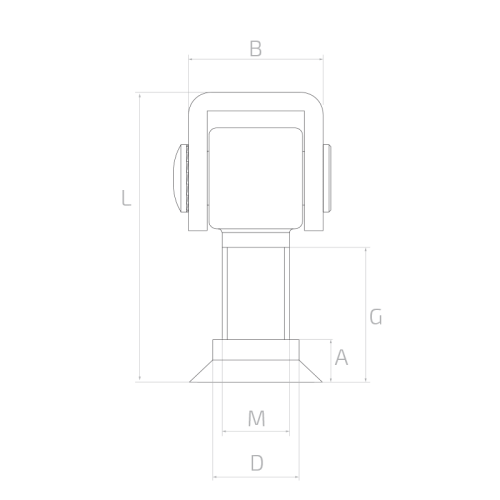

Technical parameters
- Thread: M20
- Total length (L): 88 mm
- Bolt length: 40 mm
- Eye width (B): 43 mm
- Material: steel
- Anti-corrosion protection: zinc coating (black eye)
- Permissible load of hinge pair (2 m leaf): 105 kg
- Weight: 0.46 kg
- EAN: 5901289676021
The adjustable hinge M20 is a proven solution used by professional installation teams when building fences and gates. The ability to adjust during operation eliminates the need for costly service visits to the end customer — simply tighten or loosen the nut for the leaf to work smoothly again.
Technical data
| Thread type | M20 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
