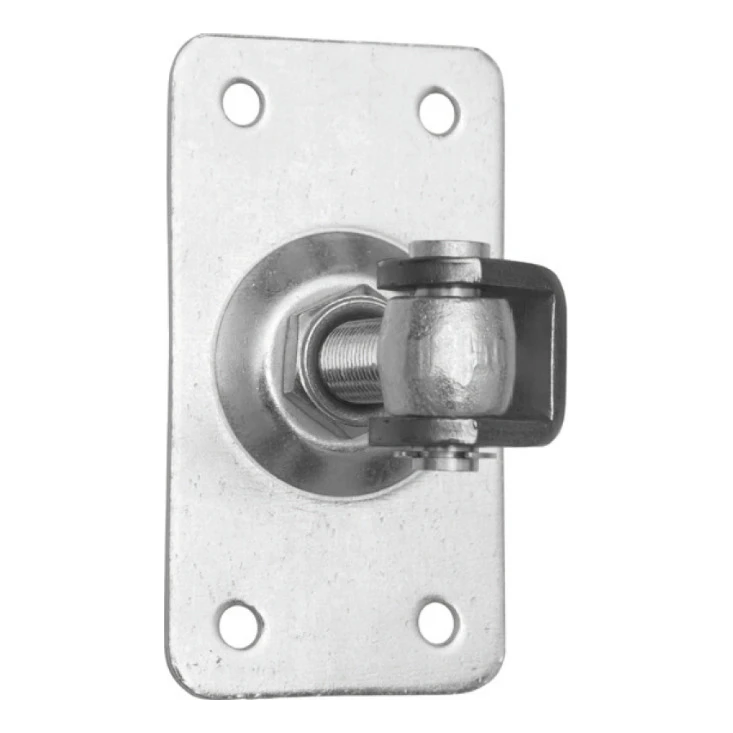

PSG adjustable gate hinge with rectangular plate M16 120×75 mm galvanised
Leave feedback on the product
PSG adjustable gate hinge steel M16, rectangular plate 120×75 mm, galvanised. Total length 78 mm, bolt 40 mm, eye 35 mm. Permissible load for pair of hinges 65 kg on 2 m wing. For swing gates and garden gates.
Product code: 001-385
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
PSG adjustable gate hinge with rectangular plate M16 120×75 mm galvanised
Steel adjustable hinge with M16 bolt and rectangular plate 120×75 mm — a reliable solution for mounting swing gates and garden gates. The galvanised surface guarantees years of corrosion resistance in outdoor conditions, whilst the built-in adjustment mechanism allows you to correct the wing position at any time — even after installation is complete.
Thanks to the M16 thread with adjustment nut, the hinge can be easily tightened or loosened, which is particularly important during seasonal temperature changes causing metal contraction and natural sagging of heavy gate structures. Permissible load for pair of hinges on a 2 m long wing is 65 kg.
Installer benefits
- Galvanising — years of anti-corrosion protection in outdoor applications
- Quick installation — plate with four holes for screwing to post
- Post-installation adjustment — ability to tighten/loosen nut without dismounting
- Robust construction — steel resistant to mechanical damage and high loads

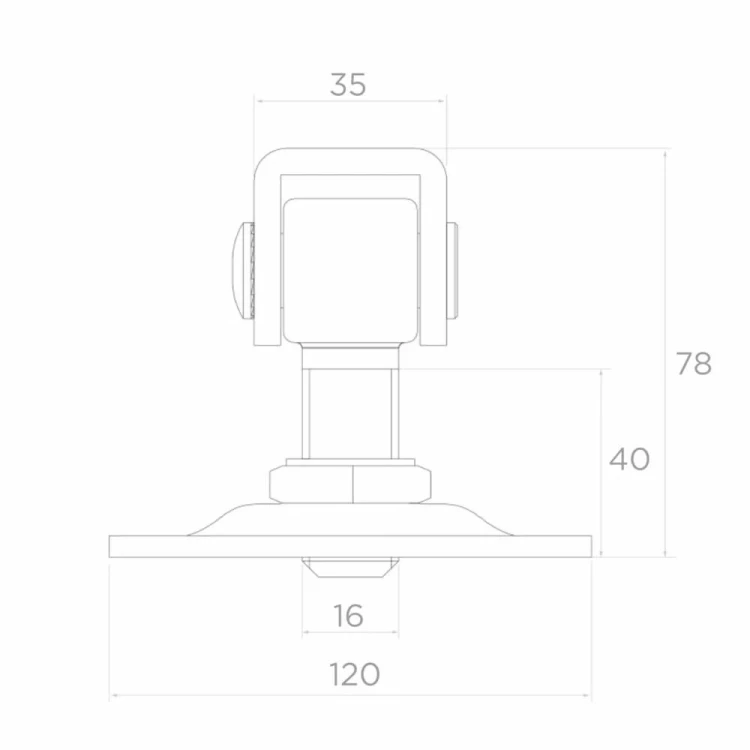

Dimensions and technical parameters
- Material: steel
- Anti-corrosion protection: galvanised (eye black)
- Thread: M16

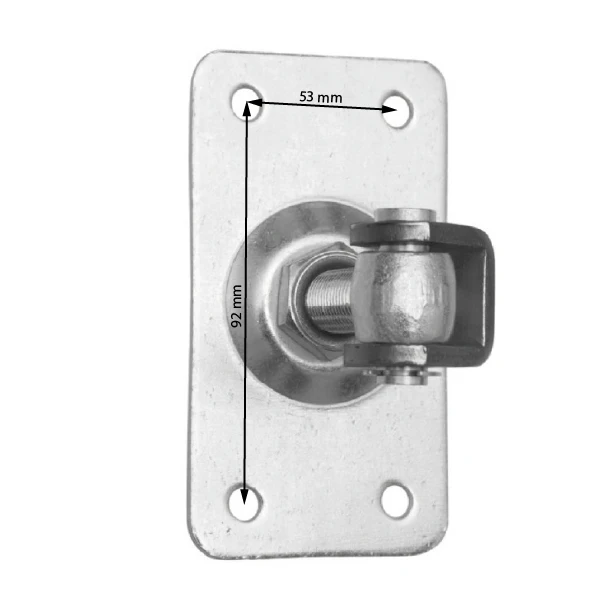

- Plate dimensions (mounting plate): 120×75 mm
- Total length (distance from post): 78 mm
- Bolt length: 40 mm
- Eye width: 35 mm
- Pin diameter: 16 mm
- Permissible load for pair of hinges (2 m wing): 65 kg
- Weight: 0.5 kg
- EAN: 5901431941069
