PSG adjustable gate hinge with decorative plate M16 155×80 mm galvanised
Description

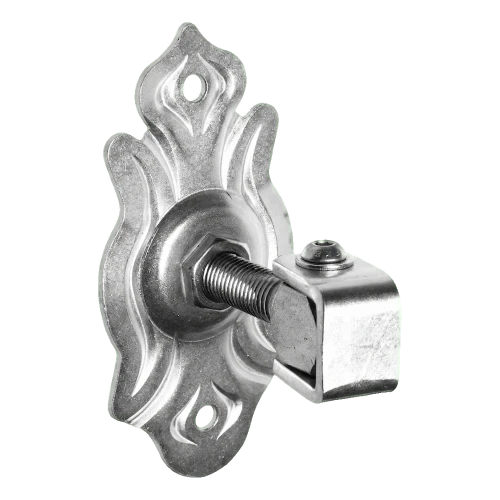

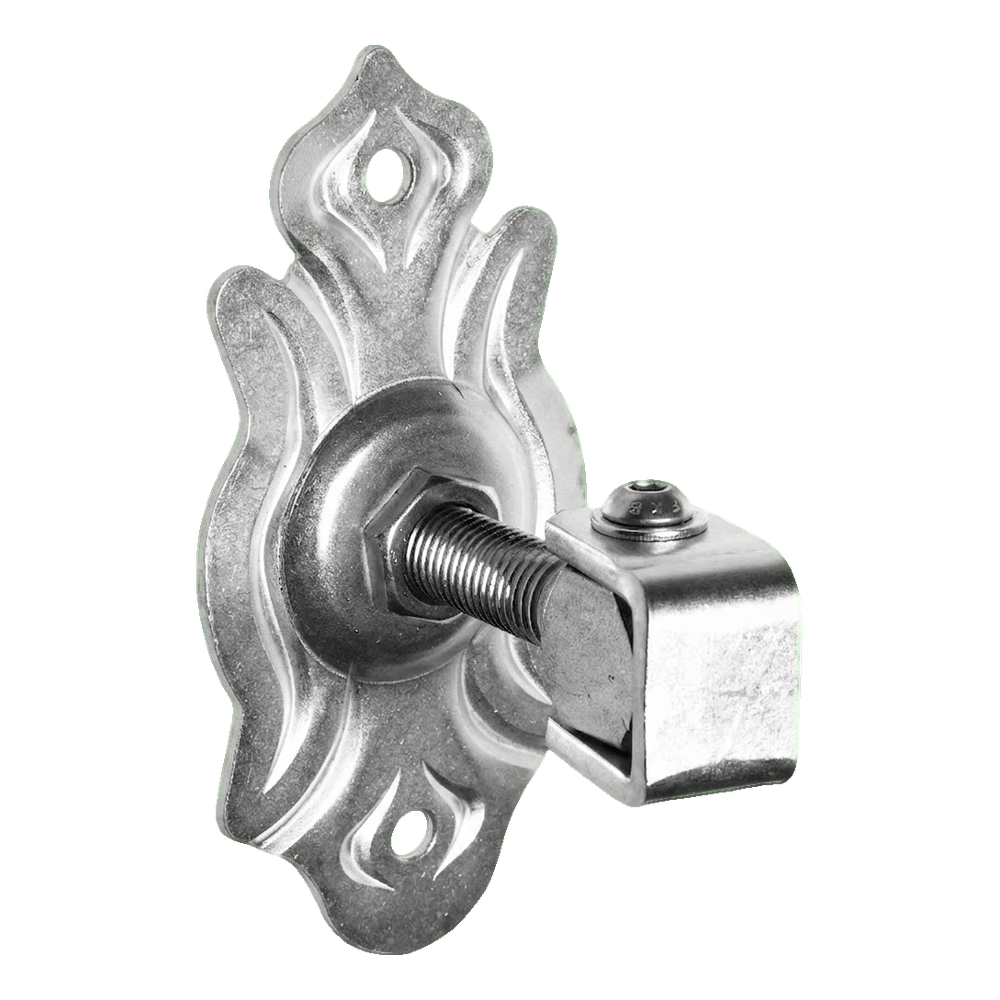

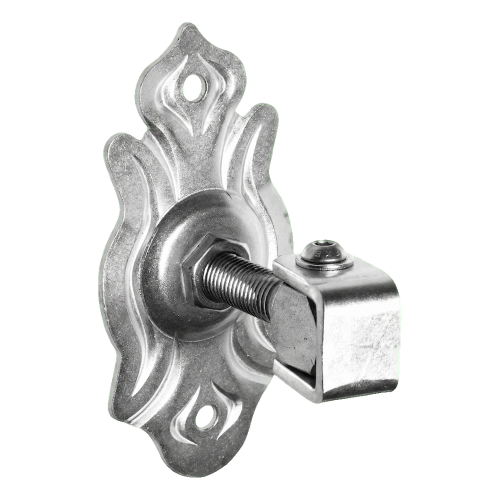

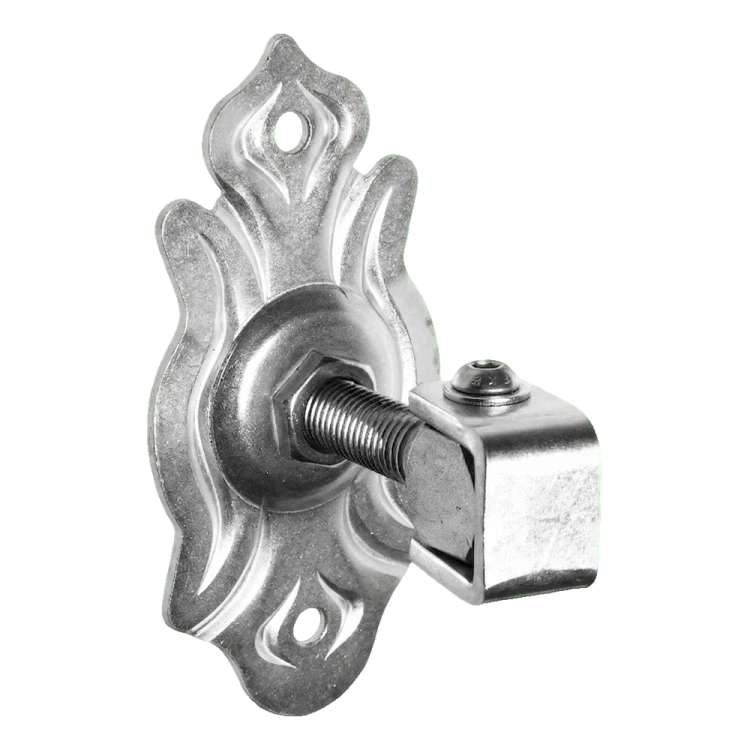

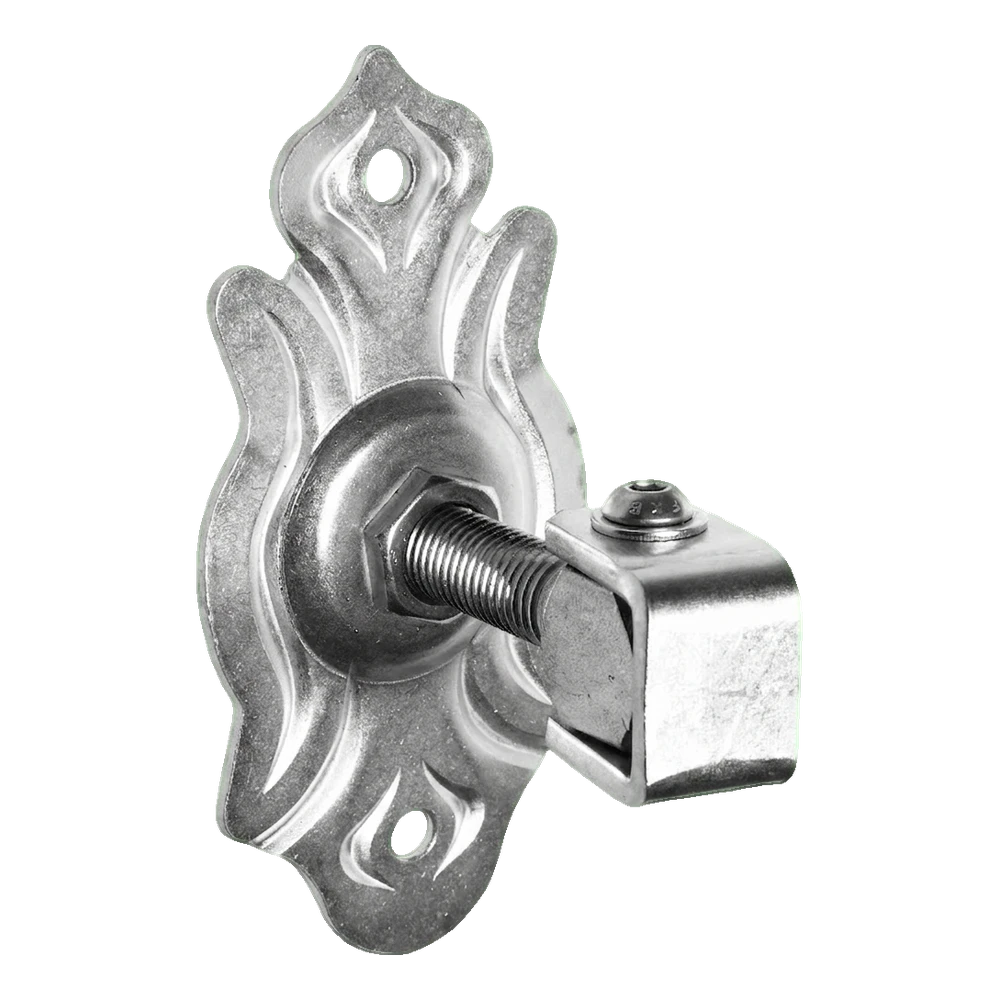

PSG adjustable gate hinge with decorative plate M16 155×80 mm galvanised
Steel adjustable hinge with decorative plate designed for mounting gates and wickets. The M16 screw with adjustment nut allows for precise correction of the leaf position at any time — both immediately after installation and during operation, e.g. when re-adjustment is necessary due to low temperatures or structural sagging.
The entire unit is galvanised, which provides long-lasting anti-corrosion protection and allows the hinge to be used outdoors without additional surface protection. The decorative plate with embossed ornament gives the element an aesthetic appearance, making it blend perfectly with wrought iron gates and fencing.
Advantages for the installer
- Adjustment with M16 screw — quick correction of leaf position without hinge disassembly
- Galvanised surface — high corrosion resistance in outdoor conditions
- Decorative plate — aesthetic finish eliminating the need for additional decorative elements
- High resistance to wear and mechanical damage
- Two mounting holes in the plate — secure and simple attachment to the post
Permissible load
A pair of hinges mounted on a leaf of 2 m length carries a load of up to 65 kg. When designing larger leaves, the number of hinges should be increased accordingly or a stronger variant should be selected.

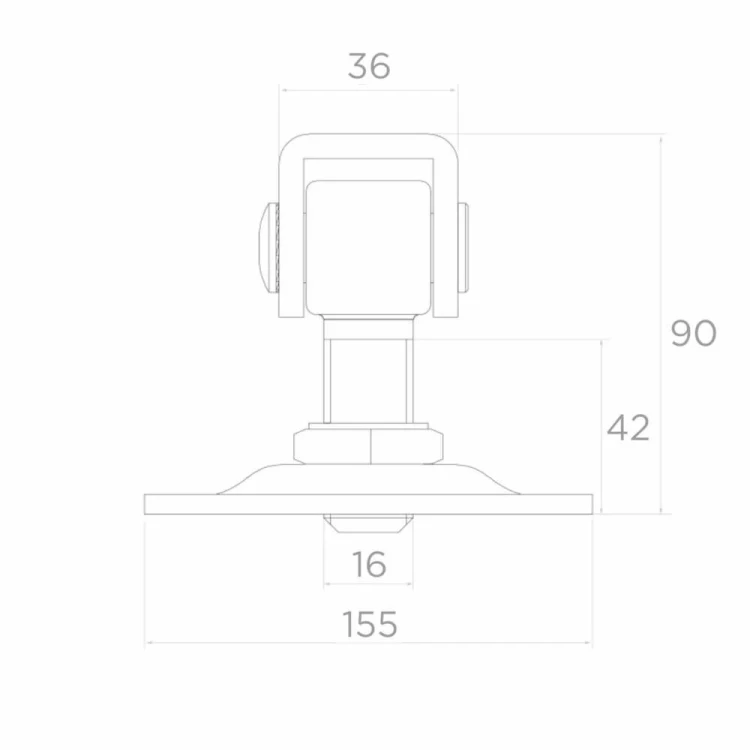

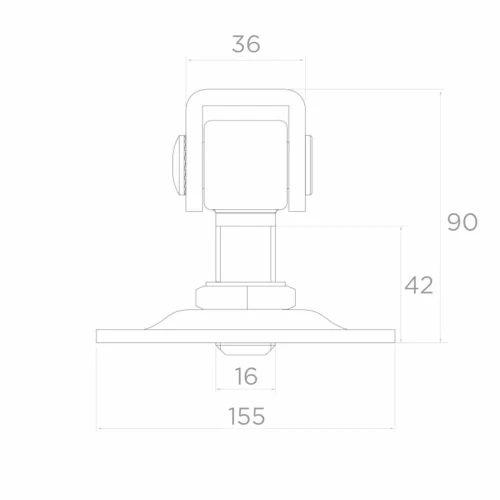

Dimensions and technical data
- Thread: M16
- Plate width: 155 mm
- Plate height: 80 mm
- Plate thickness: 4 mm
- Lug width: 36 mm
- Total height (with lug): 90 mm
- Height to lug (from plate): 42 mm
- Material: galvanised steel
- Anti-corrosion protection: zinc coating
- Weight: 0.505 kg
- Permissible load of pair (2 m leaf): 65 kg
- Manufacturer: PSG
- EAN: 5901289675864
Technical data
| Thread type | M16 |
| Mounting Method | With Plate |
| Material | Steel |
