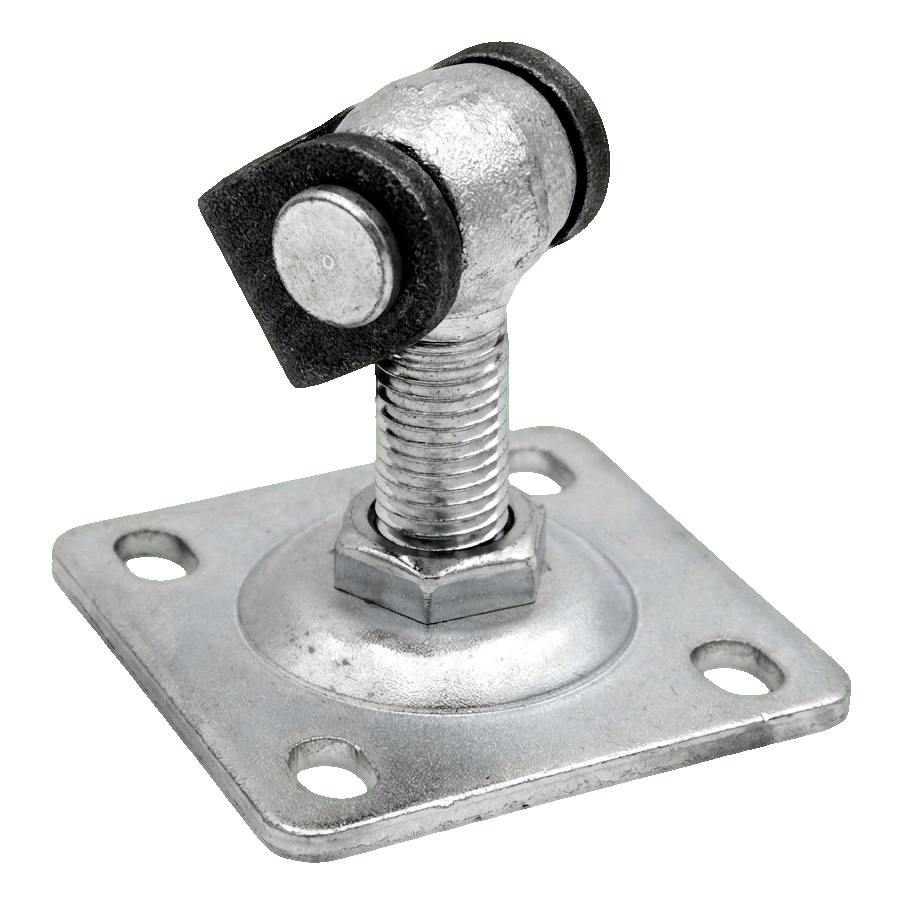

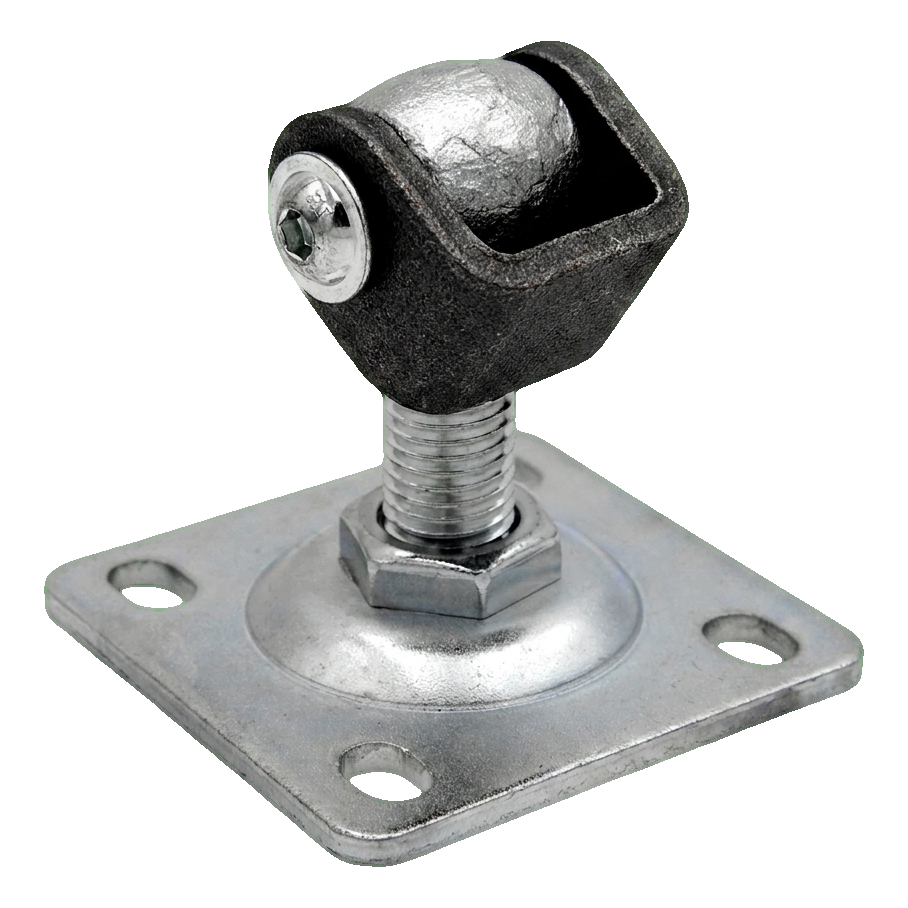

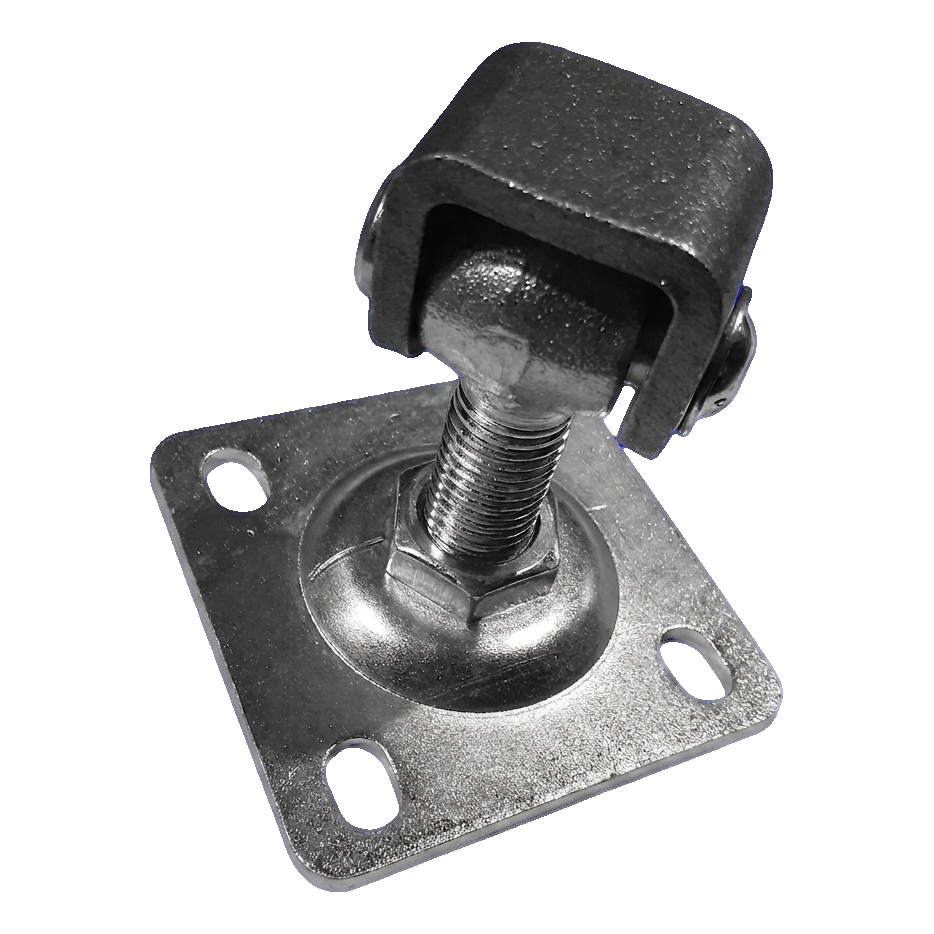

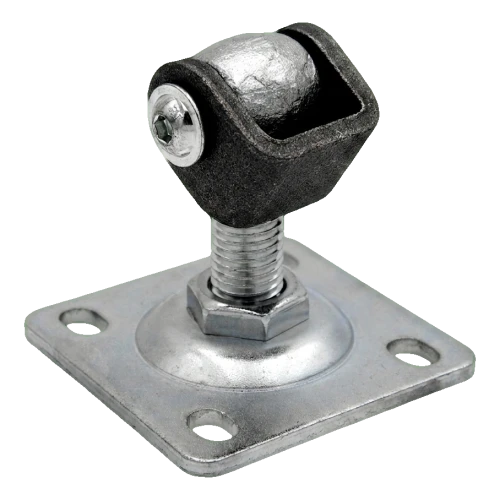

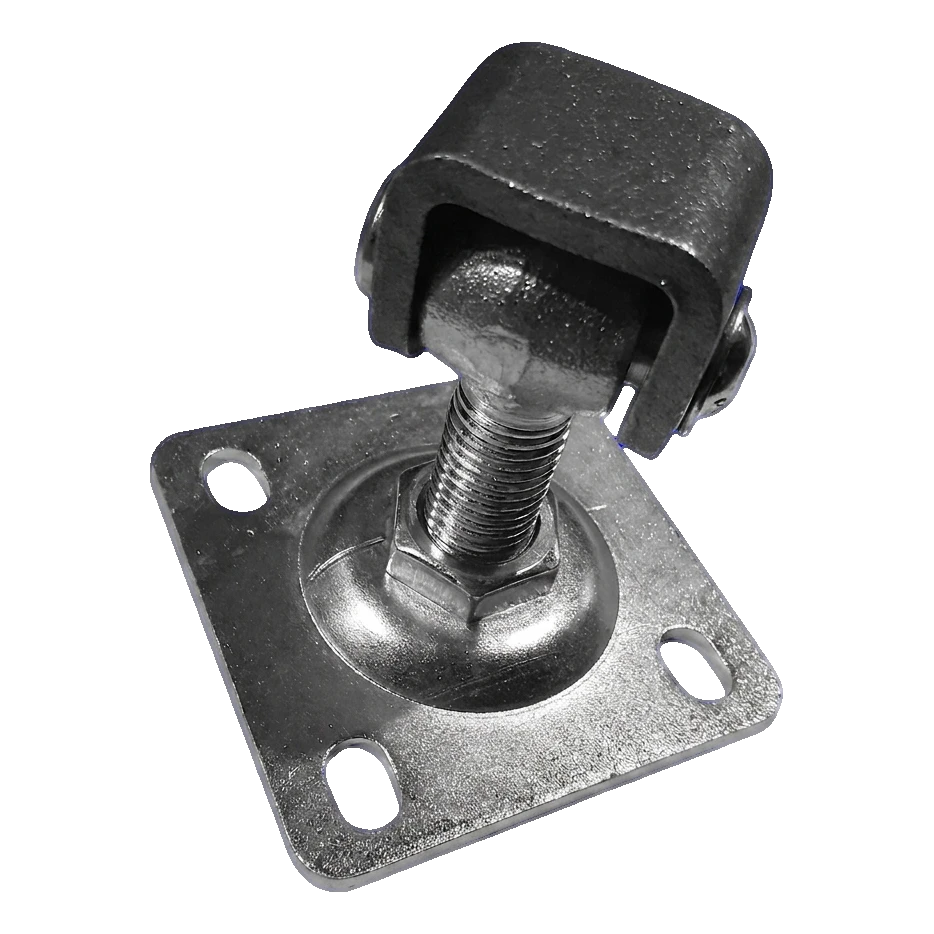

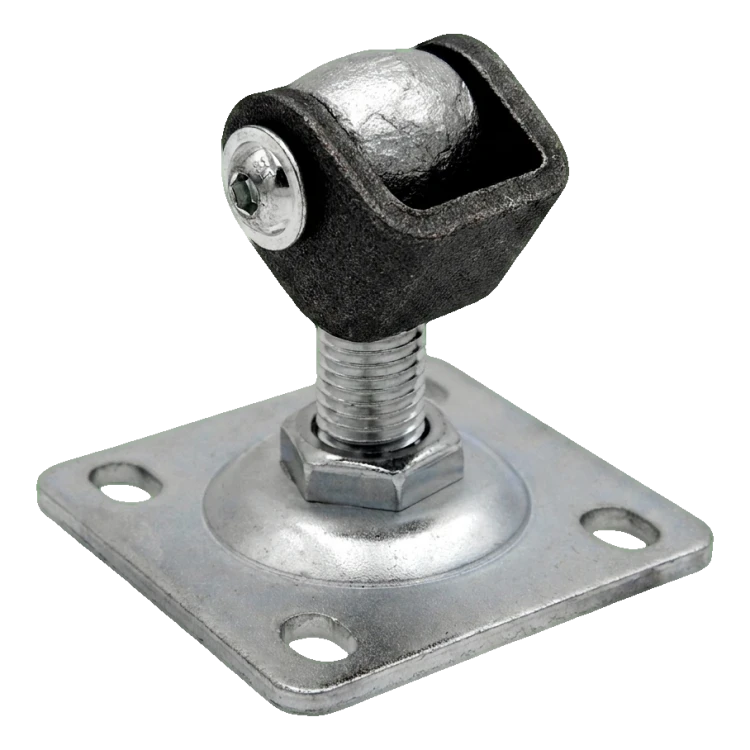

PSG adjustable gate hinge with M16 plate galvanised 75×75 mm
Leave feedback on the product
PSG adjustable gate hinge with M16 plate galvanised steel construction. Plate dimensions 75×75×3 mm, lug width 36 mm, total height 78 mm. M16 thread, weight 0.4 kg. For gates and garden wickets, pair load capacity up to 65 kg for 2 m leaf.
Product code: 001-369
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
PSG adjustable gate hinge with M16 plate galvanised 75×75 mm

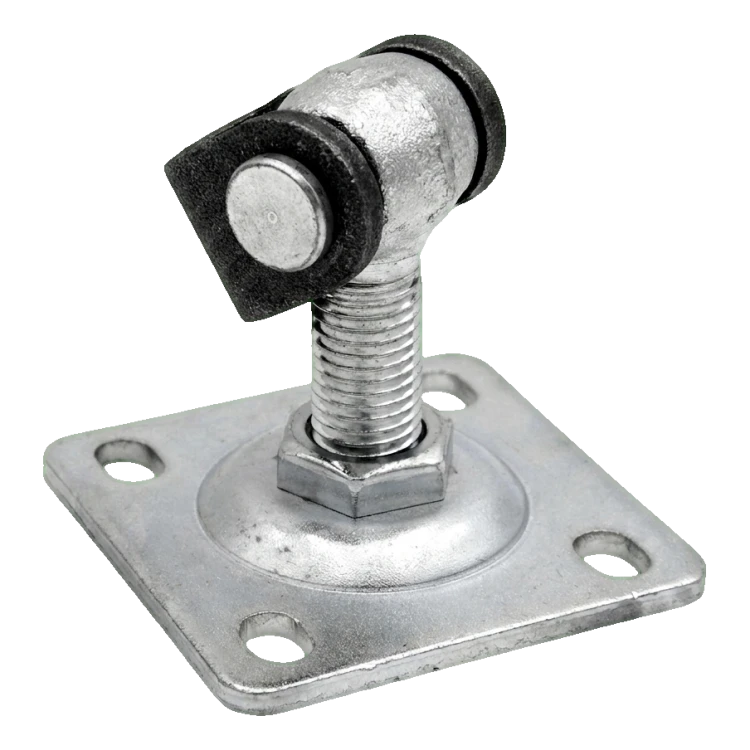

Adjustable hinge with M16 plate from PSG is a durable hardware component designed for mounting gates and garden wickets. Thanks to the M16 thread and post-installation adjustment capability, it ensures precise leaf-to-post alignment — resulting in fewer corrections and faster project completion.
The plate equipped with 'slotted' mounting holes enables secure attachment to fencing posts. The hinge is galvanised, with the lug made from raw steel — construction adapted for years of outdoor use.
Installer advantages
- Post-installation adjustment — optimal leaf positioning without dismantling
- Galvanising — high, long-term corrosion protection for external applications
- High resistance to wear and mechanical damage
- Aesthetic, neat plate finish

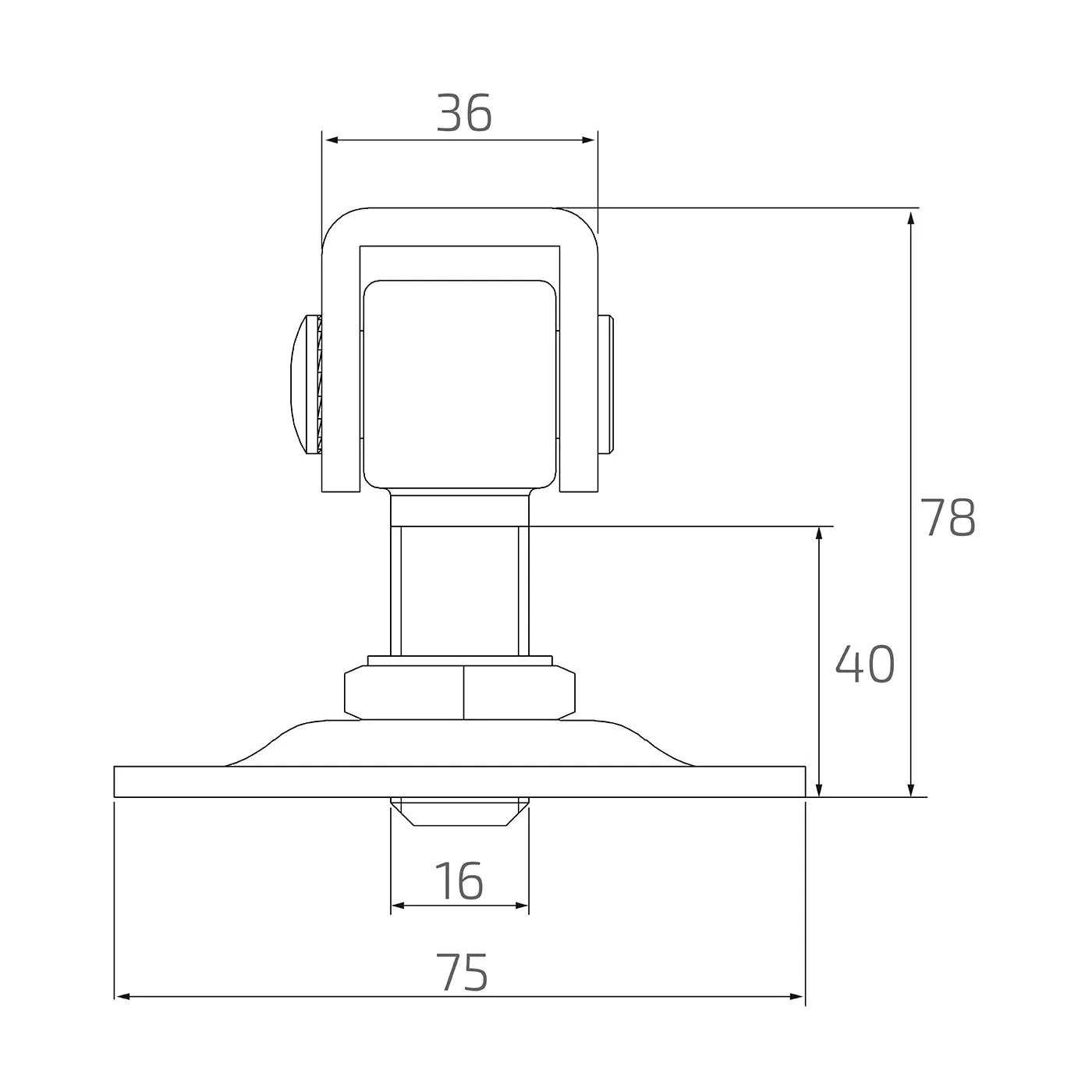

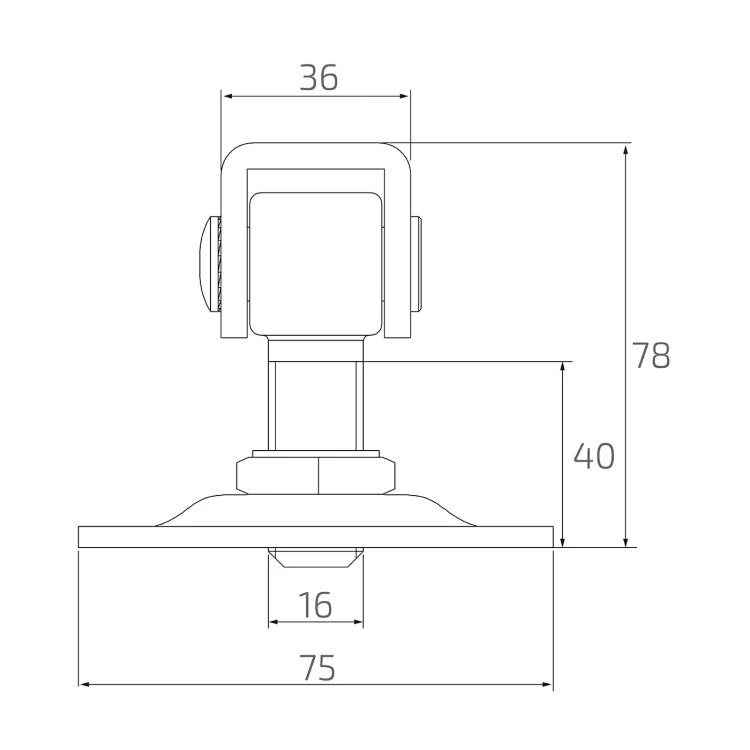

Dimensions and technical parameters
- Thread: M16
- Plate dimension: 75 × 75 mm
- Plate thickness: 3 mm
- Lug (yoke) width: 36 mm
- Total height (extension): 78 mm
- Extension to lug: 40 mm
- Material: steel
- Corrosion protection: galvanised
- Weight: 0.4 kg
Permissible load
Hinge pair on 2 m length leaf — load capacity up to 65 kg.
