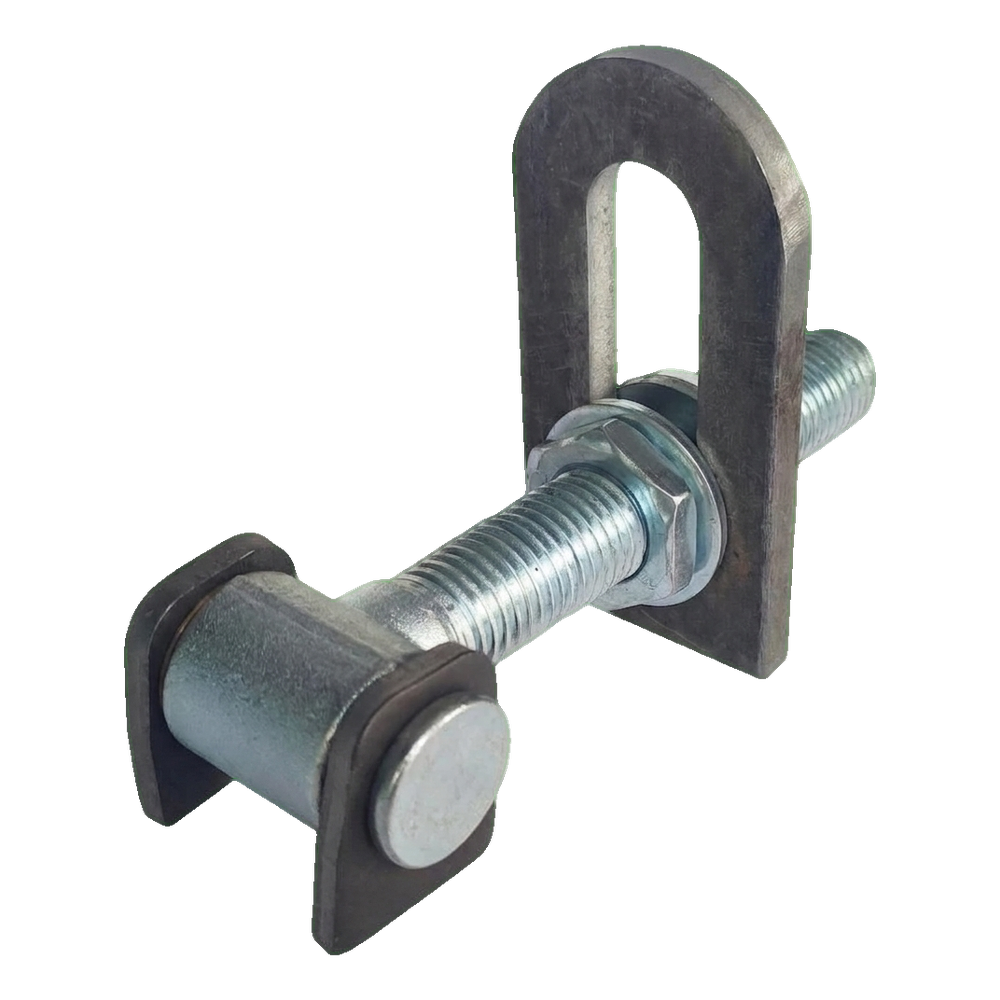

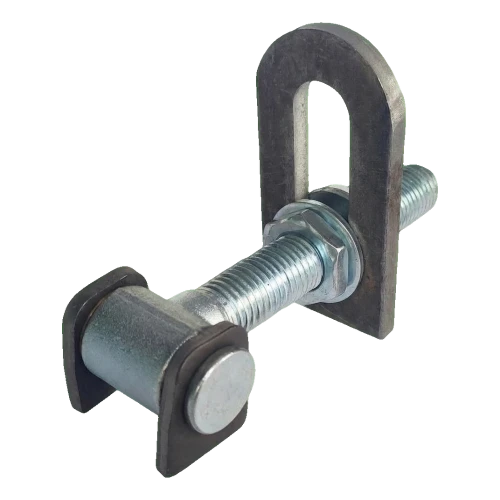

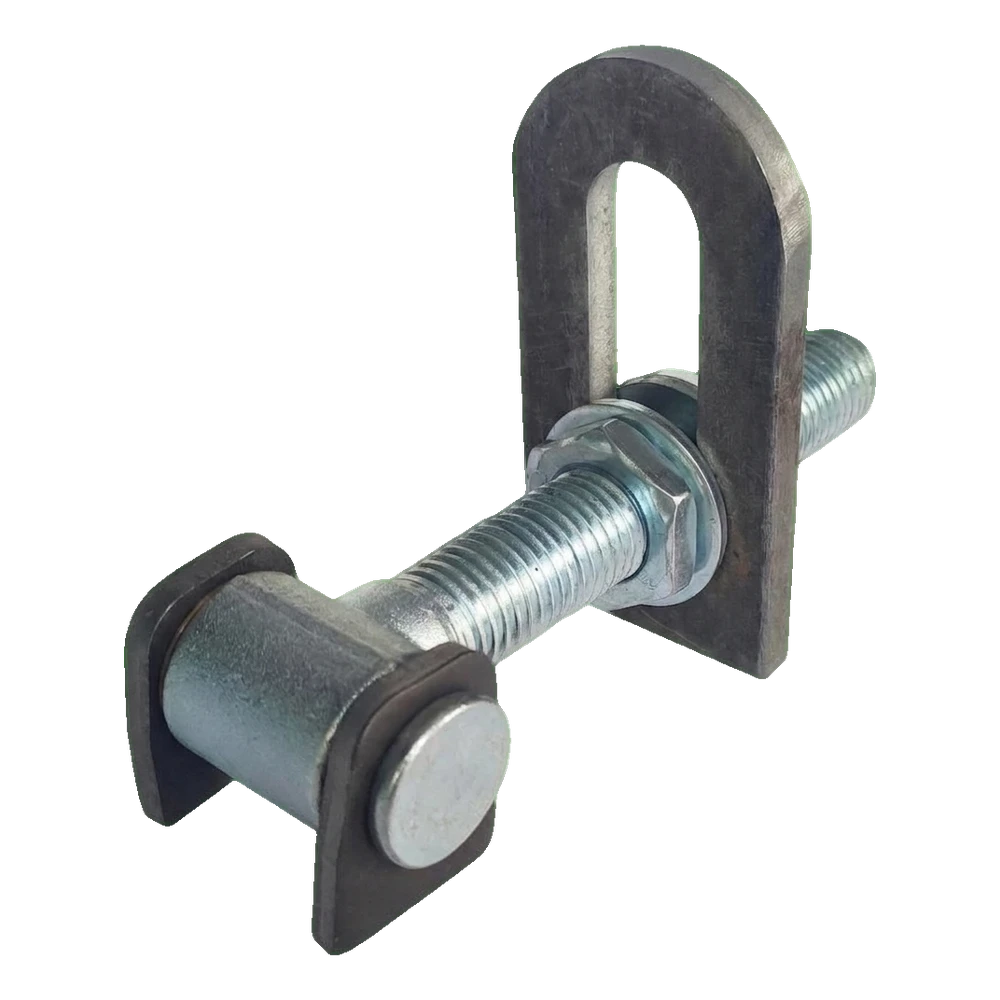

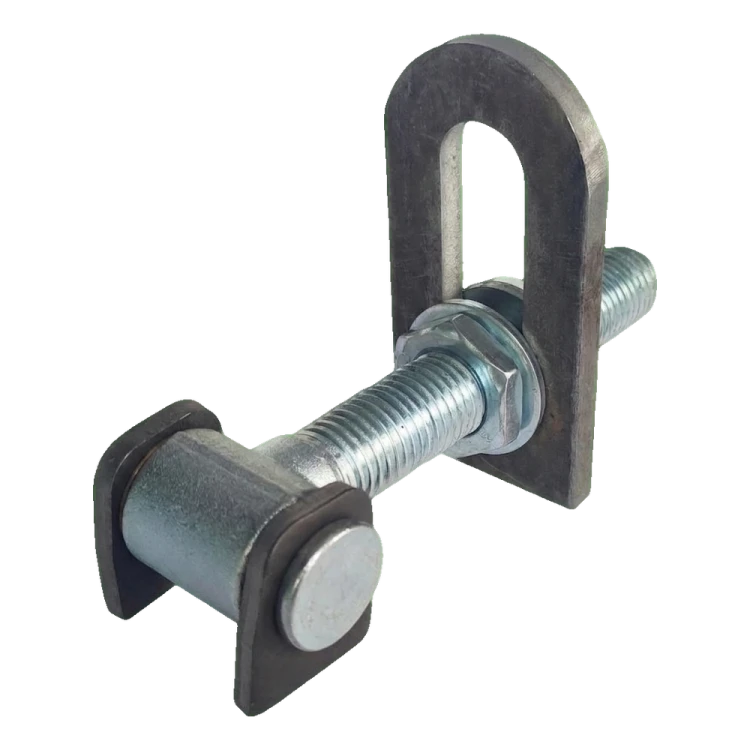

PSG adjustable gate hinge M24 with brass bushings - 180° opening angle
Leave feedback on the product
Adjustable gate hinge PSG M24 with brass bushings. 180° opening angle, load capacity per pair up to 700 kg. Galvanised steel pin, black steel ear and connector. Dimensions 180x120x60 mm, weight 1.4 kg.
Product code: 001-381
Product features
[PIM] zawiasy #113
- Thread type M24
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG adjustable gate hinge M24 with brass bushings - 180° opening angle
Adjustable hinge PSG M24 with brass bushings is a robust hardware component designed for mounting swing gates and wickets. Thanks to the 180° opening angle and adjustability feature, it provides full comfort of use and precise positioning of the gate leaf. A pair of hinges can handle loads up to 700 kg, making them a suitable choice for both lightweight wickets and heavy industrial gates.
The hinge pin is galvanised, which guarantees high corrosion resistance and long-lasting durability in varying atmospheric conditions. The ear and connector are made of black steel, whilst brass bushings are used between the ear and pin, ensuring smooth operation of the rotating mechanism and minimising wear of cooperating components.
Technical data
- Pin thread: M24
- Opening angle: 180°
- Maximum load capacity per pair of hinges: 700 kg
- Weight of single hinge: 1.4 kg
Materials
- Pin: galvanised steel - corrosion resistance
- Ear and connector: black steel
- Bushings: brass - low friction, long service life

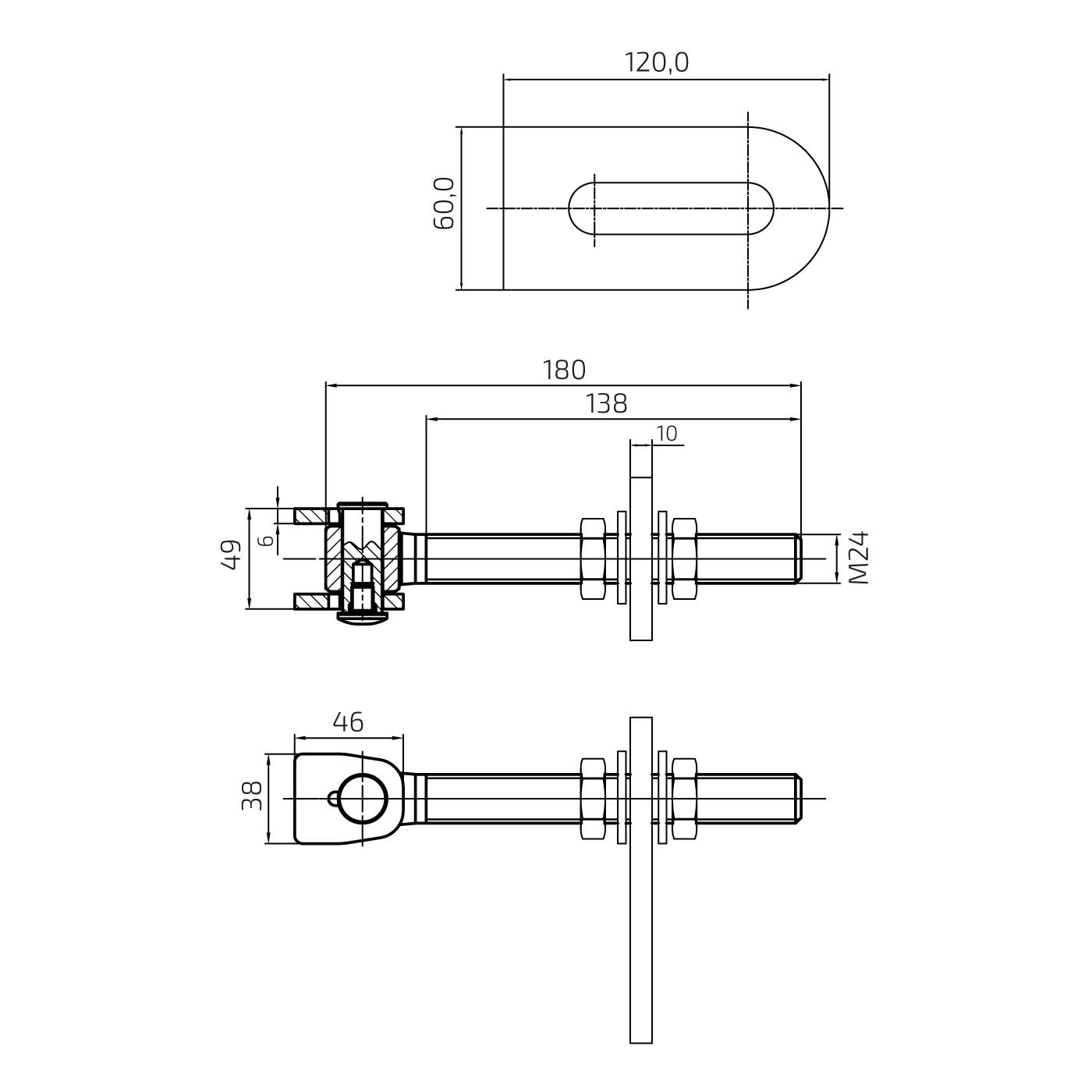

Dimensions
- Total length (from pin axis to thread end): 180 mm
- Threaded section length: 138 mm
- Ear dimensions (mounting plate): 120 × 60 mm
- Ear plate thickness: 6 mm
- Pin assembly height: 49 mm
- Hinge body dimensions: 46 × 38 mm
- Mounting plate thickness (post/leaf): 10 mm
- EAN: 5903313204026
The adjustable hinge construction facilitates precise levelling of the gate leaf after installation, which allows for elimination of ground irregularities and post deviations. For installers, this means quicker adjustment, fewer complaints and greater end-customer satisfaction.
