PSG adjustable gate hinge M20 with 100×100 mm plate galvanised – black eye
Description

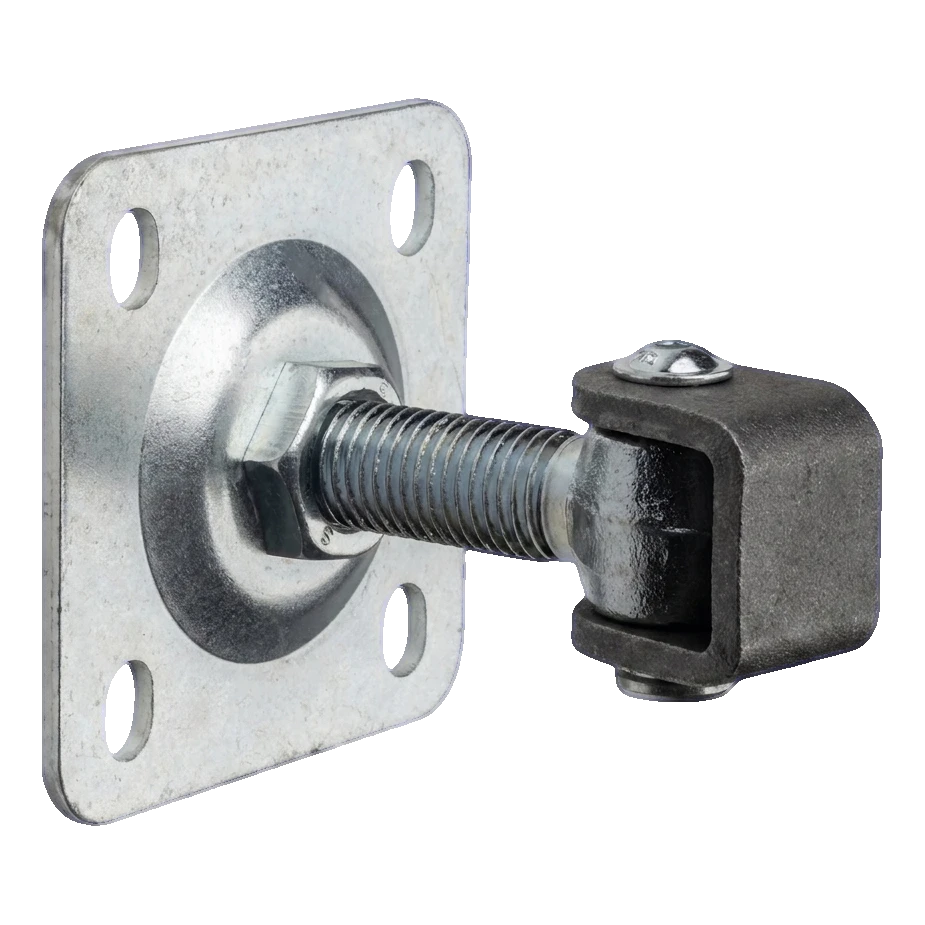

PSG adjustable gate hinge M20 with 100×100 mm plate galvanised – black eye

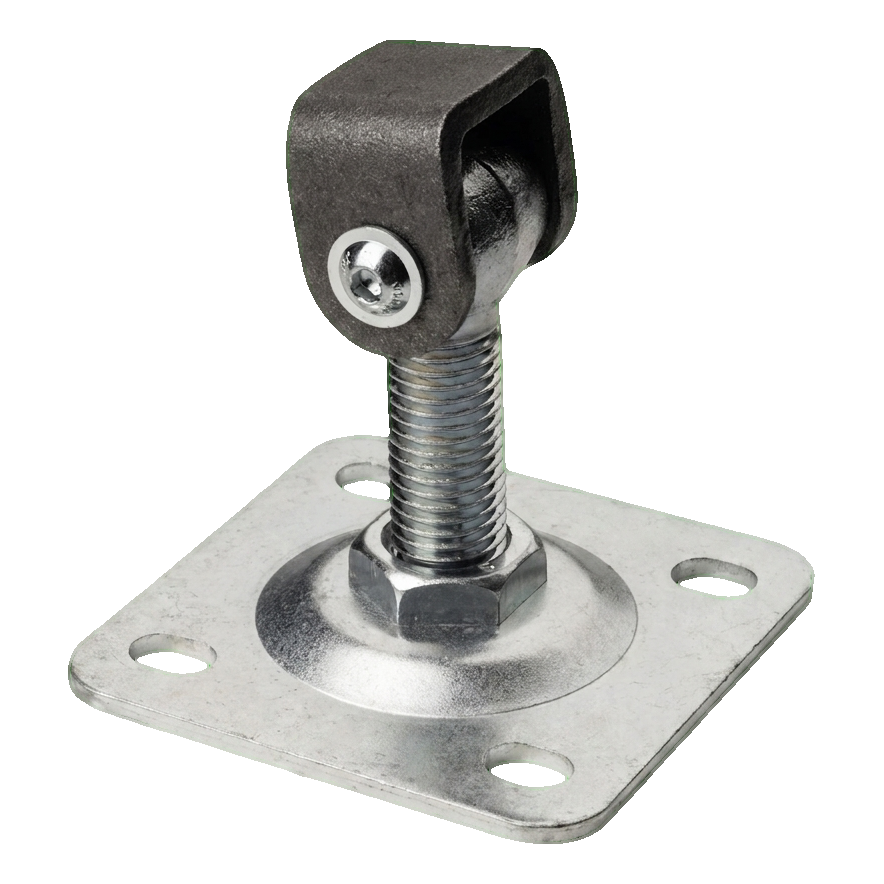

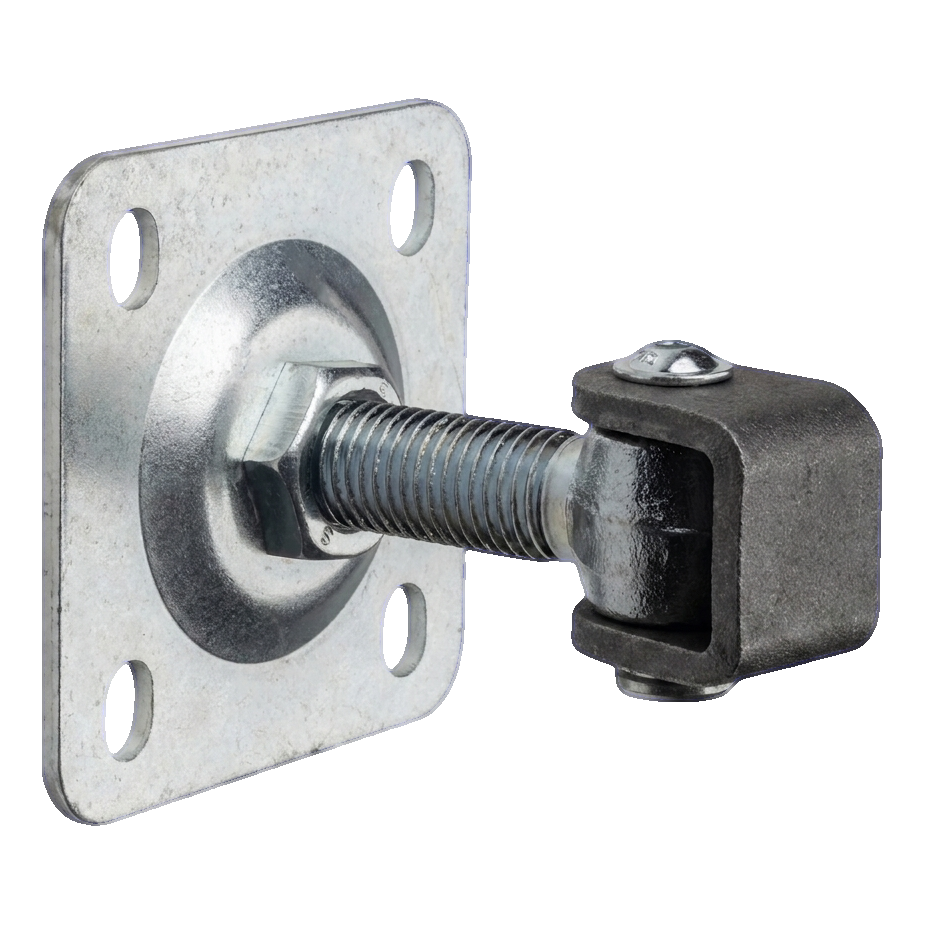

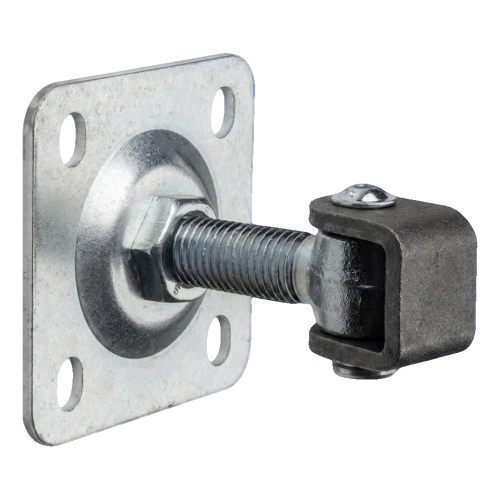

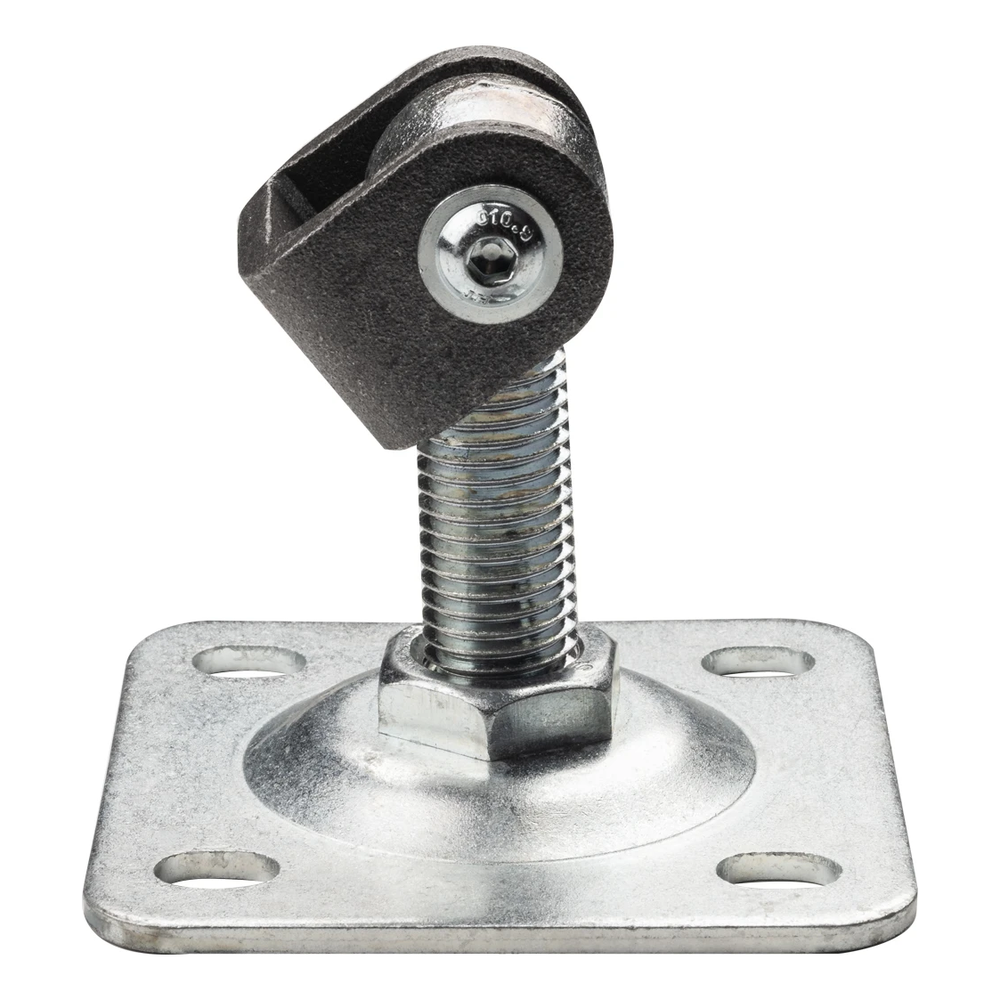

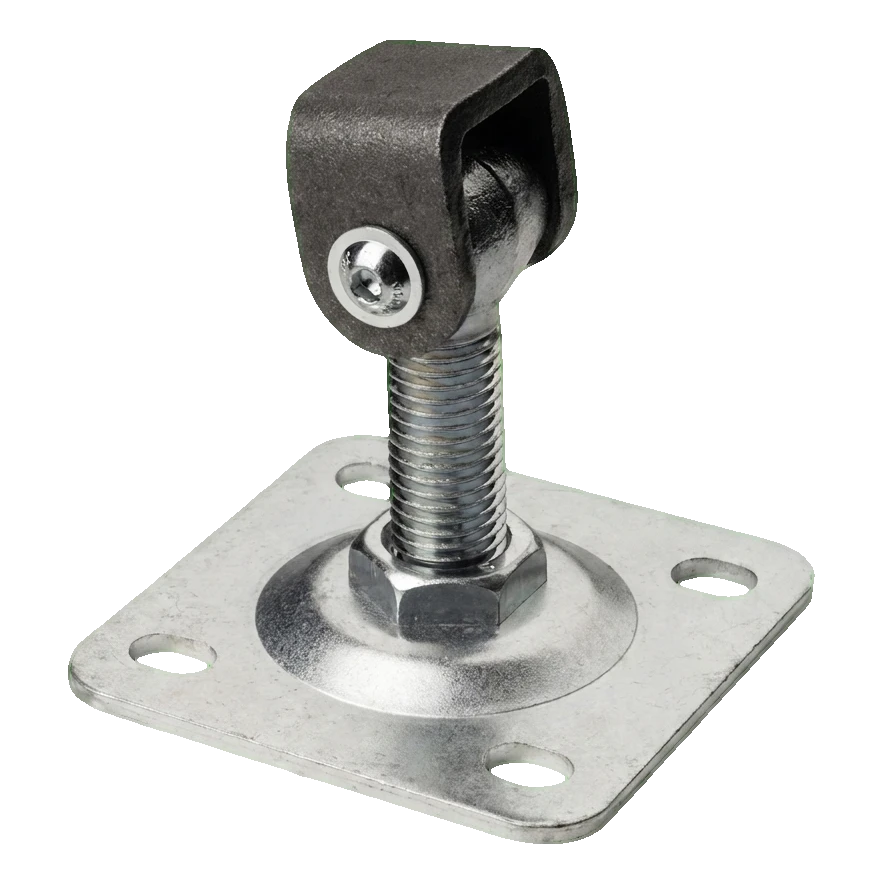

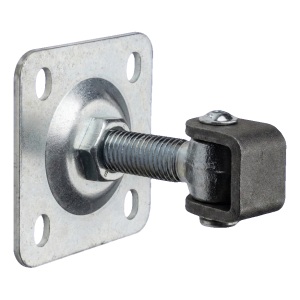

PSG adjustable hinge M20 with 100×100 mm plate is a robust and proven mounting solution designed for swing gates. Steel construction with galvanising and black eye ensures years of corrosion resistance and an aesthetic, professional appearance. Thanks to the M20 thread with adjustment nut, the gate leaf position can be corrected at any time — without the need to remove the hinge.
Post-installation adjustment — key advantage
The most important feature of this hinge is the ability to adjust even after installation is complete. Using the adjustment nut, the hinge can be tightened or loosened at any time — for example, in case of gate structure sagging or during extreme winter temperatures when metal contracts due to frost. Adjustment allows for quick restoration of original settings without dismantling, which saves time and maintenance costs on site.
Product characteristics
- Plate with dimensions 100×100 mm and thickness 4 mm provides solid mounting to the gate post, increasing stability and strength of the entire structure
- Galvanising protects against corrosion in harsh atmospheric conditions, guaranteeing years of durability
- Black eye (rotating element) — aesthetic finish contrasting with the galvanised plate
- High resistance to wear and mechanical damage minimises maintenance requirements
- Designed for swing gates — ideal for intensively used driveways and fencing
Dimensions and technical data
- Manufacturer: PSG
- Material: steel
- Anti-corrosion protection: zinc coating (eye black)
- Thread: M20
- Plate dimensions: 100×100 mm
- Plate thickness: 4 mm

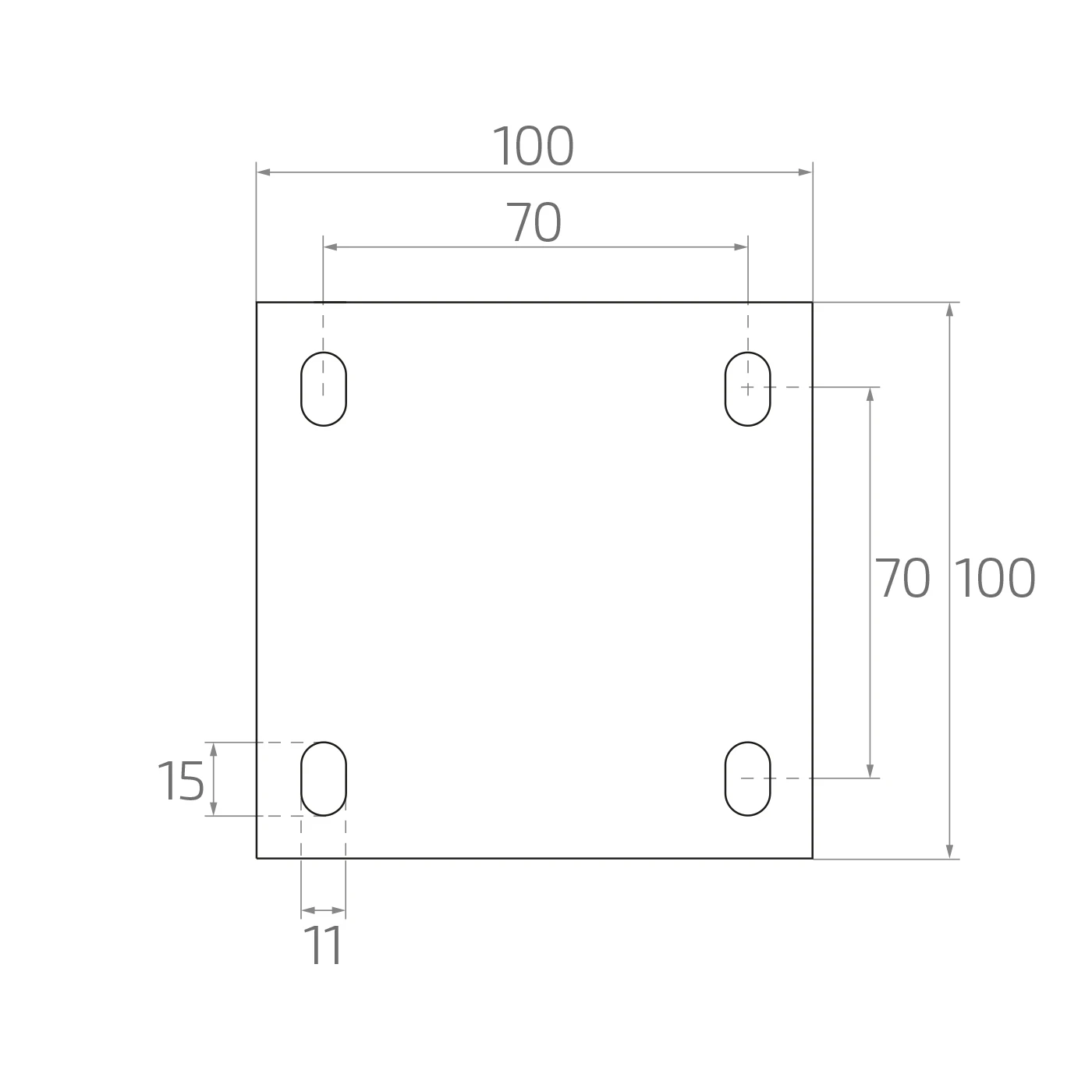

- Mounting hole spacing: 70×70 mm
- Mounting hole dimensions: 15×11 mm (slotted holes)

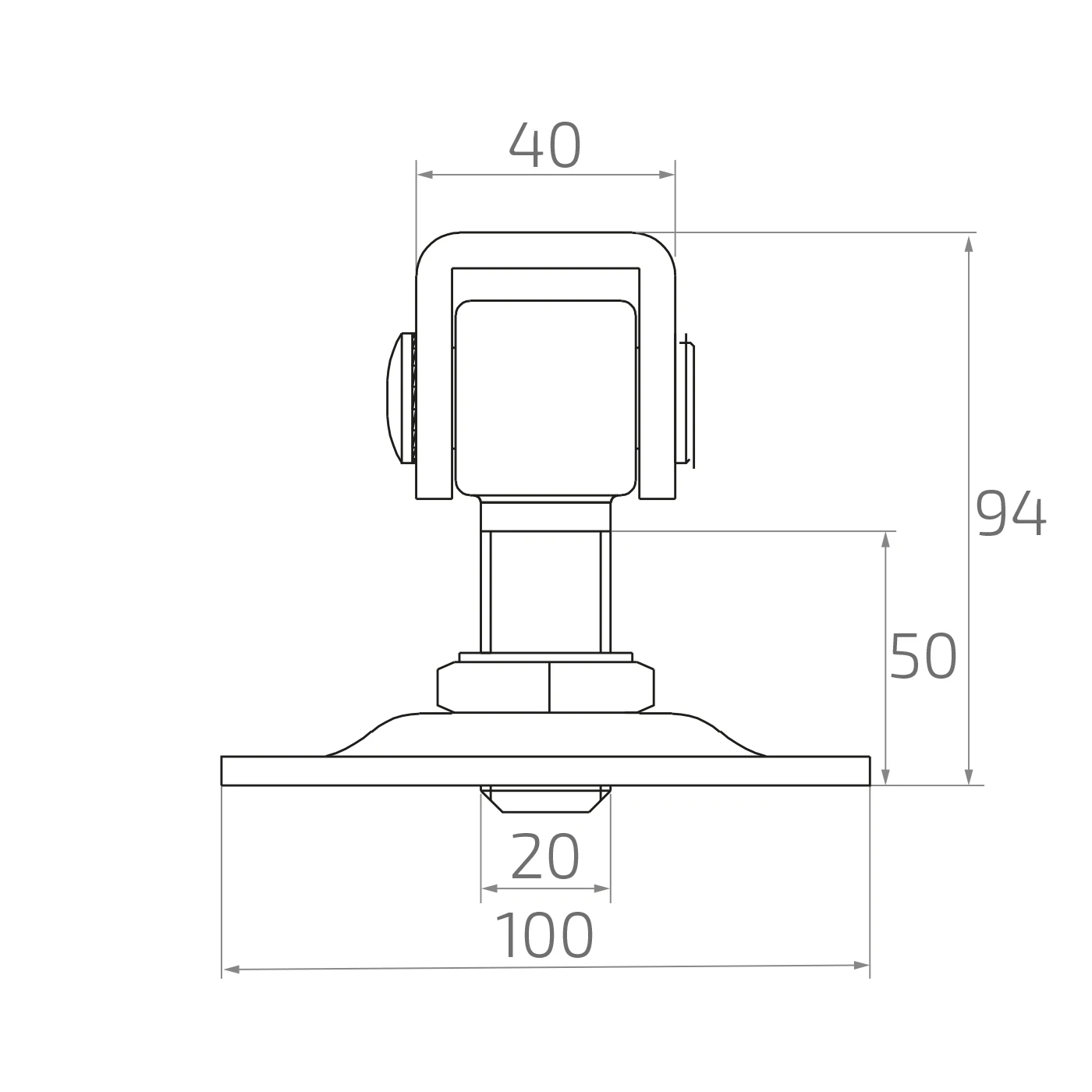

- Eye width: 40 mm
- Projection from plate to end of eye: 94 mm
- Projection from plate to rotation axis: 50 mm
- Threaded spindle diameter: 20 mm (M20)
- Weight: 0.8 kg
Installation and application
The plate is mounted to the gate post using four slotted holes (15×11 mm) positioned with 70×70 mm spacing, providing adjustment margin already at the fixing stage. The M20 threaded spindle with nut enables precise adjustment of height and gate leaf pressure. The hinge will work well in both steel constructions and masonry fence posts — wherever reliability and ease of servicing are required.
Technical data
| Thread type | M20 |
| Mounting Method | With Plate |
| Material | Steel |
