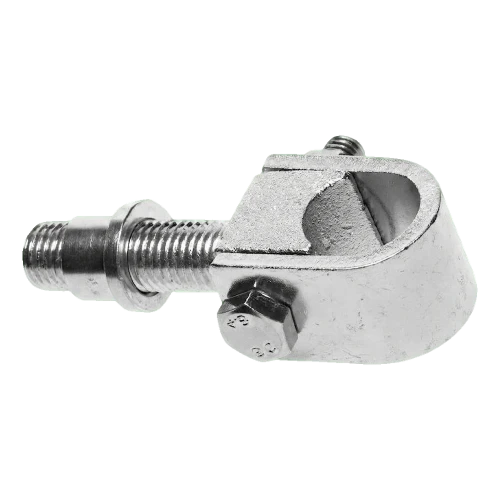

PSG adjustable gate hinge M20 galvanised for welding – 30 mm bore
Leave feedback on the product
PSG adjustable gate hinge M20 made from galvanised steel, M20 thread. Length 130 mm, bore diameter 30 mm, weight 0.635 kg. Permissible load for a pair is 100 kg on a 2 m gate leaf. For welding installation.
Product code: 001-383
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Weld-On
- Material Steel
Description
PSG adjustable gate hinge M20 galvanised for welding – 30 mm bore
Steel adjustable PSG hinge with M20 thread designed for mounting swing gates by welding. Thanks to threaded adjustment it enables precise positioning of the gate leaf both during installation and during operation — without the need to dismantle the structure. Galvanised coating guarantees years of corrosion resistance in external conditions, which eliminates the need for frequent maintenance and reduces operating costs.
Hinge adjustment is carried out using a nut on the M20 threaded pin. This allows correction of the leaf position at any time — for example after sagging of the structure under its own weight or thermal deformation of metal during winter. Simply tighten or loosen the nut to restore proper gate operation.
Permissible load for a pair of hinges mounted on a leaf with a length of 2 m is 100 kg.
Advantages for the installer
- Post-installation adjustment — nut on M20 thread allows quick correction of gate leaf positioning without dismantling
- Galvanised coating — high anti-corrosion protection for years, ear also galvanised
- Welding installation — permanent, non-detachable connection to post and gate leaf
- Robust steel construction — resistance to mechanical damage and heavy loads
- Quick installation — simple design reduces working time on site

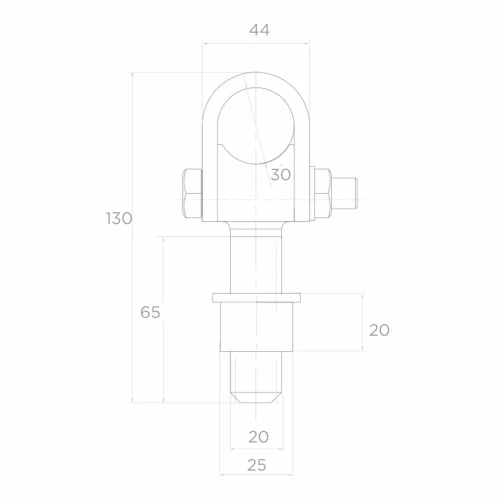

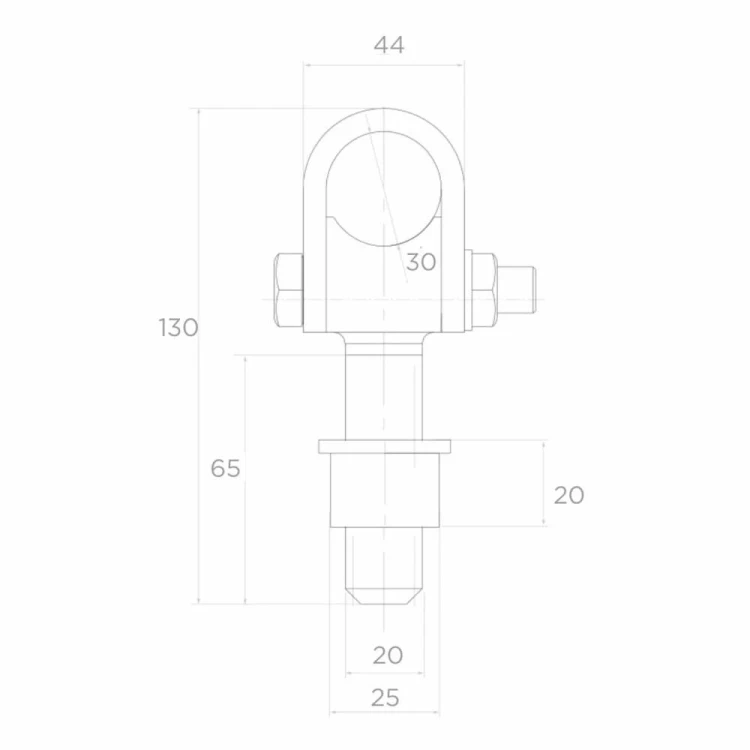

Dimensions and technical parameters
- Material: steel
- Anti-corrosion protection: galvanised (ear galvanised)
- Thread: M20
- Overall length: 130 mm
- Threaded pin length: 65 mm
- Ear width: 44 mm
- Ear internal diameter (pin bore): 30 mm bore
- Sleeve external diameter: 25 mm
- Pin diameter: 20 mm
- Sleeve height: 20 mm
- Weight: 0.635 kg
- Permissible load for pair of hinges (2 m leaf): 100 kg
- EAN: 5901289676205
