PSG adjustable gate hinge M20 L150 mm galvanised steel (circlip)
Description

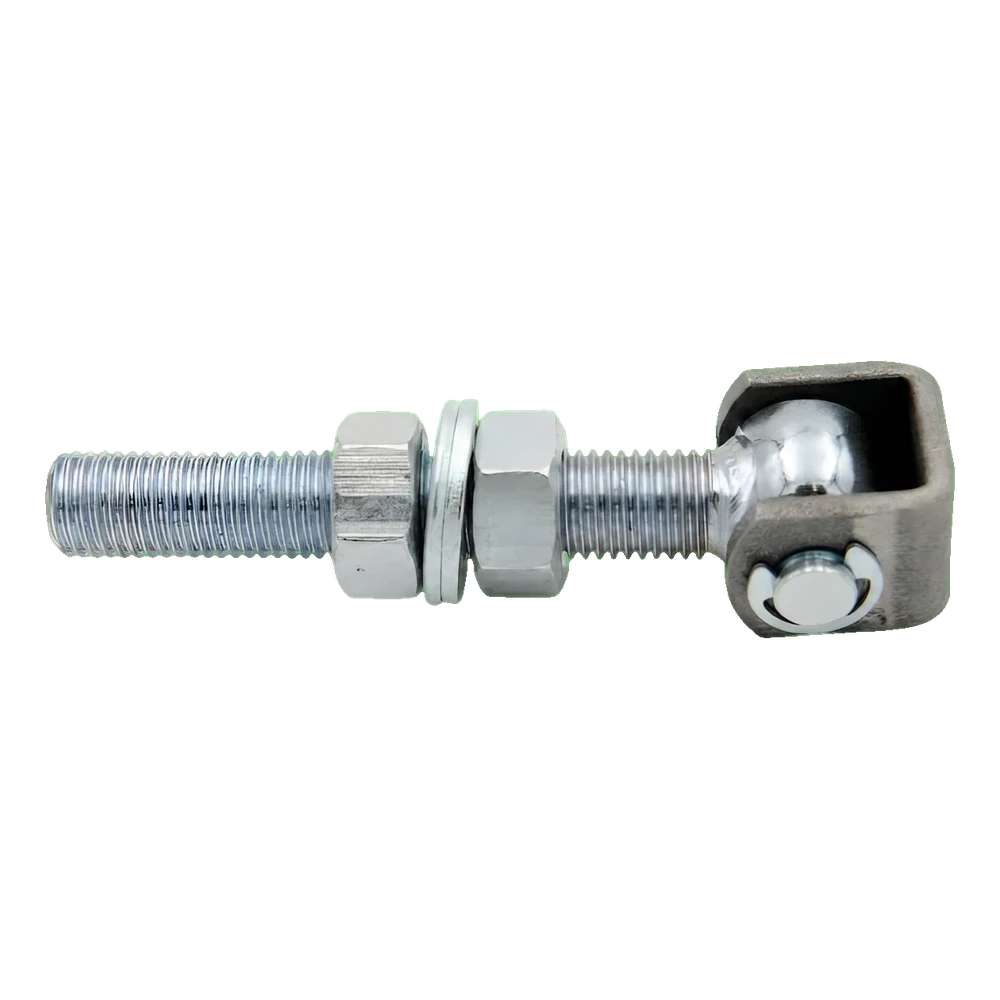

PSG adjustable gate hinge M20 L150 mm galvanised steel (circlip)
Adjustable gate hinge PSG M20 with circlip safety feature is a robust hardware element designed for mounting swing gates, garden gates and fencing. The design based on M20 thread guarantees solid mounting in the post and full position adjustment of the gate leaf after installation — without the need to dismantle the entire hinge. The galvanised surface ensures years of corrosion resistance in outdoor conditions.
A pair of hinges carries the load of a gate leaf up to 2 m in length and weighing up to 105 kg, allowing them to be used on both lightweight garden gates and solid entrance gates.

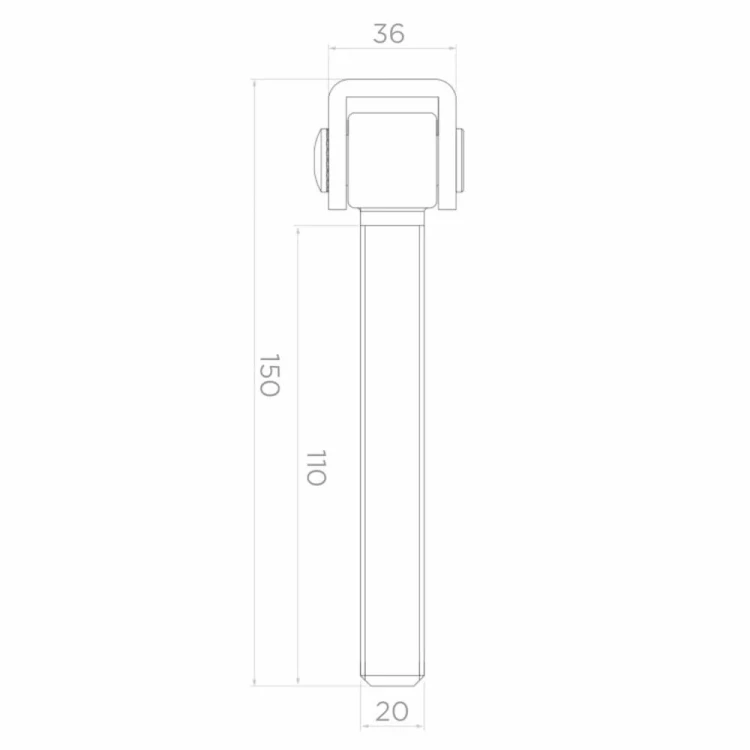

Dimensions and technical parameters
- Type: adjustable hinge with circlip
- Manufacturer: PSG
- Thread: M20
- Total length: 150 mm
- Bolt length (threaded shaft): 110 mm
- Eye width: 36 mm
- Shaft diameter: 20 mm
- Material: steel
- Anti-corrosion protection: galvanised (black eye)
- Weight: 0.6 kg
- Permissible load (pair of hinges): gate leaf up to 2 m length and 105 kg weight
- EAN: 5903313216548
High corrosion resistance
PSG hinges are coated with a zinc layer that effectively protects the steel against rust, moisture and varying weather conditions. The hinge eye has a black finish, ensuring an aesthetic appearance and discreet integration into the gate or garden gate structure. This ensures the product maintains full functionality and aesthetics for many seasons — even in locations particularly exposed to precipitation and moisture.
Easy adjustment after installation
The M20 thread with locking nuts enables precise adjustment of the height and position of the gate leaf without the need to dismantle the hinge. This is particularly important in varying temperature conditions, when metal structures work under the influence of thermal expansion. Adjustment also allows for easy correction of gate leaf sagging, which may occur over time with heavy gates.
Application
The PSG M20 adjustable hinge will work well wherever a solid, adjustable hinge is required for external structures — single and double-leaf swing gates, garden gates, utility doors and fencing. The circlip safety feature prevents the ball pin from sliding out of the eye, increasing safety of use.
Technical data
| Thread type | M20 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
