PSG adjustable gate hinge M18 with 80×80 mm galvanised plate
Leave feedback on the product
PSG adjustable hinge M18 made of steel, 80×80 mm galvanised plate with black ear. Plate thickness 4 mm, projection 80 mm, M18 screw length 40 mm. Weight 0.52 kg. For swing gates and wickets, pair load capacity 80 kg.
Product code: 001-366
Product features
[PIM] zawiasy #113
- Thread type M18
- Mounting Method With Plate
- Material Steel
Description

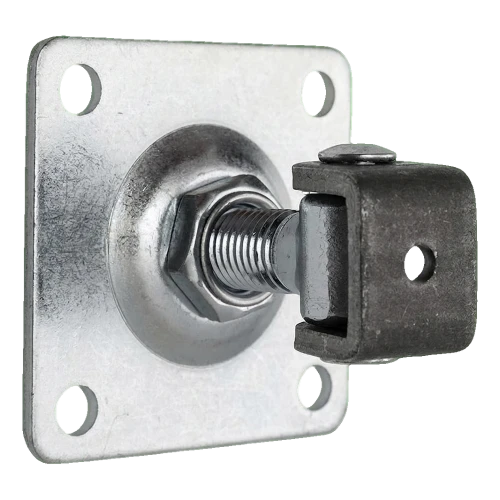

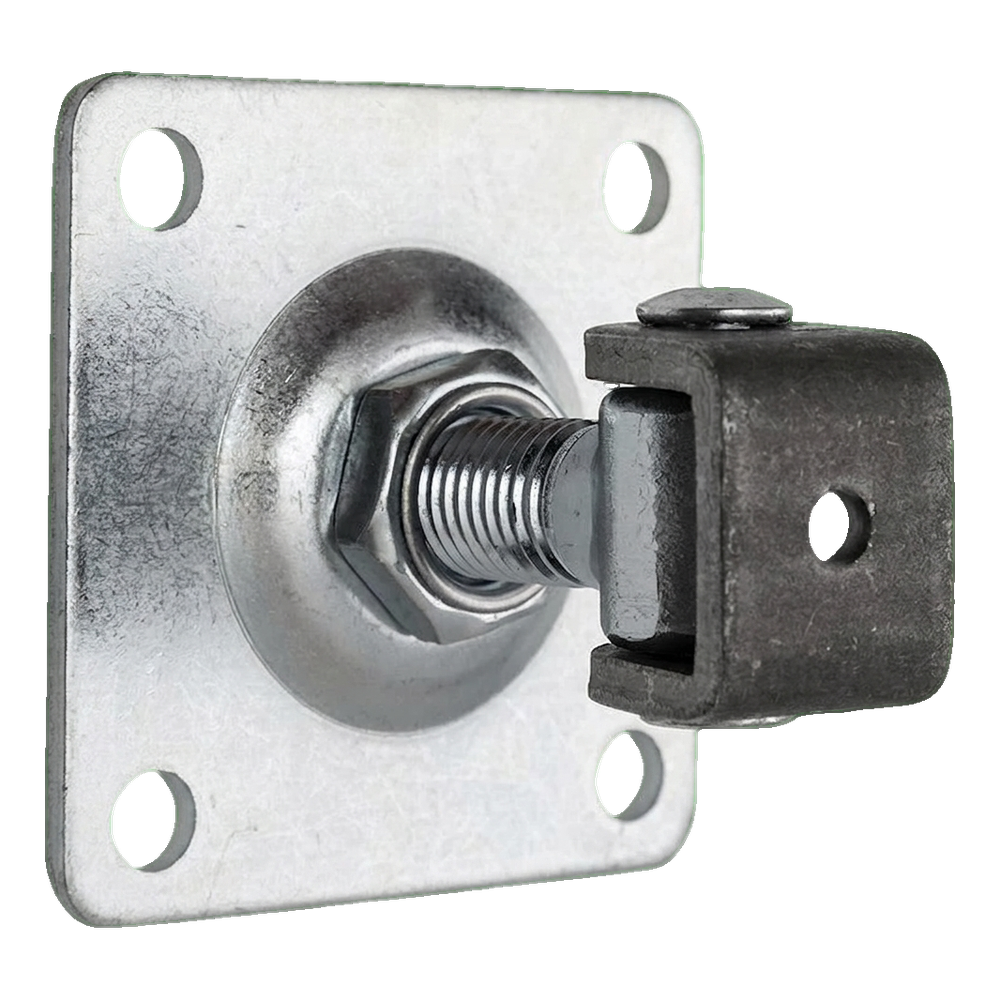

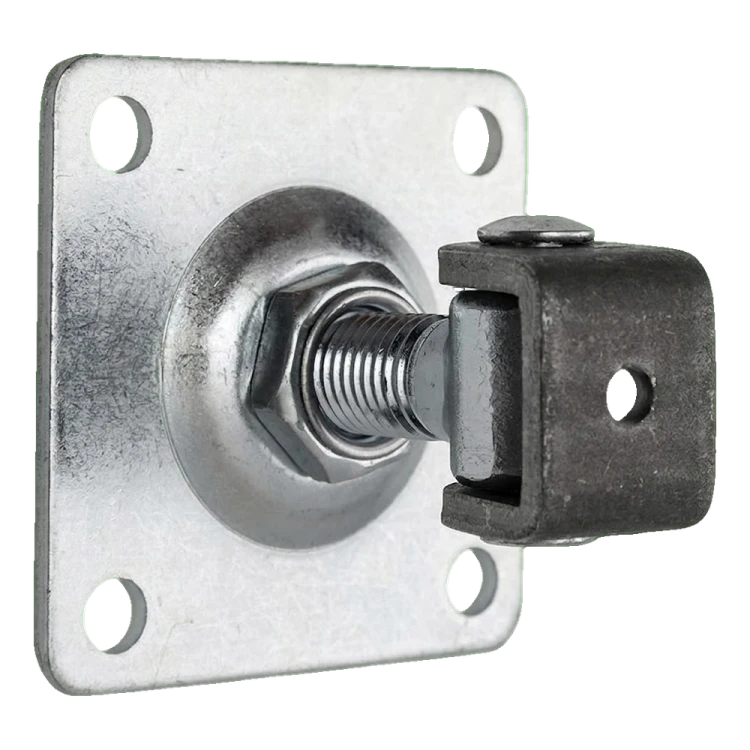

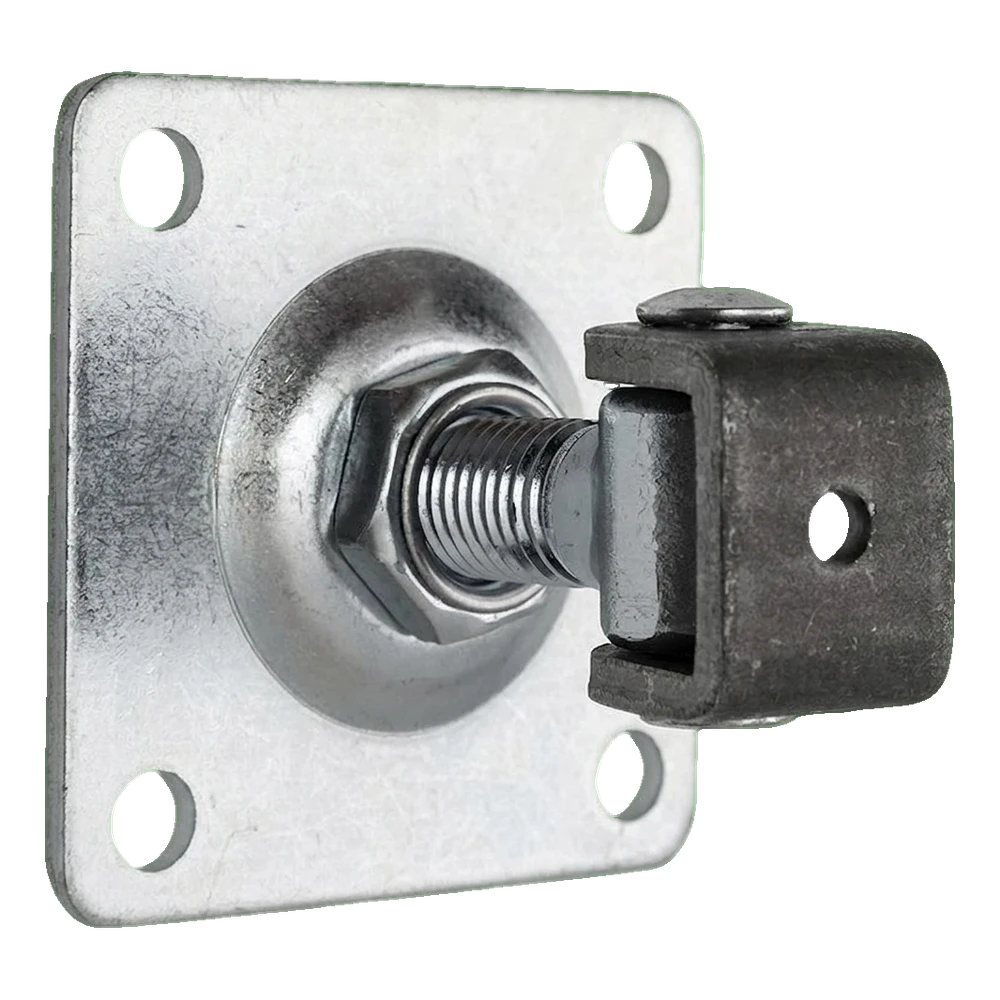

PSG adjustable gate hinge M18 with 80×80 mm galvanised plate
Steel adjustable PSG hinge with M18 screw designed for mounting swing gates and wickets. The plate measuring 80×80 mm with four mounting holes ensures stable and secure attachment to the post. Thanks to the threaded adjustment, the hinge can be precisely levelled at any time — both during installation and after years of use, when the structure sags or undergoes thermal deformation.
Anti-corrosion protection in the form of galvanising guarantees years of resistance to atmospheric conditions, making the hinge suitable for outdoor applications without additional maintenance. The black hinge ear provides an aesthetic visual accent.
Permissible load of a pair of hinges on a 2 m long gate leaf is 80 kg.
Advantages
- Post-installation adjustment — ability to tighten or loosen the nut in case of structural sagging or temperature changes
- Galvanised surface — years of corrosion protection, designed for outdoor use
- High strength — steel construction resistant to mechanical damage and wear
- Aesthetic finish — galvanised plate with black ear
- Easy installation — plate with 4 holes for screwing to the post

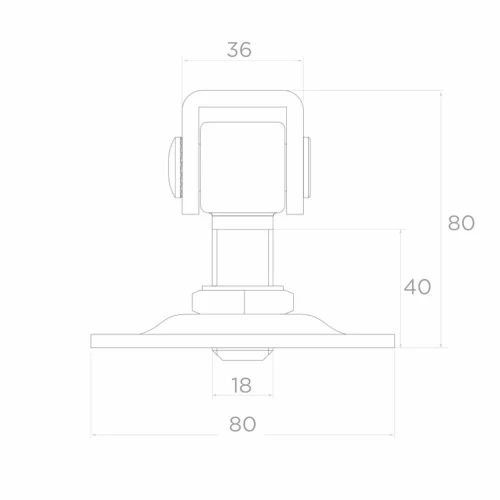

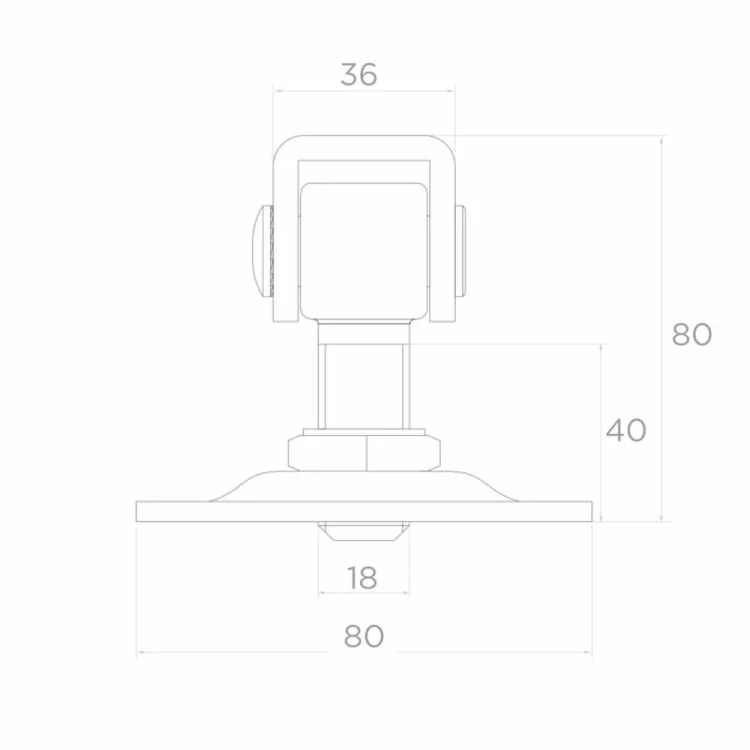

Dimensions and technical parameters
- Material: steel
- Anti-corrosion protection: galvanised (black ear)
- Thread: M18
- Plate dimensions: 80×80 mm
- Plate thickness: 4 mm
- Overall length (projection): 80 mm
- Screw length: 40 mm
- Ear width: 36 mm
- Weight: 0.52 kg
- Permissible load for pair (2 m gate leaf): 80 kg
- EAN: 5901289675963
