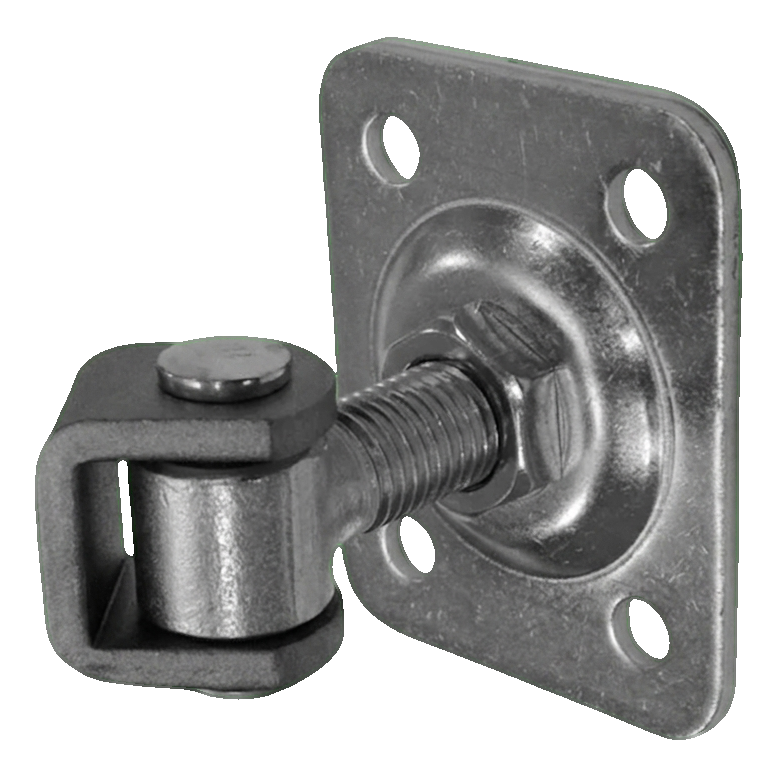

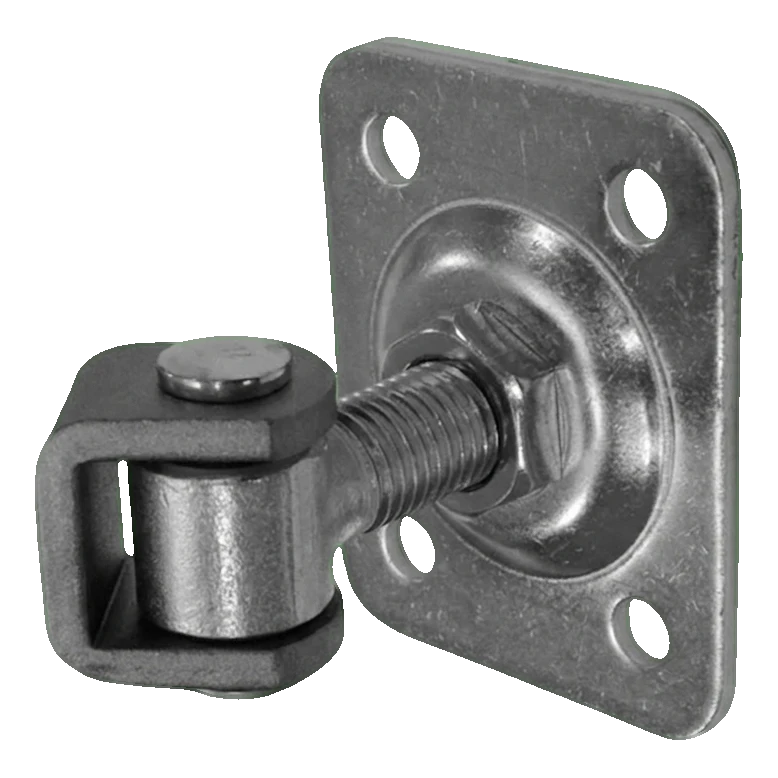

PSG adjustable gate hinge M16 with rectangular plate 75x55 mm galvanised
Leave feedback on the product
PSG adjustable gate hinge M16 with rectangular plate 75x55 mm, galvanised steel. Plate thickness 3 mm, weight 0.38 kg. M16 thread with adjusting nut. For gates and swing gates.
Product code: 001-391
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
PSG adjustable gate hinge M16 with rectangular plate 75x55 mm galvanised
Adjustable M16 hinge with rectangular plate from PSG is a robust ironmongery component designed for mounting gates and swing gates. Thanks to the M16 thread and adjusting nut, it enables precise correction of gate leaf positioning — both directly after installation and during operation, which significantly reduces servicing time and eliminates the need for structure dismantling.
Steel construction with galvanised coating provides high resistance to corrosion, wear and mechanical damage, allowing the hinge to perform in outdoor conditions throughout the year. Adjustment is particularly useful when structures sag under their own weight or during thermal deformation — sudden temperature drops in winter cause metal to contract, which can lead to gate leaf jamming. Simply tighten or loosen the adjusting nut to restore smooth hinge operation.
Technical parameters
- Thread: M16
- Plate dimensions: 75 × 55 mm
- Plate thickness: 3 mm
- Material: galvanised steel
- Weight: 0.38 kg
- EAN: 5903313205405
Benefits for installers
- Post-installation adjustment — quick correction of gate or wicket leaf positioning without dismantling
- Weather resistance — galvanised coating protects against corrosion and enables outdoor operation
- High mechanical strength — steel construction resistant to wear and damage
- Rectangular mounting plate with four holes ensures stable and secure fixing to posts
- Aesthetic finish — neat appearance matching modern fencing systems
The PSG M16 adjustable hinge is a proven solution for fencing construction and modernisation — ease of installation and ability for later adjustment translate to fewer complaints and higher end-customer satisfaction.
