PSG adjustable gate hinge M16 with 75×75×4 mm steel plate
Leave feedback on the product

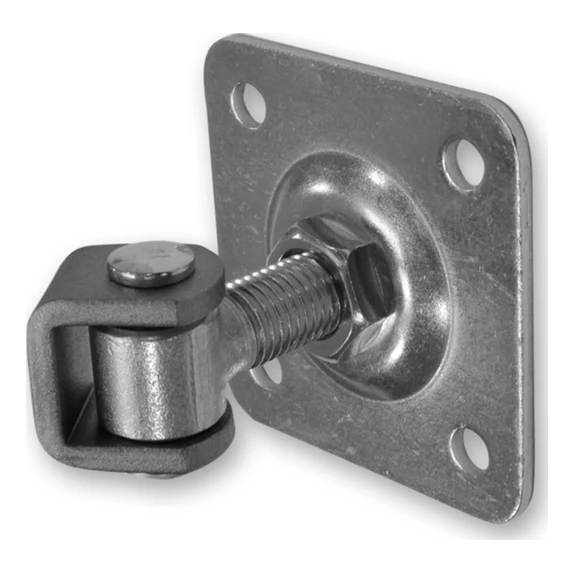

PSG adjustable gate hinge M16 steel with 75×75×4 mm plate. Adjustment range 52-72 mm, hole spacing 52×52 mm, holes ⌀8.5 mm. Bracket height 35 mm, width 25 mm, pin ⌀12 mm. Weight 0.4 kg. For gates and swing gates.
Product code: 001-367
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
PSG adjustable gate hinge M16 with 75×75×4 mm steel plate
Steel adjustable hinge with M16 thread designed for mounting gates and swing gates. The construction with adjustment nut enables precise correction of gate positioning without dismounting — both directly after installation and during operation, e.g. when the structure sags or thermal deformations occur in extreme weather conditions.
The mounting plate with dimensions 75×75 mm with four fixing holes ensures stable and even load transfer to the post. The adjustment range 52–72 mm allows flexible adaptation of hinge extension to different profile and post thicknesses, which significantly facilitates work for installation teams on site.

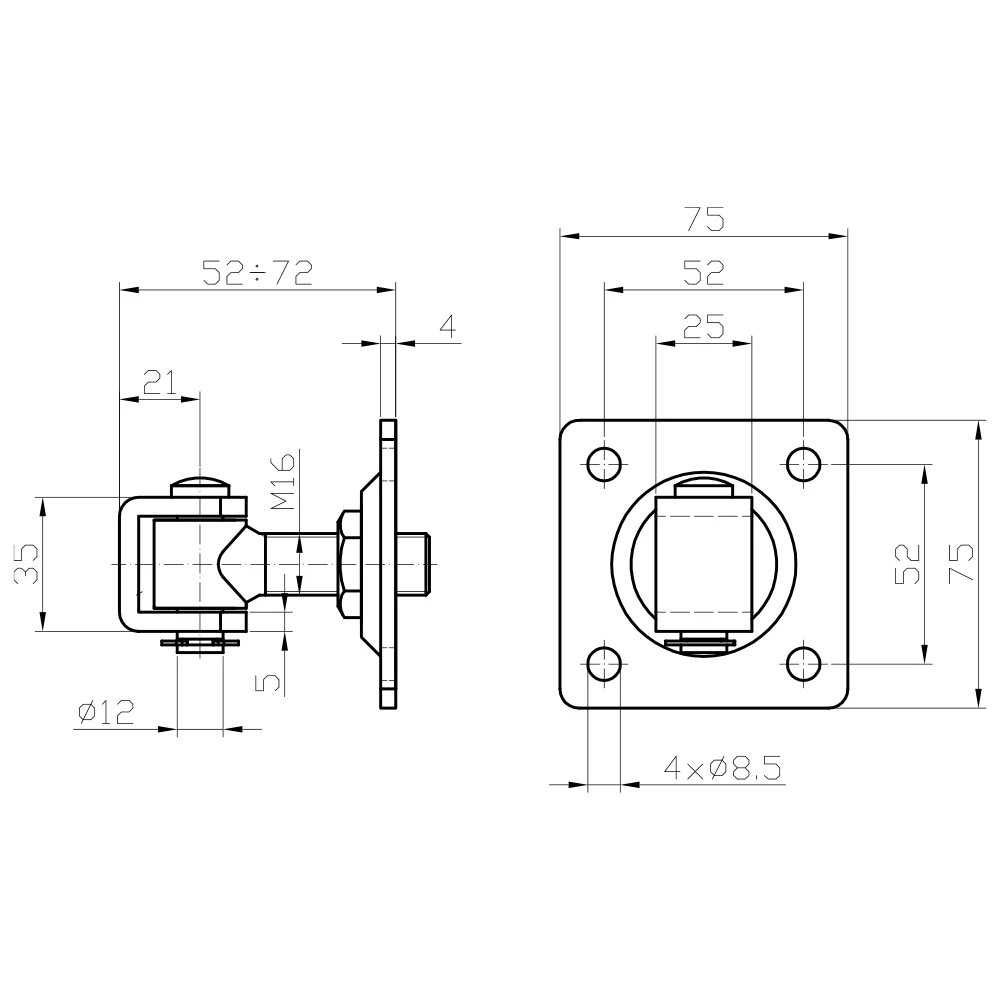

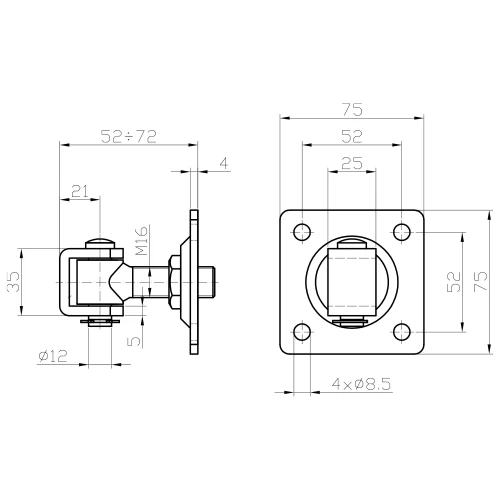

Dimensions and technical parameters
- Manufacturer: PSG
- Material: steel
- Screw thread: M16
- Mounting plate: 75 × 75 mm
- Mounting plate thickness: 4 mm
- Mounting hole spacing: 52 × 52 mm
- Mounting hole diameter: 4× ⌀8.5 mm
- Extension adjustment range: 52–72 mm
- Bracket height (external): 35 mm
- Internal bracket width: 25 mm
- Bracket depth: 21 mm
- Bracket plate thickness: 5 mm
- Pin diameter: ⌀12 mm
- Weight: 0.4 kg
- Application: gates and swing gates – external use
Advantages for the installer
- Post-installation adjustment — adjustment nut allows correction of gate positioning without dismounting the hinge
- Wide adjustment range (52–72 mm) — flexible adaptation to different post and profile thicknesses
- High mechanical strength — steel construction resistant to heavy loads and wear
- Designed for outdoor use — resistant to weather conditions and temperature changes
- Simple installation — four holes in the plate ensure secure fixing to the post with screws or bolts
