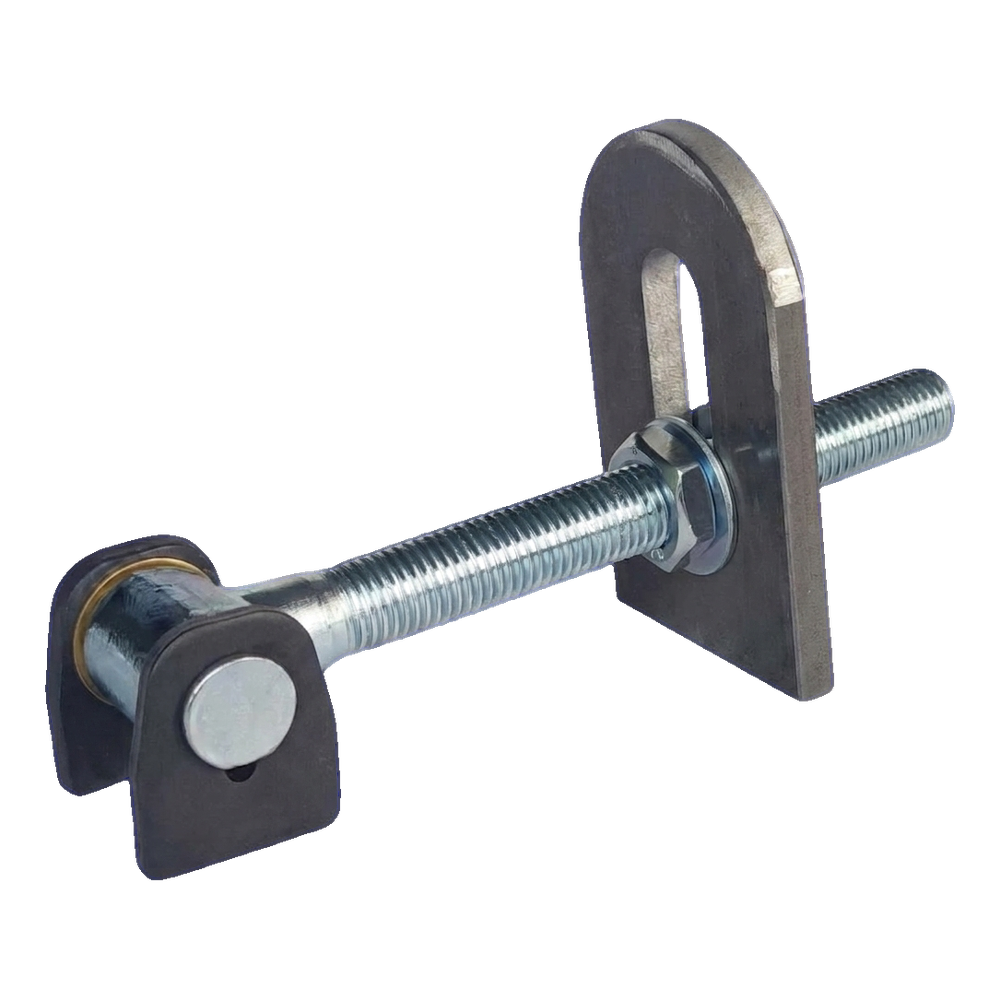

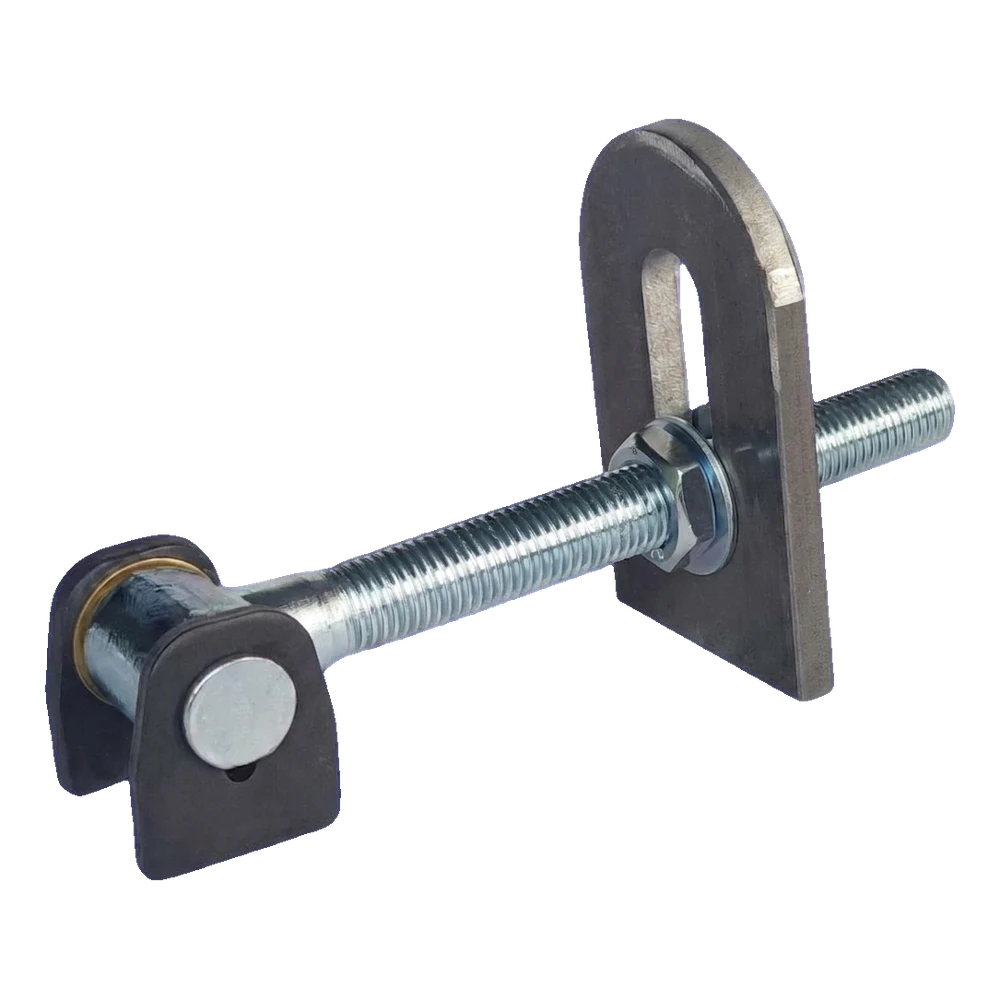

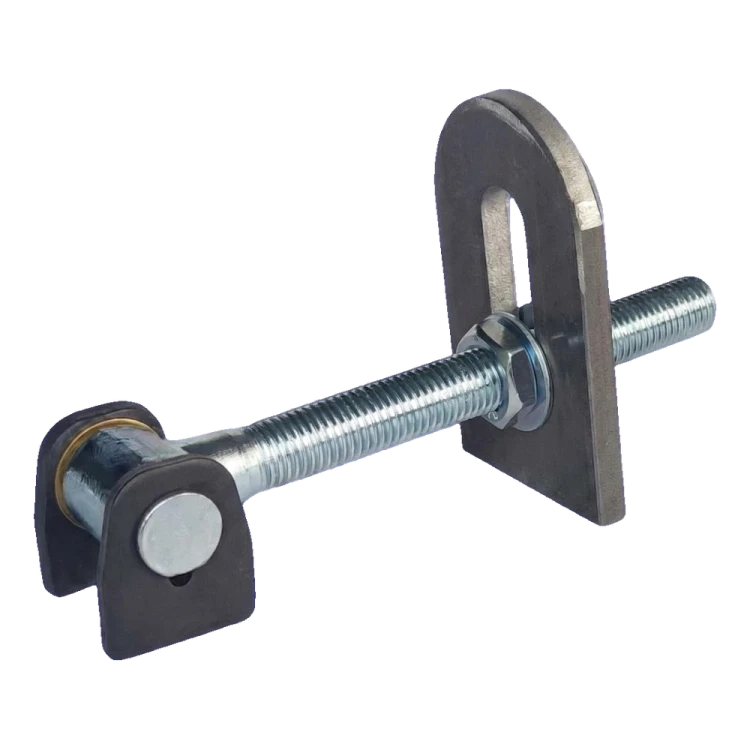

PSG adjustable gate hinge M16 – 180° opening angle with brass bushings
Leave feedback on the product
PSG adjustable hinge M16 made of steel, 180° opening angle. Galvanised M16 spindle, ear and connector made of black steel, brass bushings. Mounting plate 100×60×8 mm, total length 171 mm. Maximum load per pair 350 kg. Weight 0.76 kg. For gates and wickets.
Product code: 001-379
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG adjustable gate hinge M16 – 180° opening angle with brass bushings
PSG adjustable hinge M16 with 180° opening angle is a robust ironmongery component designed for mounting gates and wickets. Thanks to brass bushings between the ear and spindle, it ensures smooth adjustment and quiet hinge operation, eliminating metal-to-metal friction. The maximum load per pair of hinges is 350 kg, allowing use even with heavy gate leaves.
The hinge spindle is galvanised, which guarantees corrosion resistance and long-term operation in varying atmospheric conditions. The ear and connector are made of black steel – a component intended for painting or installation in protected structures.
Technical parameters
- Opening angle: 180°
- Spindle thread: M16
- Maximum load per pair of hinges: 350 kg
- Weight of single hinge: 0.76 kg
Materials and finish
- Spindle: galvanised steel – corrosion resistance
- Ear and connector: black steel
- Bushings: brass – eliminates friction and bimetallic corrosion
Dimensions
- Mounting plate (H × L): 100 × 60 mm
- Mounting plate thickness: 8 mm
- Total length (with spindle): 171 mm
- Threaded spindle length: 131 mm
- Hinge bracket height: 40 mm
- Hinge bracket width: 33 mm
- Bracket plate thickness: 5 mm
Application
The M16 adjustable hinge works well wherever a full 180° opening angle is required – in entrance gates, wickets, heavy farm doors and fencing structures. Adjustment on the threaded spindle allows precise setting of the leaf height after installation, which speeds up installation work and eliminates the need for precise positioning of posts.
EAN: 5903313203678
