PSG adjustable gate hinge M14 with rectangular plate 75×55 mm

Go to Product feedback

PSG adjustable gate hinge M14 with rectangular plate 75×55 mm. Steel, plate thickness 3 mm, mounting holes ⌀10.5 mm. Total length 69 mm, bracket 30×29×22 mm. For gates and swing gates. Weight 0.26 kg.

Go to full description
with VAT without VAT
Price €3.72
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] zawiasy #113

  • Thread type M14
  • Mounting Method With Plate
  • Material Steel

Description

PSG adjustable gate hinge M14 with rectangular plate 75×55 mm

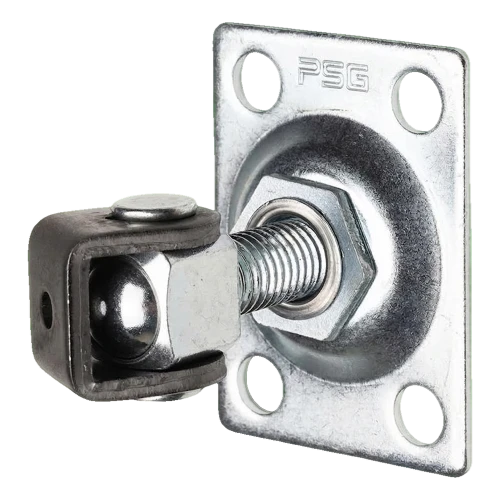

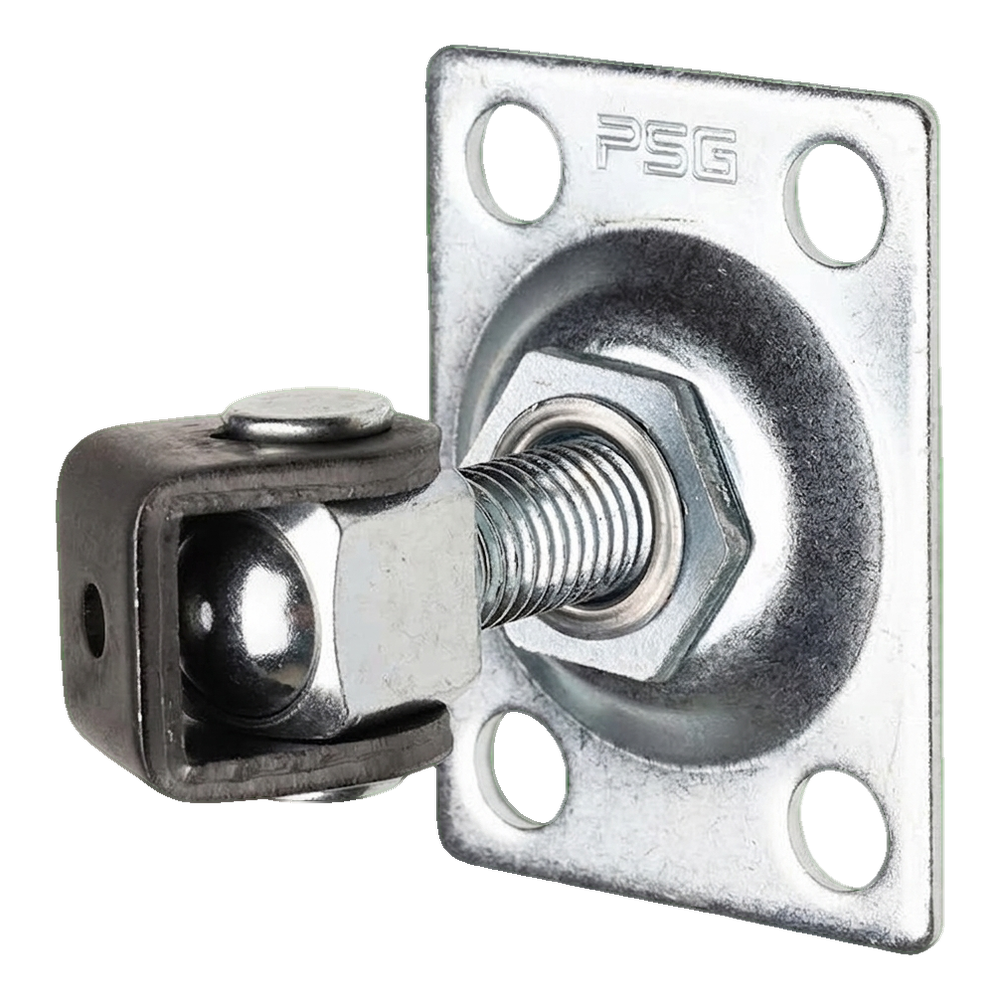

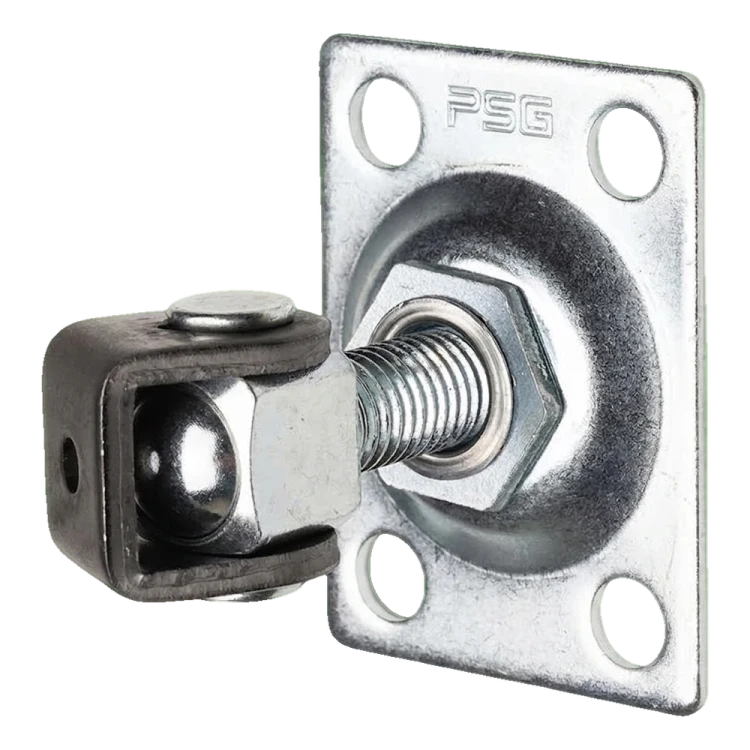

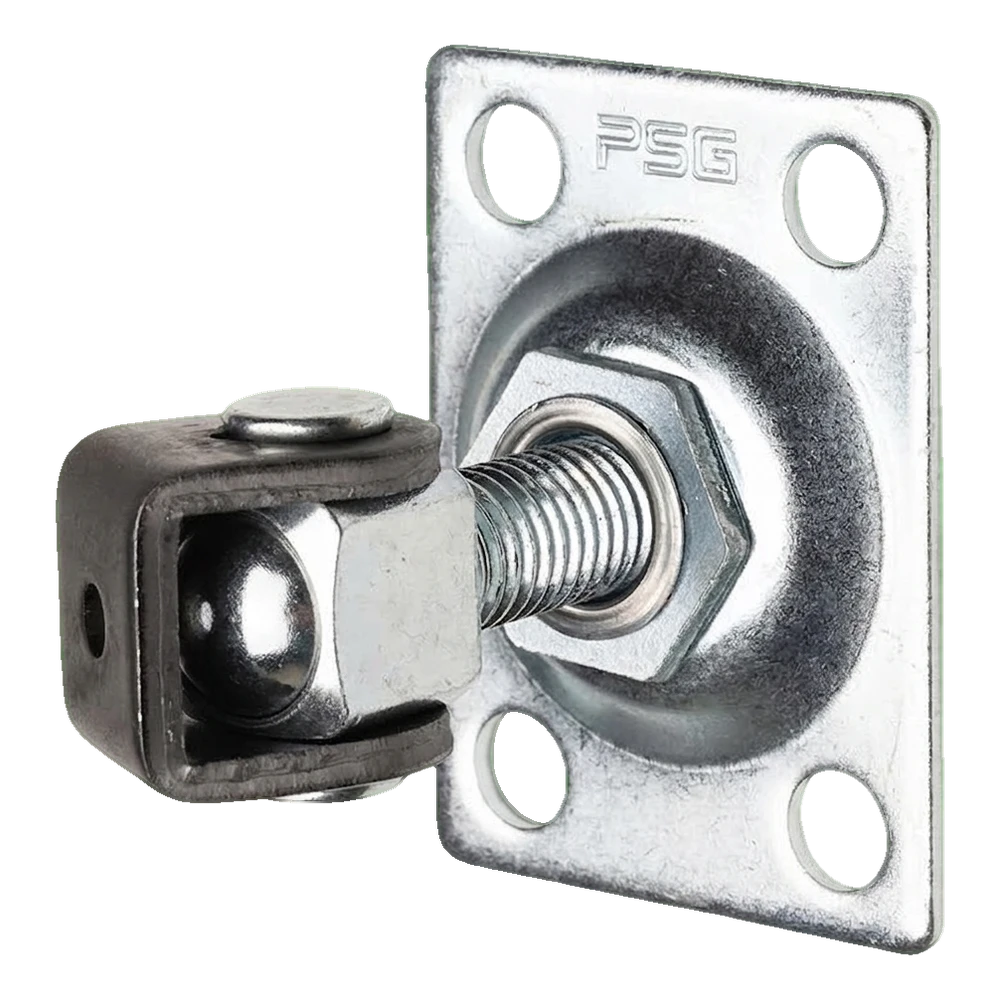

PSG adjustable gate hinge M14 with rectangular plate – front view
PSG adjustable gate hinge M14 with rectangular plate – front view

PSG adjustable hinge M14 with rectangular plate is a durable hardware component designed for mounting gates and swing gates. Thanks to the M14 thread with adjustment nut, it enables precise correction of the gate leaf position — both directly after installation and during operation, when the structure sags or metal changes volume due to extreme temperatures.

The steel construction of the hinge guarantees high mechanical strength and resistance to wear, whilst the rectangular mounting plate with four holes ensures stable and secure attachment to the post or frame. The PSG brand product is designed for outdoor use — it is suitable for fencing, property gates and swing gates.

Advantages for the installer

  • Hinge adjustment at any time — simply tighten or loosen the nut on the M14 thread
  • Compensation for structural sagging and thermal deformation (metal shrinkage in winter)
  • Quick installation thanks to rectangular plate with 4 mounting holes ⌀10.5 mm
  • High resistance to mechanical damage and wear
  • Designed for outdoor use — gates, swing gates, fencing
  • Aesthetic appearance — galvanic finish

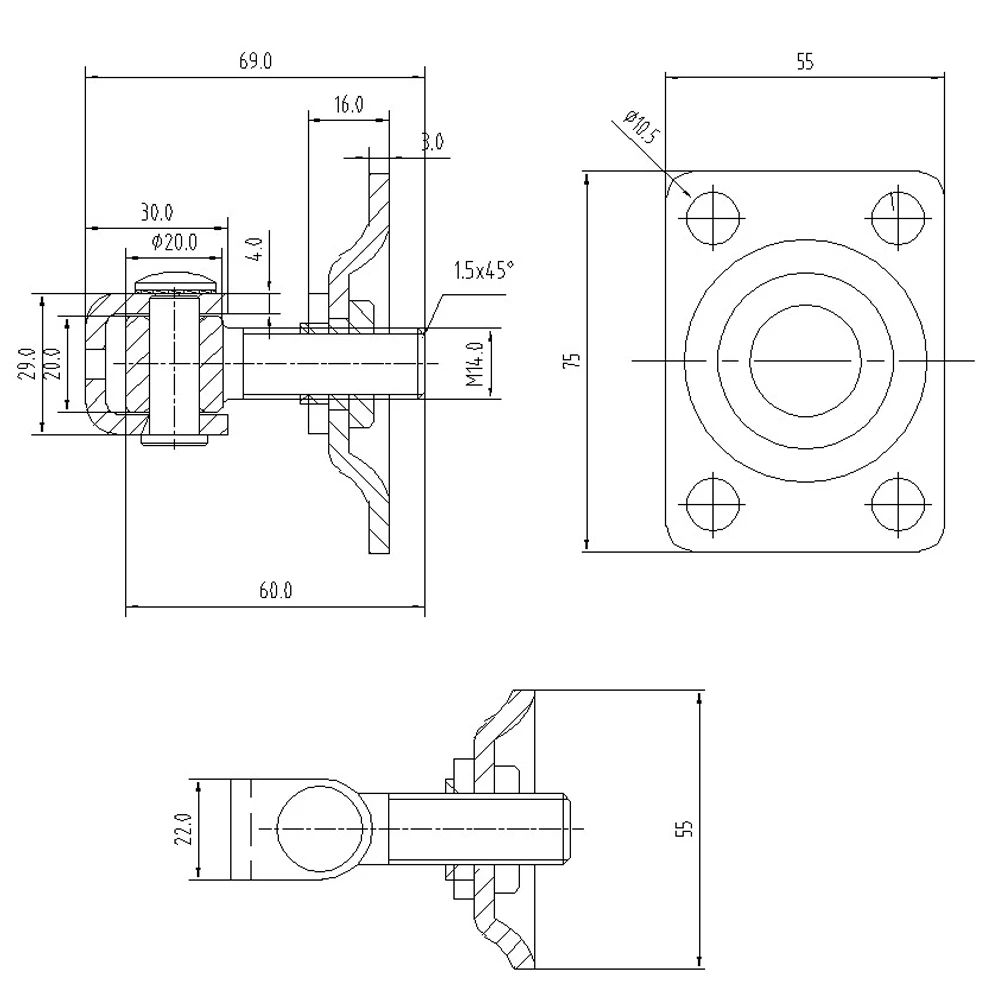

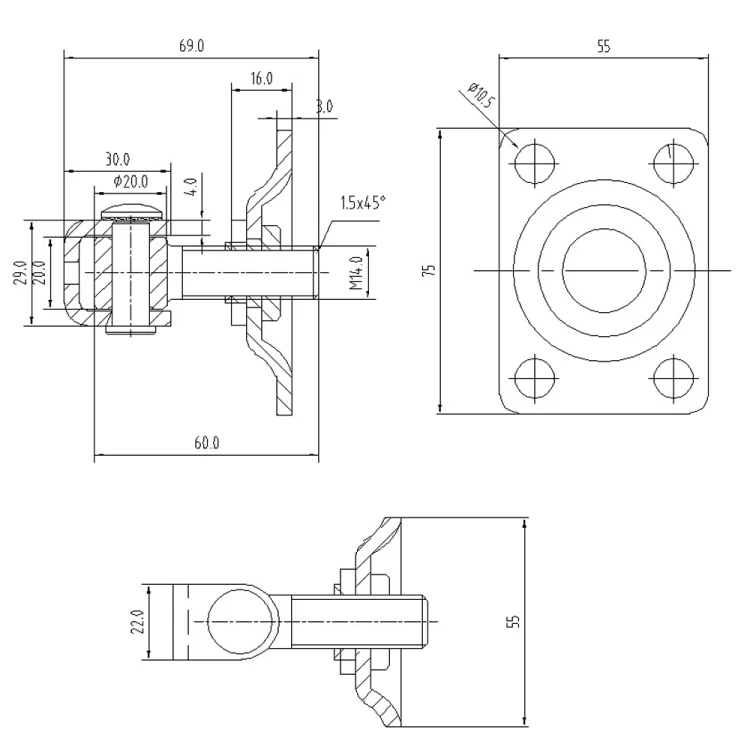

Technical drawing of PSG M14 adjustable hinge – side view, front view of plate and bottom view
Technical drawing of PSG M14 adjustable hinge – side view, front view of plate and bottom view

Dimensions and technical data

  • Pin thread: M14
  • Plate (mounting plate) dimensions: 75 × 55 mm
  • Plate thickness: 3 mm
  • Mounting hole diameter: ⌀10.5 mm
  • Total length (from bracket edge to thread end): 69 mm
  • Length from pin axis to thread end: 60 mm
  • Bracket (eye) dimensions: 30 × 29 × 22 mm (l × h × w)
  • Internal clearance of bracket: ⌀20 mm
  • Bracket arm thickness: 4 mm
  • Chamfer: 1.5 × 45°
  • Material: steel
  • Manufacturer: PSG
  • Weight: 0.26 kg
  • EAN: 5903313202978
