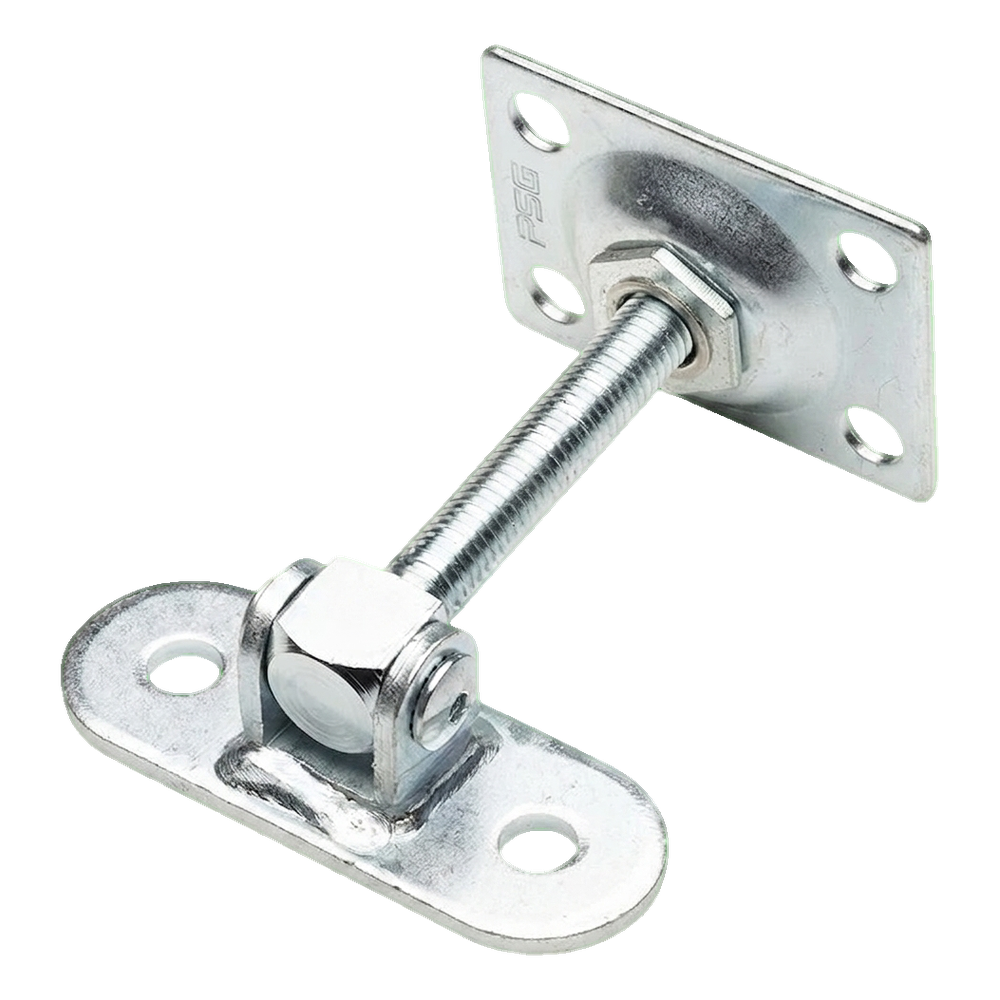

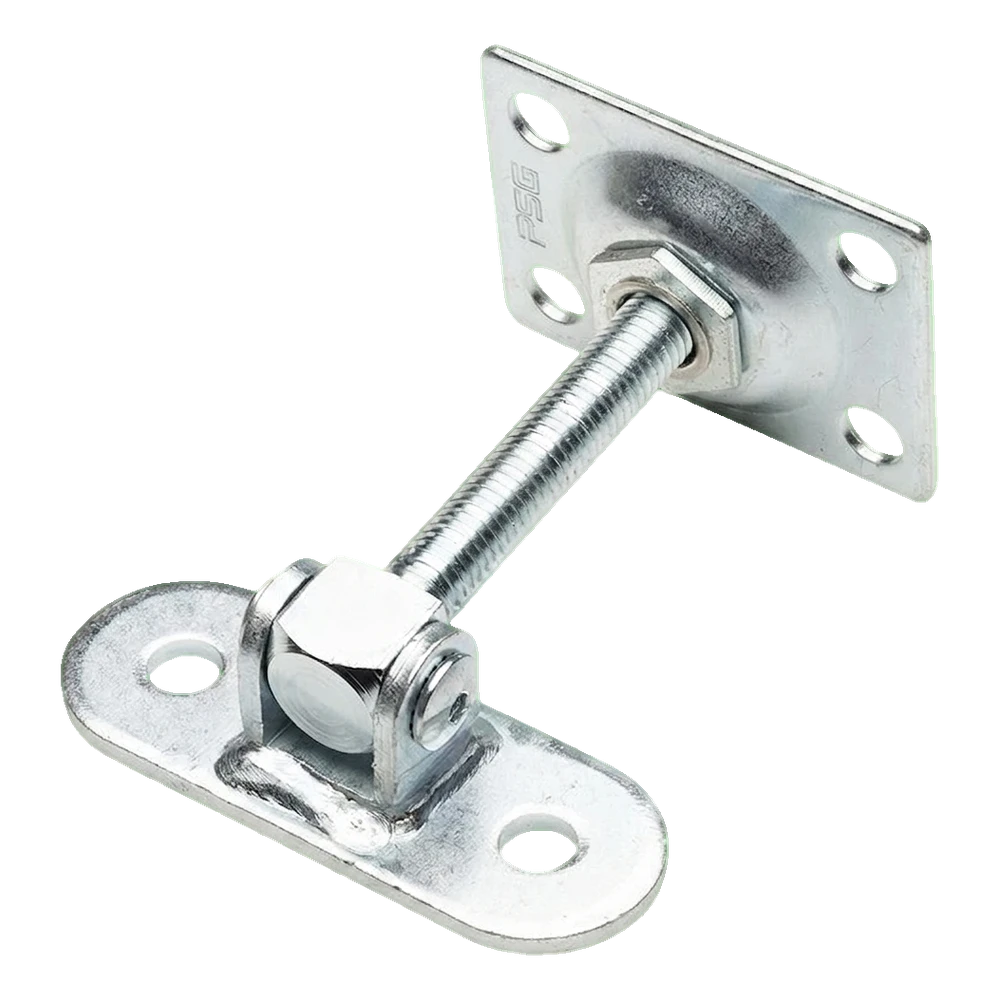

PSG adjustable gate hinge M12 with two mounting plates galvanised
Leave feedback on the product

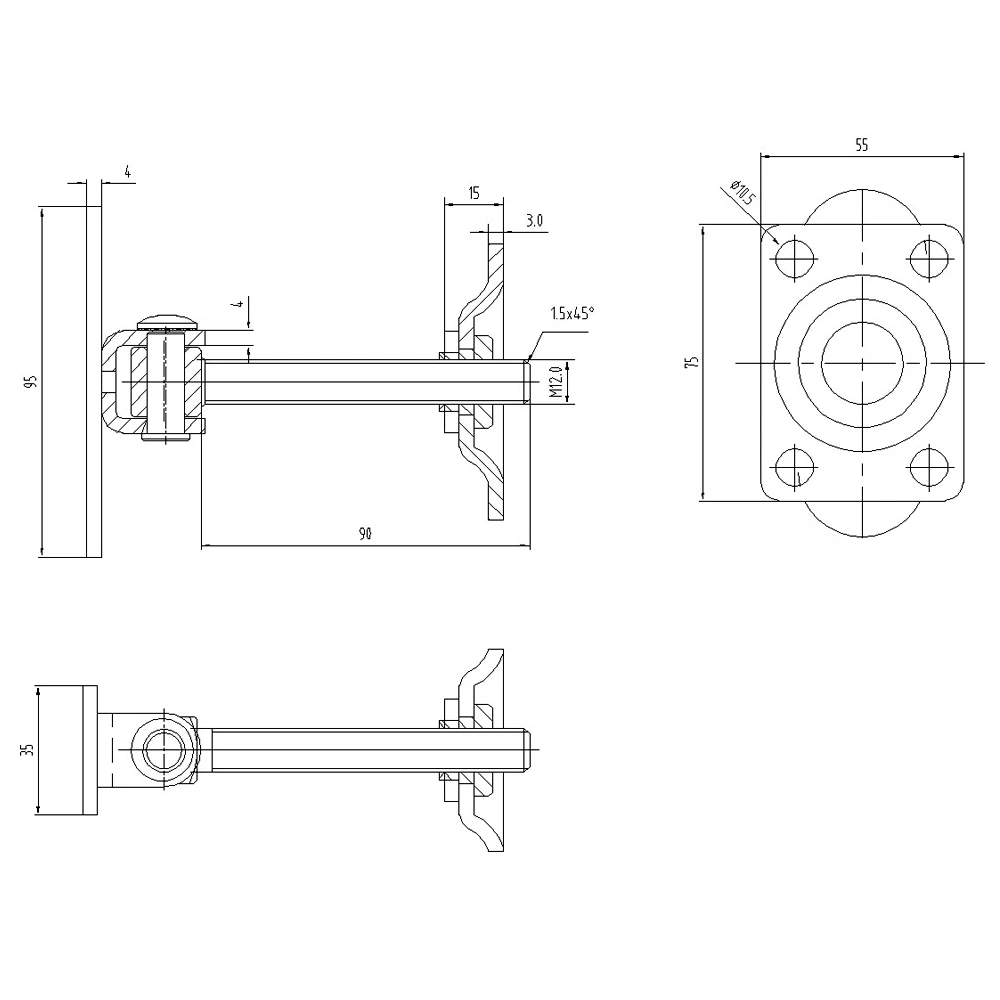

PSG adjustable gate hinge M12 made from galvanically galvanised steel. M12 thread, spindle length 90 mm, two mounting plates. Bottom plate 95x35x4 mm, top plate with Ø10.5 mm holes at 75x55 mm centres. For swing gates and garden gates.
Product code: 001-404
Product features
[PIM] zawiasy #113
- Thread type M12
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG adjustable gate hinge M12 with 115x40 mm plate and 75x55x3 mm bracket, galvanised
PSG M12 adjustable gate hinge is robust hardware designed for mounting swing gates and garden gates. It features two mounting plates - one for screwing onto the post and another for fixing to the gate leaf, ensuring easy installation and smooth adjustment of the leaf position in three planes thanks to the thread along the entire length of the spindle.
Made from galvanically galvanised steel, it guarantees high corrosion resistance, resulting in long service life even in harsh weather conditions. The construction with 115x40 mm plate and 75x55 mm bracket facilitates mounting to various types of substrate.
Adjustment and application
Using the adjustment nut, the hinge can be adjusted at any time, which is extremely useful in case of sagging construction or changes caused by extreme temperatures. The steel hinge is ideal for swing gates and garden gates, where it can handle a gate leaf with maximum weight of 60 kg.
Technical specifications
- Spindle thread: M12
- Plate: 115x40 mm
- Bracket: 75x55 mm
- Maximum gate leaf weight: 60 kg
- Material: galvanised steel
- Application: for outdoor use
