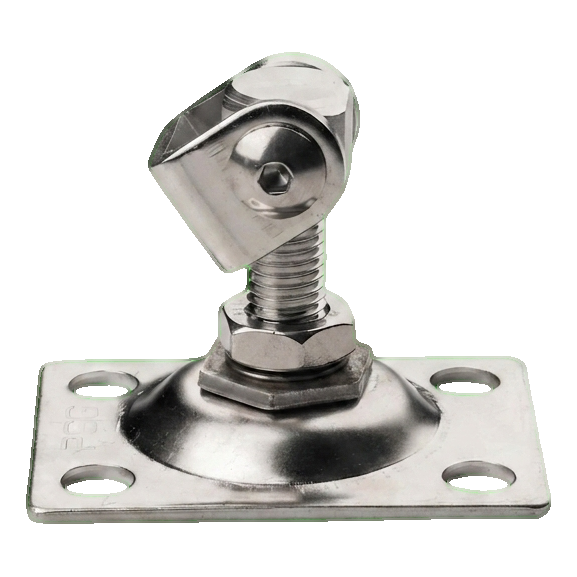

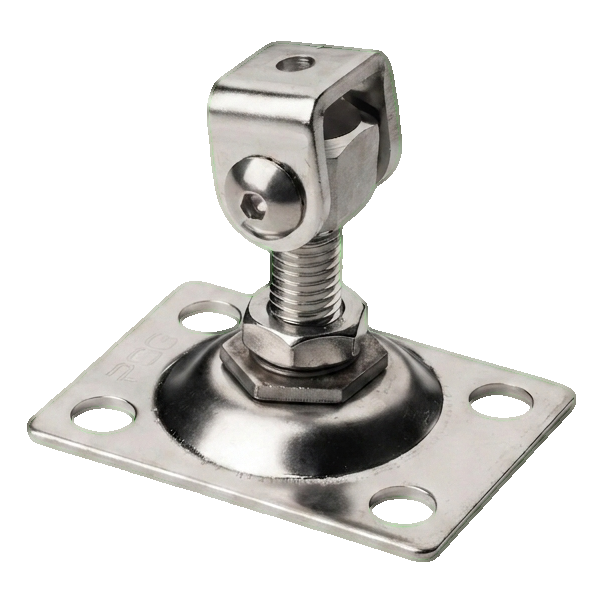

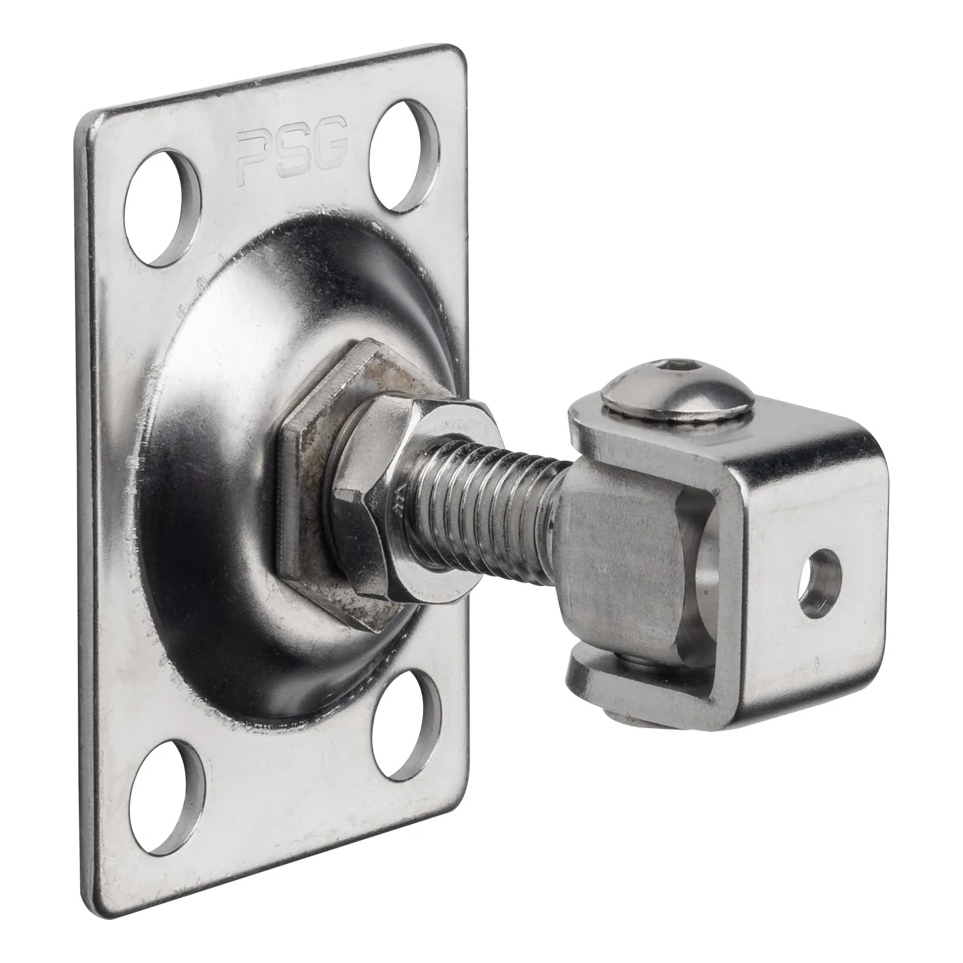

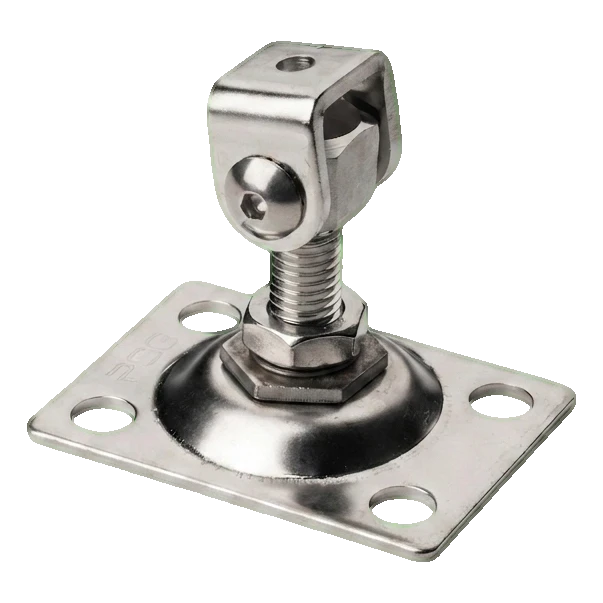

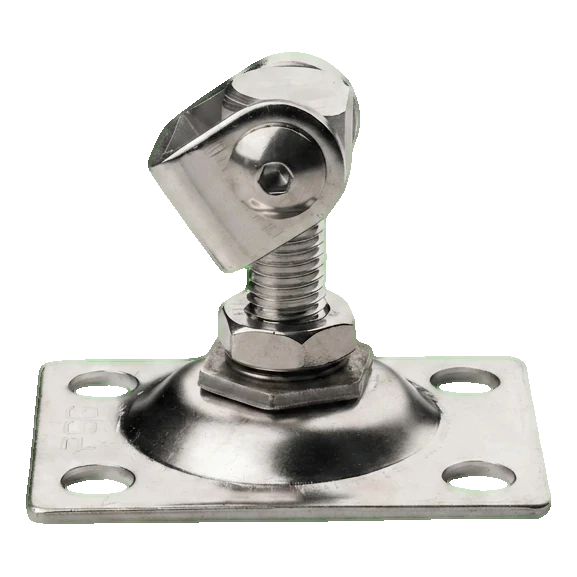

PSG adjustable gate hinge M12 with 75×55 mm plate – AISI 304 stainless steel
Description
PSG adjustable gate hinge M12 with 75×55 mm plate – AISI 304 stainless steel
The adjustable hinge M12 from PSG is a durable and precise mounting solution designed specifically for swing gates. Made entirely from AISI 304 stainless steel, it guarantees years of trouble-free operation even in the most demanding atmospheric conditions — without risk of corrosion and without the need for additional surface protection.
Thanks to the M12 thread and adjustment nut, the hinge enables smooth correction of the gate leaf position in the 31–47 mm range, allowing compensation for gate sagging resulting from long-term use or heavy leaf weight. Adjustment is possible even in extreme winter temperatures, without the need to dismantle the hinge.
Key advantages for the installer
- AISI 304 stainless steel — excellent corrosion resistance, ideal for outdoor applications without additional coatings
- M12 thread — high load capacity, designed for heavier gate constructions
- 31–47 mm depth adjustment — quick correction of gate leaf position without dismantling
- Plate with 4 mounting holes — quick and secure mounting to post or wall
- Raw surface — possibility of further treatment or leaving in natural stainless steel state

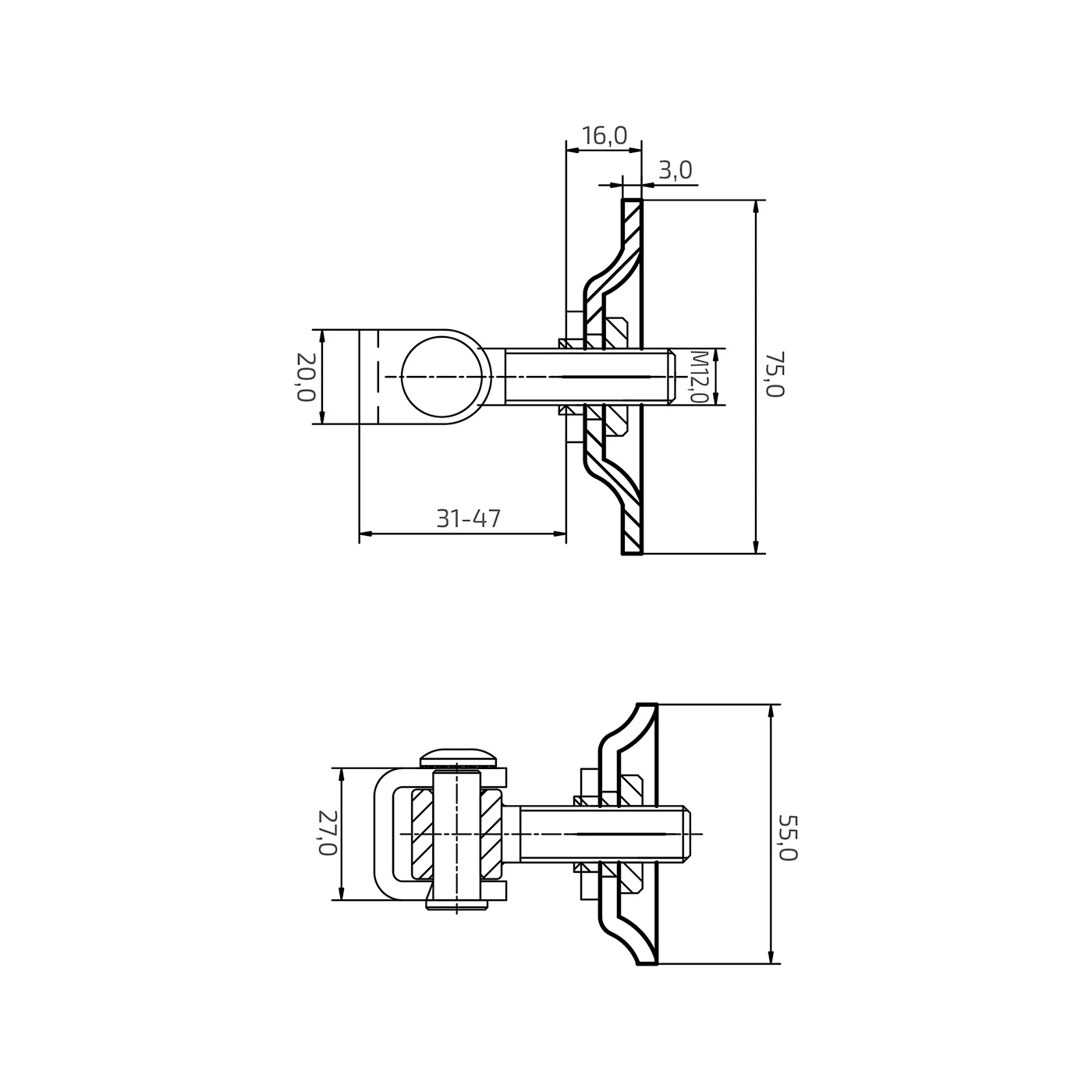

Dimensions and technical data
- Thread: M12
- Plate dimensions (H × W × T): 75 × 55 × 3 mm
- Lug width (U-clamp): 27 mm
- Hinge lug height: 20 mm
- Depth adjustment range: 31–47 mm
- Nut mounting dimension (from plate surface): 16 mm
- Material: AISI 304 stainless steel
- Surface: raw
- Mounting holes: 4 pcs.
- Weight: 0.215 kg
- EAN: 5903313205771
Hinge adjustment
The adjustment nut on the M12 thread allows precise adjustment of spindle extension in the 31–47 mm range. This enables correction of the gate leaf position when it sags under the influence of weight or intensive use. The adjustment ensures smooth opening and closing of the gate and prevents premature wear of suspension elements.
Application
The hinge is intended primarily for mounting swing gates — both single-leaf and double-leaf. It will work well wherever a solid, adjustable suspension construction resistant to external conditions is required: property fencing, entrance gates, heavier gates.
Technical data
| Thread type | M12 |
| Mounting Method | With Plate |
| Material | AISI 304 |
