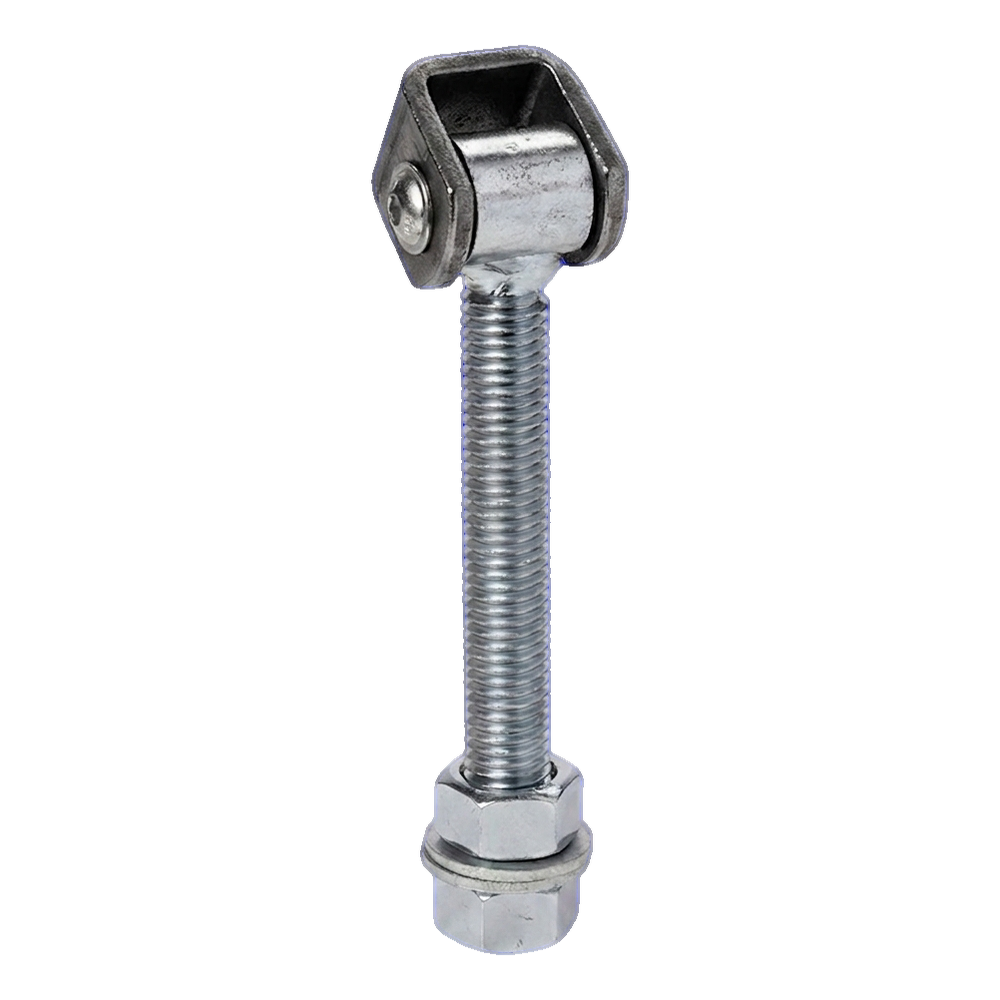

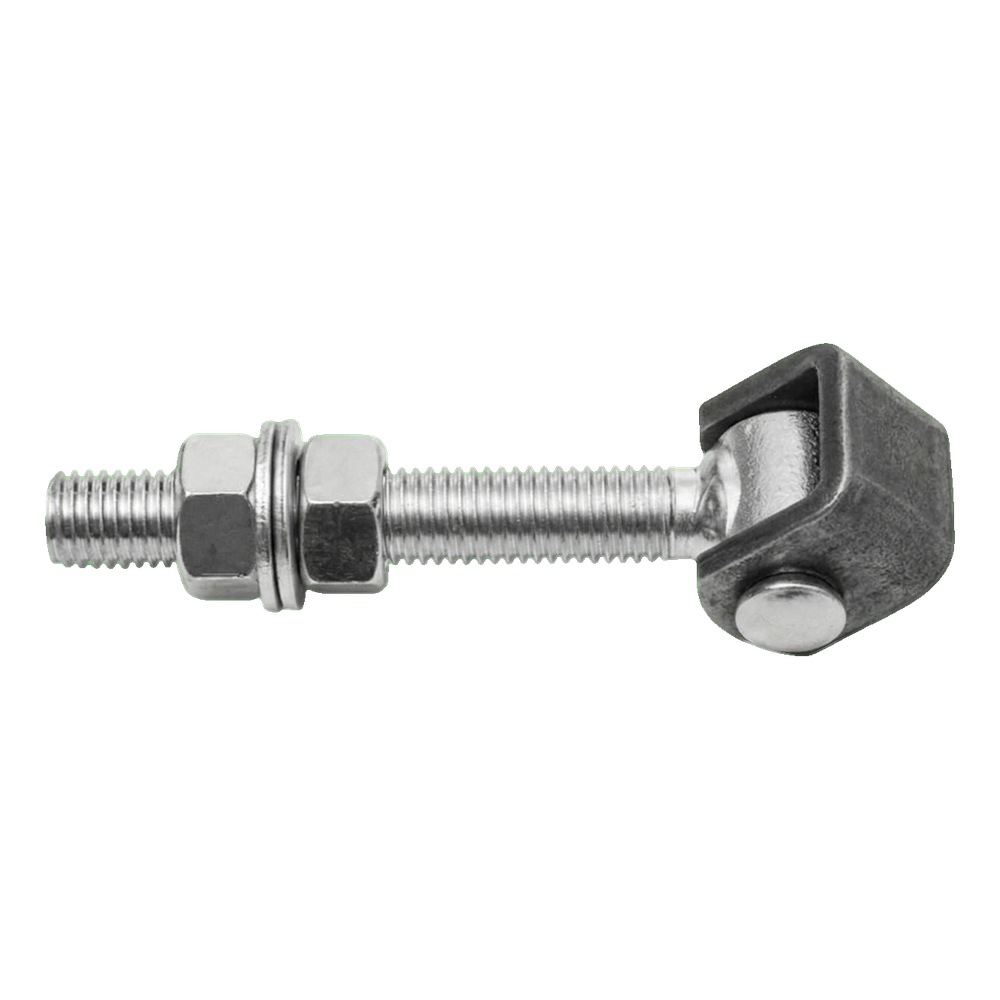

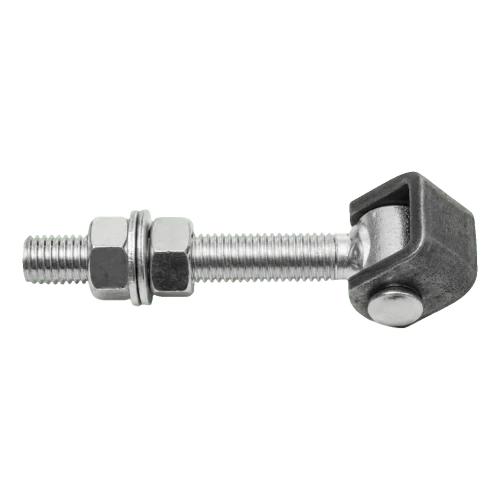

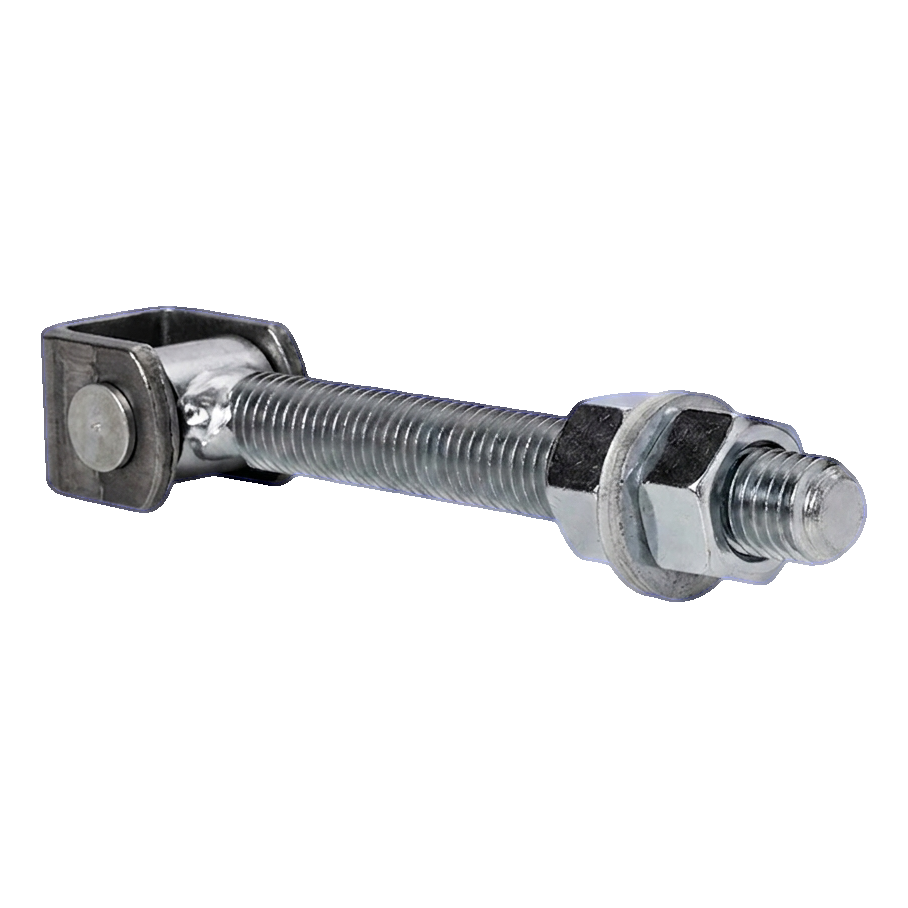

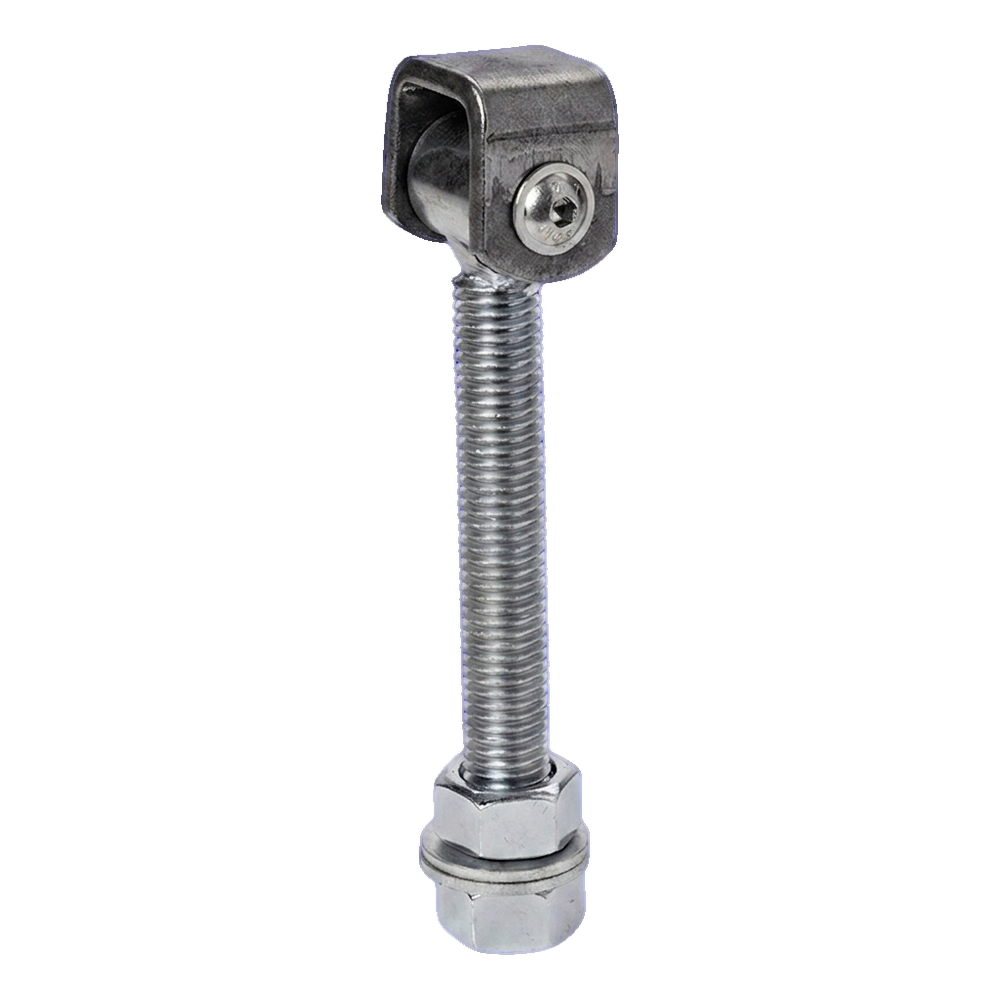

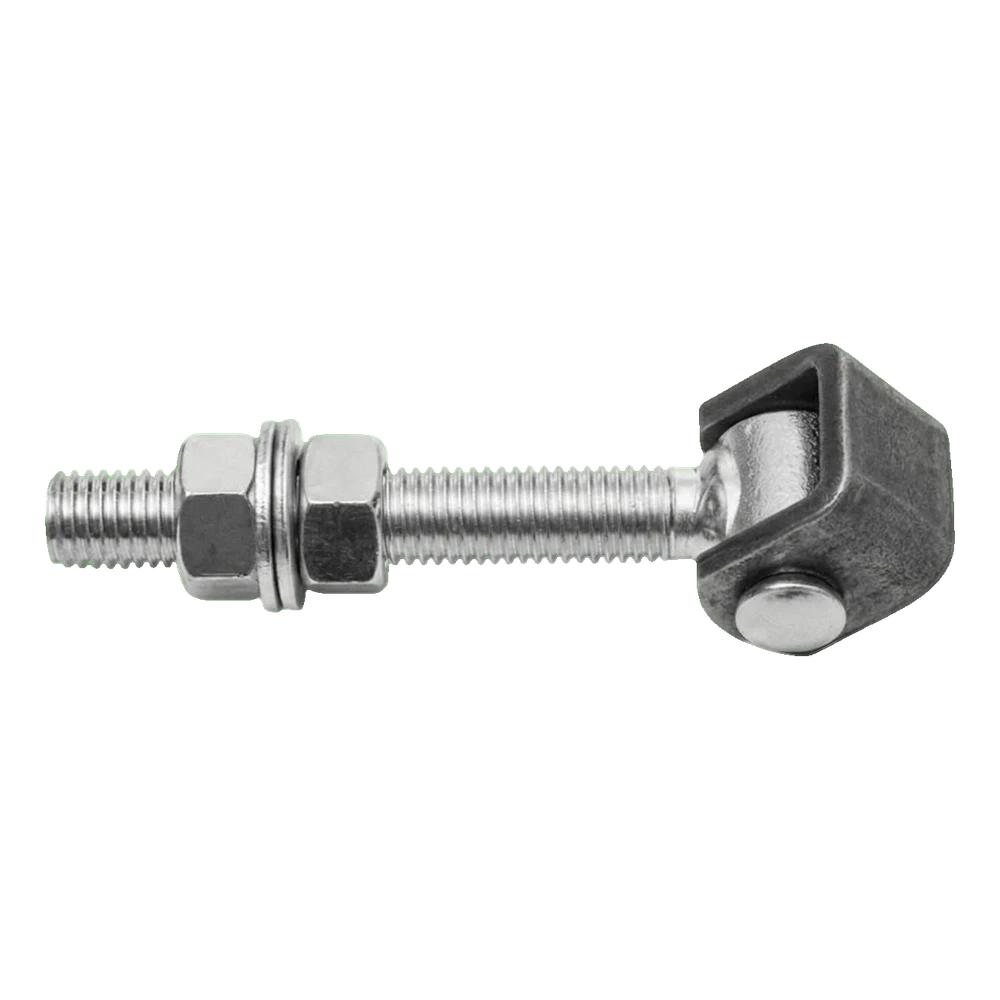

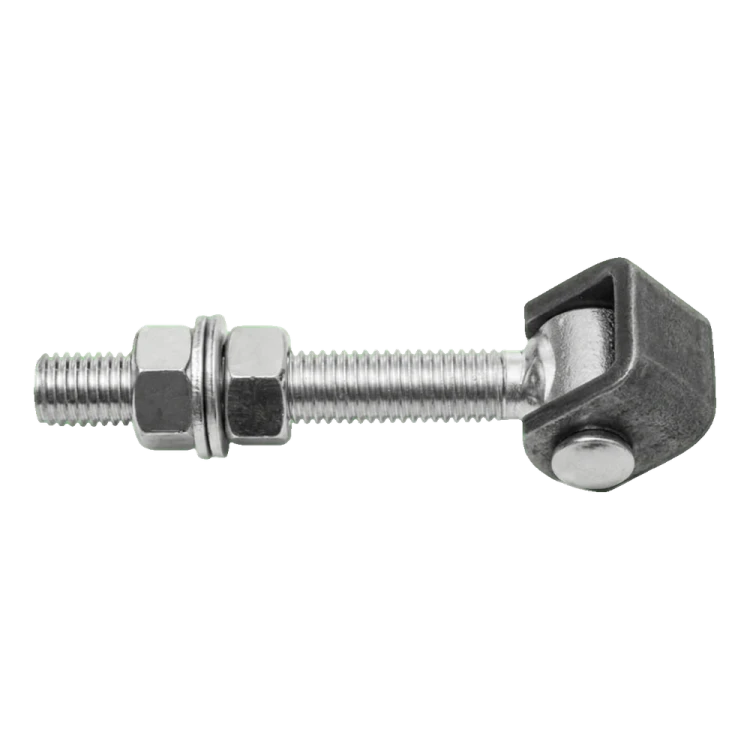

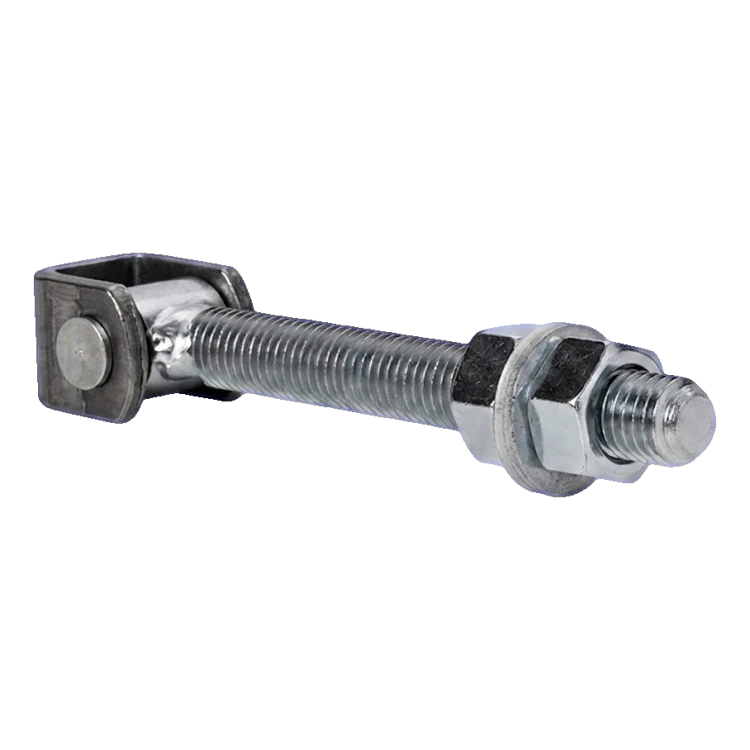

PSG adjustable bolt-on long hinge M18 L150 mm for swing gates
Leave feedback on the product

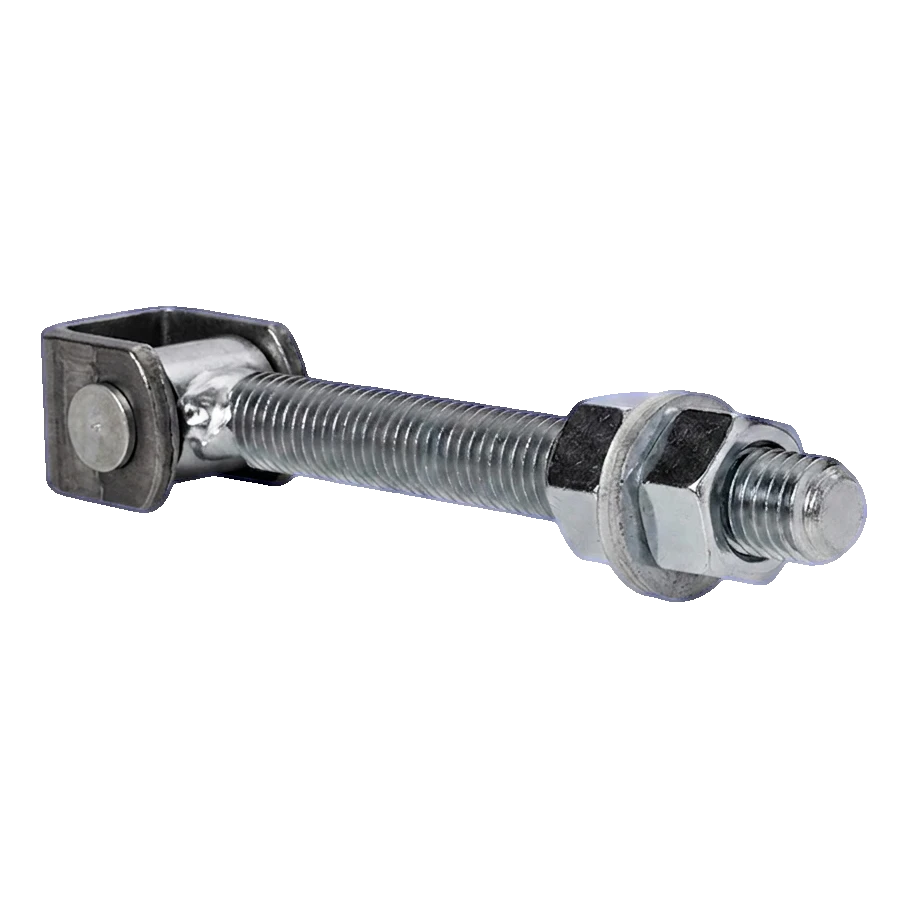

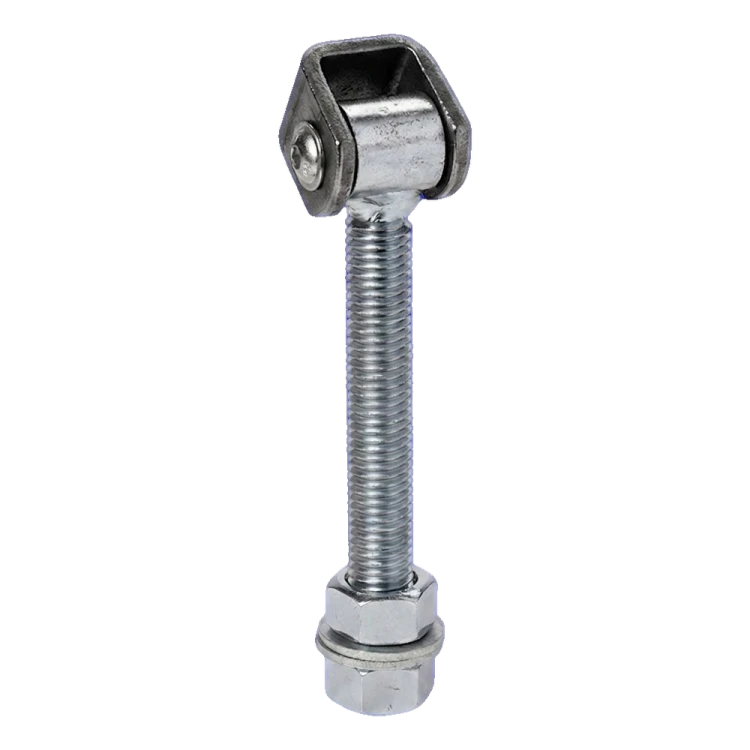

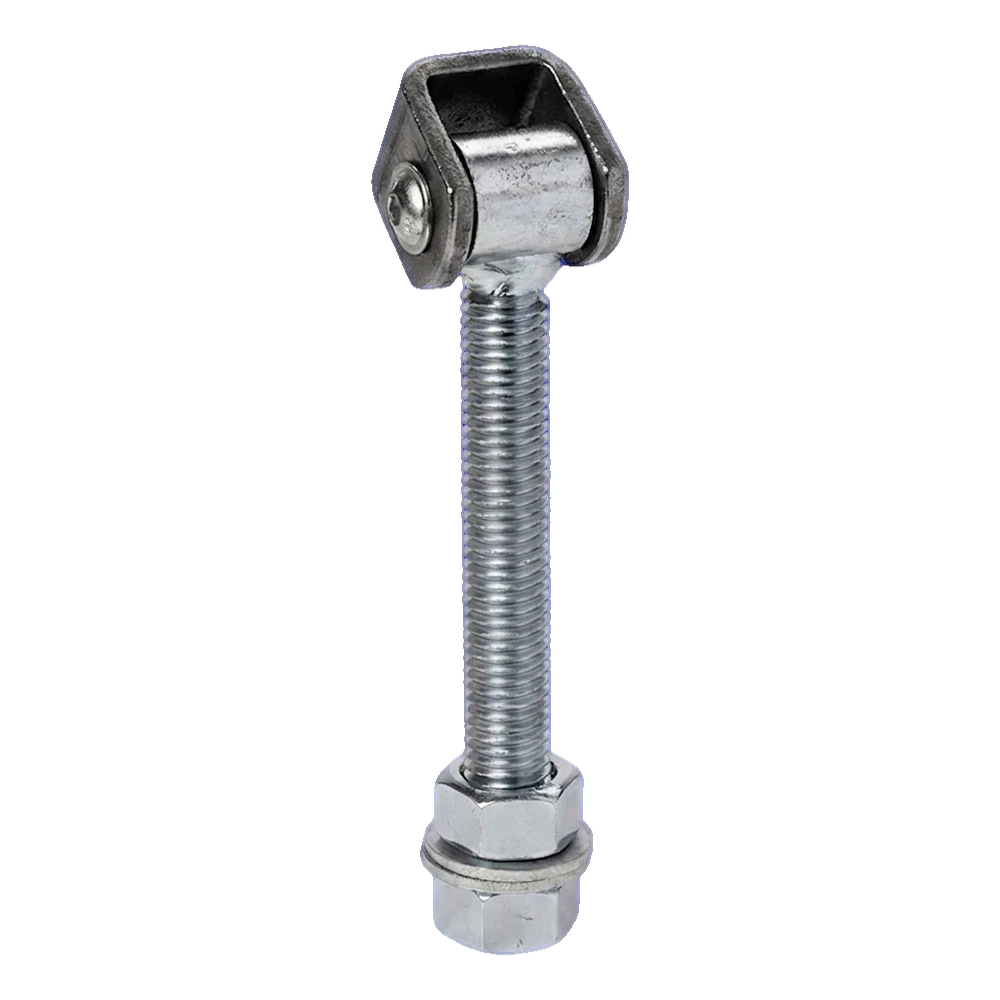

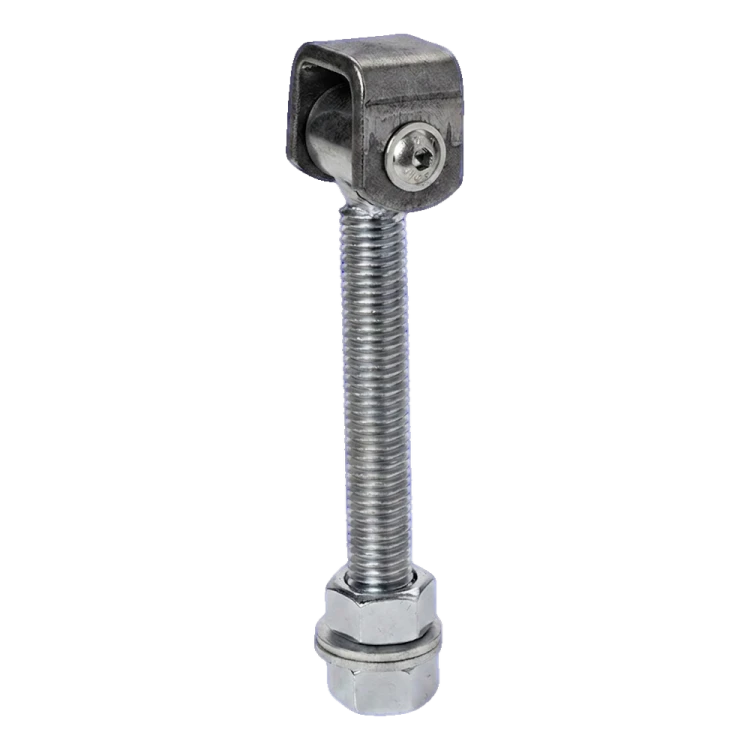

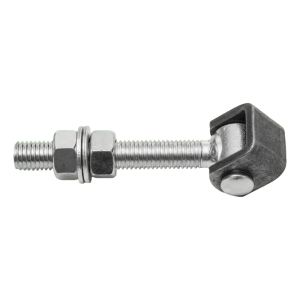

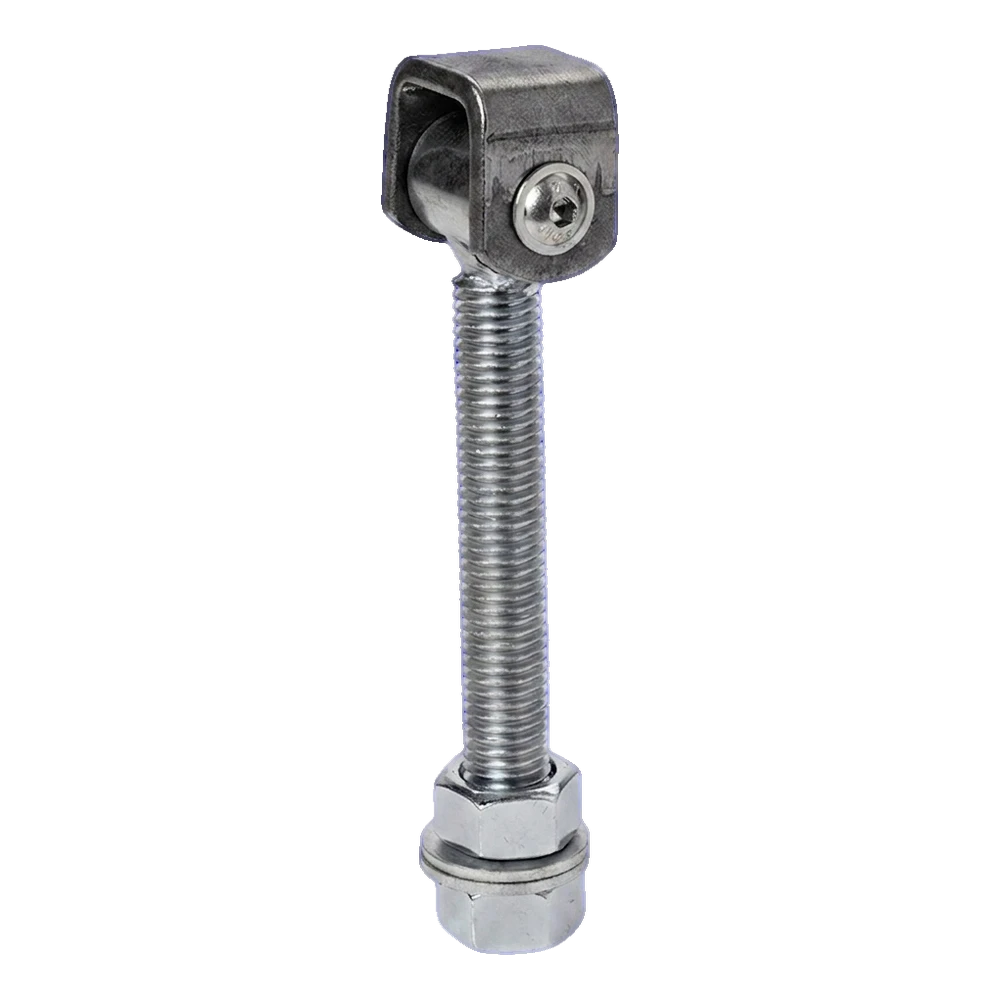

PSG adjustable bolt-on long hinge with M18 thread, 150 mm length. Galvanised steel construction, black steel lug. 110 mm pin, 36 mm lug width. For swing gates, load capacity 80 kg per pair. Position adjustment after installation.
Product code: 001-346
Product features
[PIM] zawiasy #113
- Thread type M18
- Mounting Method Bolt-On
- Material Steel
Description
PSG adjustable bolt-on long hinge M18 L150 mm for swing gates
PSG adjustable bolt-on long hinge with M18 thread and 150 mm total length is a robust hardware component designed for swing gate installation. The steel, galvanised construction ensures high corrosion resistance and years of operation in outdoor conditions. A key advantage for installation teams is the ability to adjust the gate wing position after completed installation — without the need to dismantle the entire mechanism.
Post-installation adjustment
Thanks to the adjustment nut on the M18 threaded pin, the installer can quickly correct the gate wing position vertically — even after full installation. This is particularly important when the structure sags during operation or with thermal changes causing post deformation. This eliminates the need for time-consuming dismantling and re-fitting of the hinge, which significantly reduces the time required for any servicing.

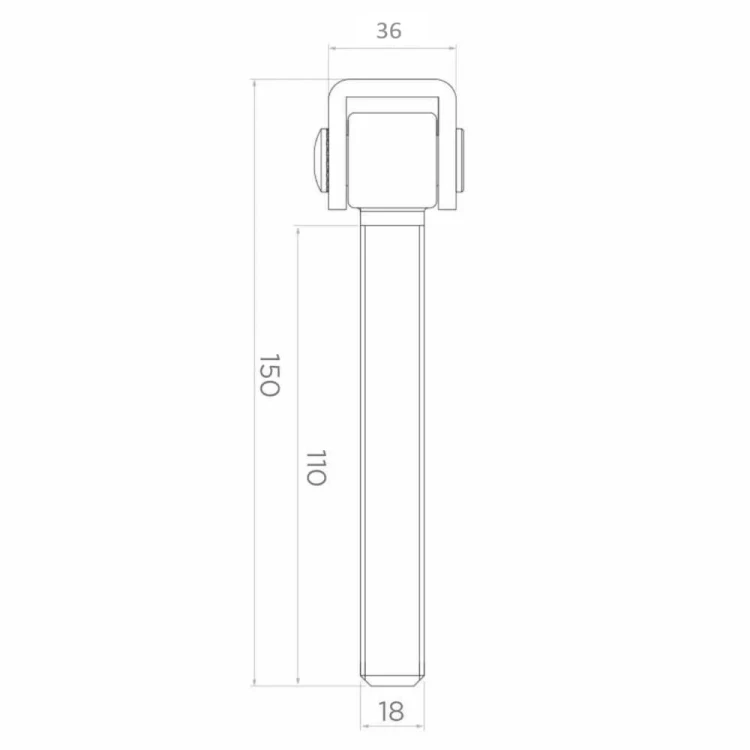

Dimensions and technical parameters
- Thread: M18
- Total length: 150 mm
- Pin (bolt) length: 110 mm
- Lug (channel) width: 36 mm
- Pin diameter: 18 mm
- Material: steel with anti-corrosion protection by galvanising
- Lug: black steel (non-galvanised)
- Permissible load: 80 kg per pair of hinges (2 m long wing)
- Weight: 0.54 kg
- Type: bolt-on, with collar
Corrosion resistance and durability
The threaded pin and nuts are made from galvanised steel, providing effective protection against moisture and atmospheric agents. The hinge lug is made from black steel — additional protection with anti-corrosion paint or coating is recommended before installation, which will unify the protection of the entire component and extend its service life.
Application
The hinge is primarily intended for swing gates mounted on steel or masonry posts. The long pin with 110 mm threaded surface allows flexible adaptation to different post thicknesses and installation methods. A pair of hinges will support a wing weighing up to 80 kg with a length up to 2 metres, covering most standard driveway and fence gate installations.
Manufacturer: PSG · EAN: 5903313216524
