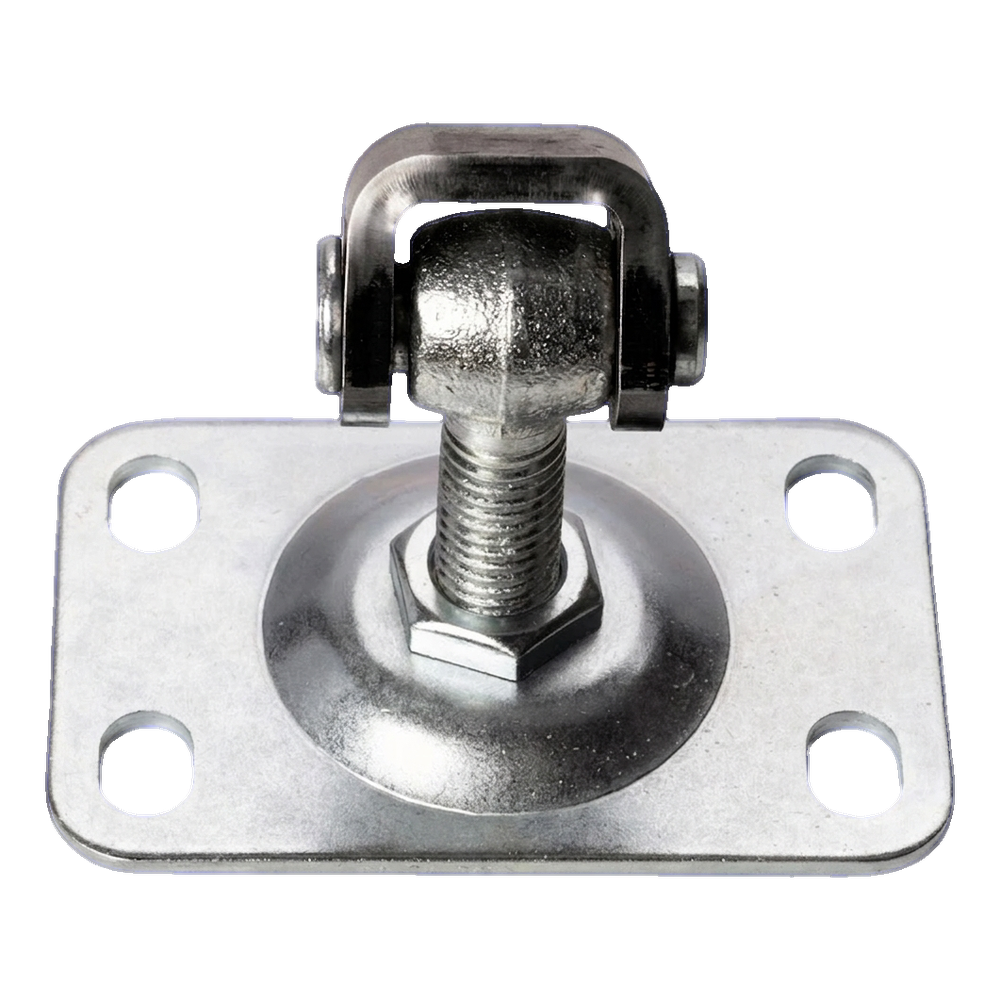

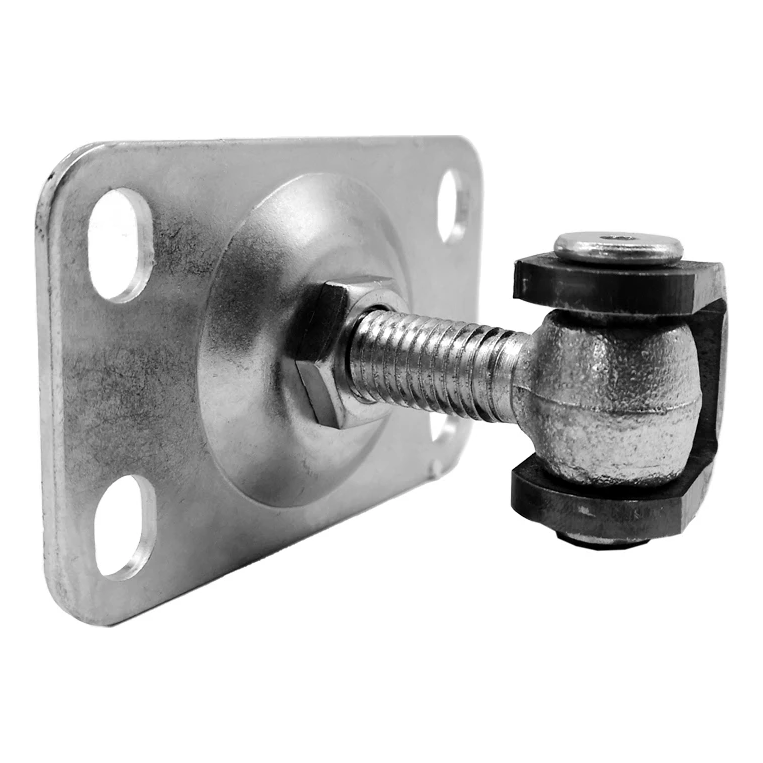

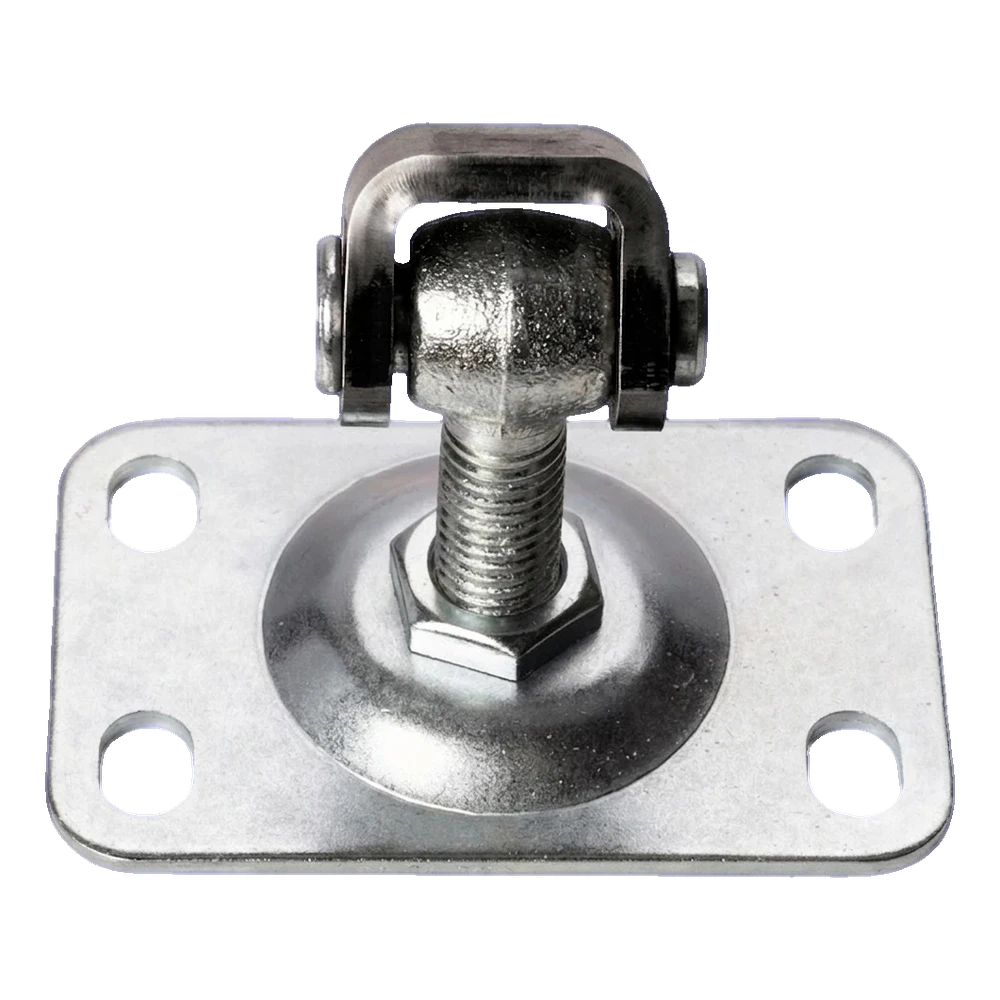

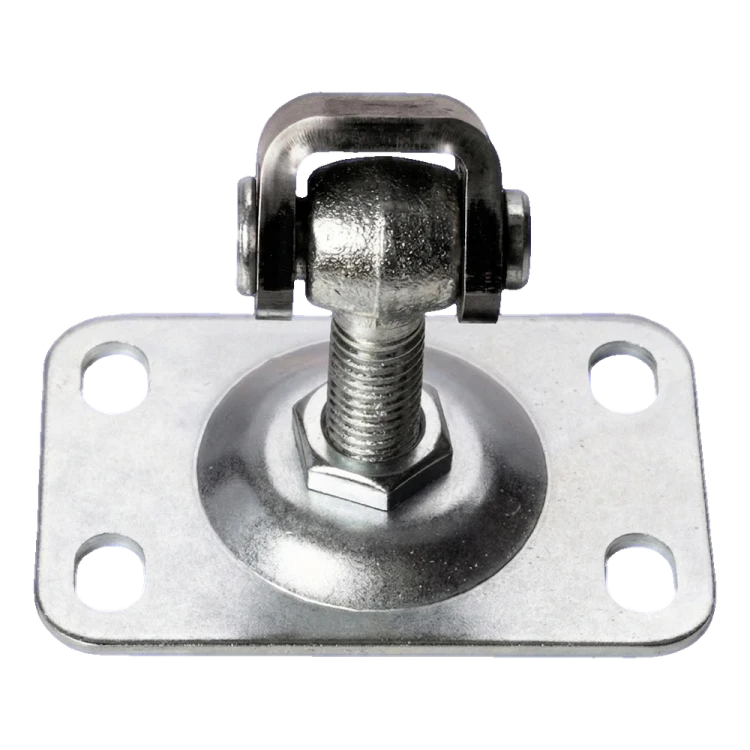

PSG adjustable bolt-on hinge M12 with plate 54×85 mm galvanised
Description
PSG adjustable bolt-on hinge M12 with plate 54×85 mm galvanised
Steel adjustable bolt-on hinge with M12 bolt and mounting plate 54 × 85 mm — a robust solution for hanging gates and garden gates. The galvanised surface provides durable anti-corrosive protection, ensuring the hinge performs excellently in outdoor conditions, exposed to precipitation and moisture. The adjustable construction with M12 thread allows precise positioning of the gate or wicket leaf within a range of 42–58 mm from the mounting plane — without the need to modify fixings.
The mounting plate is equipped with four kidney-shaped holes, allowing correction of hinge position after screwing. This is a solution valued by fence installers — it allows quick alignment of the gate even with minor inaccuracies in the post.
Technical specification
- Manufacturer: PSG
- Material: galvanised steel
- Bolt thread: M12
- Plate dimensions: 54 × 85 × 2.5 mm
- Mounting hole spacing: 32 × 66.5 mm
- Mounting holes: 4 × kidney ⌀8.5 × 12 mm
- Hinge ear dimensions: 28 × 20 mm
- Adjustment range (distance from plate): 42–58 mm
- Weight: 0.2 kg
Application and functional features
- Designed for mounting gates and garden gates
- Suitable for outdoor use — resistant to moisture and atmospheric precipitation
- Zinc coating ensures corrosion resistance
- Resistant to mechanical damage
- Threaded adjustment allows precise leaf positioning without modifications
- Kidney-shaped mounting holes facilitate position correction after screwing

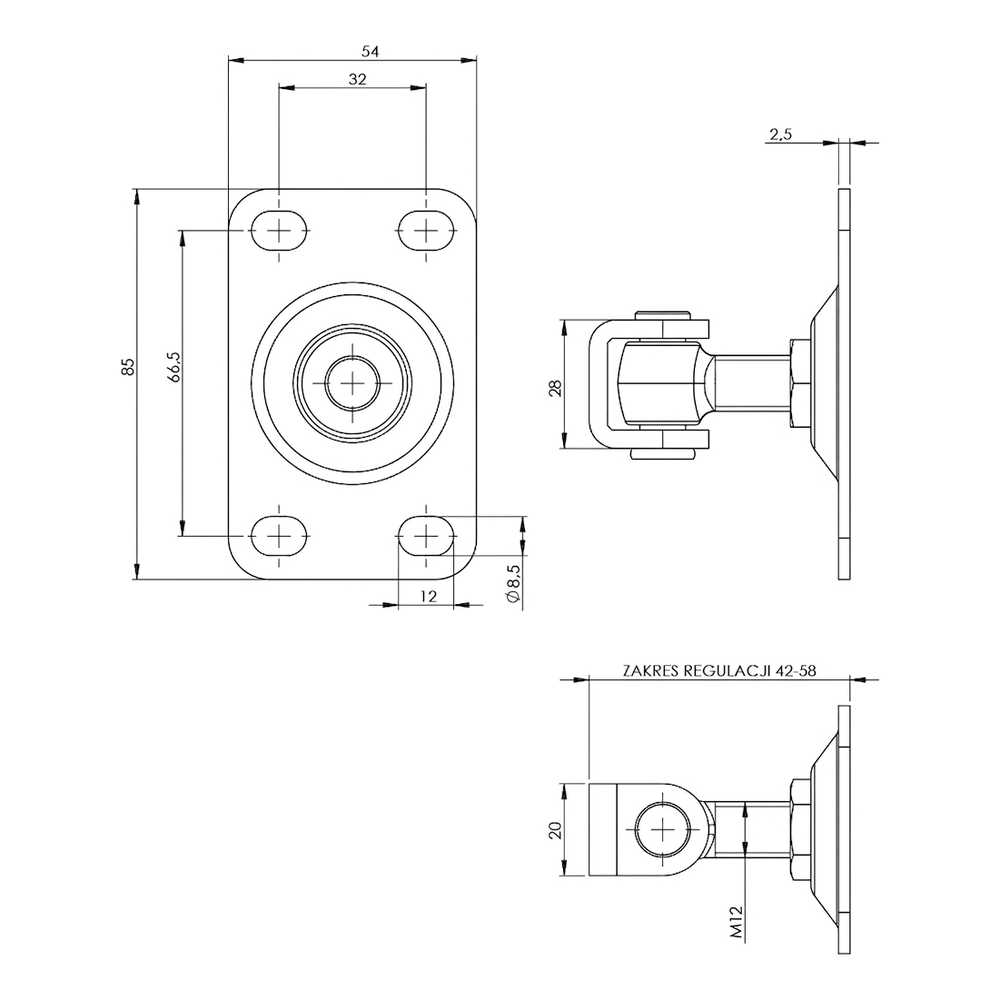

Dimensional drawing
Technical data
| Thread type | M12 |
| Mounting Method | Bolt-On |
| Material | Steel |
