PSG adjustable ball bearing hinge for gates fi30 M18 with shield 160×85 mm

Go to Product feedback

PSG adjustable ball bearing hinge fi30 M18 made of galvanised steel. Shield 160×85 mm, M18 thread, screw length 110 mm, weight 1.24 kg. For swing gates and wicket gates. Permissible load for pair of hinges 90 kg on 2 m wing.

Go to full description
with VAT without VAT
Price €12.94
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] zawiasy #113

  • Thread type M18
  • Diameter 30
  • Mounting Method With Plate
  • Material Steel

Description

PSG adjustable ball bearing hinge for gates fi30 M18 with shield 160×85 mm

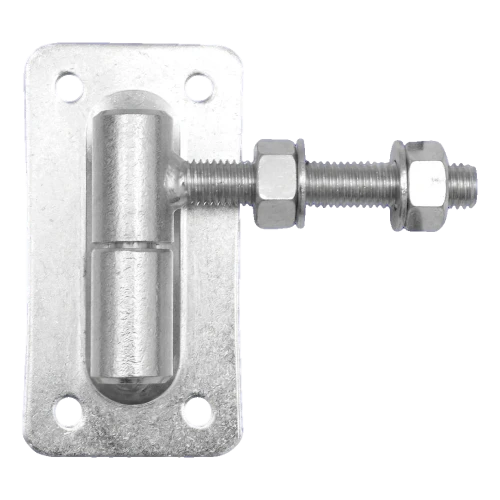

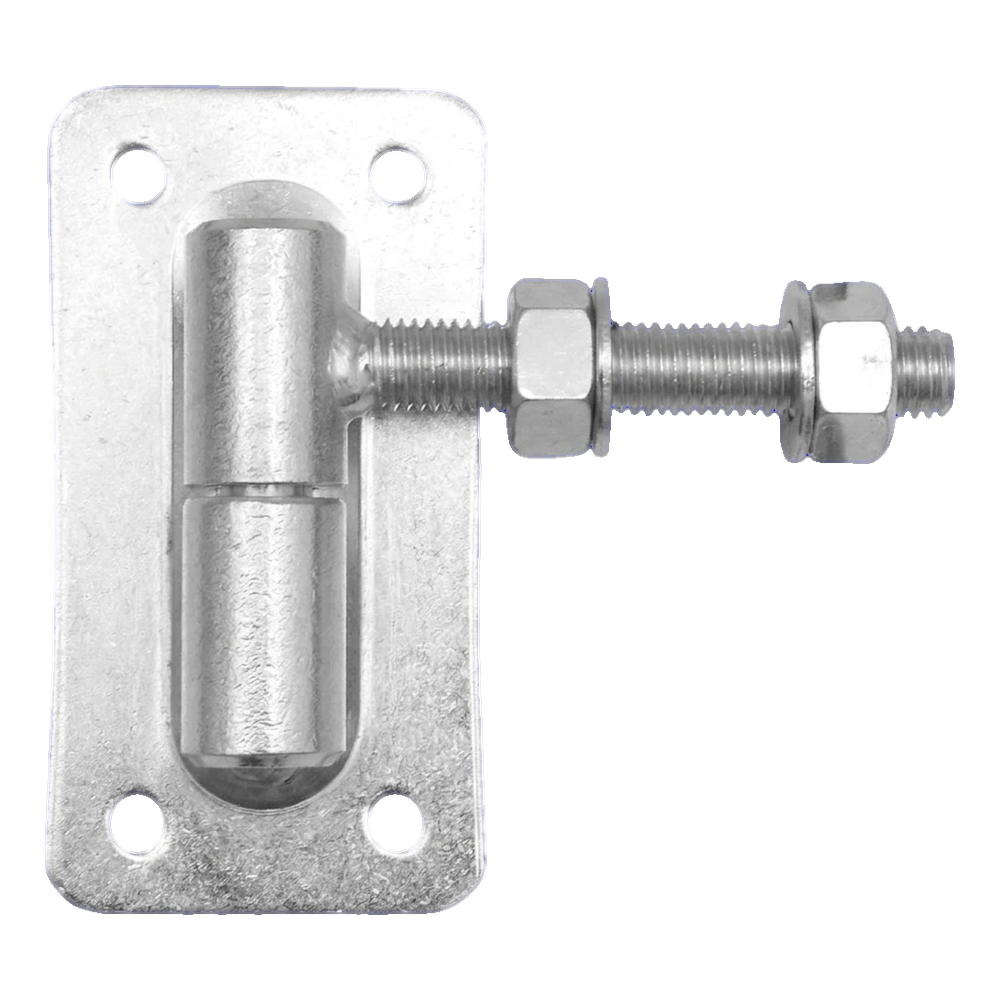

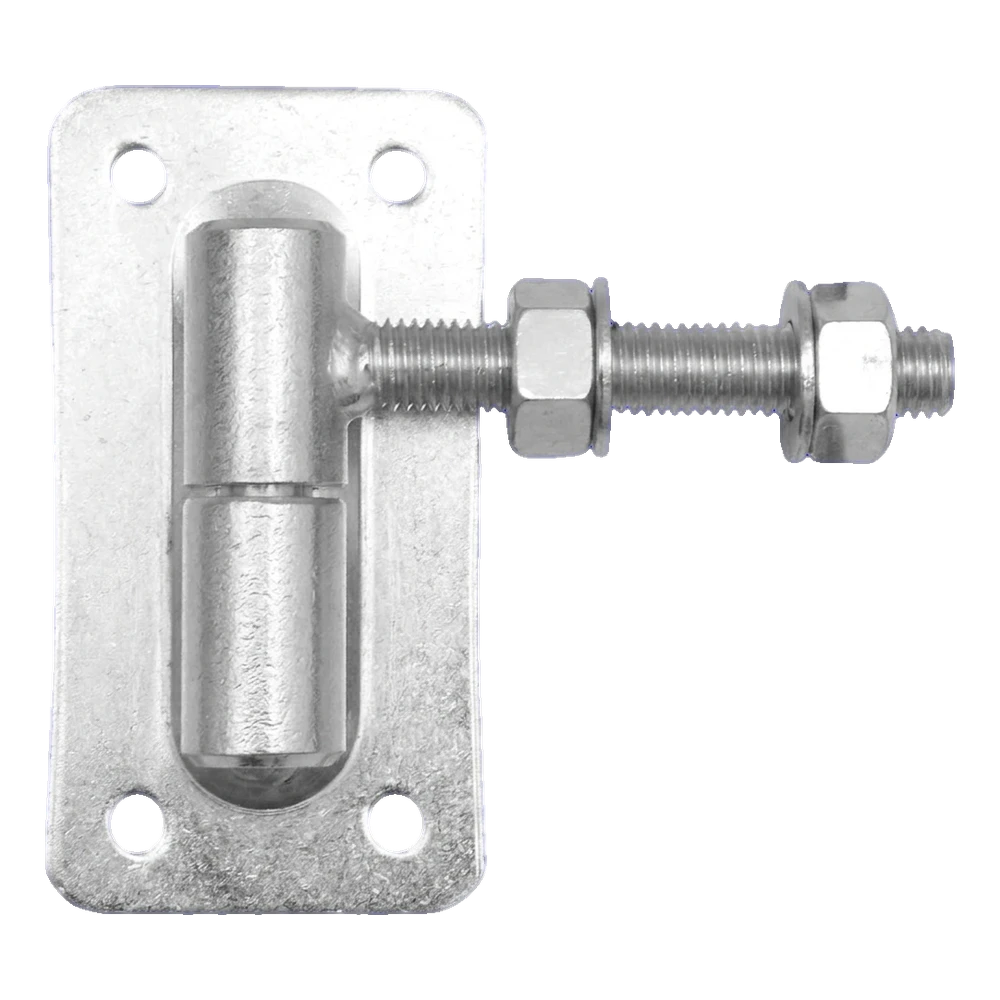

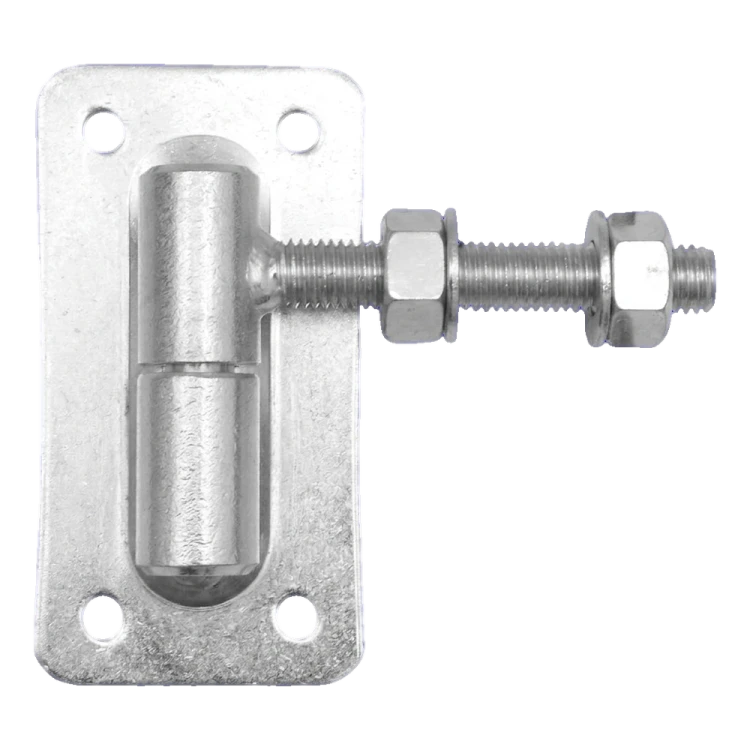

PSG adjustable ball bearing hinge fi30 M18 with shield – front view
PSG adjustable ball bearing hinge fi30 M18 with shield – front view

Steel adjustable ball bearing hinge with ball and rectangular shield, designed for professional installation of swing gates and wicket gates. Ball bearing construction with diameter fi 30 mm and M18 thread ensures high mechanical strength and precise guidance. Thanks to adjustment with nut, you can correct the wing position at any time — both during construction hanging and with dimensional changes caused by extreme temperatures.

Galvanised coating guarantees years of corrosion resistance, making this hinge an ideal choice for outdoor applications. Four mounting holes in the shield enable quick and secure fixing to the post. Permissible load for pair of hinges on a wing with length of 2 m is 90 kg.

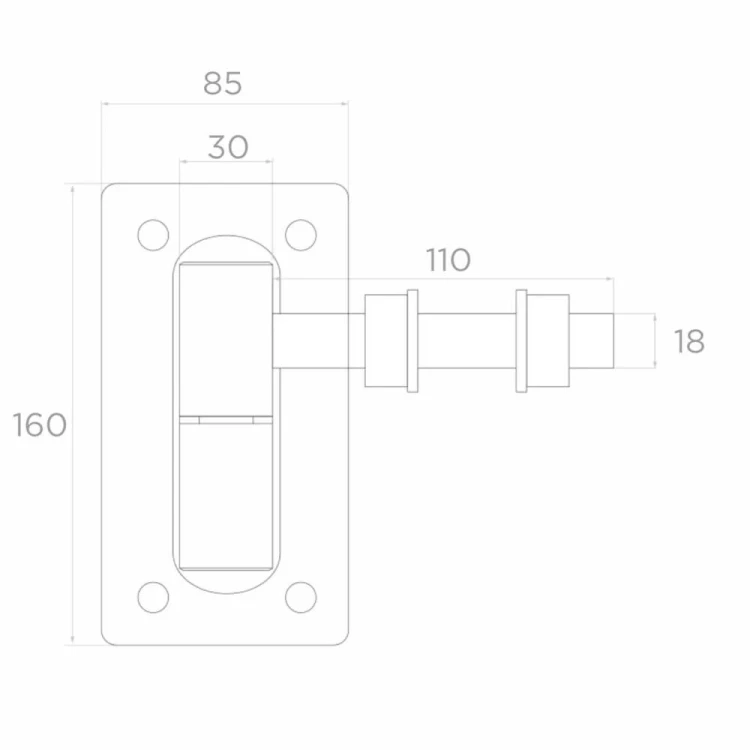

Dimensional drawing of PSG adjustable hinge fi30 M18 – shield 160×85 mm, screw length 110 mm
Dimensional drawing of PSG adjustable hinge fi30 M18 – shield 160×85 mm, screw length 110 mm

Dimensions and technical parameters

  • Manufacturer: PSG
  • Material: steel
  • Anti-corrosion protection: galvanised
  • Hinge diameter: fi 30 mm
  • Thread: M18
  • Shield dimensions: 160 × 85 mm
  • Mounting hole centres (shield): 30 mm
  • Screw length: 110 mm
  • Weight: 1.24 kg
  • Permissible load for pair of hinges (2 m wing): 90 kg
  • EAN: 5901431941311

Advantages for installer

  • Post-installation adjustment — possibility to tighten or loosen with nut without dismounting the wing
  • Galvanising — years of protection against corrosion in outdoor conditions
  • Quick installation — rectangular shield with 4 holes ensures secure and easy fixing
  • High quality workmanship — ball bearing construction resistant to mechanical damage and heavy loads
  • Temperature compensation — adjustment allows correction of dimensional changes in metal during extreme winter and summer temperatures
