PSG – V-type gate running wheel fi 68 mm galvanised
Leave feedback on the product
PSG V-type running wheel fi 68 mm, galvanised steel. V-groove 92°, load capacity 150 kg. Bracket 35x20 mm, height 80 mm, weight 0.62 kg. For rail sliding gates.
Product code: 001-296
Description
PSG – V-type gate running wheel fi 68 mm galvanised

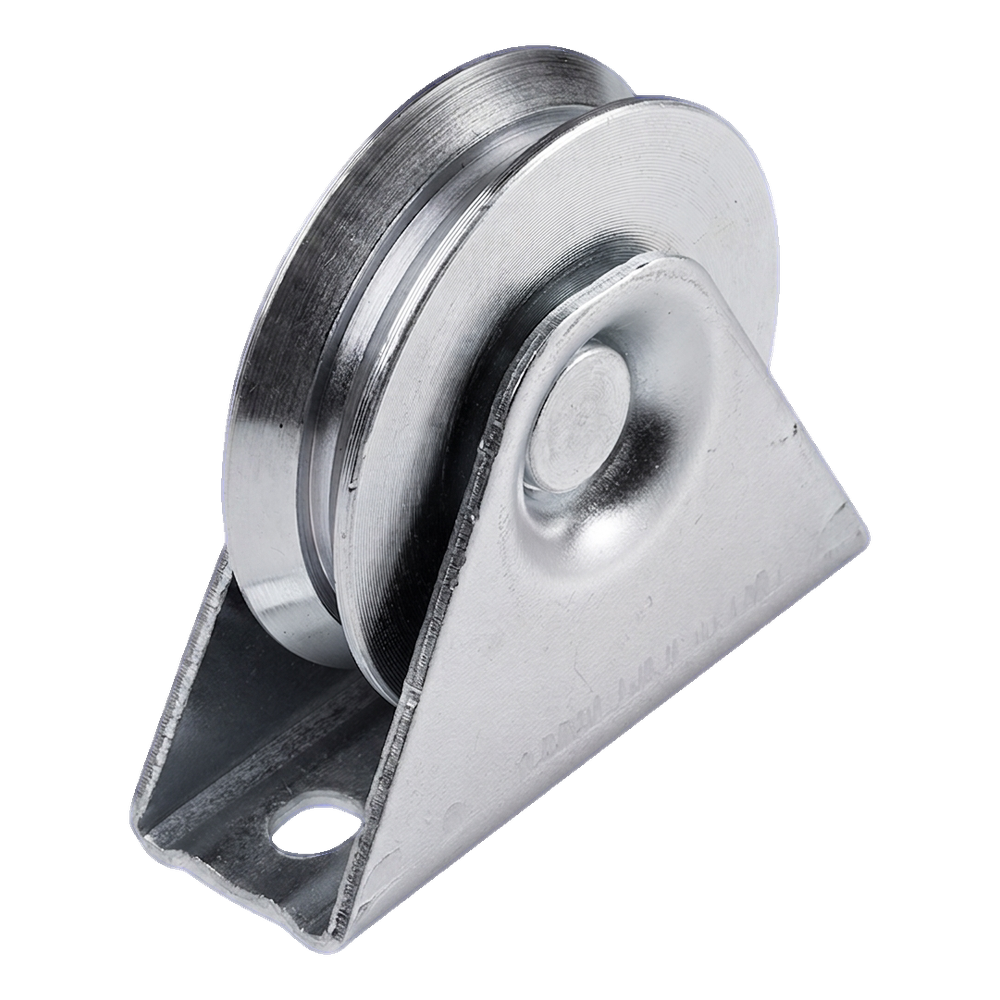

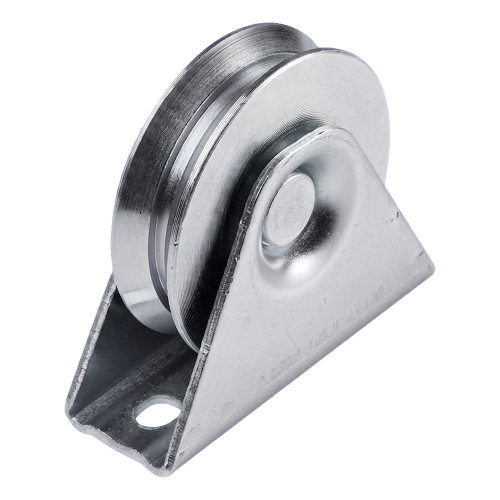

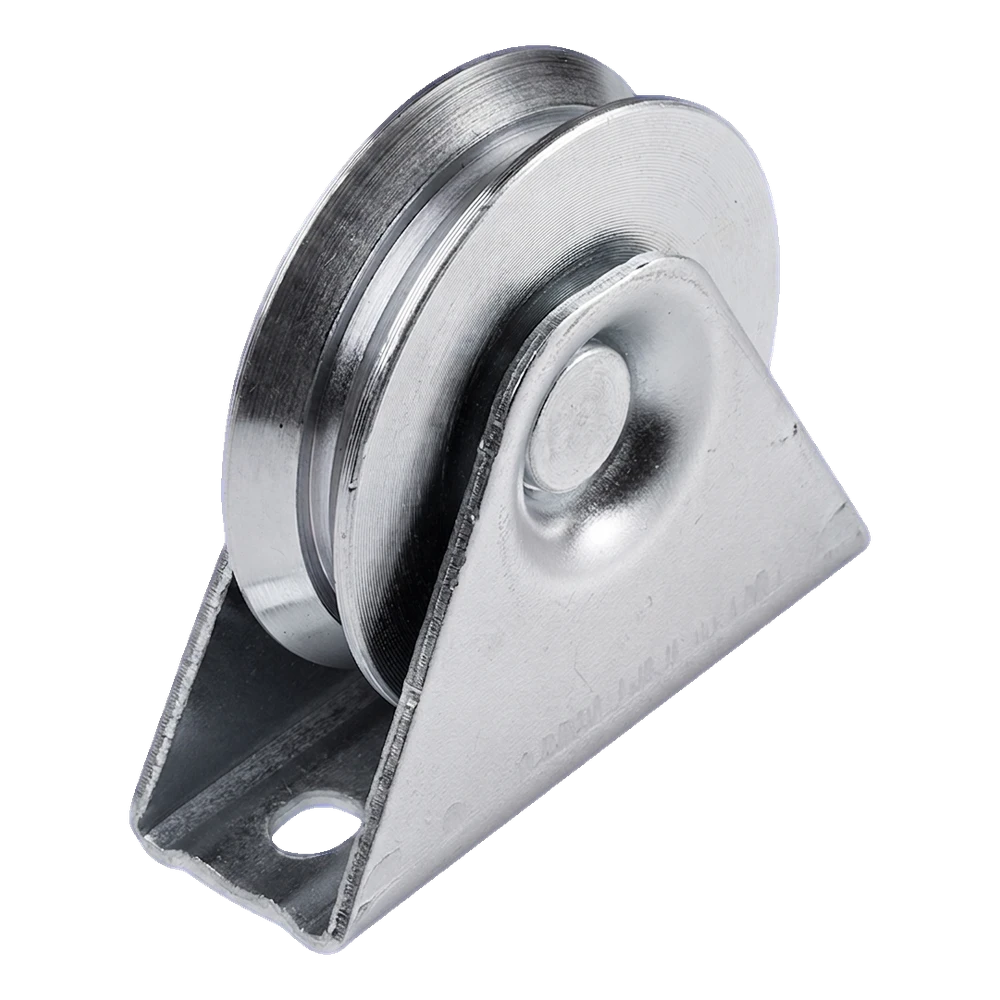

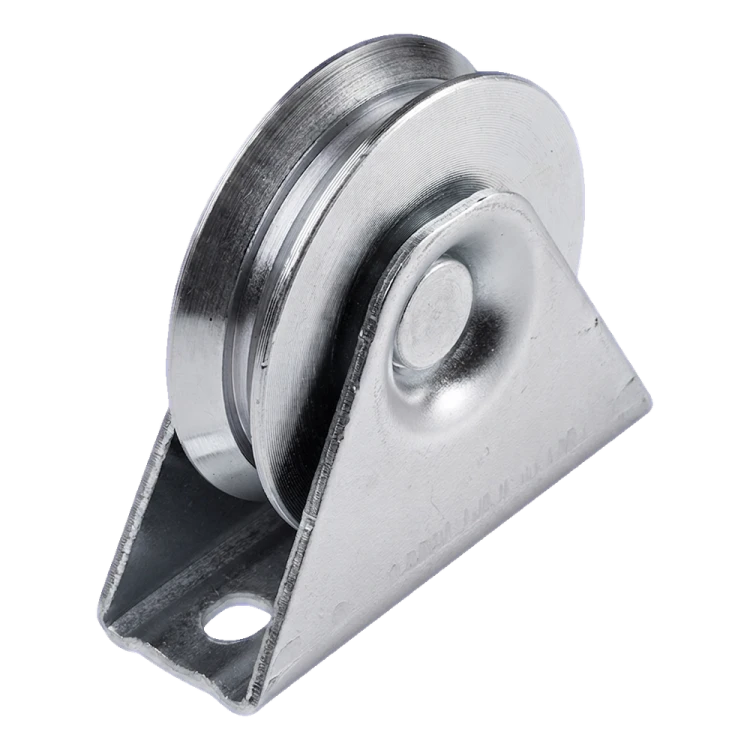

Steel V-type running wheel designed for rail sliding gates. Thanks to the V-shaped groove with an opening angle of 92° the wheel reliably guides the gate along the rail, ensuring smooth and quiet operation. The galvanised surface protects against corrosion, guaranteeing years of operation in outdoor conditions.
The PSG brand product is supplied as a complete assembly — wheel mounted in a steel bracket with mounting holes, together with a mounting screw. Maximum load capacity is 150 kg, allowing use in sliding gates of standard dimensions. The mounting bracket with external width of 35 mm and internal clearance of 20 mm enables easy attachment to the gate structure.

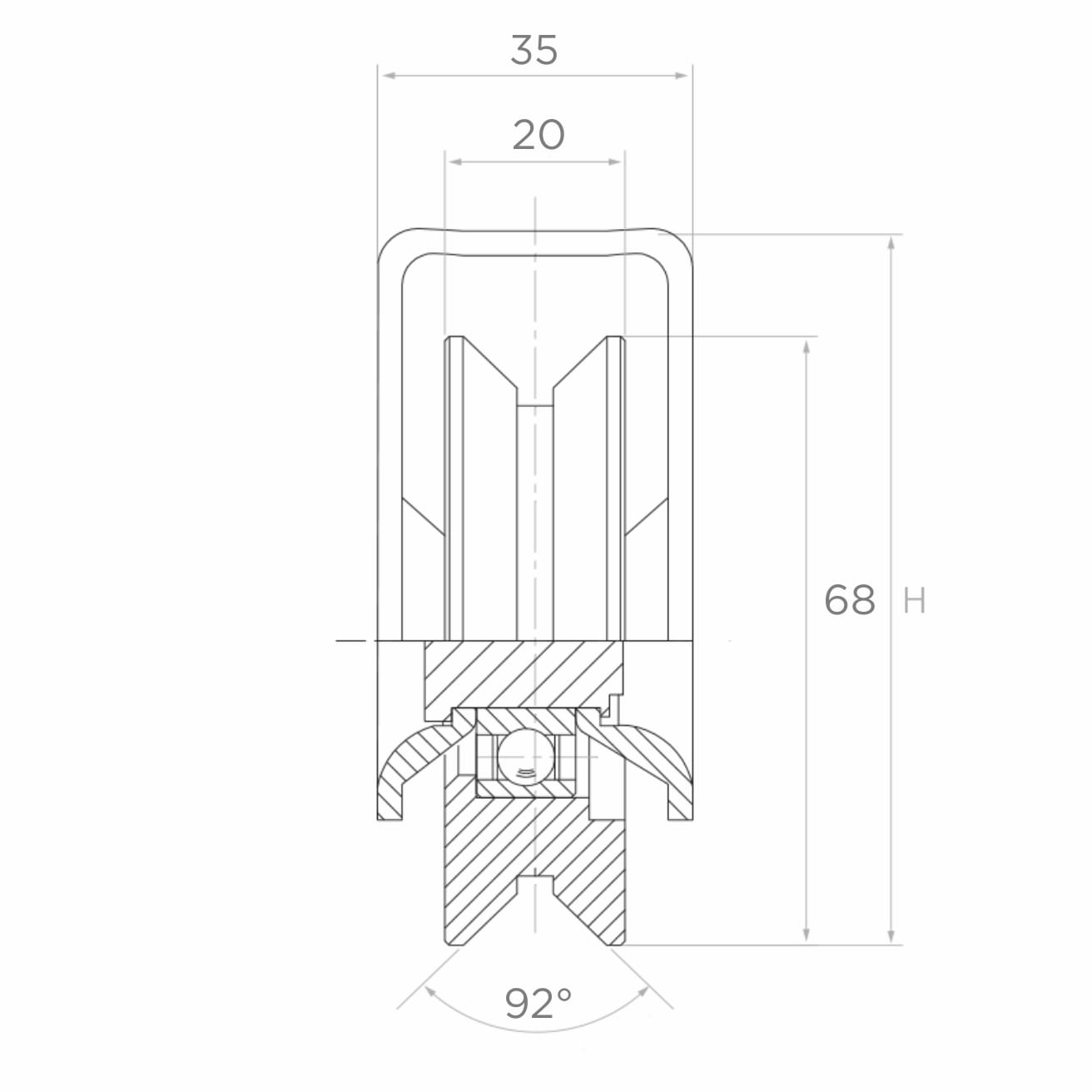

Technical parameters
- Groove type: V
- Wheel diameter: fi 68 mm
- V-groove opening angle: 92°
- External bracket width: 35 mm
- Internal bracket clearance: 20 mm
- Total height (H): 80 mm
- Maximum load capacity: 150 kg
- Material: galvanised steel
- Weight: 0.62 kg
- Manufacturer: PSG
- EAN: 5901289675246
Kit includes:
- V-type running wheel fi 68 mm in mounting bracket
- Mounting screw
- Base with mounting holes
