PSG V-type gate roller wheel fi 88 mm galvanised – load capacity 250 kg
Description
PSG V-type gate roller wheel fi 88 mm galvanised – load capacity 250 kg

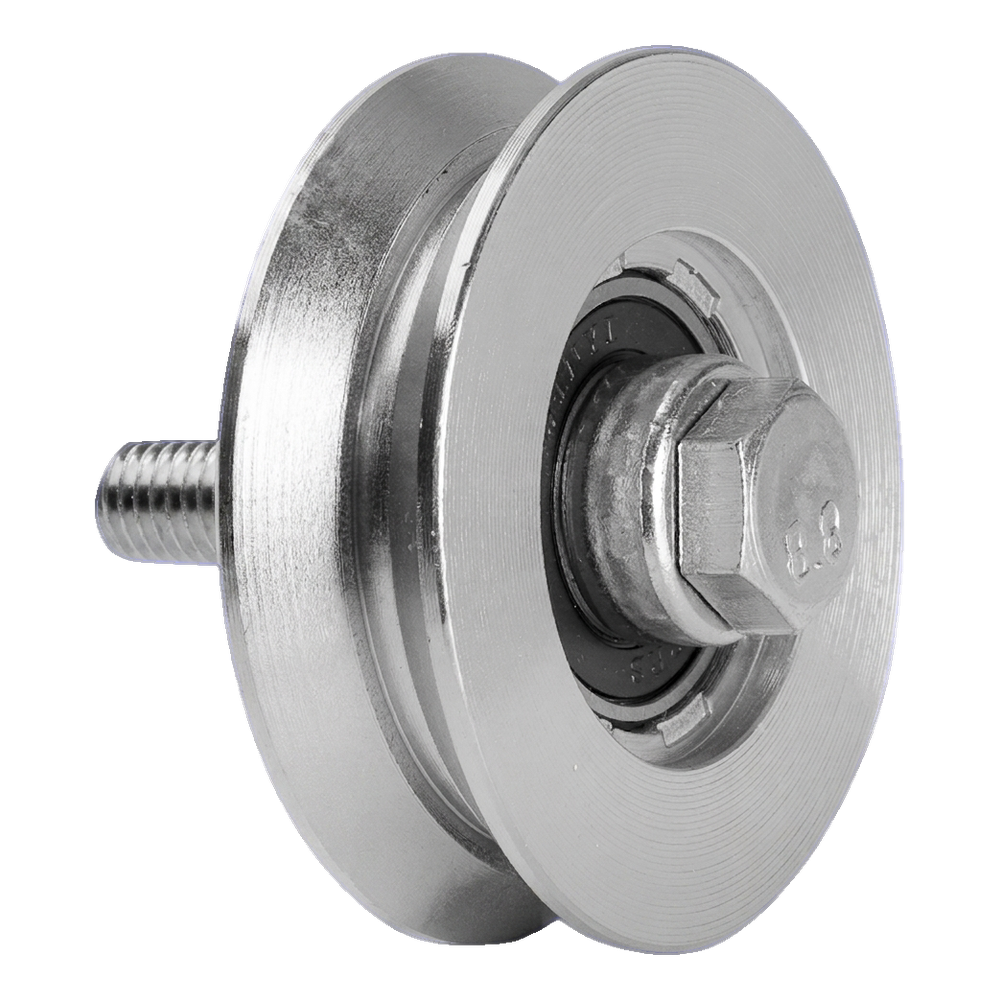

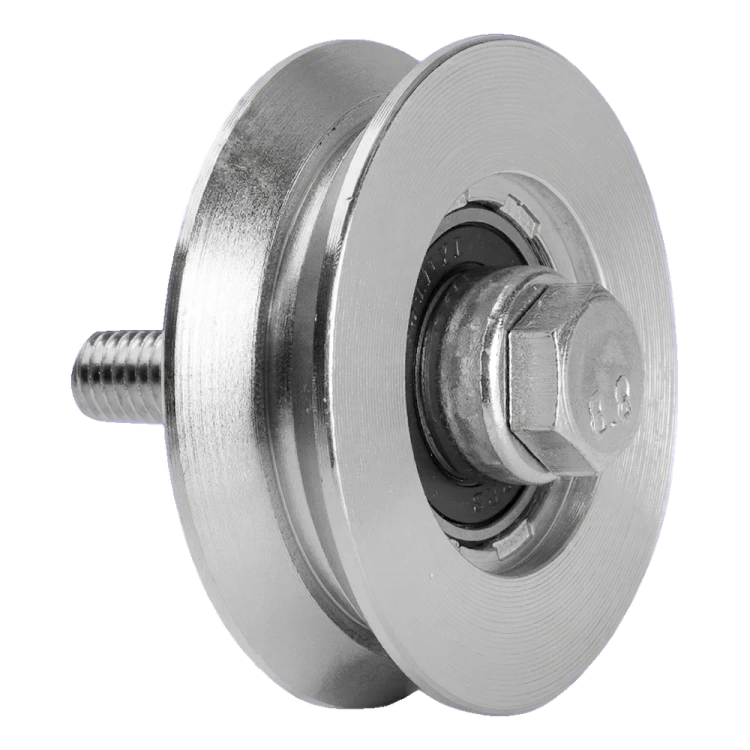

Steel V-type roller wheel by PSG designed for sliding gates. Thanks to the V-shaped groove, the roller reliably guides the gate along the running rail, ensuring smooth and quiet sliding even under heavy loads. The product is supplied complete with a mounting bolt, allowing immediate installation without the need to order additional fasteners.
The roller is made from galvanised steel, guaranteeing high corrosion resistance and years of operation in outdoor conditions. The built-in ball bearing ensures minimal rolling resistance, resulting in light and trouble-free gate movement. Maximum load capacity of 250 kg allows the roller to be used in both lightweight gates and medium-loaded sliding structures.

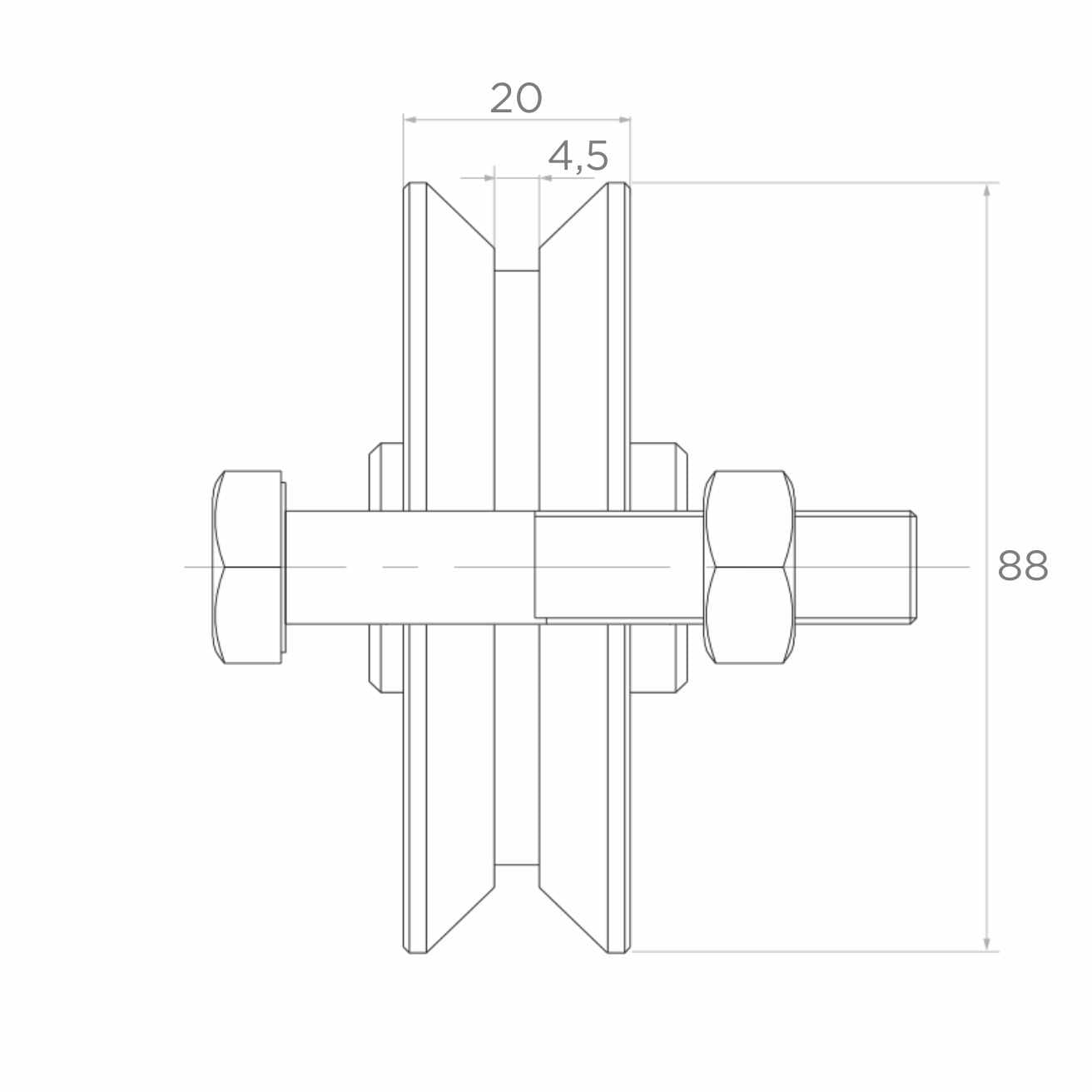

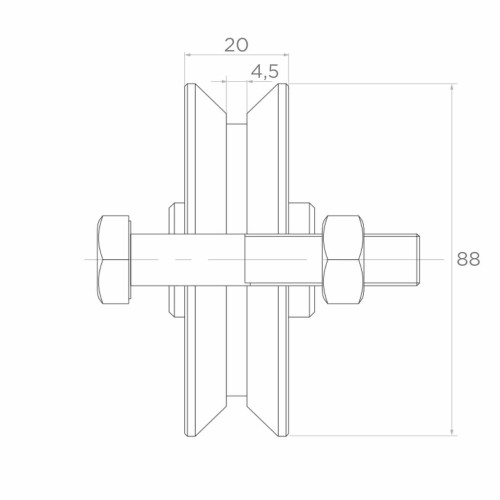

Dimensions and technical parameters
- Groove type: V
- External diameter: 88 mm
- Roller width: 20 mm
- V-groove bottom width: 4.5 mm
- Material: galvanised steel
- Maximum load capacity: 250 kg
- Weight: 0.82 kg
- Included: mounting bolt
- Brand: PSG
- EAN: 5901289675260
Application and installation
The V-type roller wheel is a key component of the sliding gate running system. Mounted on the lower frame of the gate, it works with a V-profile running rail, ensuring stable guidance of the gate wing. The V-groove profile guarantees self-centring of the roller on the rail, eliminating lateral deviations of the gate during movement. Thanks to the galvanised surface, the product is suitable for outdoor use — it is resistant to rain, snow and changing weather conditions.
