PSG V-groove running wheel for sliding gate Ø 88 mm – galvanised steel 250 kg

Go to Product feedback

PSG V-groove running wheel Ø 88 mm made of galvanised steel. Load capacity 250 kg, V-groove width 20 mm. Base length 152 mm, bracket width 32 mm, weight 1.05 kg. For rail-mounted sliding gates.

Go to full description
with VAT without VAT
Price €9.38
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

PSG V-groove running wheel for sliding gate Ø 88 mm – galvanised steel 250 kg

Steel running wheel with V-groove designed for rail-mounted sliding gates. Galvanised construction provides durable anti-corrosion protection, allowing the component to maintain full functionality even in outdoor conditions exposed to moisture and varying temperatures. Load capacity of 250 kg enables use with heavy gates — an ideal component for professional installations in residential, industrial and commercial construction.

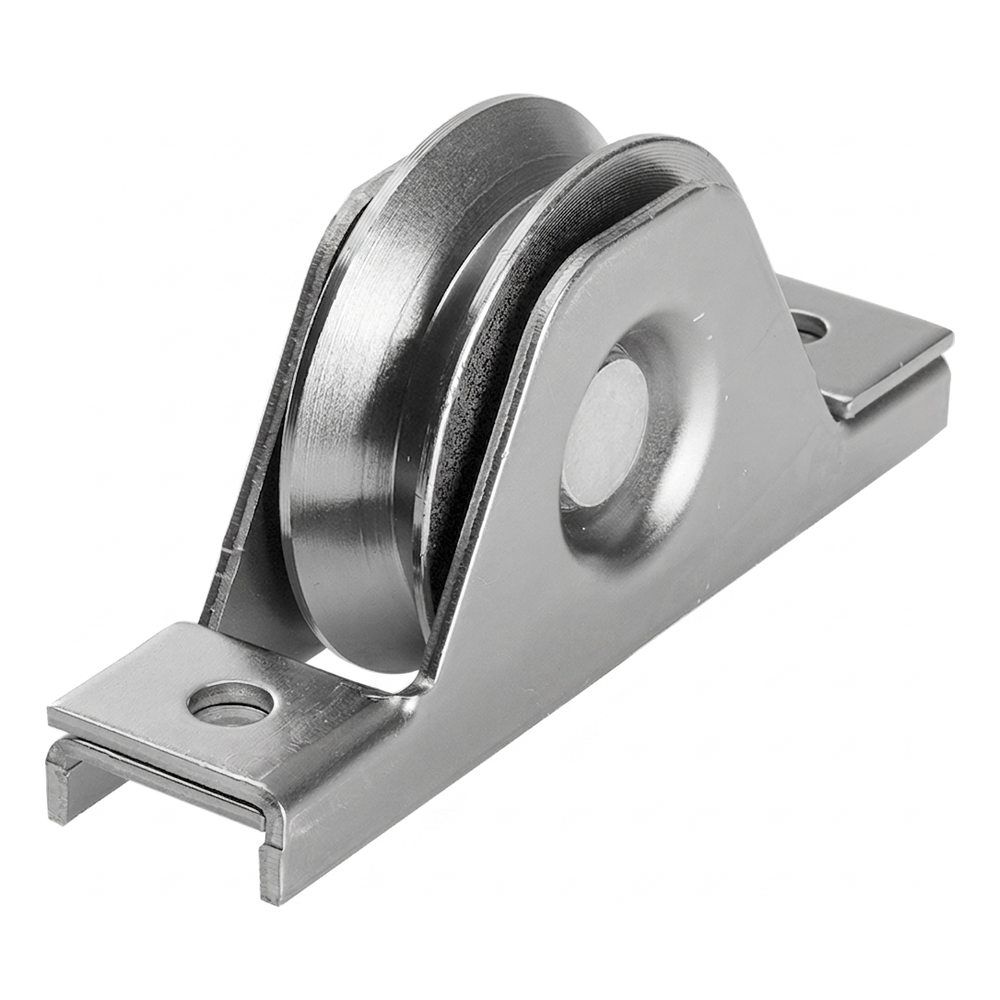

V-groove sliding gate running wheel Ø 88 mm PSG – perspective view
V-groove sliding gate running wheel Ø 88 mm PSG – perspective view

The wheel is mounted in a steel mounting bracket with holes for screwing, allowing quick and stable installation directly in the gate frame. The V-shaped groove profile ensures precise guidance along the running rail, minimising side clearances and eliminating uncontrolled gate leaf movements during opening and closing. The set includes a mounting screw and internal bracket, providing the installer with a complete assembly kit without the need to select additional components.

Dimensions and technical data

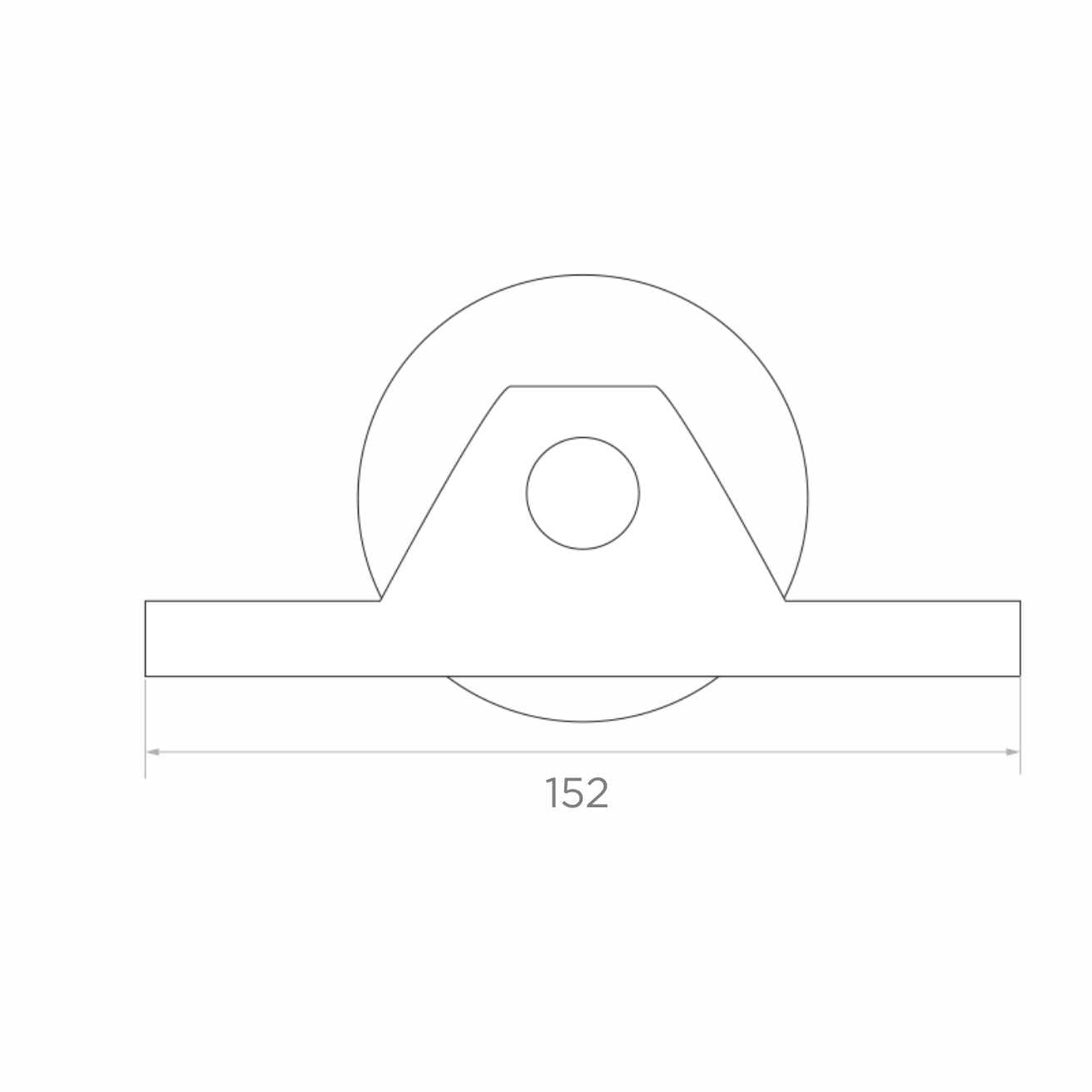

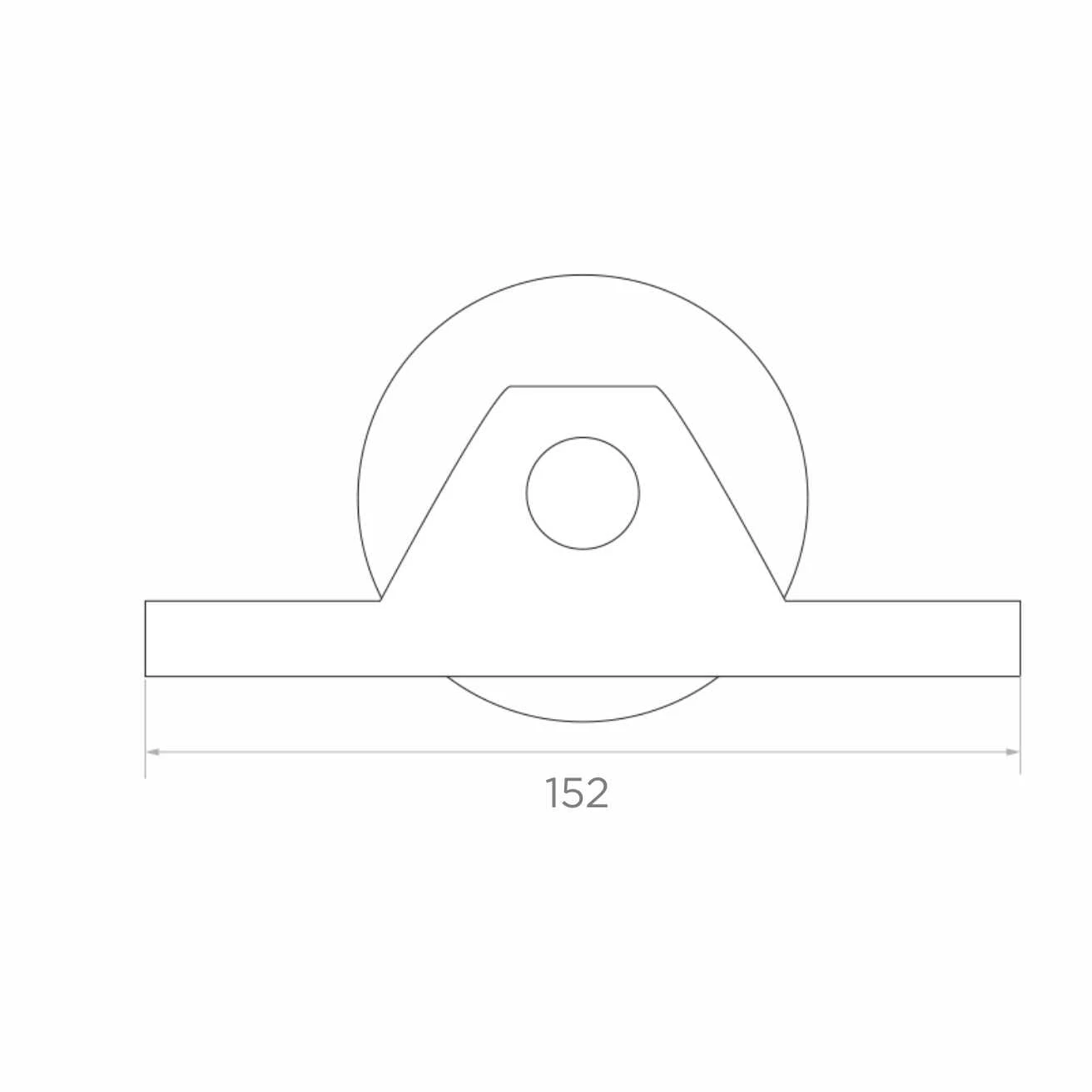

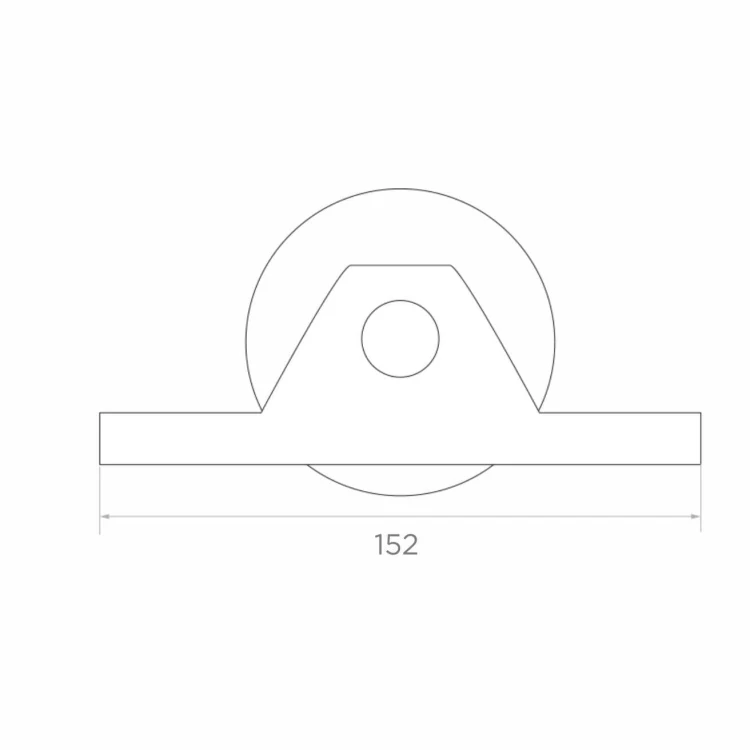

Technical drawing of running wheel – front view, length dimension 152 mm
Technical drawing of running wheel – front view, length dimension 152 mm

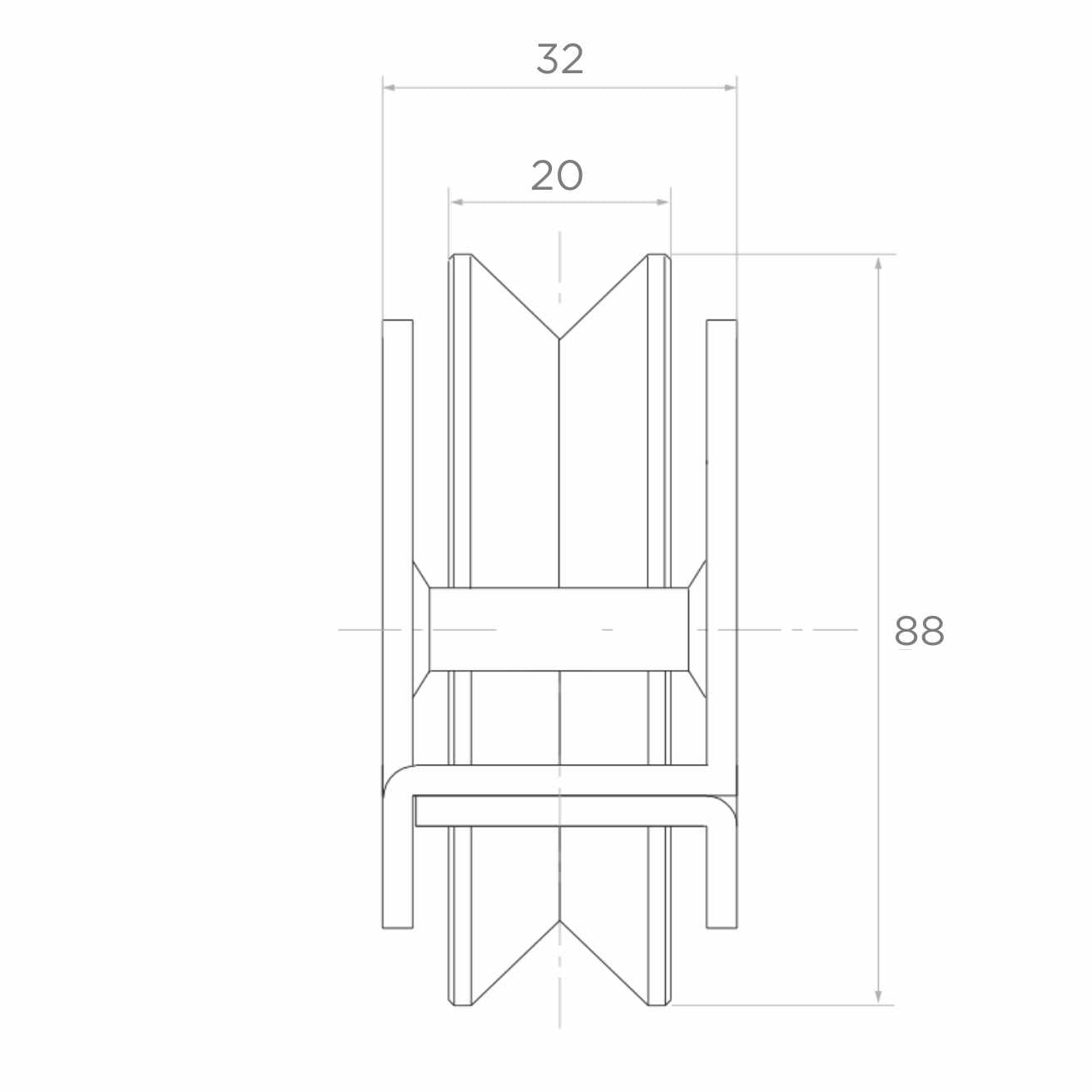

Technical drawing of running wheel – side view, width dimensions 32 mm and height 88 mm
Technical drawing of running wheel – side view, width dimensions 32 mm and height 88 mm
  • Wheel diameter (Ø): 88 mm
  • V-groove width: 20 mm
  • Mounting base length (L): 152 mm
  • External bracket width: 32 mm
  • Maximum load capacity: 250 kg
  • Material: galvanised steel
  • Groove profile: V
  • Weight: 1.05 kg
  • Manufacturer: PSG
  • EAN: 5901289675505
  • Included: mounting screw + internal bracket

Application and compatibility

The V-type running wheel is a component dedicated to rail-mounted sliding gates, where the gate leaf moves along a running rail embedded in the ground. The V-shaped groove ensures optimal contact with the triangular rail, guaranteeing quiet and smooth sliding. The component works well with both manually operated gates and those with automatic drives. Thanks to the 250 kg load capacity, it is suitable for gates up to approximately 6 m wide (when using an appropriate number of wheels).
