PSG V-groove running wheel ø 70×20 mm galvanised steel for rail sliding gate
Description

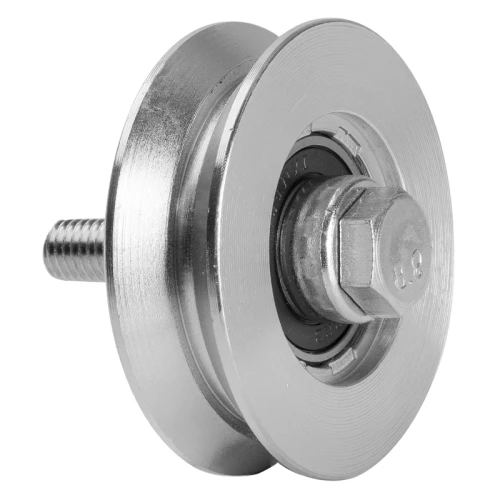

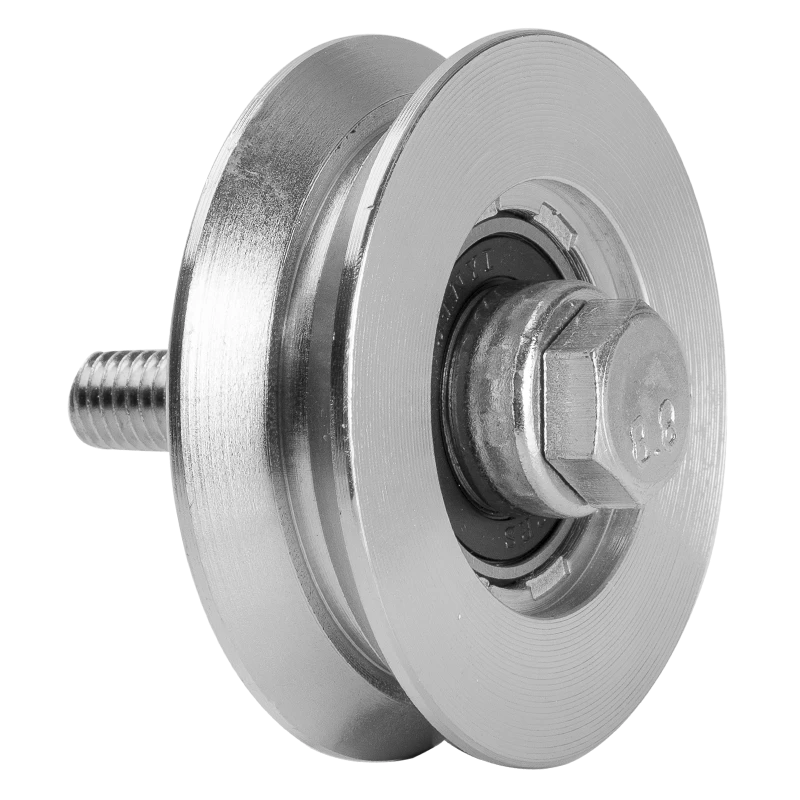

PSG V-groove running wheel ø 70×20 mm galvanised steel for rail sliding gate
Steel V-type running wheel designed for rail sliding gates. Thanks to the galvanised surface, it provides high corrosion resistance and long-lasting, trouble-free operation — even in demanding weather conditions. Complete with mounting bolt, which reduces installation time and eliminates the need for separate assembly of fastening elements.

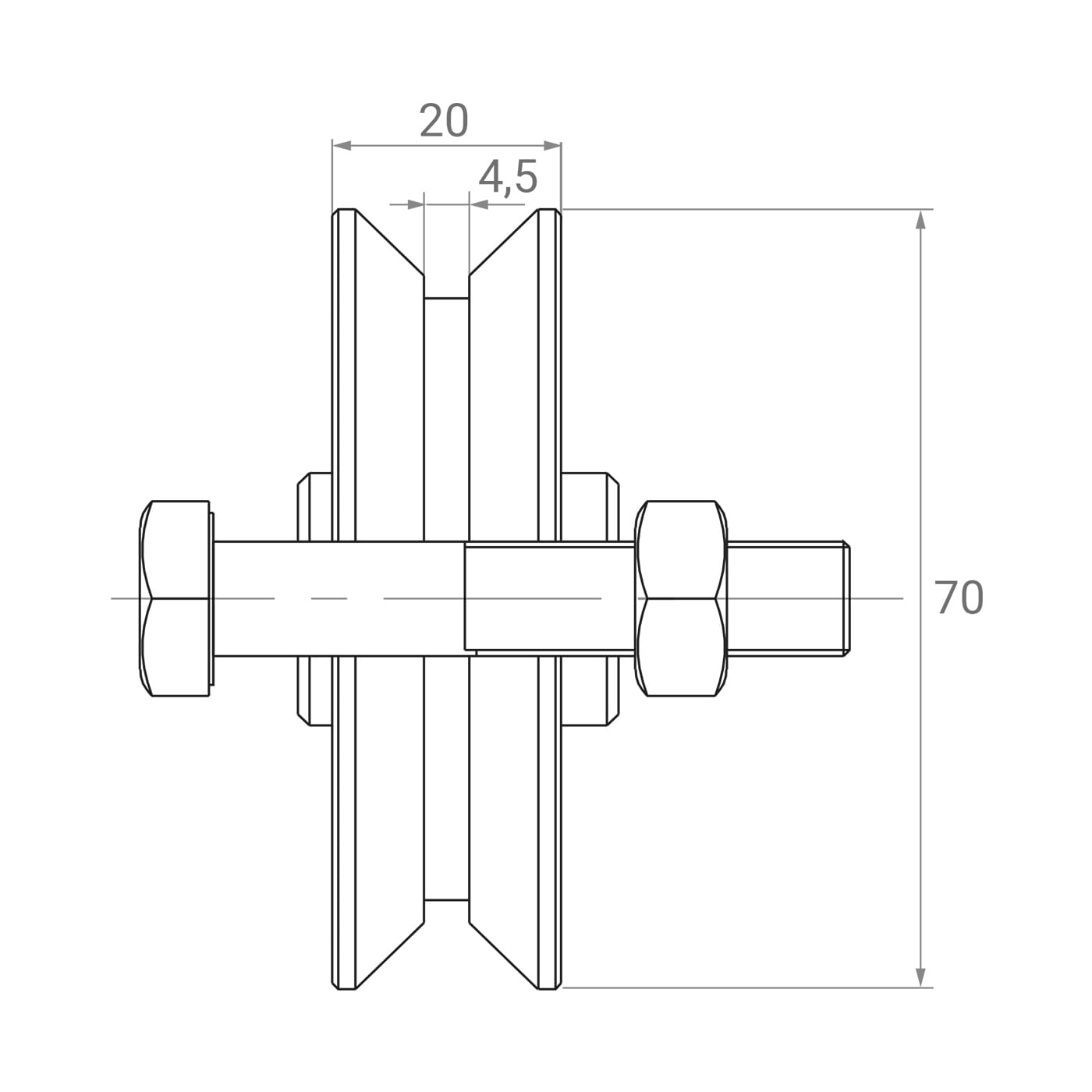

Dimensions and technical parameters
- Groove type: V
- External diameter: 70 mm
- Wheel width: 20 mm
- V-groove bottom width: 4.5 mm
- Material: galvanised steel
- Maximum load capacity: 150 kg
- Weight: 0.6 kg
- Included: mounting bolt
Application and installation
The wheel is designed to work with V-profile guide rails — a standard solution in rail sliding gates. The V-groove profile ensures stable guidance of the gate along the rail and minimises lateral deviations of the leaf during operation. The load capacity of 150 kg allows for use in gates of moderate weight — both in installations at single-family homes and in light industrial gates.
The galvanised surface protects the wheel against rust and external factors, which is crucial for components working outside the building, exposed to rain, snow and moisture. Product by PSG — a proven supplier of gate accessories on the Polish market.
