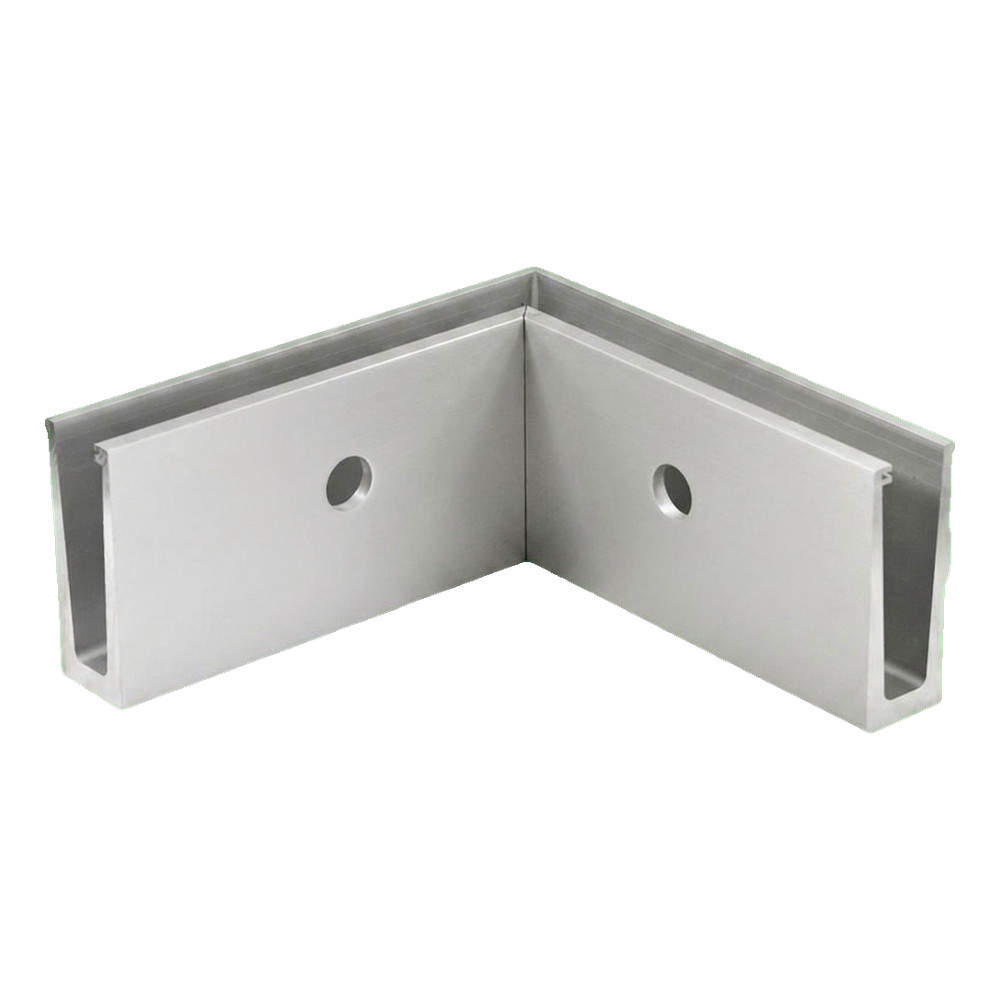

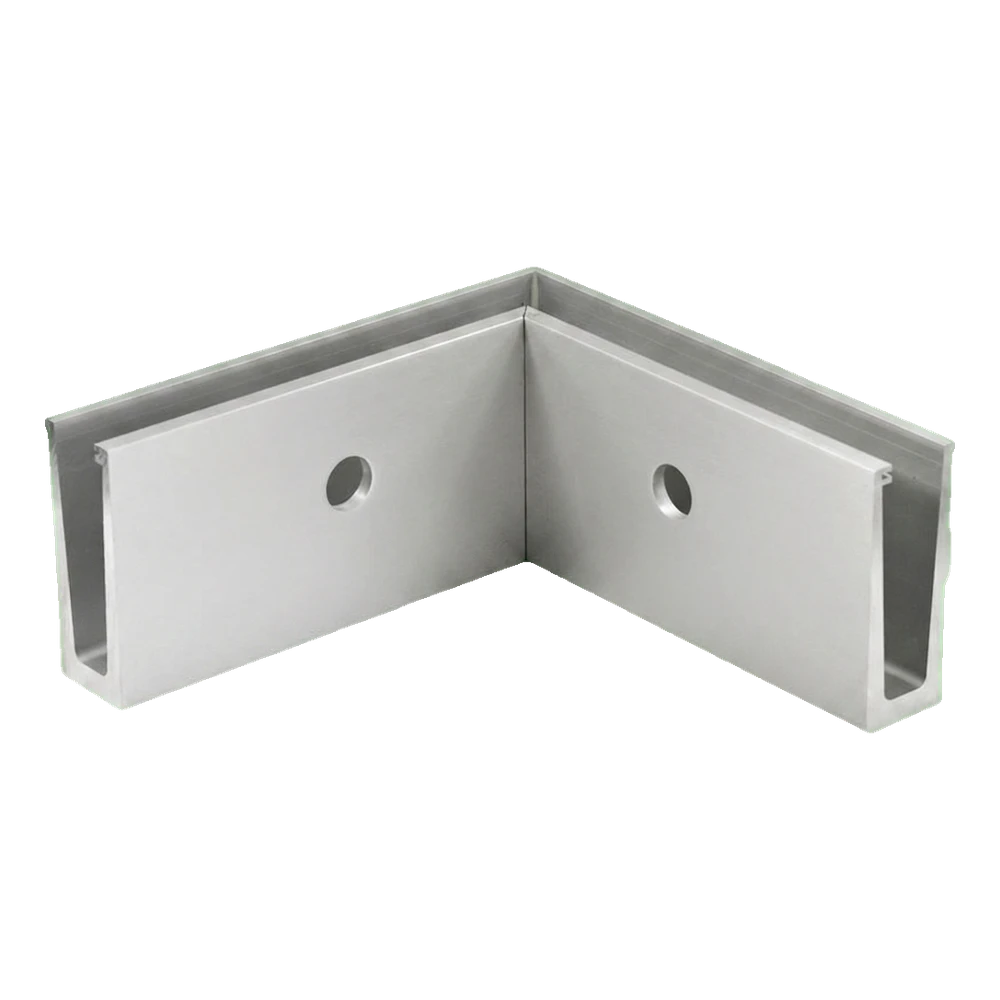

PSG U-profile internal corner 90° for all-glass balustrades – side mounting, raw aluminium
Description
PSG U-profile internal corner 90° for all-glass balustrades – side mounting, raw aluminium
Aluminium internal corner profile for all-glass (structural glazing) balustrades with side mounting. Enables aesthetic execution of 90° angle when installing toughened or laminated glass. Thanks to the flat system and raw aluminium surface, the profile perfectly imitates the appearance of satin stainless steel, whilst remaining lighter and easier to machine.
The profile is designed for mounting glass panels from above — the profile arms embrace the glass and hold it securely in the corner. Side mounting means that the profile is bolted to the wall using mounting and through holes in the side walls — an ideal solution for staircases, balconies and terraces where it is required to run the balustrade along two perpendicular walls.
Technical parameters
- Type: internal corner U-profile 90°
- Material: aluminium (flat system, raw surface)
- Profile dimensions: 200 × 119 × 47 mm
- Supported glass thickness: 12–21.52 mm
- Glass type: toughened or laminated
- Mounting method: side (to wall)
- Weight: 2.06 kg
- EAN: 5903313203920
Application and mounting
The profile is an element of the all-glass balustrade system, in which glass panels are mounted from above in U-type profiles. The internal corner allows smooth connection of two balustrade sections at right angles without the need for additional posts. For proper mounting of the profile, special mounting anchors are required (available separately), which ensure solid connection to the wall. The raw aluminium surface enables optional powder coating in any colour from the RAL palette or leaving the natural finish imitating satin steel.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
