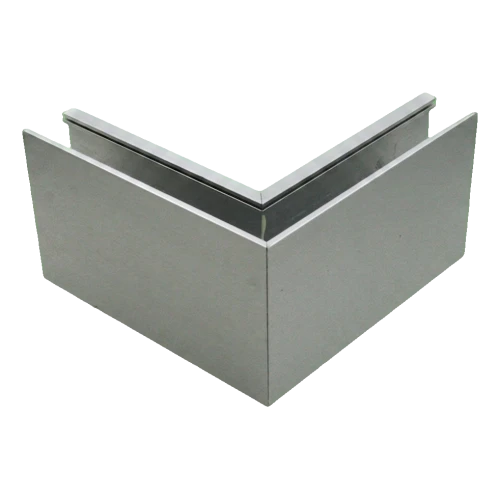

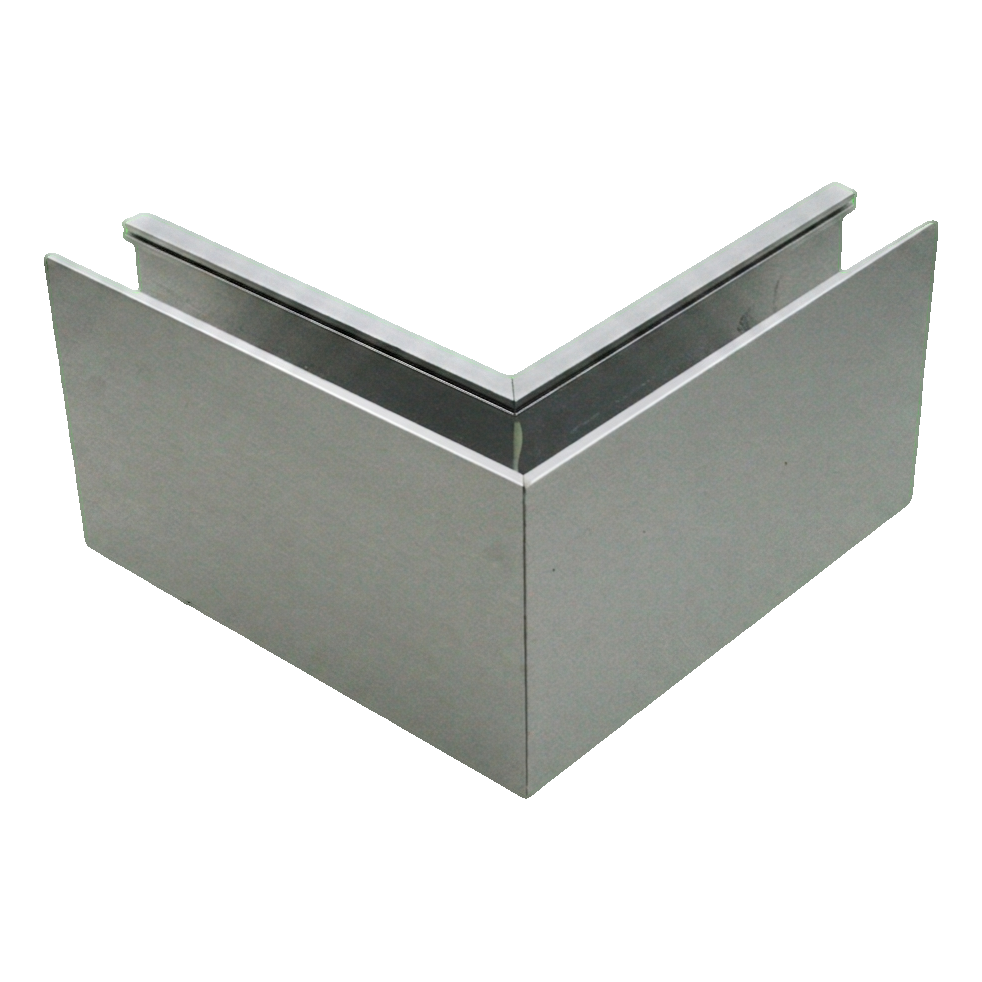

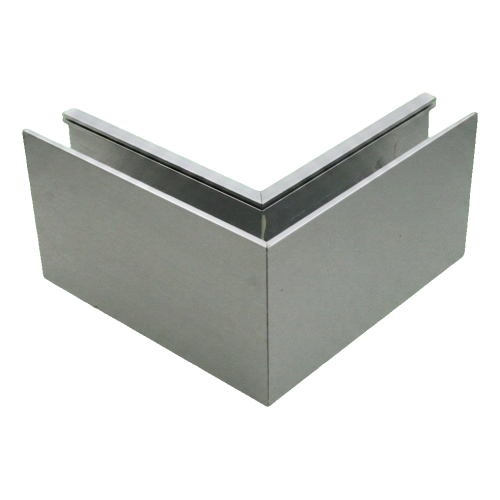

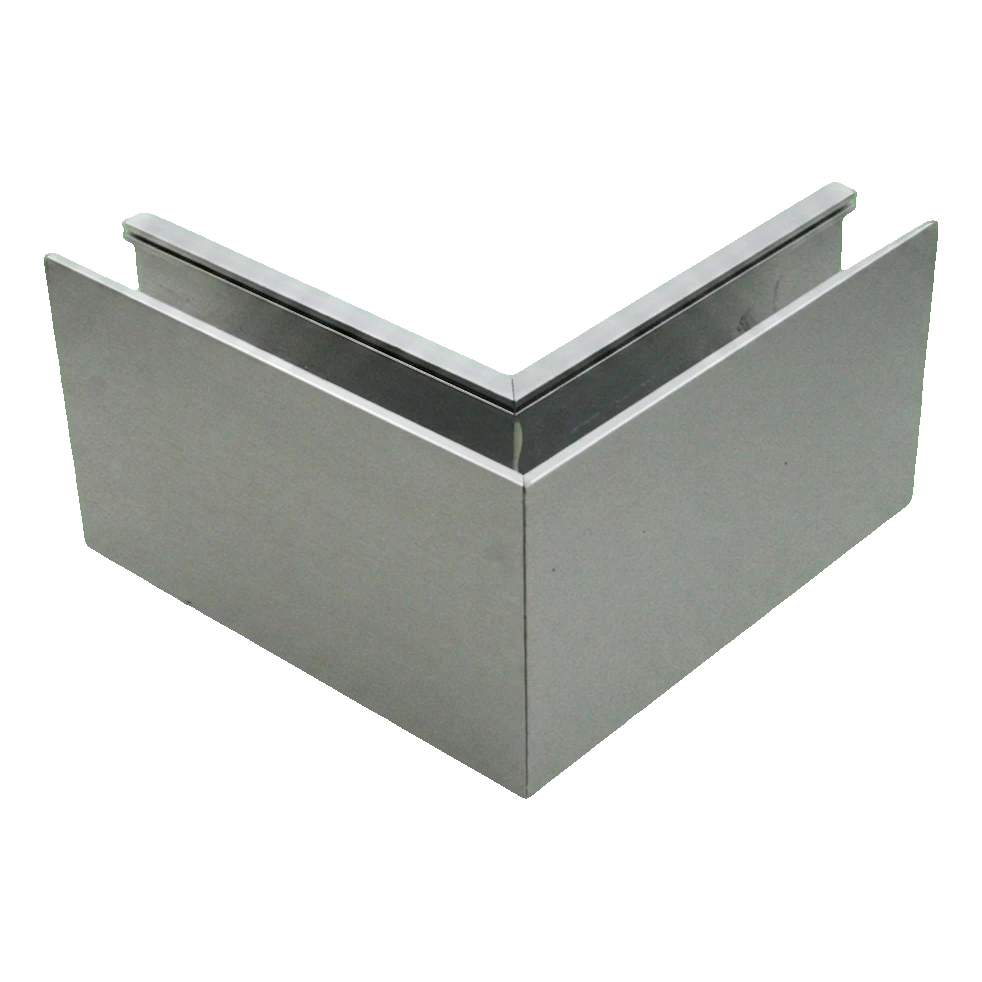

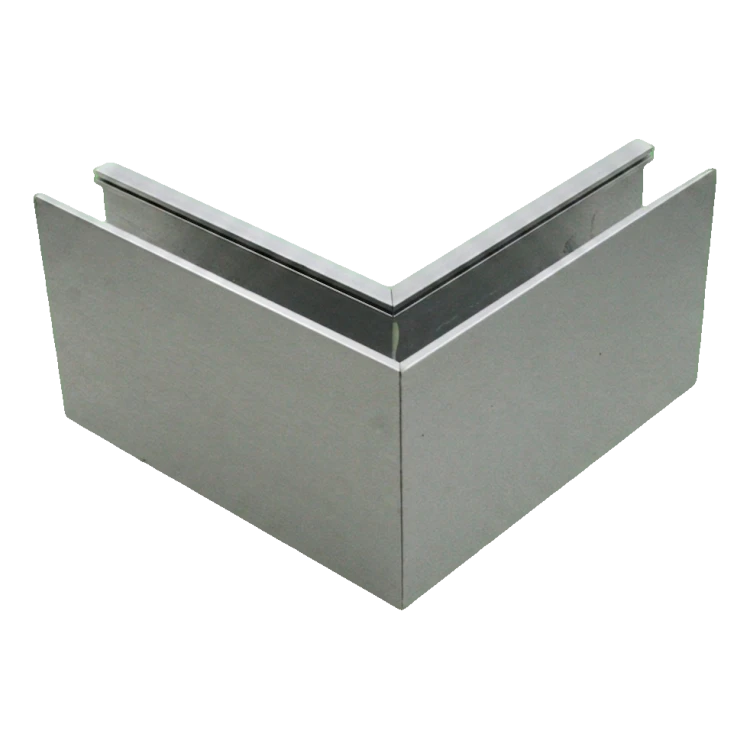

PSG U-profile External Corner for All-Glass Balustrades 200×120×45 mm – Satin Aluminium
Description
PSG U-profile External Corner for All-Glass Balustrades 200×120×45 mm – Satin Aluminium
Aluminium external corner profile of U-type designed for post-free (all-glass) balustrades with top mounting. Enables aesthetic creation of 90° external angles, maintaining a uniform balustrade line at corners of terraces, balconies and staircases. The satin aluminium finish faithfully imitates stainless steel effect, allowing the profile to harmoniously complement other flat system components.
Top mounting means the profile is fitted directly to the substrate — mounting anchors are hidden beneath the glass panel and remain completely invisible. This solution ensures a clean, minimalist appearance of the finished balustrade and simplifies the installation process. The profile is compatible with toughened or laminated glass panels with thickness from 12 mm to 21.52 mm, providing great flexibility in selecting glazing for specific projects.
Technical Specifications
- Type: external corner U-profile 90°
- System: flat, top mounting
- Material: aluminium
- Finish: satin (stainless steel effect)
- Profile dimensions: 200 × 120 × 45 mm
- Compatible glass thickness: 12–21.52 mm
- Glass type: toughened or laminated
- Weight: 1.9 kg
- Manufacturer: PSG
Installation Guidelines
Proper installation of the corner profile requires dedicated mounting anchors (sold separately), specially designed for all-glass balustrade systems with top fixing. The anchors provide stable and durable connection of the profile to concrete or steel substrate, and once the glass is installed remain completely concealed — guaranteeing an aesthetic final effect without visible fixing elements.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
