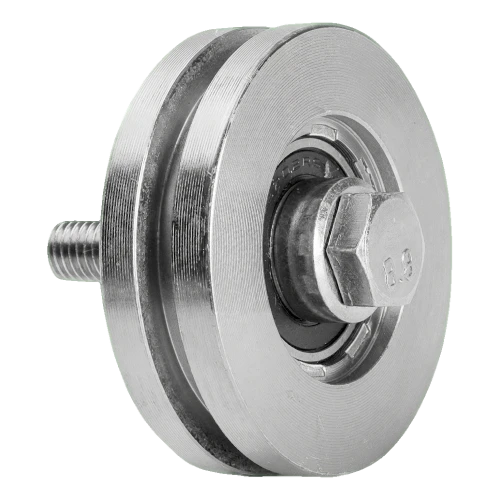

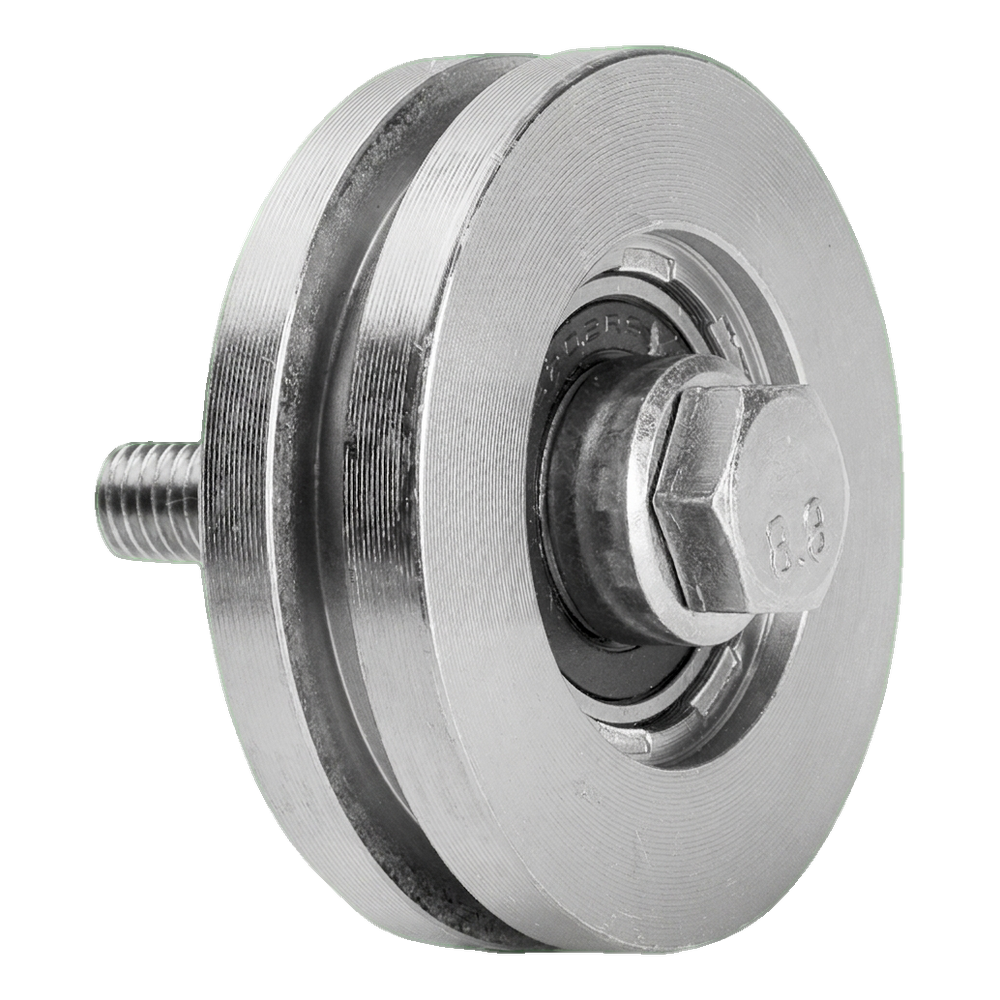

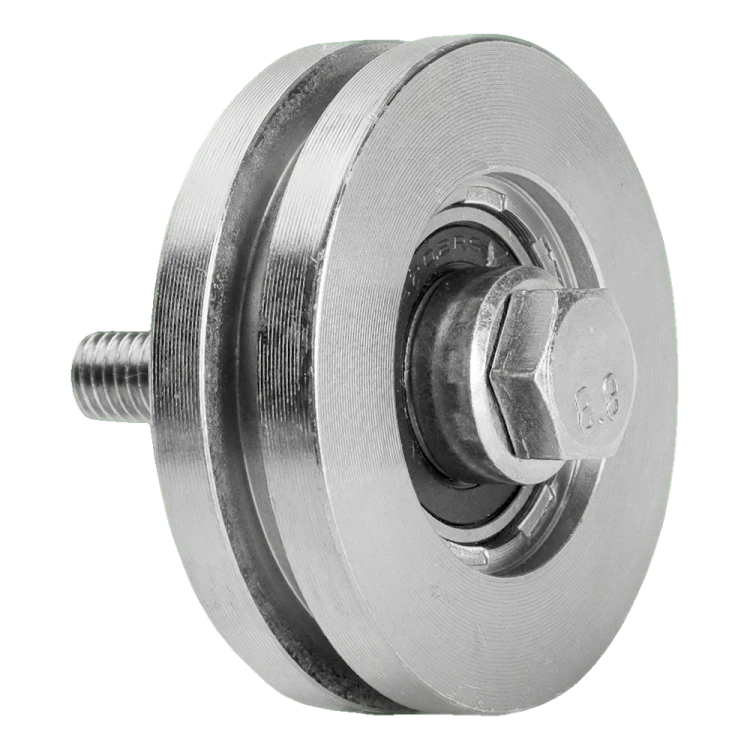

PSG T-type gate wheel fi 88 mm with groove for T-rail
Leave feedback on the product
PSG T-type gate wheel fi 88 mm made of galvanised steel. Width 20 mm, groove 7.7 mm, M12 thread. Load capacity 250 kg, weight 0.88 kg. For sliding gates on T-rail.
Product code: 001-301
Description
PSG T-type gate wheel fi 88 mm with groove for T-rail
T-type gate wheel designed for sliding gates moving along T-rail mounted at ground level or for suspended gates. Made of galvanised steel, equipped with ball bearing and supplied complete with M12 mounting bolt. Load capacity of 250 kg allows use in heavy gates — both in private and industrial installations.
T-profile groove with width of 7.7 mm ensures reliable guidance of the wheel on the T-rail, eliminating lateral deviations of the gate leaf. Thanks to galvanised surface, the wheel is corrosion-resistant and designed for outdoor operation for many seasons.

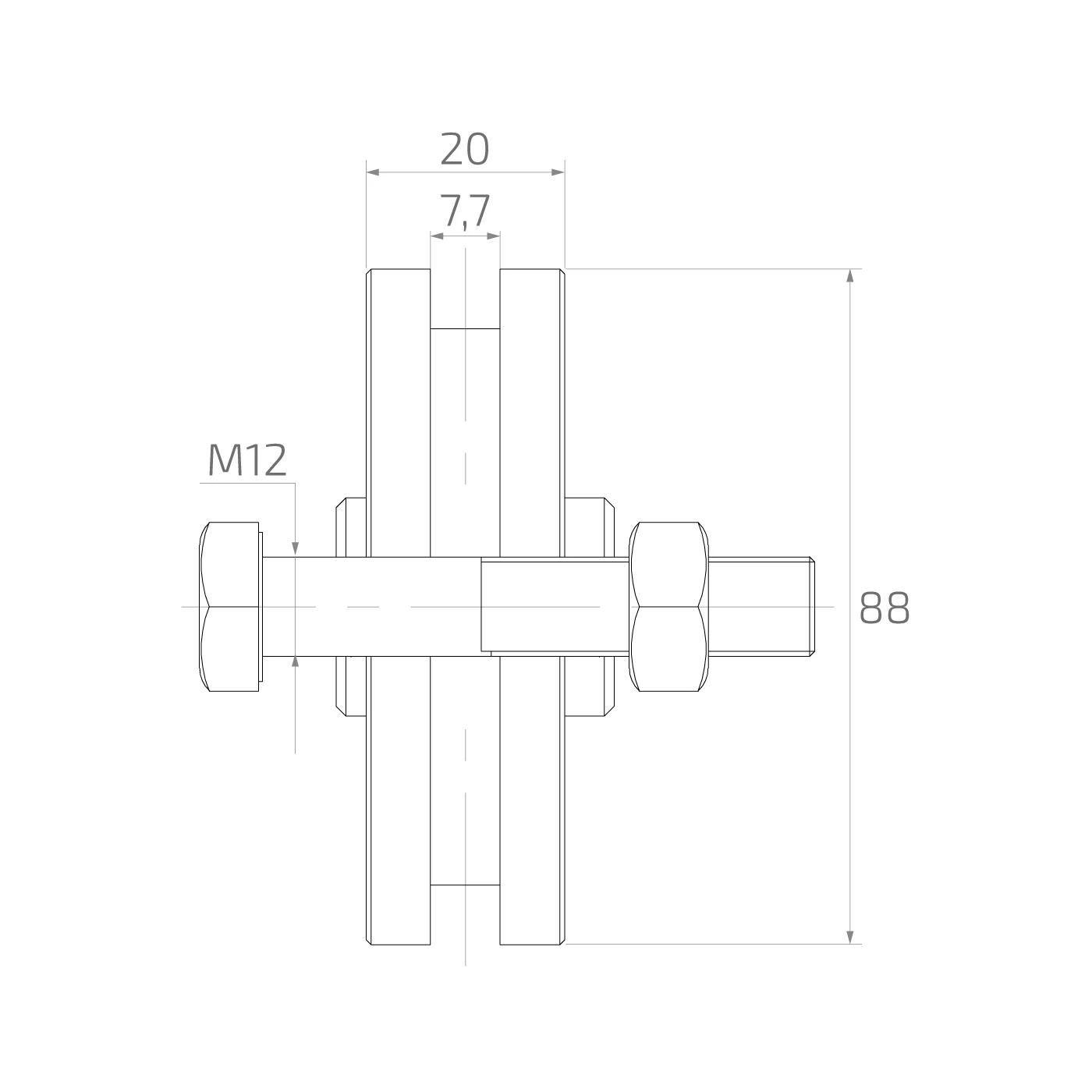

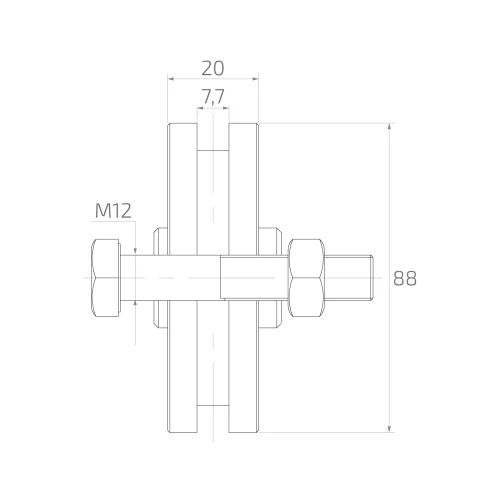

Dimensions and technical data
- Wheel type: T (for T-rail)
- External diameter: 88 mm
- Wheel width: 20 mm
- Guide groove width: 7.7 mm
- Mounting bolt thread: M12
- Permissible load: 250 kg
- Material: galvanised steel
- Weight: 0.88 kg
- Manufacturer: PSG
- EAN: 5901289675376
Complete with M12 mounting bolt — the wheel is ready for immediate installation without the need to purchase additional fastening elements. Proven solution for installation teams carrying out sliding gate installations on ground rails and suspended systems.
