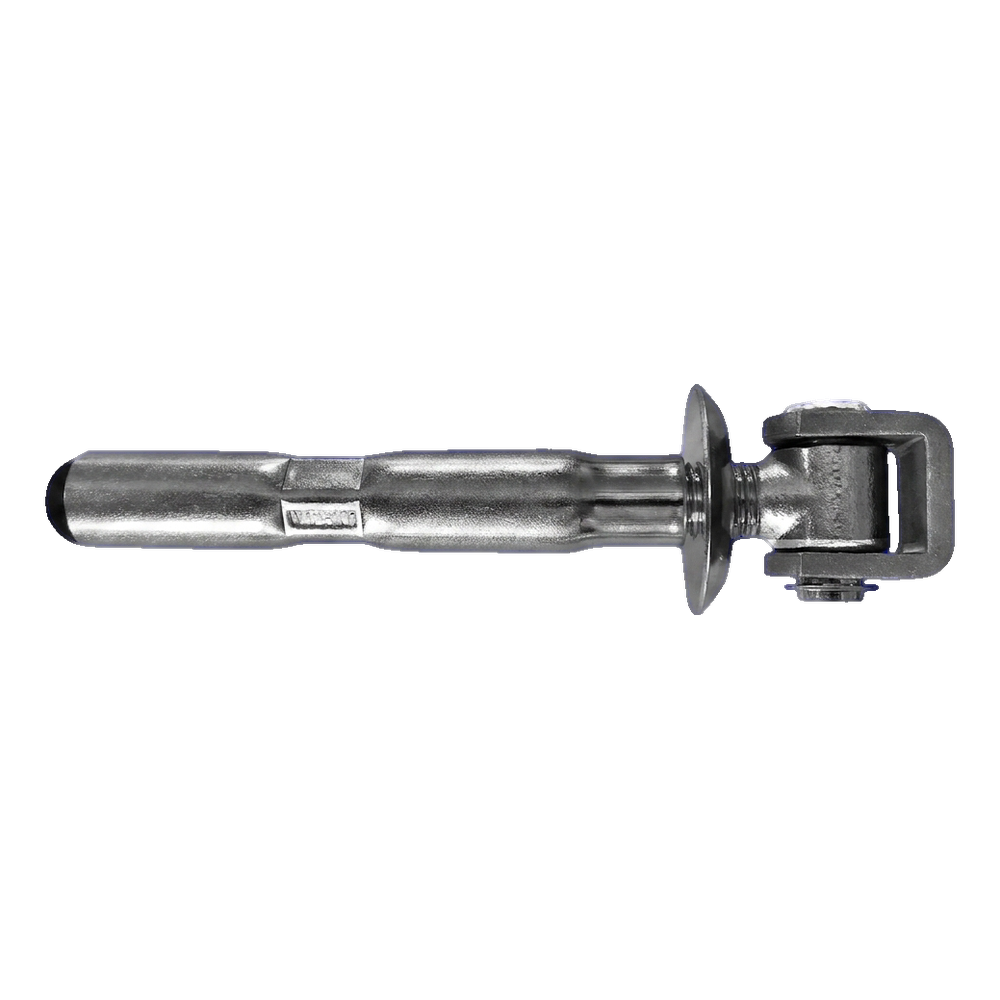

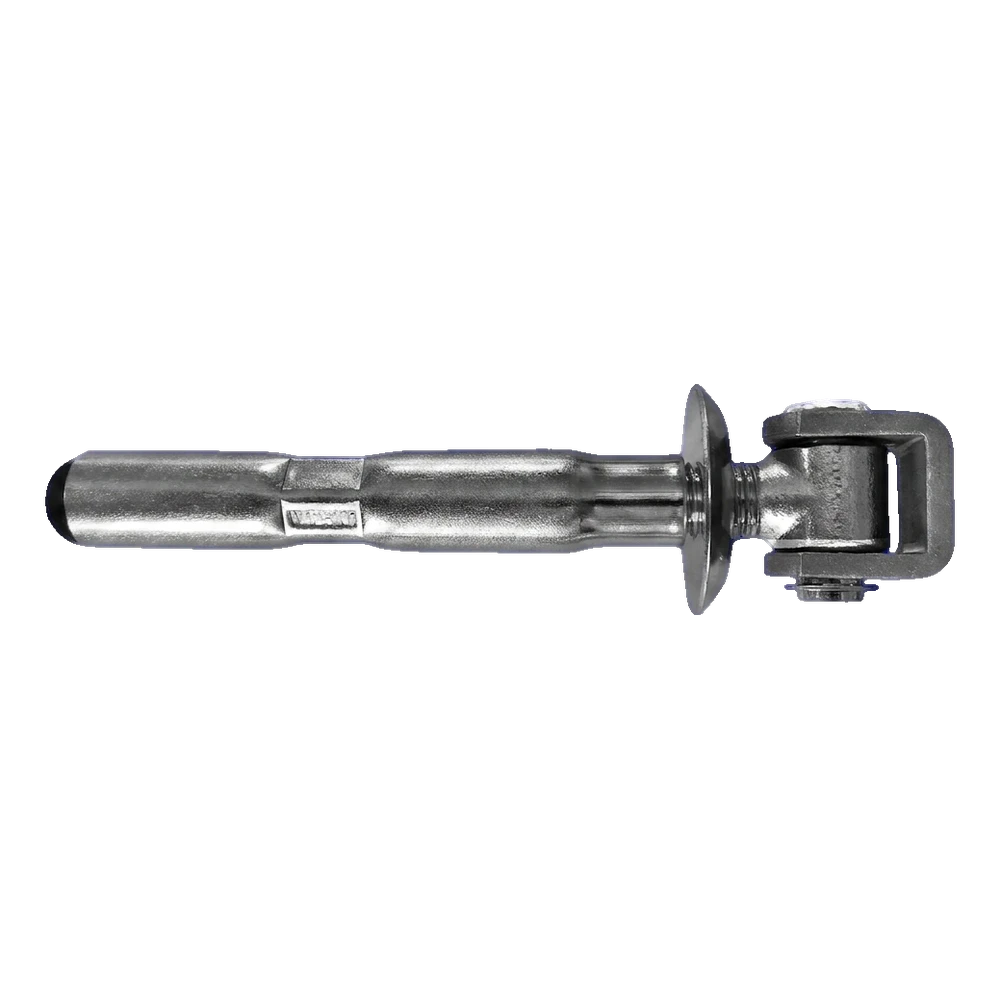

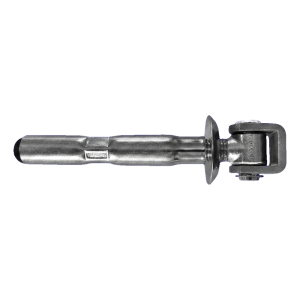

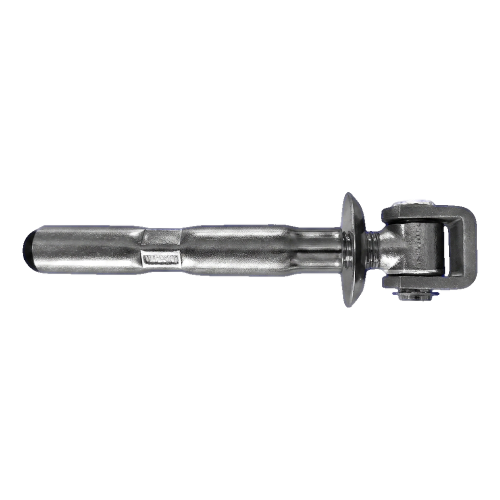

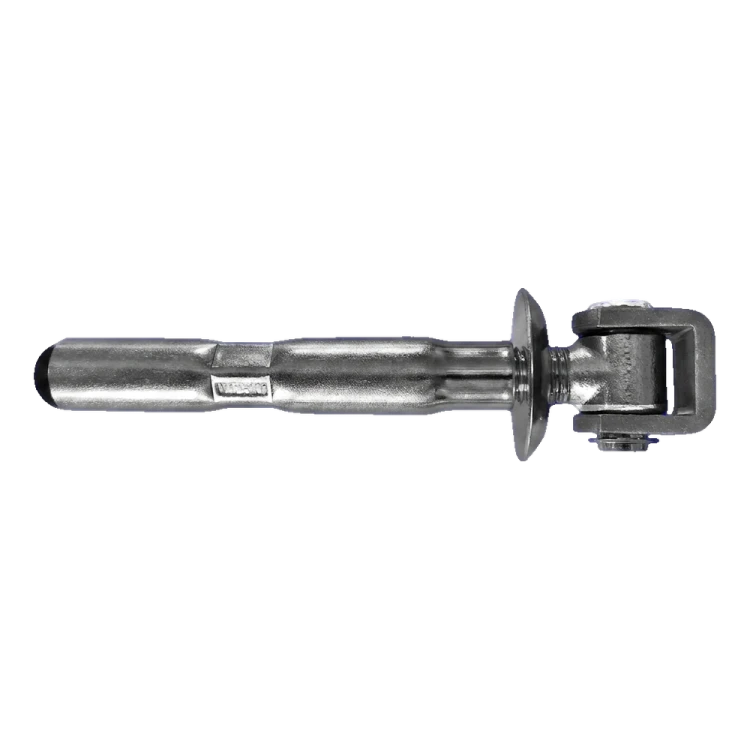

PSG Steel Anchor M16 fi 21 L-140 with Adjustable Hinge and Rosette
Description
PSG Steel Anchor M16 fi 21 L-140 with Adjustable Hinge and Rosette
Steel anchor M16 with adjustable hinge and rosette is a complete mounting kit designed for installing gate and wicket hinges in concrete, stone or clinker posts. Thanks to specially profiled narrowing for chemical anchor application it ensures durable and secure anchoring in the substrate, whilst the adjustable M16 hinge with rosette enables precise positioning of the gate leaf after installation.
Solution aimed at professional installation teams — hinge adjustment range of 40–55 mm allows for correction of leaf position without the need to dismantle the anchor. The 58 mm diameter rosette aesthetically masks the point where the anchor passes through the wall, giving the installation a neat, finished appearance.

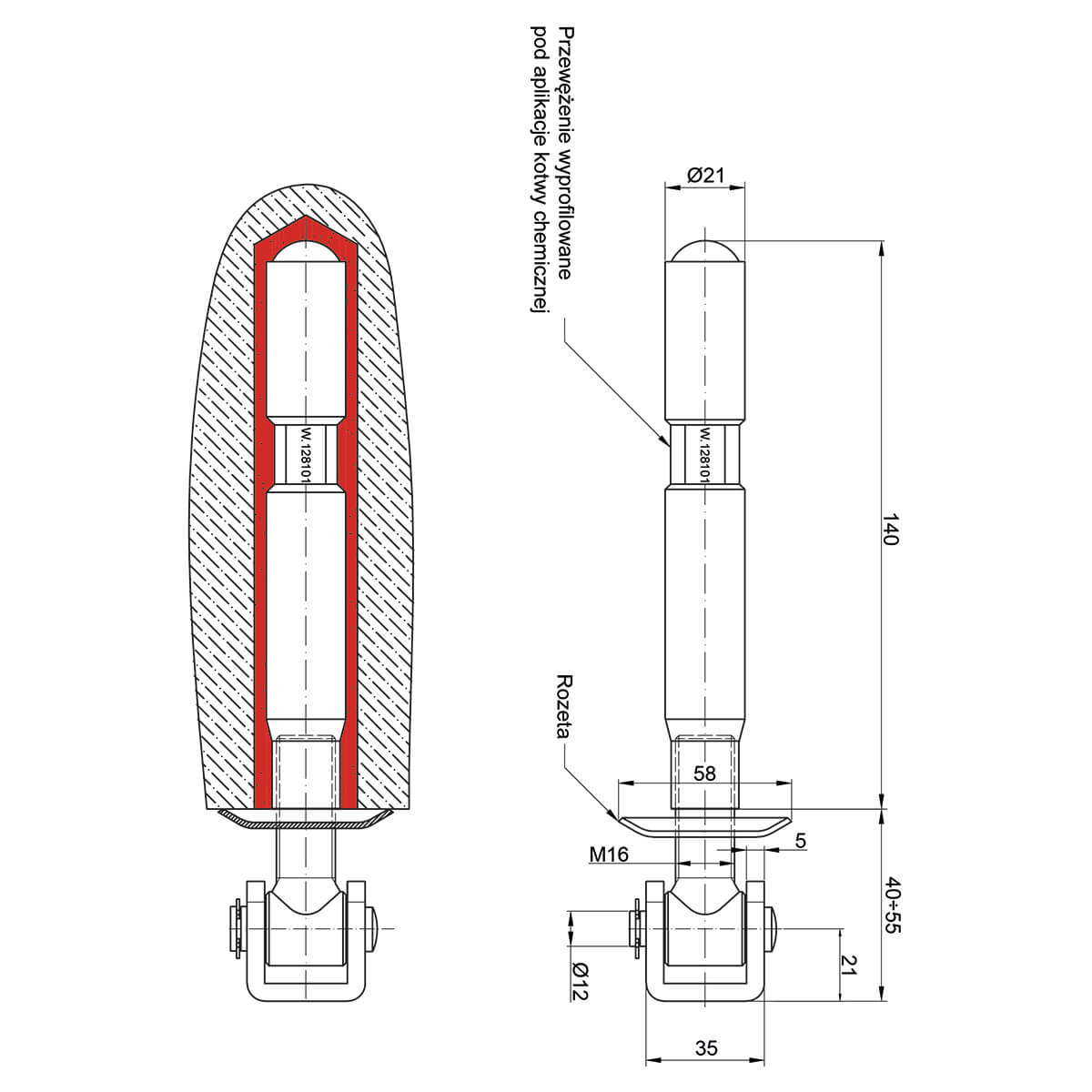

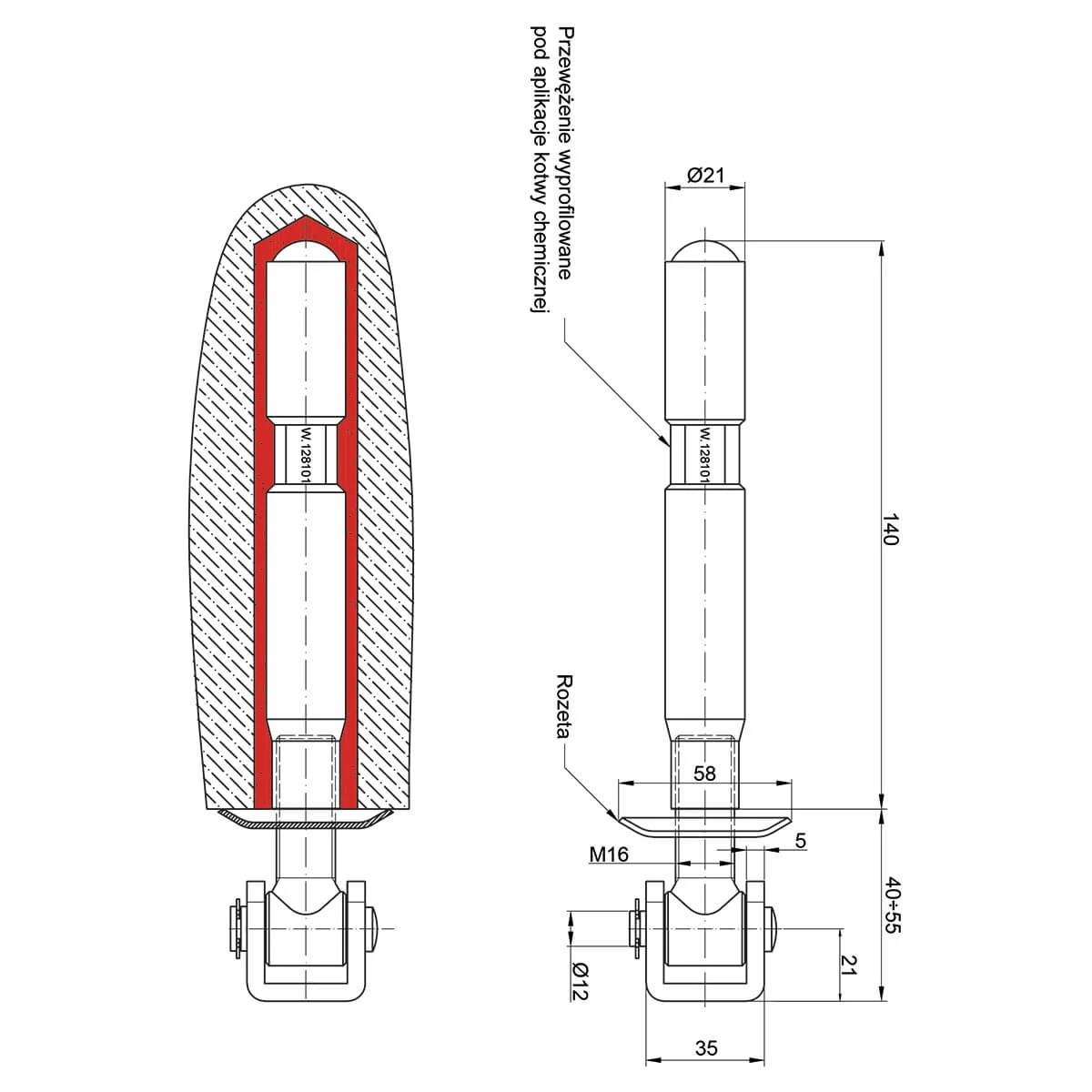

Dimensions and technical parameters
- Internal thread: M16
- Anchor body diameter: fi 21 mm
- Embedded part length: 140 mm
- Total length: 195 mm
- Rosette diameter: 58 mm
- Rosette thickness: 5 mm
- Hinge adjustment range: 40–55 mm
- Hinge pin diameter: fi 12 mm
- Hinge bracket width: 35 mm
- Material: steel
- Weight: 0.43 kg
- EAN: 5901431941267
Application and installation
The anchor is intended for embedding in concrete posts, natural stone or clinker. The characteristic narrowing on the body enables the use of chemical anchor — the resin fills the space around the notch and after curing creates a mechanical lock, ensuring strong connection resistant to pull-out. This solution works well wherever traditional mechanical anchoring is insufficient or impossible due to the structure of the base material.
Manufacturer: PSG.
Technical data
| Mounting Method | Wall-Embedded |
| Thread type | M16 |
| Material | Steel |
