PSG Side mounting for balustrade post 42.4 mm – clamp collar AISI 304 satin
Description

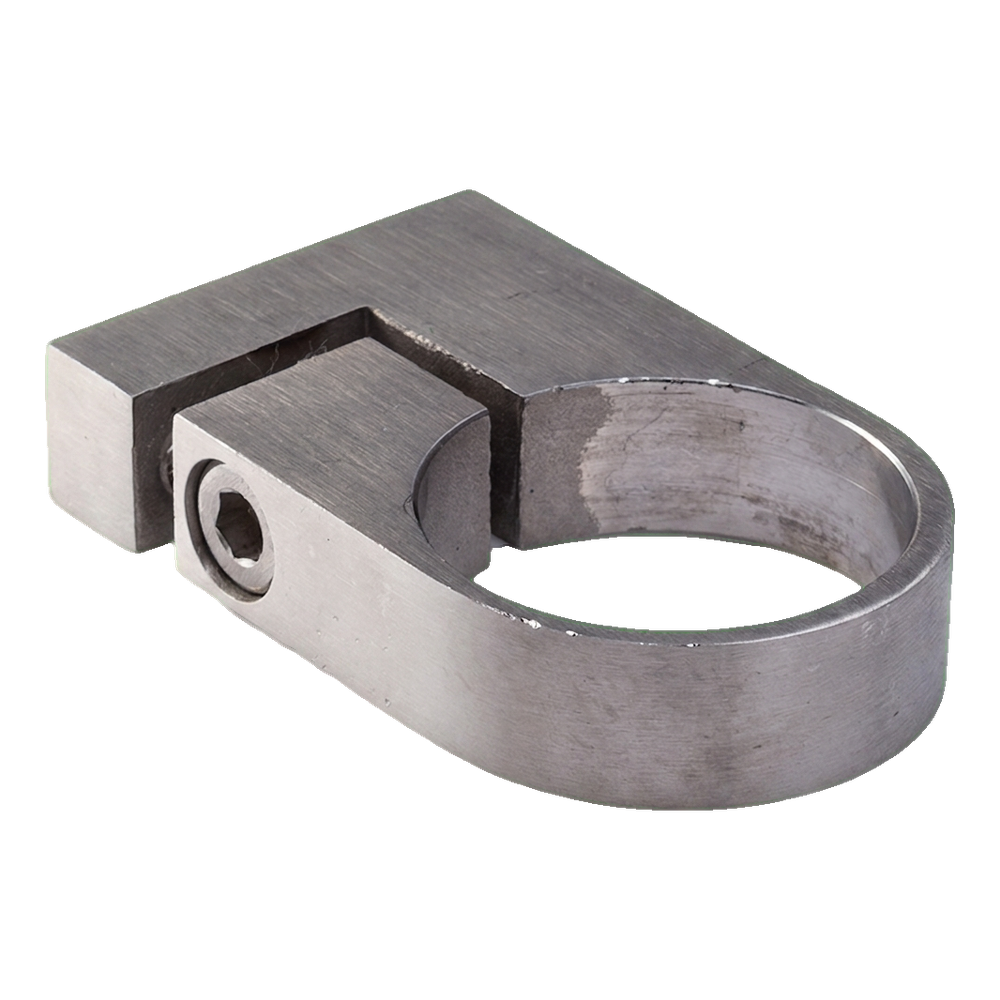

PSG Side mounting for balustrade post 42.4 mm – clamp collar AISI 304 satin
Side mounting for balustrade post with diameter 42.4 mm with clamp collar — component designed for mounting balustrade posts for balconies, terraces and stairs directly to the wall. Thanks to solid construction made from stainless steel AISI 304 with satin finish, it provides durable and aesthetic post mounting with 35 mm distance from the mounting surface.
Solid construction and quick installation
The mounting is equipped with a single clamp collar with built-in Allen screw, which allows secure immobilisation of the post without the need for additional clamping elements. The mounting section features 2 M8 holes, enabling stable attachment to the wall using standard anchors or screws. Compact dimensions and thoughtful geometry make the element easy to install even in hard-to-reach places.

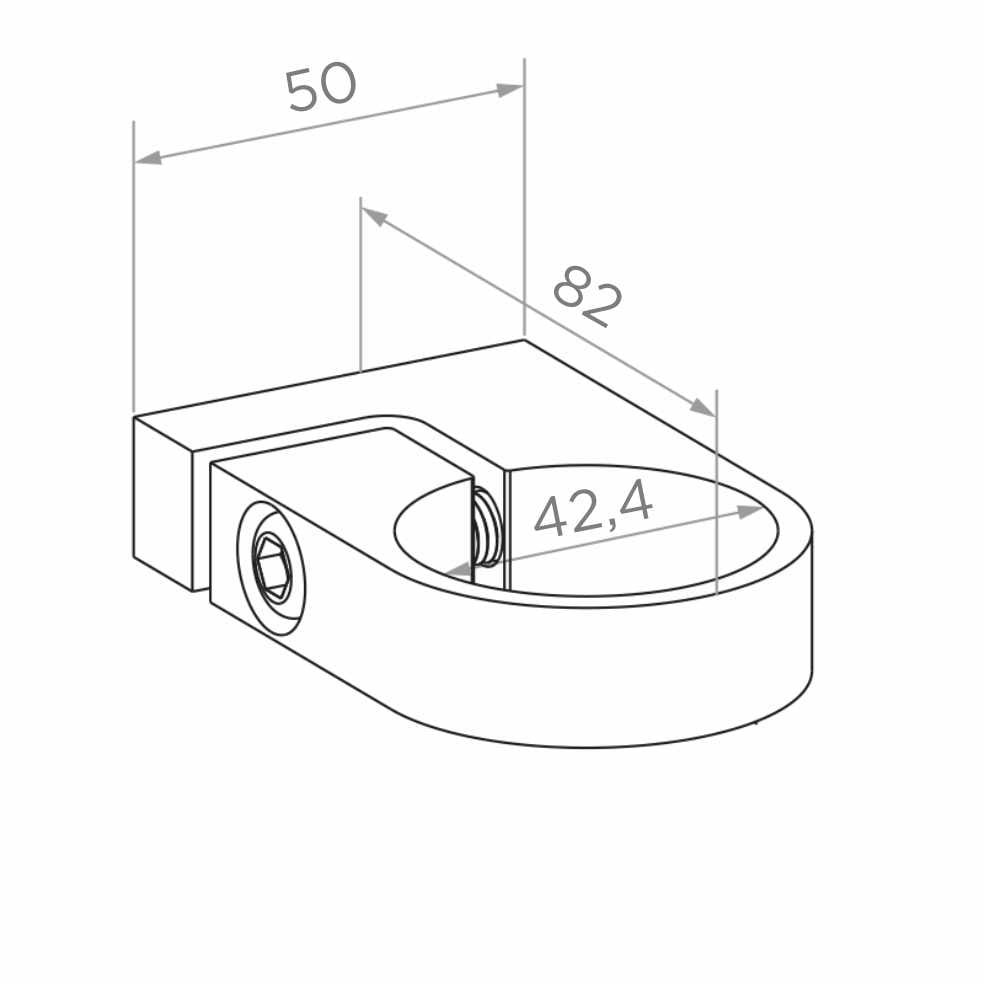

Dimensions and technical parameters
- Post hole diameter: 42.4 mm (42.4 system)
- Distance from wall to post axis: 50 mm
- Total length (projection): 82 mm
- Distance from wall: 35 mm
- Mounting holes: 2× M8
- Material: stainless steel AISI 304
- Finish: satin
- Collar type: single clamp collar with Allen screw
- Weight: 0.24 kg
- EAN: 5901289673631
Application
The mounting is dedicated to stainless steel balustrade systems based on posts with diameter 42.4 mm. It works well for mounting balcony, terrace and stair balustrades — both in systems made entirely from INOX, as well as in solutions combining stainless steel with glass or wood. Side mounting to the wall allows maintaining the full usable surface of the balcony or terrace, and the satin finish harmoniously complements modern architecture.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
