PSG Seal for glass clamp profile 20–21.5 mm – profile 24×24 mm, L=2500 mm
Description
PSG Seal for glass clamp profile 20–21.5 mm – profile 24×24 mm, L=2500 mm

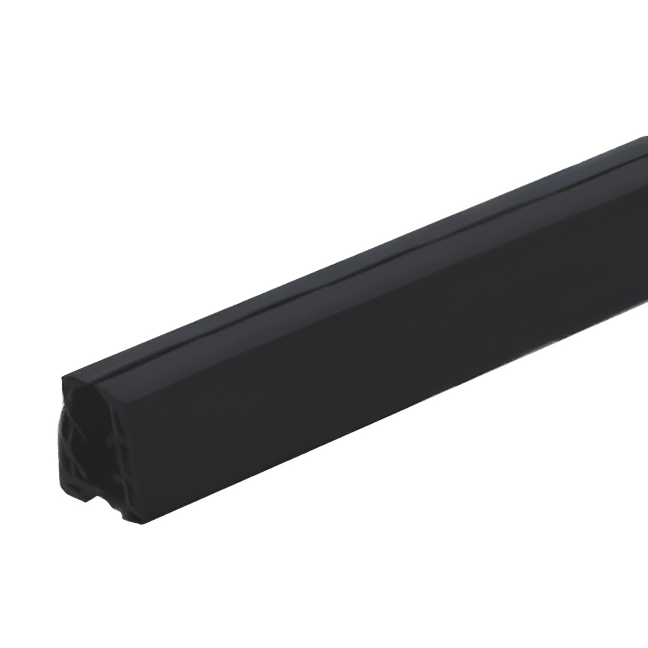

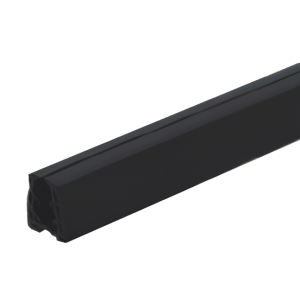

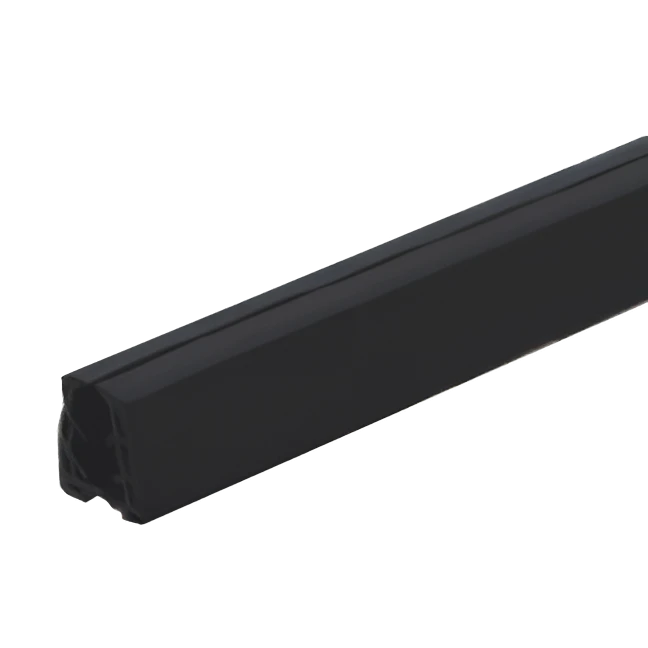

PSG seal (compression rubber) designed for clamp profiles in glass balustrades. Rubber profile with internal chambers ensures secure immobilisation of glass panels with thickness 20–21.5 mm inside the clamp, eliminating vibrations and play. The seal is glued inside the clamp profile – installation is quick and requires no additional tools, which reduces installation time on site.
Multi-chamber profile construction ensures flexible, even compression of glass along the entire length of the clamp, whilst compensating for minor differences in panel thickness within the 20–21.5 mm range. The seal is sold in 2500 mm (2.5 m) lengths, facilitating precise fitting to clamp length with minimal waste.
Technical parameters
- Manufacturer: PSG
- Application: clamp profile for glass balustrades
- Glass thickness range (T): 20–21.5 mm

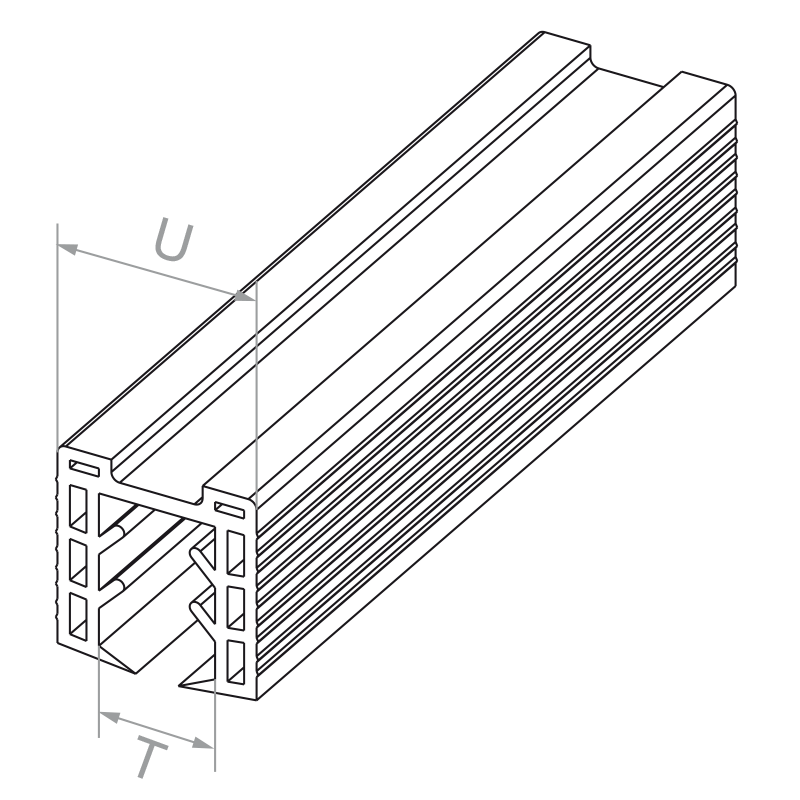

- Profile cross-section dimensions (U × H): 24 × 24 mm
- Section length (L): 2500 mm
- Material: rubber
- Weight: 0.3 kg
- EAN: 5901289672405
Installation and application
The seal should be glued inside the clamp profile before sliding it onto the glass panel. The profile with internal compression chambers adapts to the glass thickness, ensuring stable and quiet fixing. An ideal solution for glass balustrade installers who need a reliable and quick sealing system.
Technical data
| Material | Plastic |
