PSG Safety cable for swing gate stainless steel 600 mm
Leave feedback on the product
PSG safety cable made of stainless steel for swing gates. Length 600 mm, diameter ø6 mm. Set with threaded rod M12 × 180 mm and self-locking nuts. Weight 0.3 kg.
Product code: 001-490
Description
PSG Safety cable for swing gate stainless steel 600 mm
PSG safety cable is an indispensable safety element for swing gates, protecting against uncontrolled fall of the gate leaf in case of accidental damage to one or both hinges. The set made entirely of stainless steel guarantees years of resistance to corrosion and atmospheric conditions — both in private properties and commercial facilities.
The set includes a steel cable with eyes (thimbles) at both ends, an M12 threaded rod and two self-locking nuts. Simple installation allows quick fitting of the safety system to existing gates without the need for dismantling.

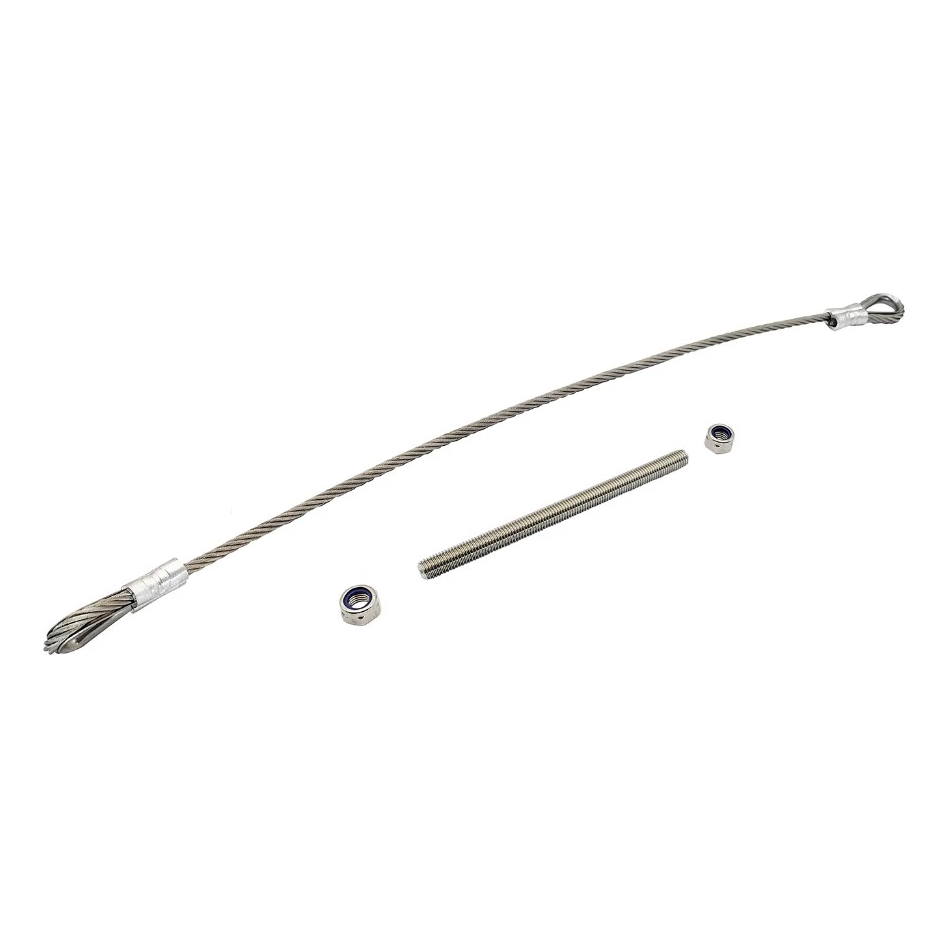

Kit contents
- Stainless steel cable with eyes (thimbles) at both ends — 1 pc.
- Threaded rod M12 × 180 mm — 1 pc.
- Self-locking nut M12 — 2 pcs.
Dimensions and technical parameters

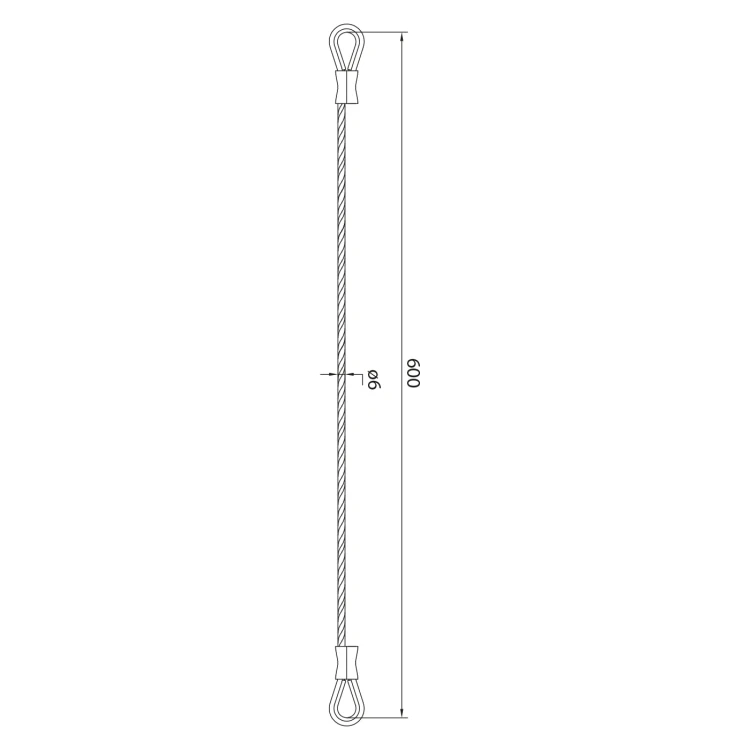

Steel cable
- Working length (between eyes): 600 mm
- Cable diameter: ø6 mm
- Material: stainless steel
- Terminations: eyes with thimbles (crimped with sleeves)

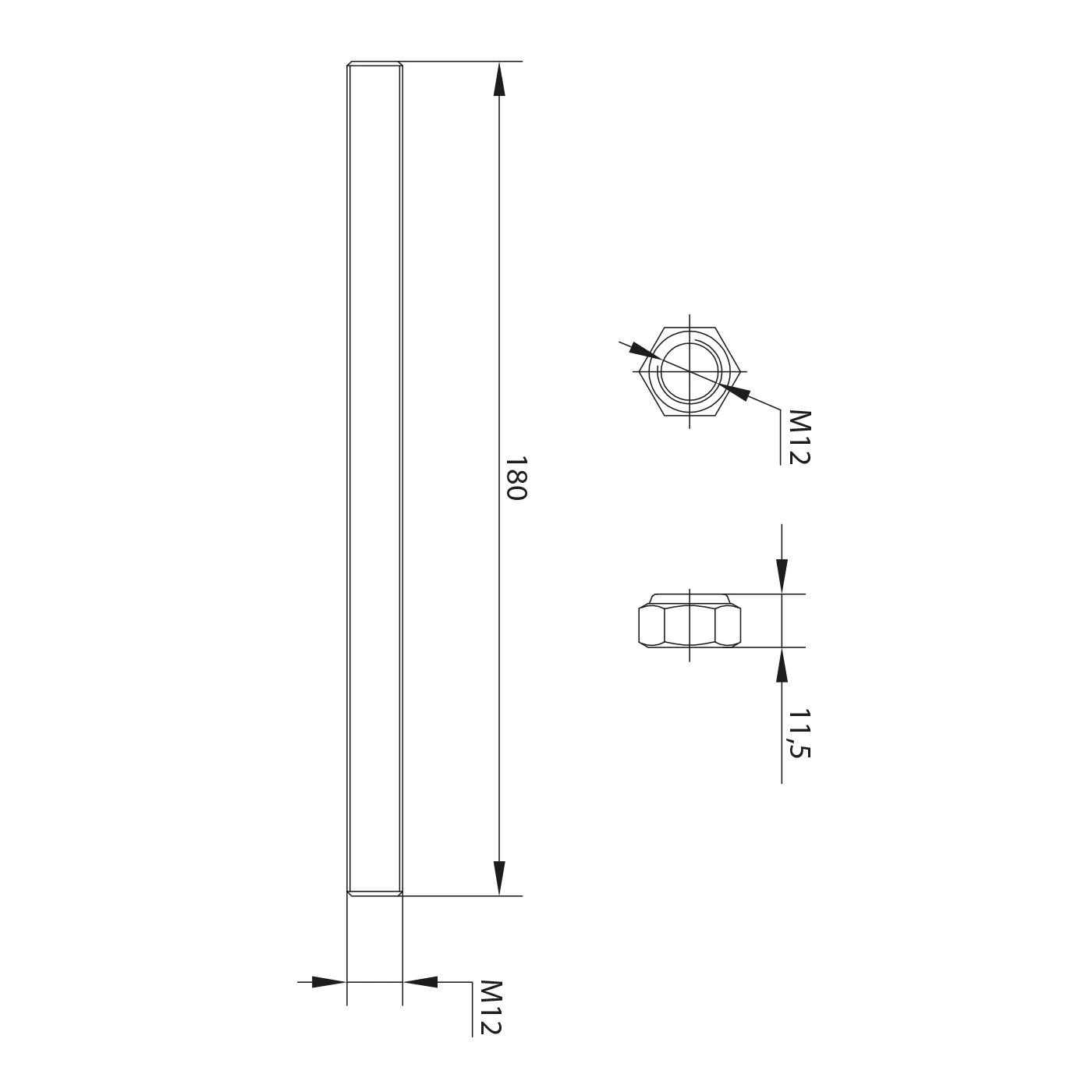

Threaded rod with nuts
- Thread: M12
- Rod length: 180 mm
- Nut height: 11.5 mm
- Material: stainless steel
- Nut type: self-locking (with polyamide insert)
General data
- Manufacturer: PSG
- Kit weight: 0.3 kg
- EAN: 5903313206297
PSG safety cable is a mandatory element of every professional swing gate installation. It protects users and property from the consequences of hinge failure, and the stainless steel construction eliminates the need for maintenance and replacement due to corrosion.
