PSG M16 adjustable gate hinge with 115×40 mm mounting plate and 75×55×3 mm bracket
Description
PSG M16 adjustable gate hinge with 115×40 mm mounting plate and 75×55×3 mm bracket

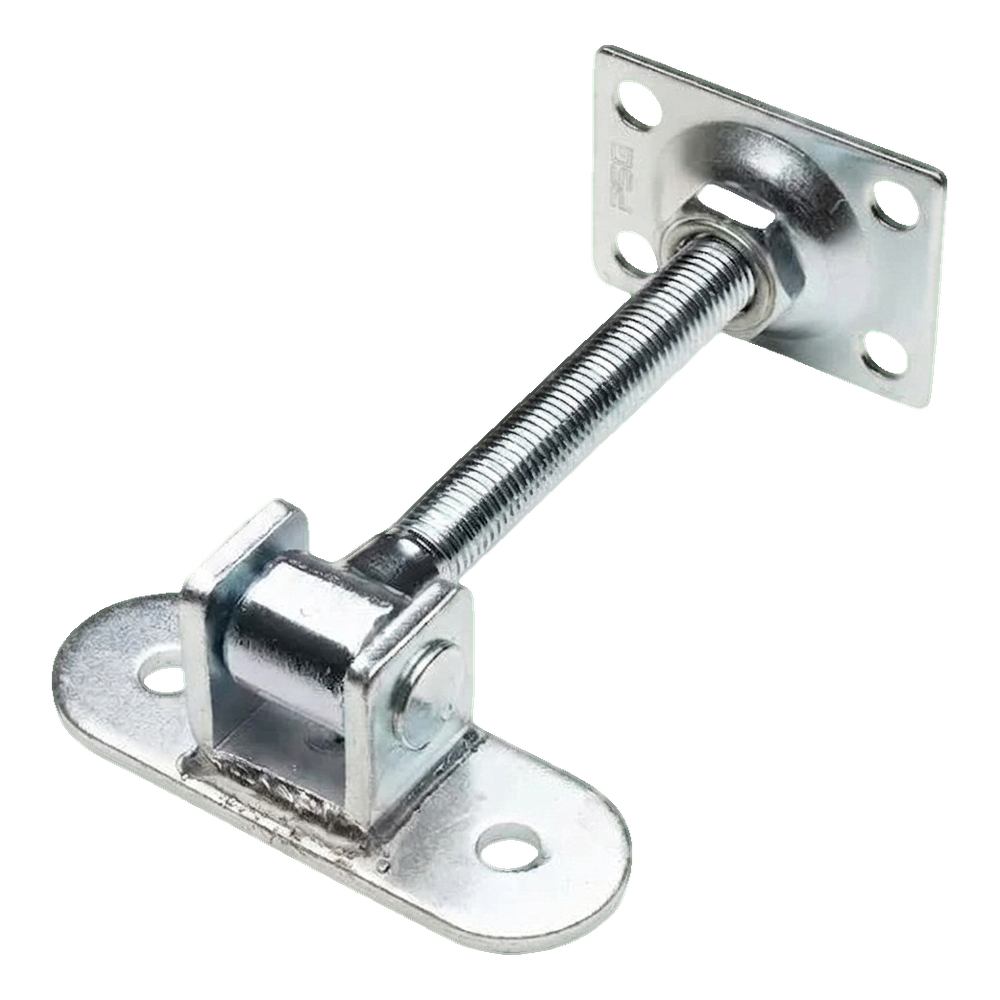

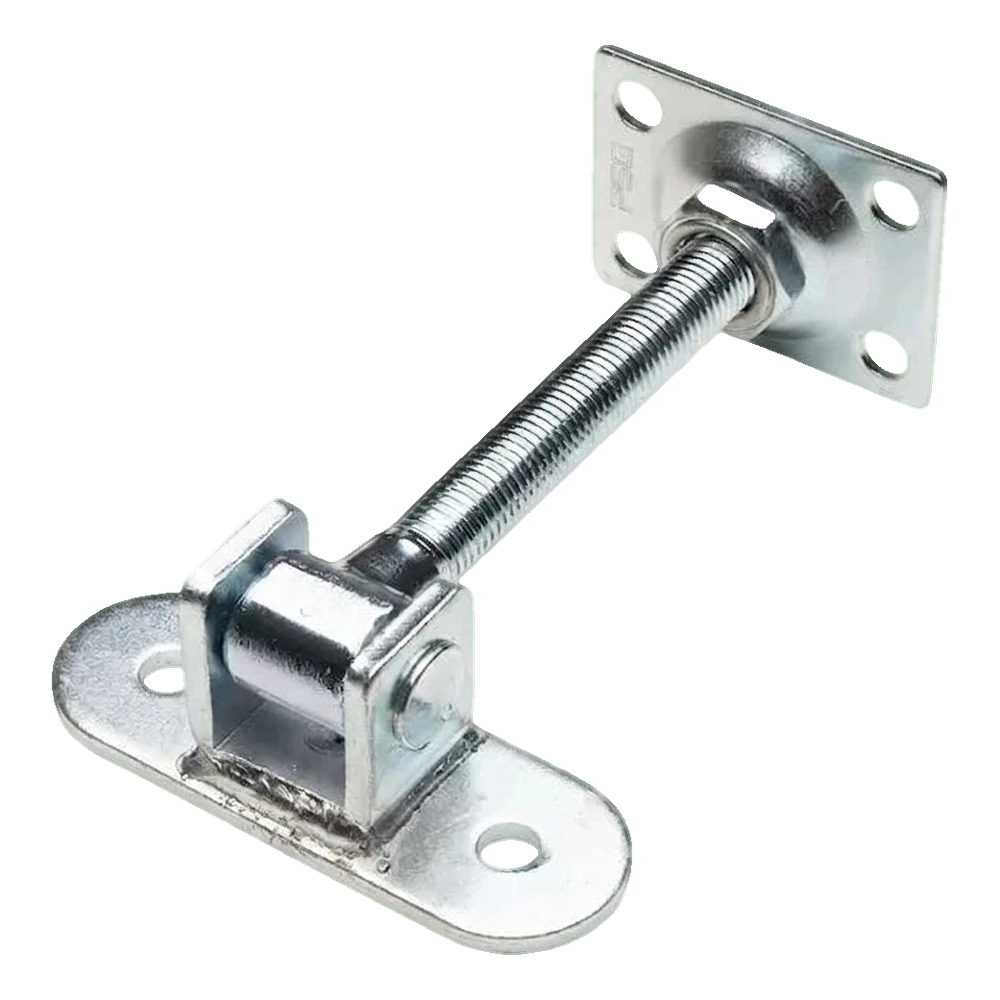

The M16 adjustable hinge from PSG is a robust steel hardware component designed for mounting swing gates and garden fence gates. Thanks to the threaded M16 bolt with adjustment nut, it allows precise correction of the gate leaf position — both directly after installation and during operation. This is particularly important in cases of structural sagging or thermal deformation of metal at extreme winter temperatures.
Adjustment involves tightening or loosening the nut on the threaded bolt, allowing you to quickly correct gate alignment without the need to dismantle the hinge. This solution significantly reduces service time and eliminates the need to re-drill mounting holes — real time savings on the construction site.
Construction and material
The hinge is made entirely of steel with anti-corrosion coating (galvanised), ensuring high resistance to weather conditions and suitability for external use. The construction consists of two mounting elements — a mounting plate with four fixing holes and a bracket (U-shaped holder) — connected by an M16 threaded bolt with adjustment capability.

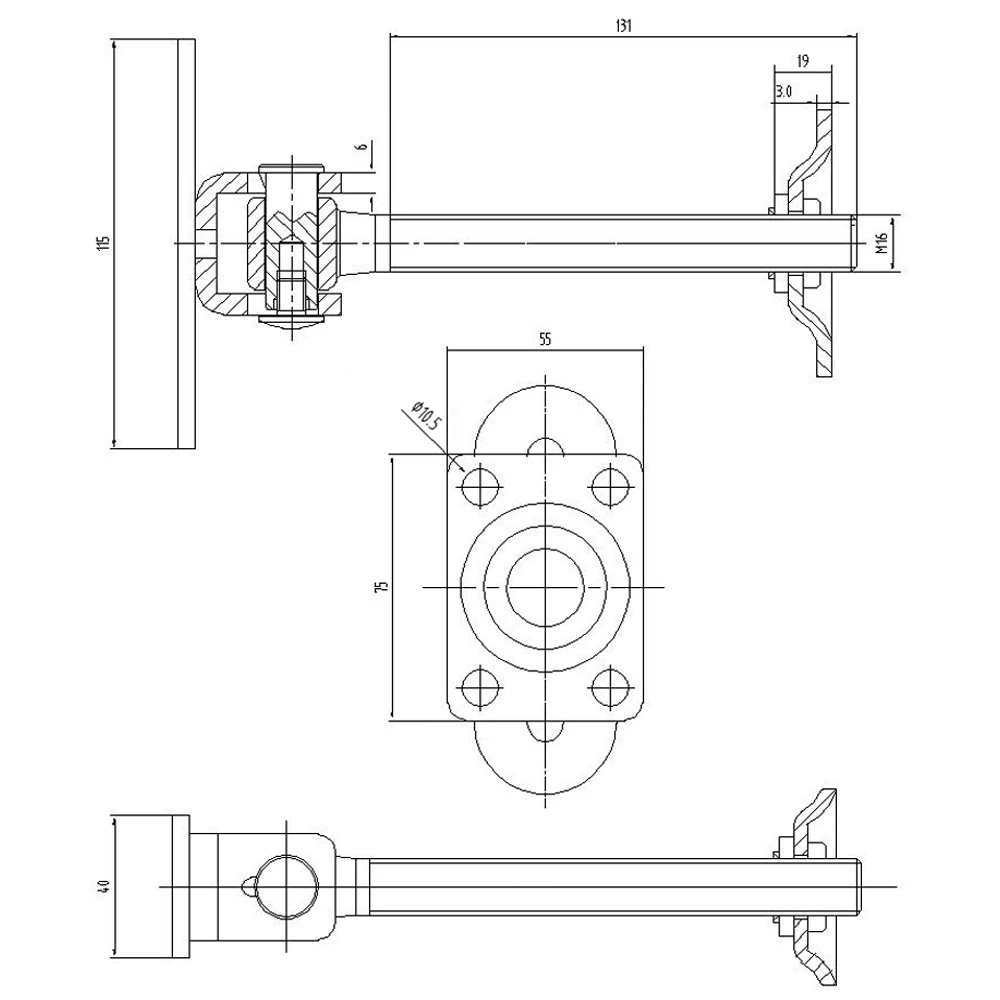

Dimensions and technical parameters
- Bolt thread: M16
- Bolt length (working): 131 mm
- Total length: 180 mm
- Mounting plate dimension: 115 × 40 mm
- Mounting plate thickness: 3.0 mm
- Mounting plate profile depth: 19 mm
- Bracket dimension (hole spacing): 75 × 55 mm
- Bracket sheet thickness: 3 mm
- Bracket wall thickness: 6 mm
- Mounting hole diameter in plate: ø10.5 mm (4 pcs.)
- Material: steel with anti-corrosion coating
- Weight: 0.74 kg
- EAN: 5903313203012
Application
The PSG M16 adjustable hinge is an optimal solution for mounting swing gates, garden fence gates and other structures requiring precise adjustment after installation. It works well wherever fence posts may shift slightly over time, and steel elements work under varying temperatures. The bracket and mounting plate with fixing holes allow for stable and permanent attachment of the hinge to the post and gate leaf.
Technical data
| Thread type | M16 |
| Mounting Method | With Plate |
| Material | Steel |
