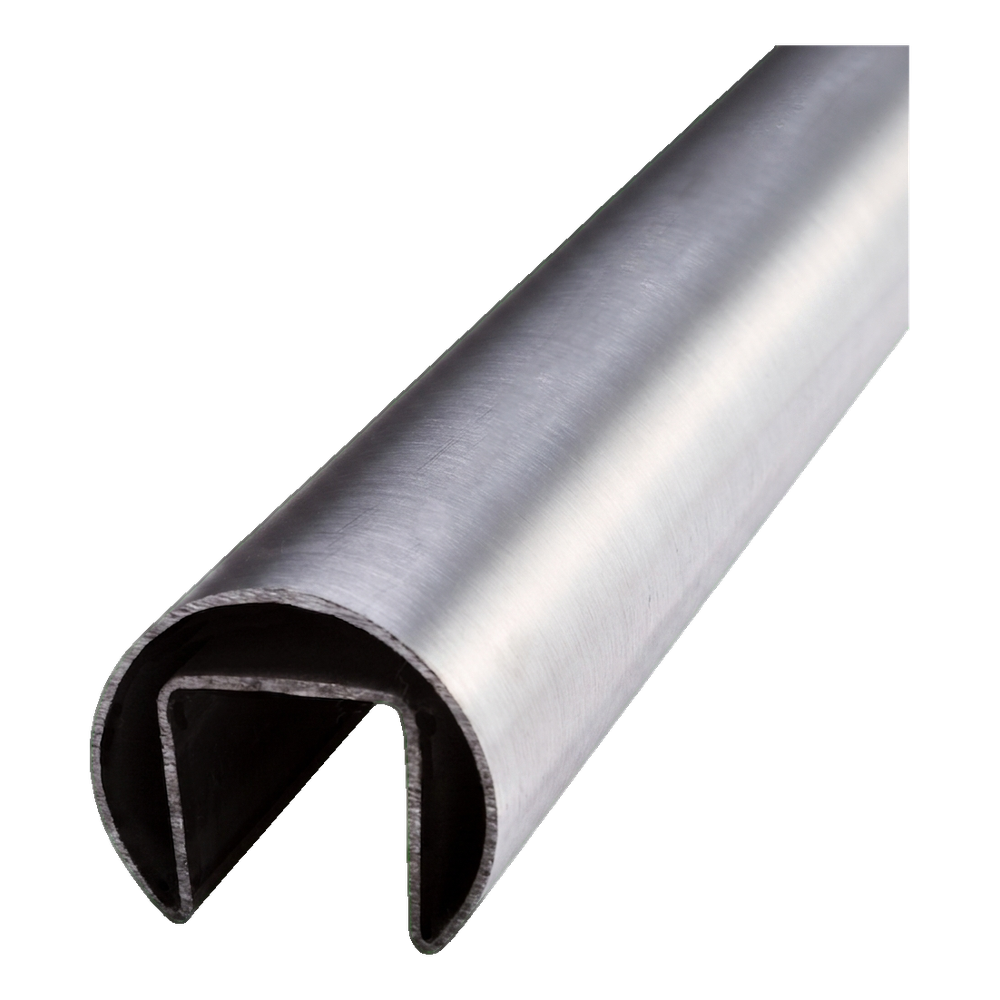

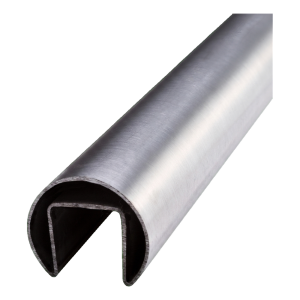

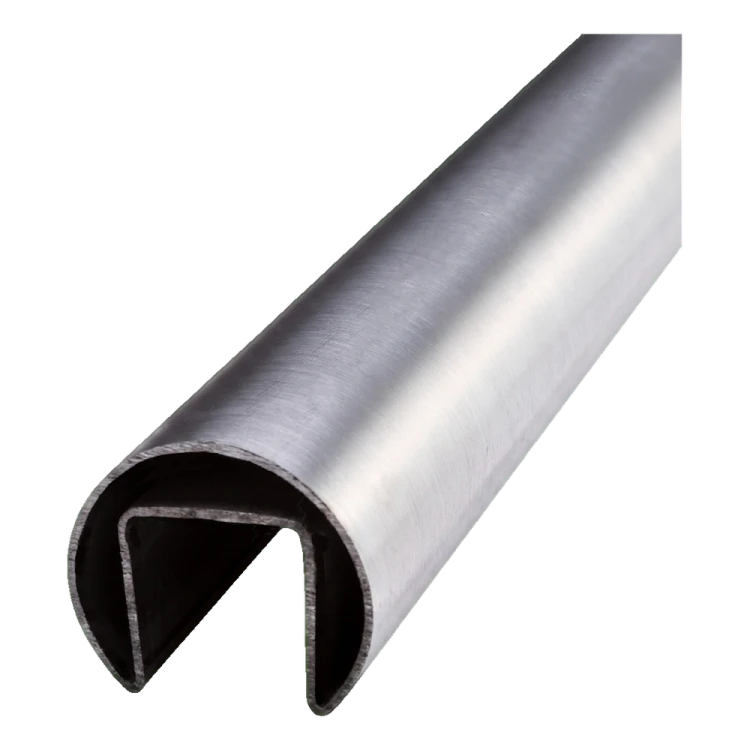

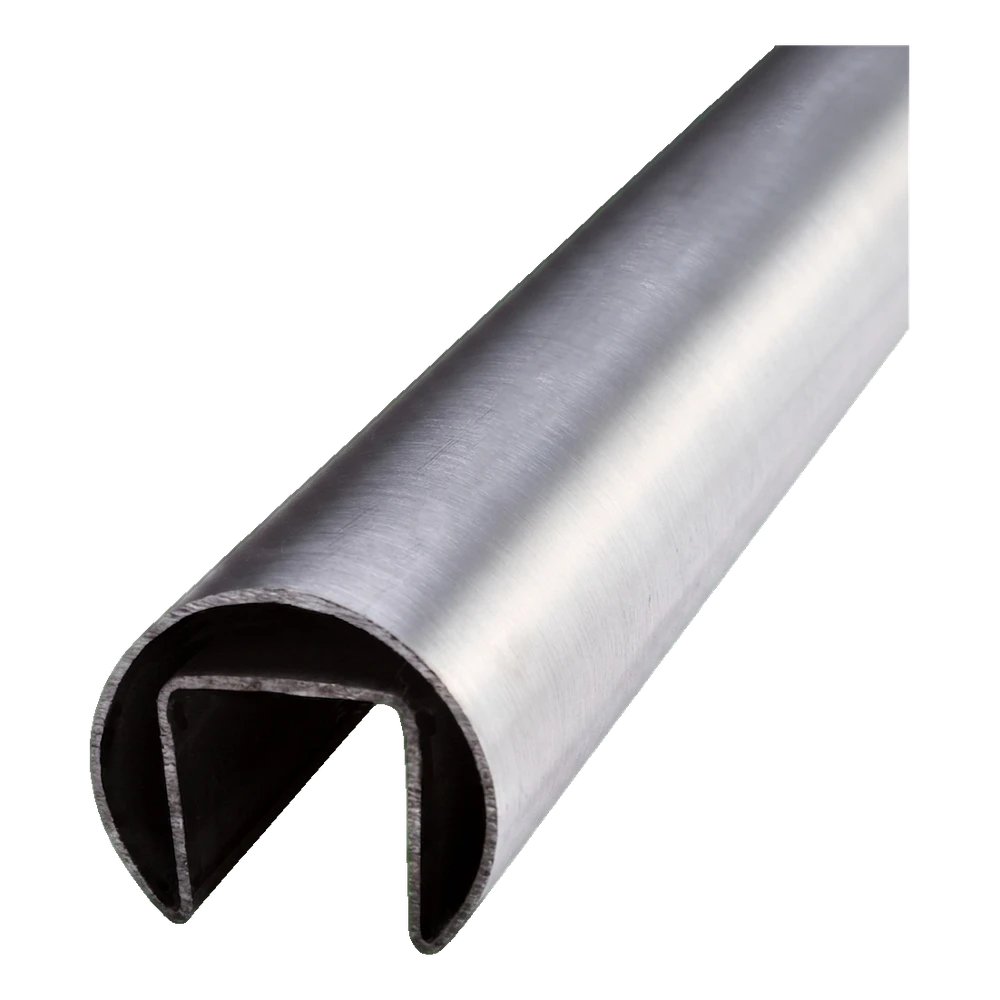

PSG Glass-mounted handrail fi 42.4 mm satin – AISI 304 tube, length 5000 mm
Description
PSG Glass-mounted handrail fi 42.4 mm satin – AISI 304 tube, length 5000 mm
Glass-mounted handrail with diameter fi 42.4 mm and length 5000 mm — a professional finishing element for all-glass balustrades. Made from stainless steel AISI 304 with satin finish, combining elegant appearance with durability and corrosion resistance. Thanks to the U-shaped profile with width 24 mm, it fits glass thickness from 8 to 21.52 mm, ensuring wide compatibility with popular glass balustrade configurations.
Quick and secure installation
The handrail is mounted directly onto the top edge of the glass panel. First, a special rubber seal with length corresponding to the handrail length is applied to the glass, then the profile is slid on from above. The seal ensures stable seating and eliminates direct contact between metal and glass, protecting both materials. After fitting, the handrail can be additionally secured with anaerobic metal adhesive — this adhesive bonds upon contact with metal and hardens after air supply is cut off, creating a permanent connection.

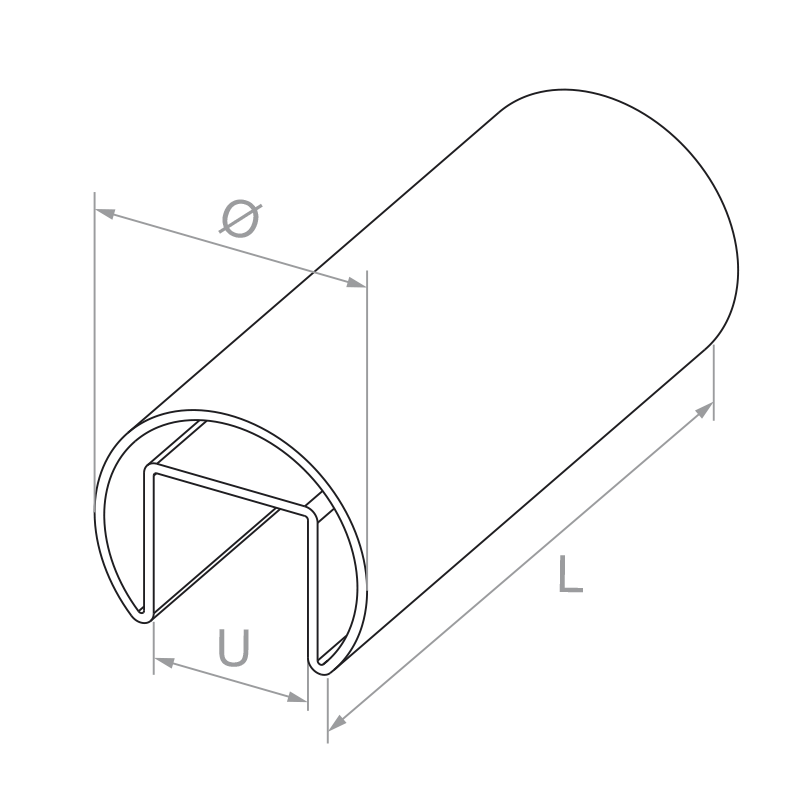

Technical parameters
- External diameter (Ø): 42.4 mm
- Length (L): 5000 mm
- Groove width (U): 24 mm
- Glass thickness: 8–21.52 mm
- Material: AISI 304 stainless steel
- Finish: satin
- System: 42.4
- Weight: 10.5 kg
Durability and aesthetics
Stainless steel AISI 304 with satin finish is a proven construction material — resistant to mechanical damage, corrosion and changing atmospheric conditions. The matt, satin surface doesn't collect fingerprints as easily as polished surfaces, significantly facilitating cleanliness maintenance and reducing maintenance frequency. The handrail simultaneously serves as a handrail and finishing element for the balustrade structure, giving it a modern, minimalist character.
The profile with 5 metre length allows efficient coverage of longer balustrade sections, reducing the number of joints and shortening installation time. Ideal for internal applications (stairs, mezzanines, shopping centres) and external applications (balconies, terraces).
Technical data
| Accessory Type | Overlay Handrail Bracket |
| Material | AISI 304 |
