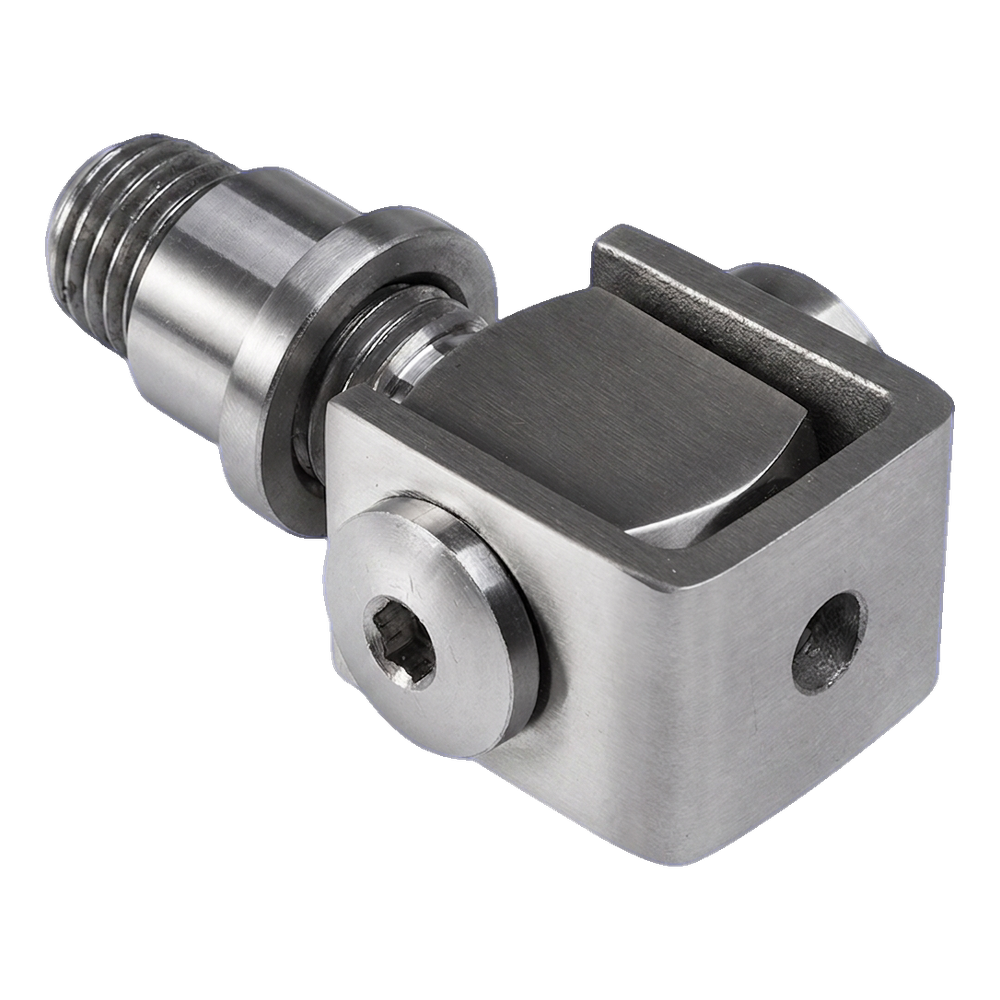

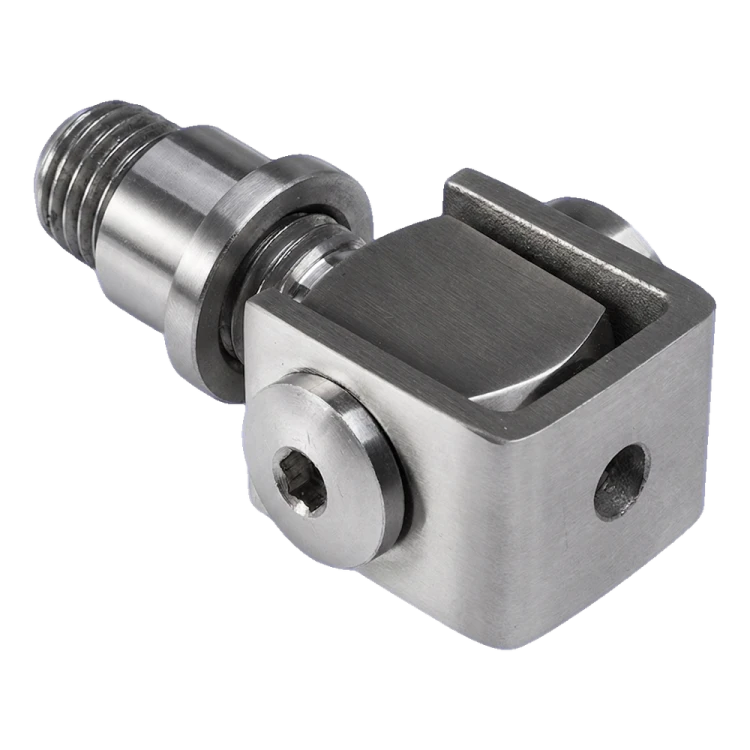

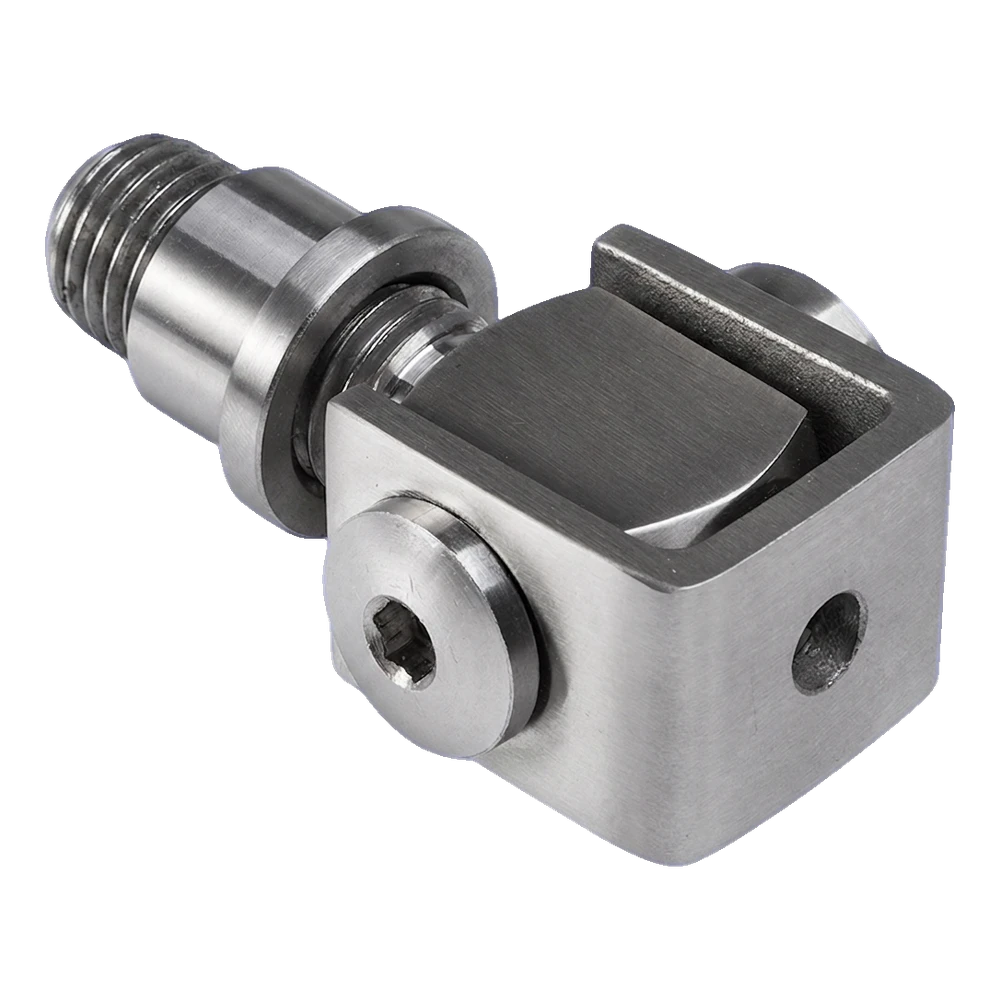

PSG Gate Hinge for Welding M20 – AISI 304 Stainless Steel, Satin Finish
Description
PSG Gate Hinge for Welding M20 – AISI 304 Stainless Steel, Satin Finish
Adjustable hinge (screw type) with M20 thread designed for mounting swing gates by welding method. Made entirely from AISI 304 stainless steel with satin finish, ensures many years of corrosion resistance and aesthetic appearance even in demanding atmospheric conditions.
The universal hinge construction enables adjustment after installation, which allows compensation for stresses resulting from temperature changes or minor installation deviations. This ensures the gate leaf maintains smooth and easy operation throughout its service life. Simple installation by welding the pin reduces installation time — a particularly important advantage when handling large numbers of orders.

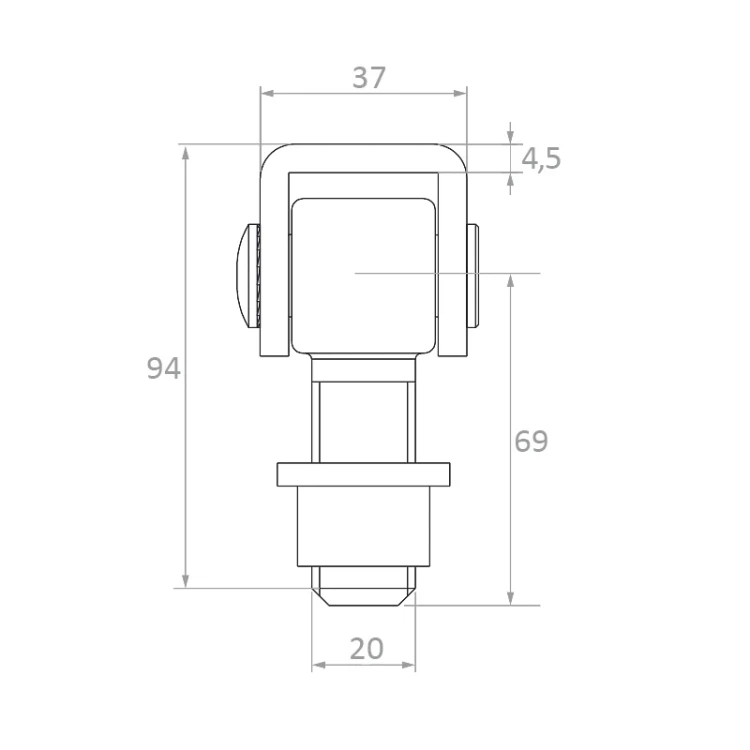

Dimensions and Technical Data
- Type: adjustable hinge (screw type) for welding
- Material: AISI 304 stainless steel
- Finish: satin
- Thread: M20
- Total length: 94 mm
- Distance from rotation axis to pin end: 69 mm
- Ear width: 37 mm
- Ear plate thickness: 4.5 mm
- Pin diameter: 20 mm
- Weight: 0.39 kg
- Application: swing gates
- EAN: 5901289674218
Why AISI 304 Stainless Steel?
Gate hinges work outdoors year-round — exposed to rain, snow, road salt and UV radiation. Corrosion on a hinge not only spoils aesthetics, but primarily increases movement resistance and can lead to leaf jamming. The use of AISI 304 steel eliminates this problem, guaranteeing trouble-free operation and durability for many seasons without the need for maintenance.
Selecting the appropriate hinge has a direct impact on the functioning of the entire gate construction. This model combines mechanical strength, resistance to atmospheric factors and adjustment capability — three key features that professional installers look for.
Technical data
| Thread type | M20 |
| Mounting Method | Weld-On |
| Material | AISI 304 |
