PSG – FI 35 adjustable guide roller for sliding gates with bracket
Description

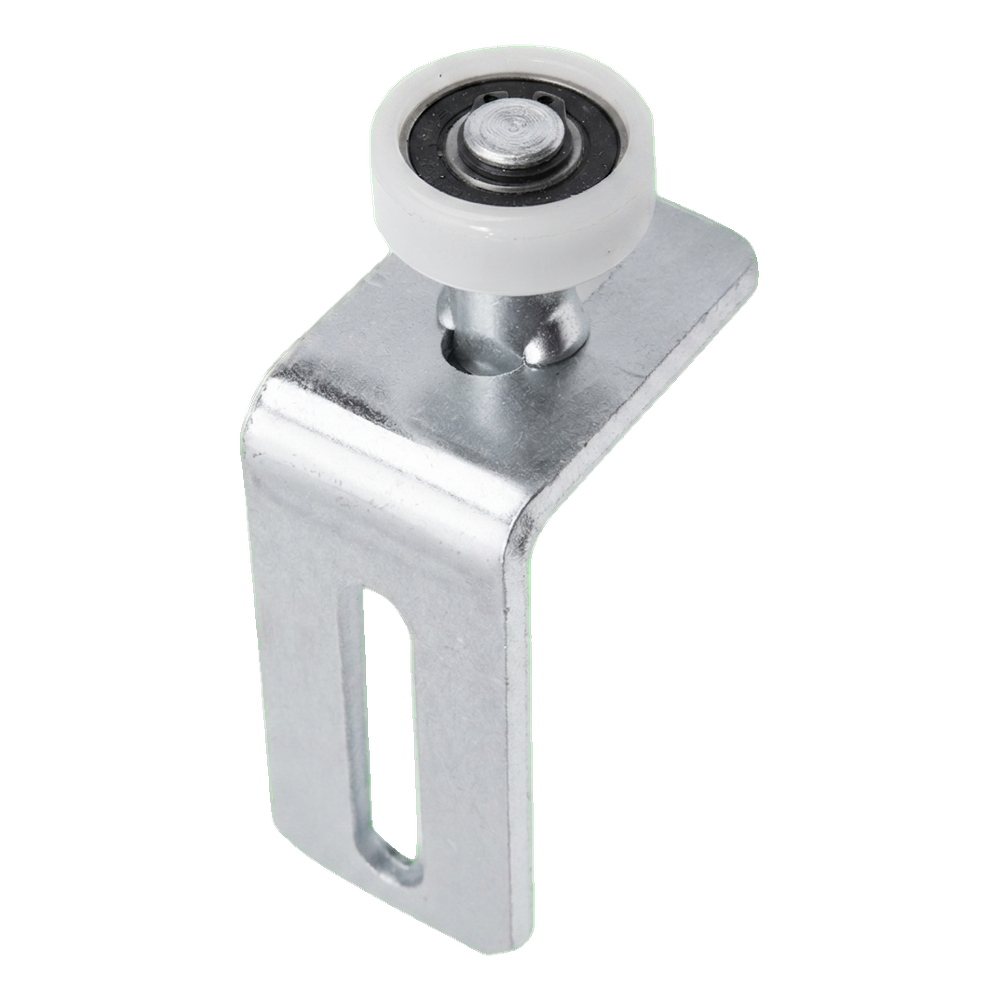

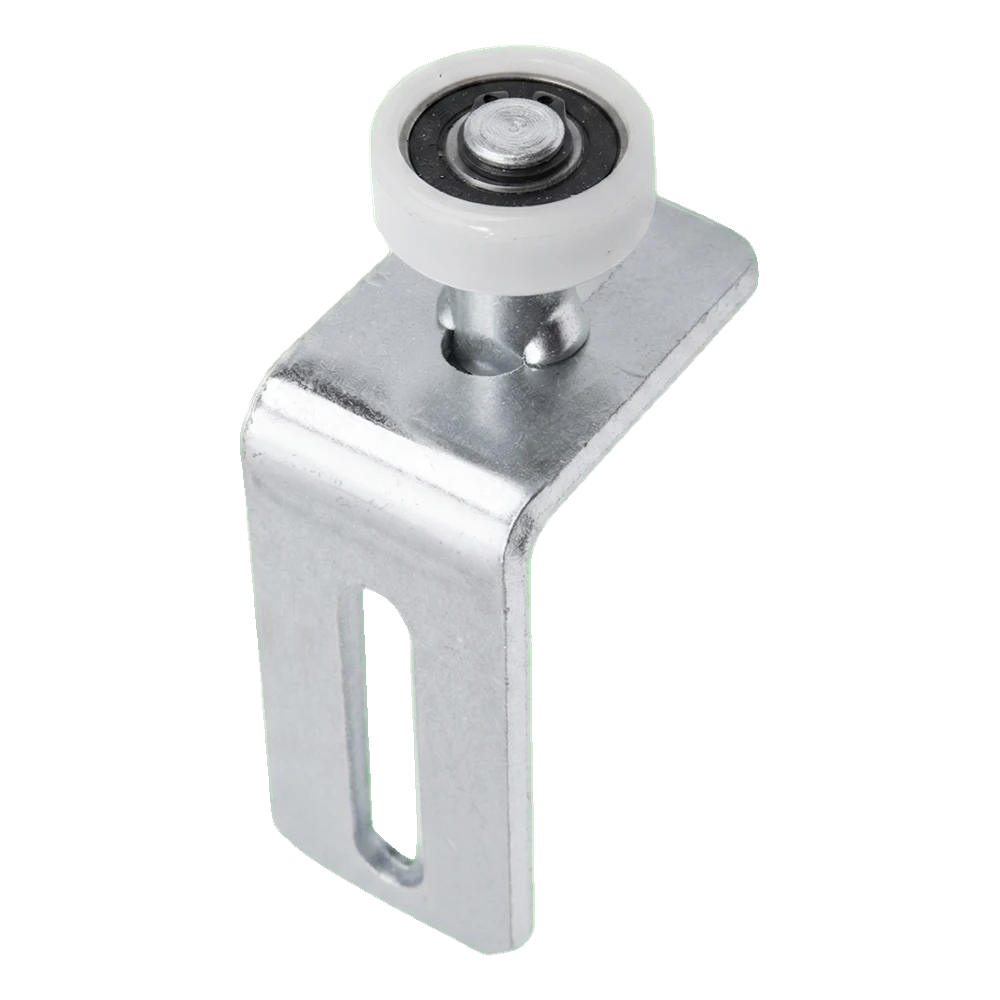

PSG – FI 35 adjustable guide roller for sliding gates with bracket
FI 35 adjustable guide roller from PSG is a reliable component of sliding gate guidance systems. Its purpose is to maintain the running rail (channel) in vertical position during gate opening and closing, which translates to smooth and trouble-free operation of the entire mechanism. Thanks to the adjustable construction, the roller position can be precisely set relative to the rail, compensating for any installation inaccuracies.
The roller with 35 mm diameter is made from plastic material and mounted on a bearing, ensuring quiet and smooth operation as well as long service life. The set includes a mounting bracket with a slotted hole (elongated opening) that enables roller position adjustment and quick mounting to the gate post.

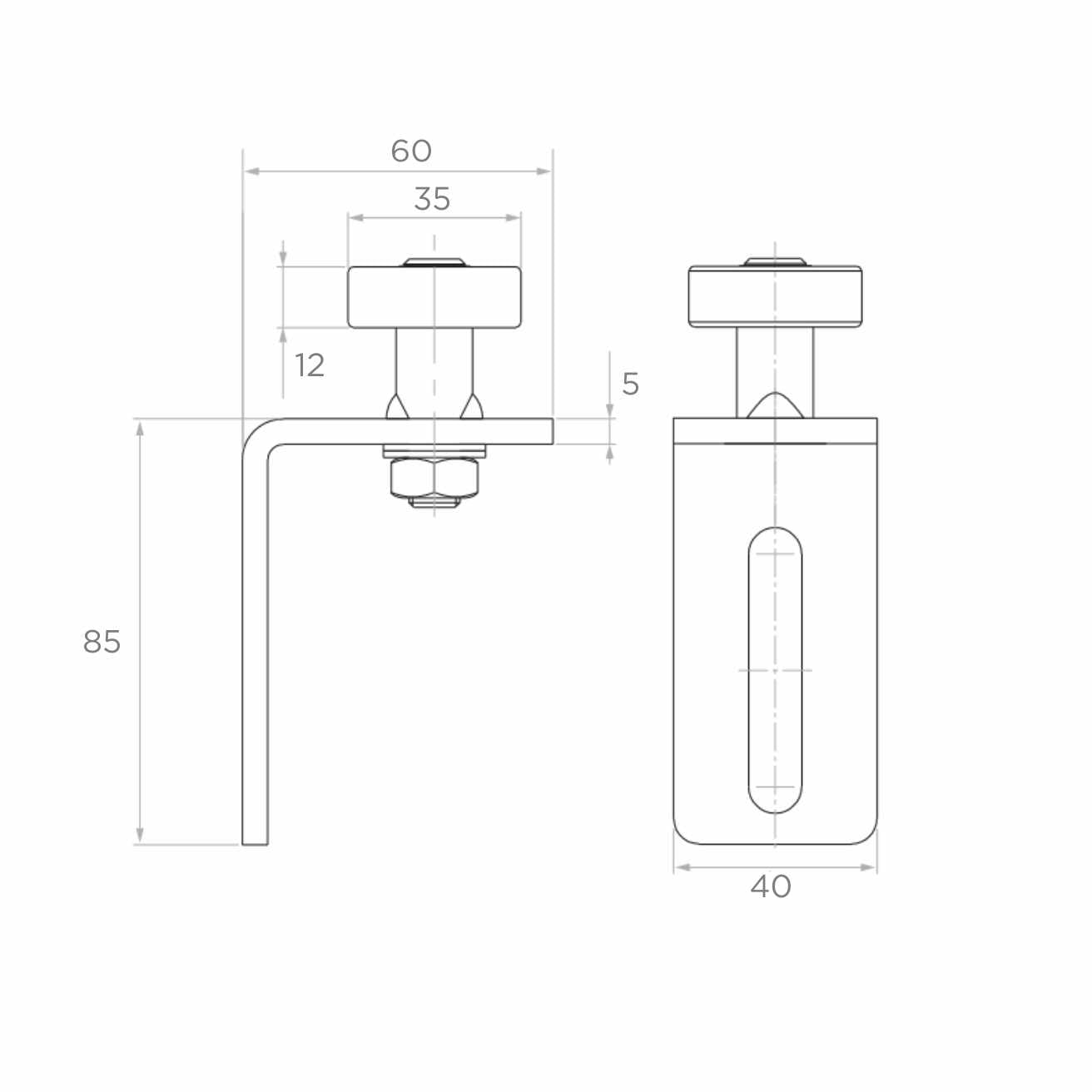

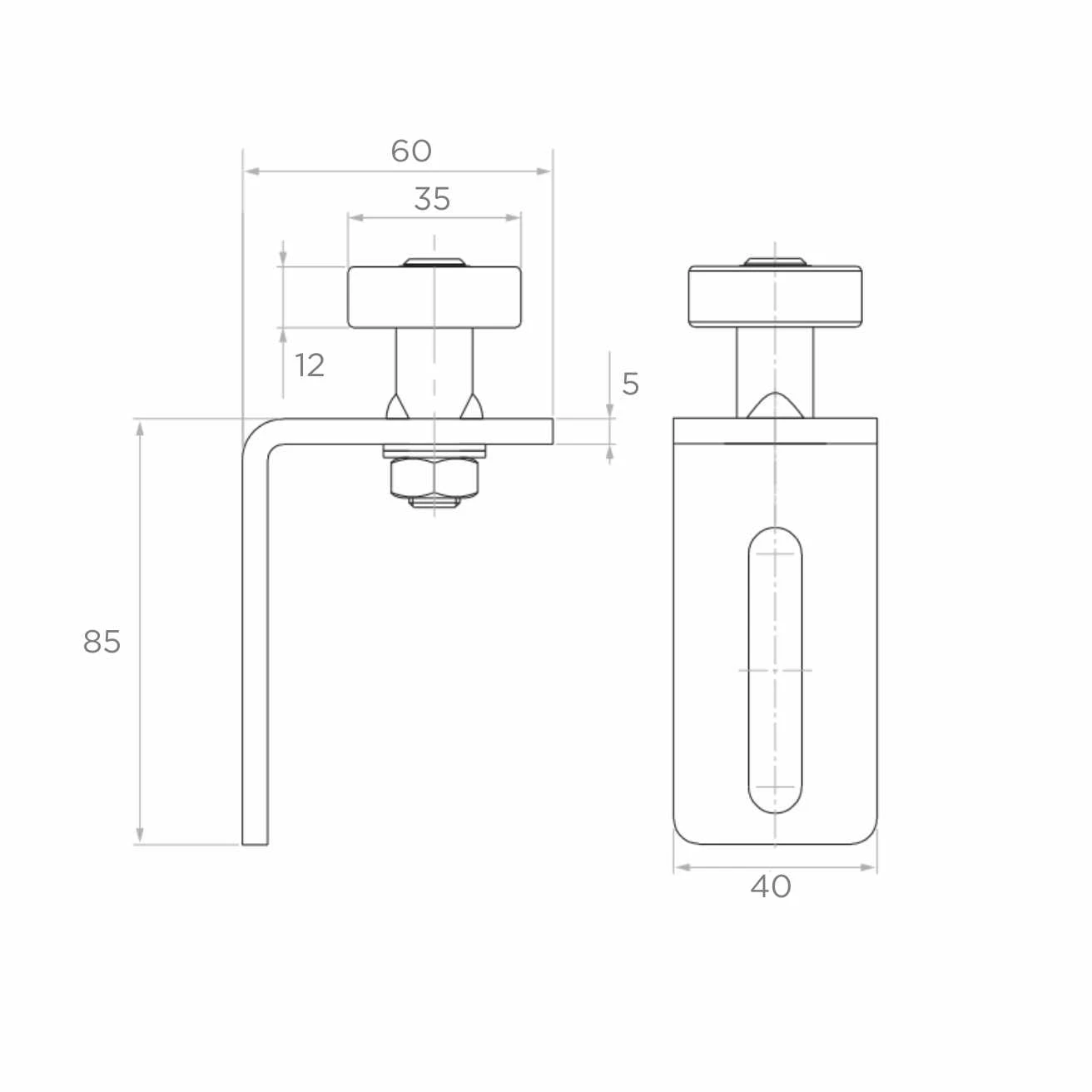

Dimensions and technical data
- Manufacturer: PSG
- Roller diameter: FI 35 mm
- Roller height (rolling part): 12 mm
- Roller material: plastic on bearing
- Bracket height: 85 mm
- Horizontal arm reach: 60 mm
- Bracket width: 40 mm
- Bracket sheet thickness: 5 mm
- Bracket material: galvanised steel
- Mounting hole type: slotted hole (elongated opening) – enables adjustment
- Weight: 0.26 kg
- EAN: 5901289675086
Application and mounting
The guide roller is mounted to the sliding gate post using the included bracket. The vertical arm of the bracket (85 mm) is fixed to the post, whilst the horizontal arm (60 mm) extends towards the gate, maintaining the roller in the running rail axis. The slotted mounting hole allows for precise adjustment of roller height and position, which is particularly important when aligning the guide channel.
The product is intended for sliding gate systems — both for new installations and as a replacement component in existing structures. Compact dimensions and low weight (0.26 kg) facilitate logistics and storage.
