PSG Balustrade Post Intermediate Through fi 42.4 mm AISI 304 – 4 brackets, satin
Leave feedback on the product

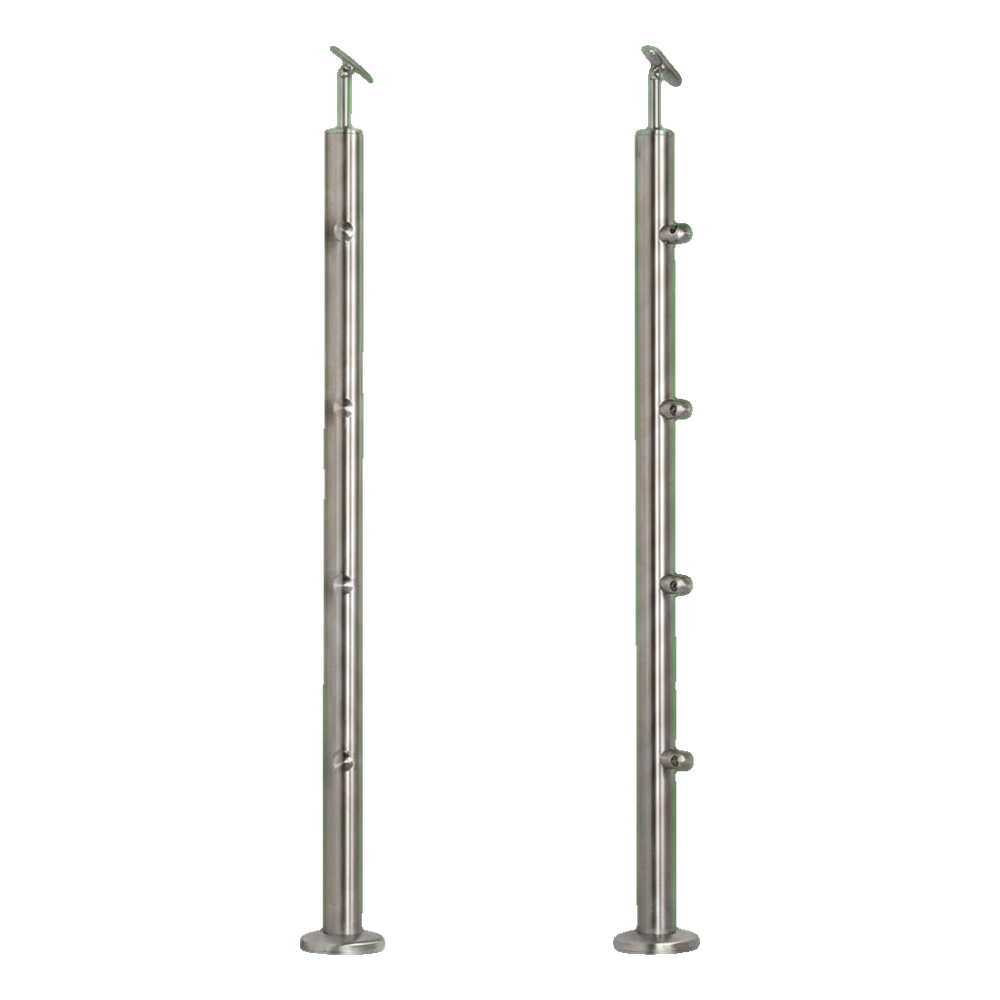

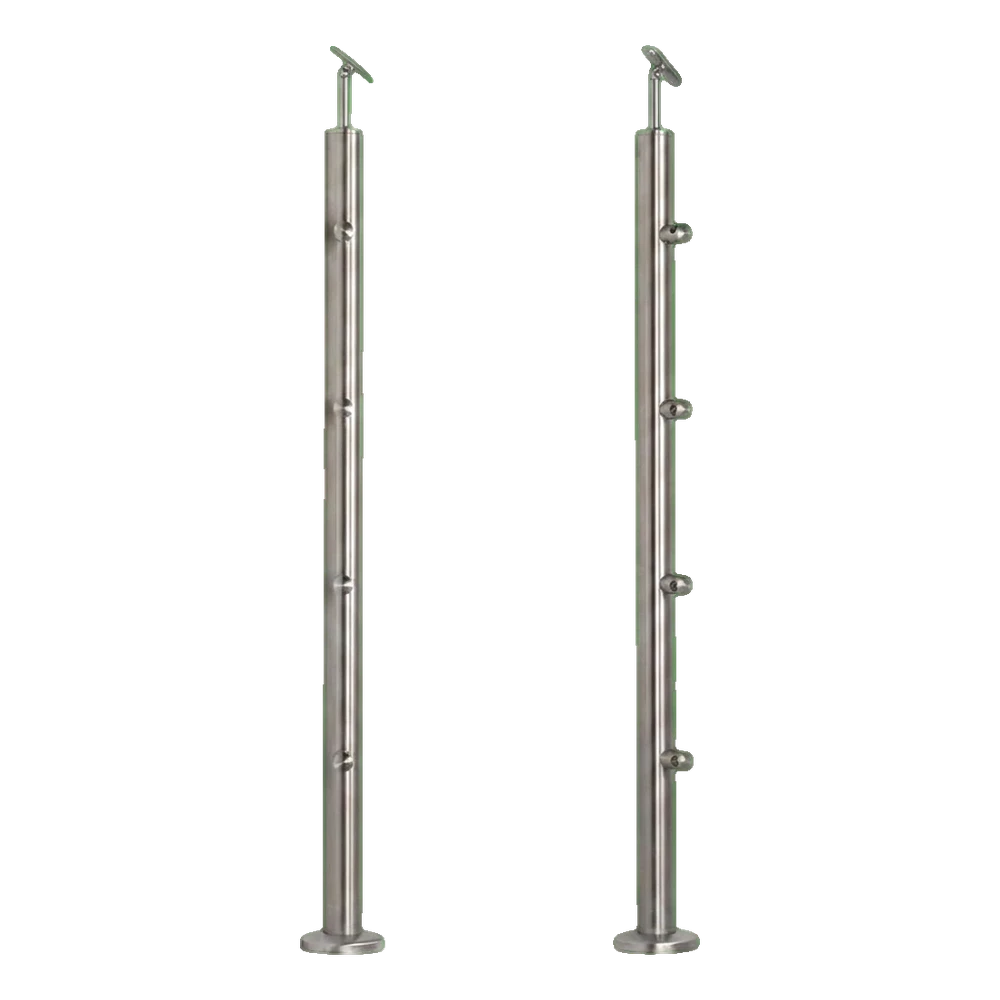

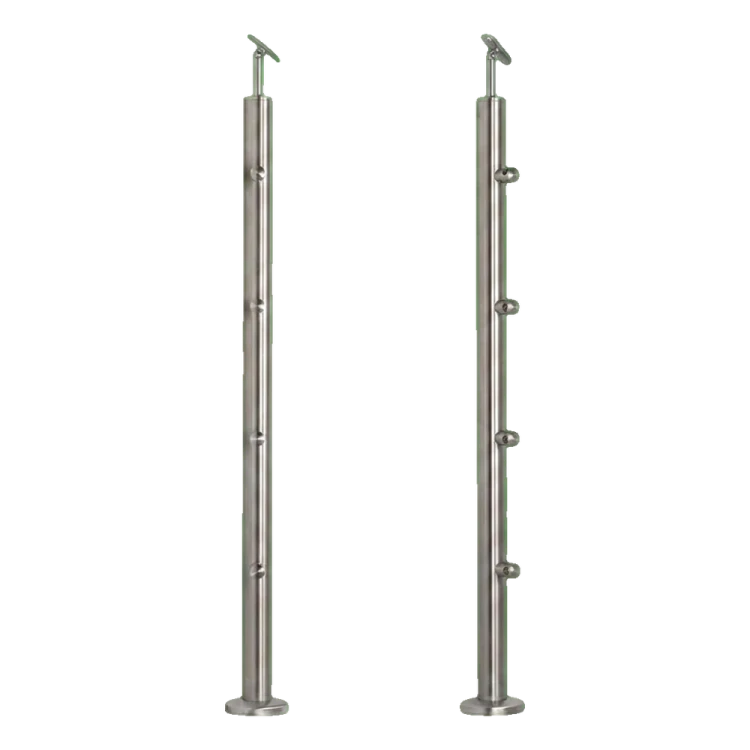

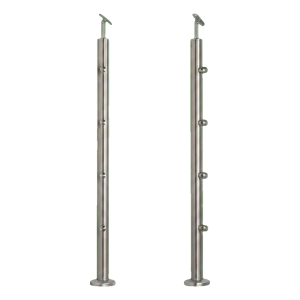

PSG intermediate through balustrade post made from AISI 304 stainless steel, satin finish. Diameter fi 42.4 mm, height 960 mm, wall thickness 2 mm. 4 through brackets for ø 12 mm tubes, spacing 190 mm. Weight 2.4 kg.
Product code: 001-204
Product features
[PIM] Cat 134 #134
- Material AISI 304
- Finish Satin
- Mounting System 42.4 mm
Description
PSG Intermediate Through Balustrade Post ø 42.4 mm AISI 304 – 4 Holders, Satin
Intermediate (through) balustrade post made of AISI 304 stainless steel with satin finish — a versatile structural element for balcony and stair balustrades. Thanks to 4 through holders for ø 12 mm infill tubes, the post allows for creating aesthetic, linear balustrade infills without the need for additional drilling.
The handrail connectors supplied with the kit are not permanently glued, giving the installer complete freedom — allowing precise adjustment of the post to site conditions, and if necessary, also shortening it due to floor unevenness. For mounting the connectors, it is recommended to use anaerobic adhesive for stainless steel.
Technical parameters of the post
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Post tube diameter: ø 42.4 mm
- Tube wall thickness: 2 mm
- Post height (tube): 960 mm
- Total height with handrail: 1002.4 mm
- Through holder spacing: 190 mm
- Distance from floor to first holder: 200 mm
- Holder mounting threads: 4× M6
- Infill tube diameter: ø 12 mm
- Application: interiors, floor mounting
- System: 42.4
- Weight: 2.4 kg
- EAN: 5903313202091
Kit contents
- Post (tube ø 42.4 × 960 mm)
- Through holders for ø 12 mm tubes — 4 pcs
- Handrail connector (support)
- Cover plate (rose)
Kit components

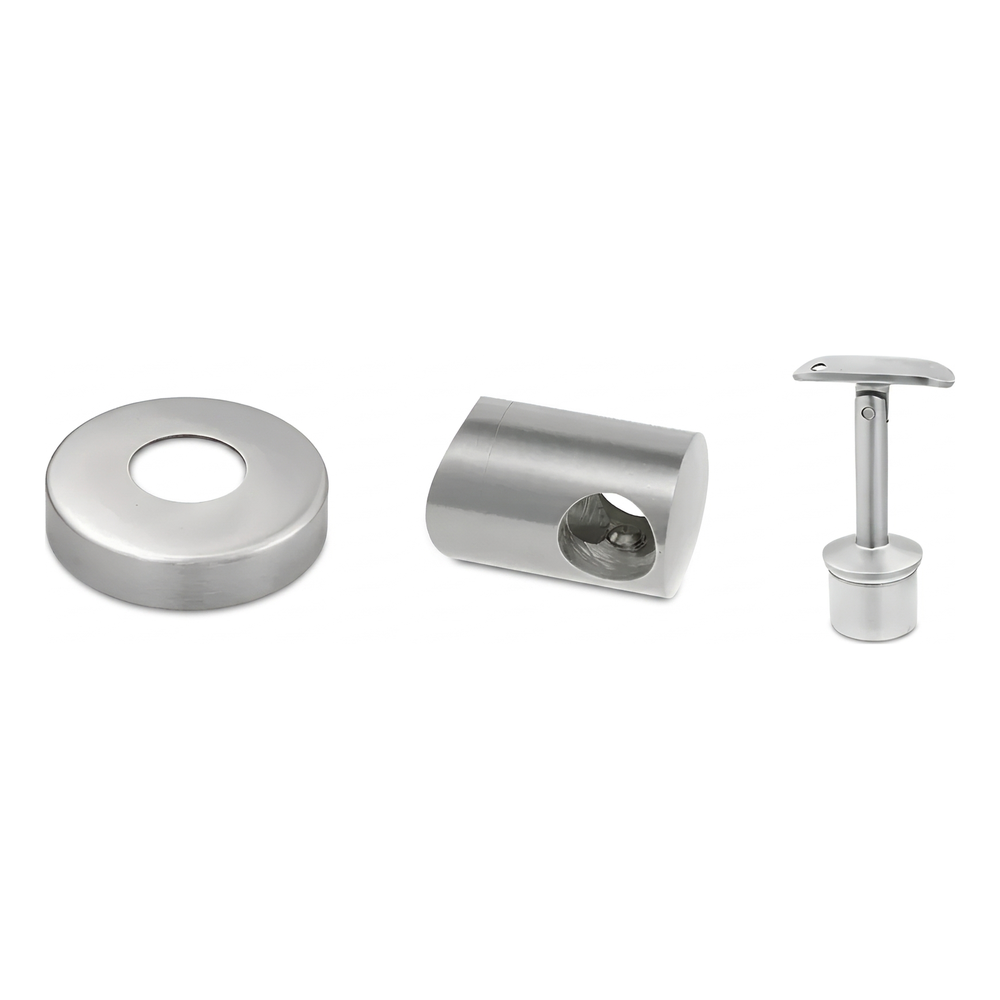

Each kit contains ready-to-install components: a cover plate that conceals the post's passage through the floor, four through holders for infill tubes, and an adjustable handrail connector. These elements enable quick and aesthetic finishing of the balustrade without the need to order accessories separately.
Component dimensions

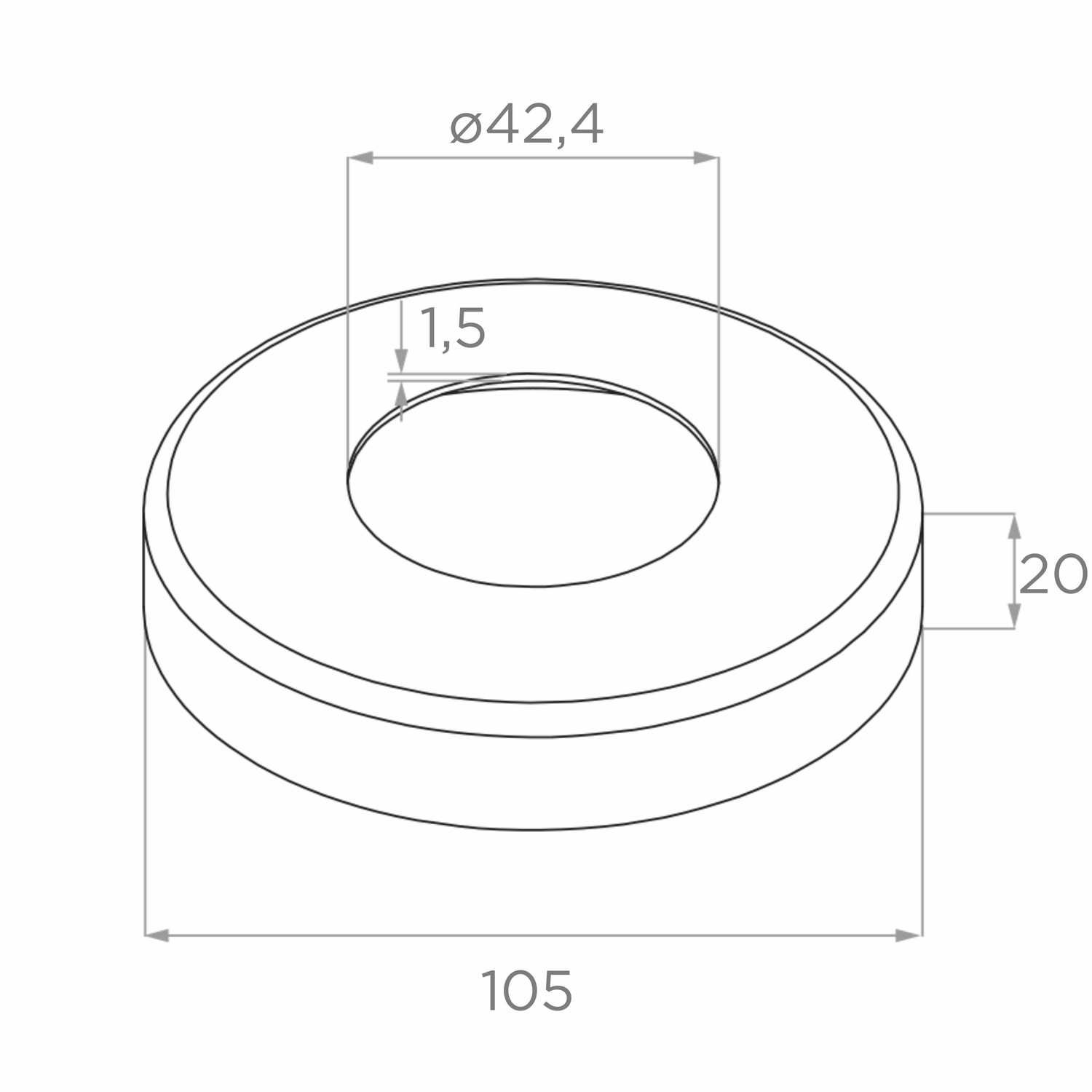

Cover plate (rose):
- External diameter: 105 mm
- Internal diameter (hole): ø 42.4 mm
- Height: 20 mm
- Internal collar thickness: 1.5 mm

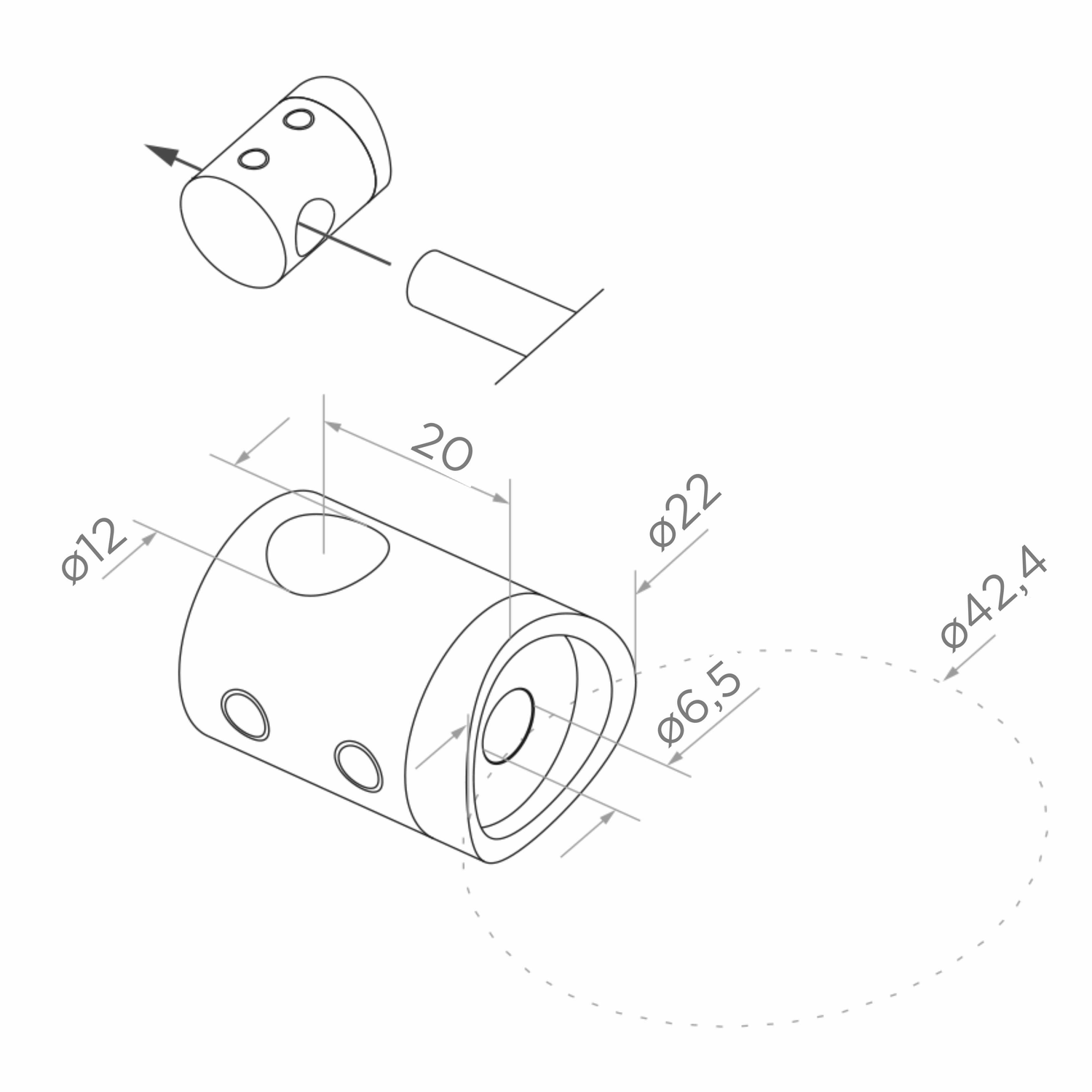

Through holder:
- External diameter: ø 22 mm
- Tube hole diameter: ø 12 mm
- Mounting hole: ø 6.5 mm
- Distance of hole axis from surface: 20 mm

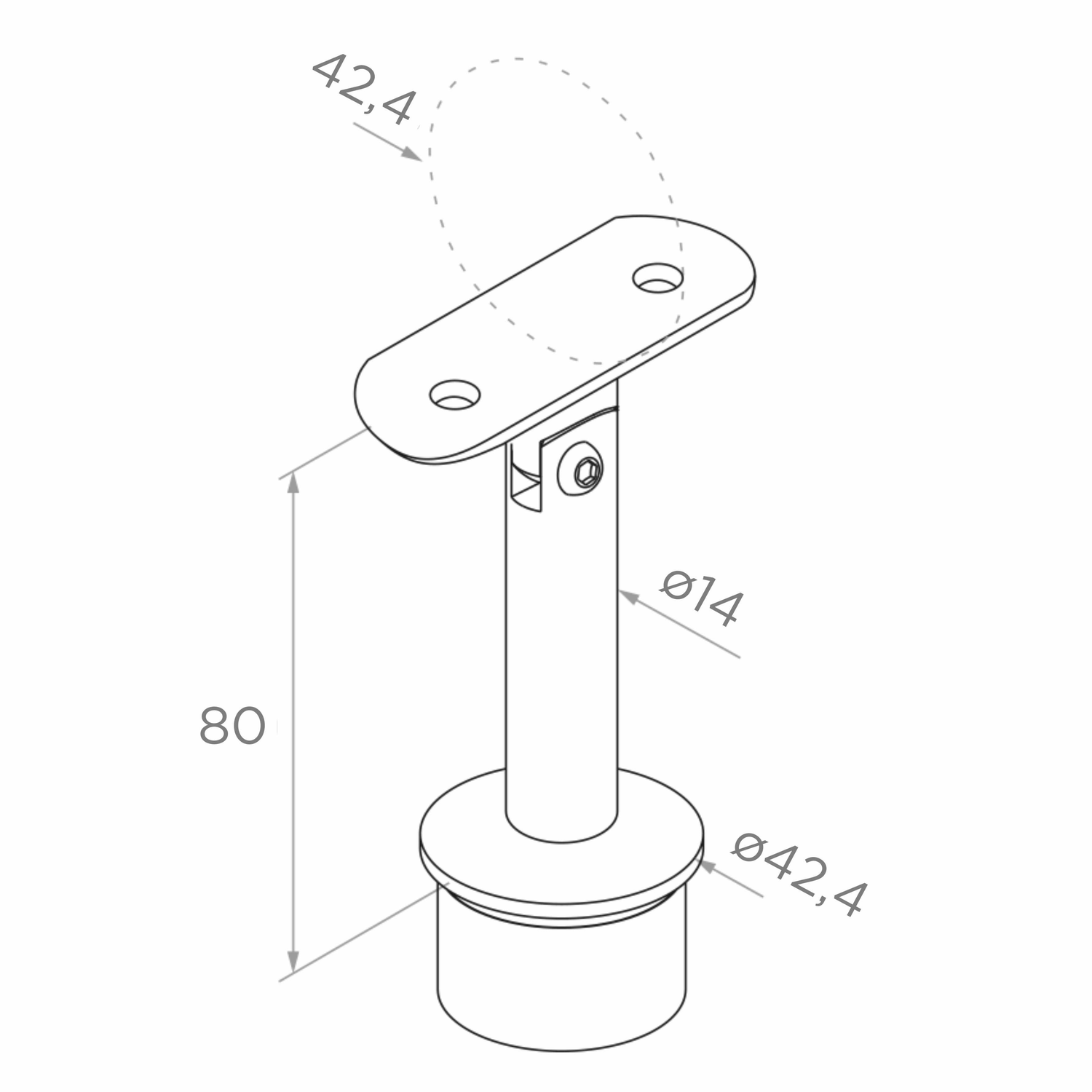

Handrail connector:
- Height: 80 mm
- Shaft diameter: ø 14 mm
- Base diameter: ø 42.4 mm
- Fits handrail: ø 42.4 mm

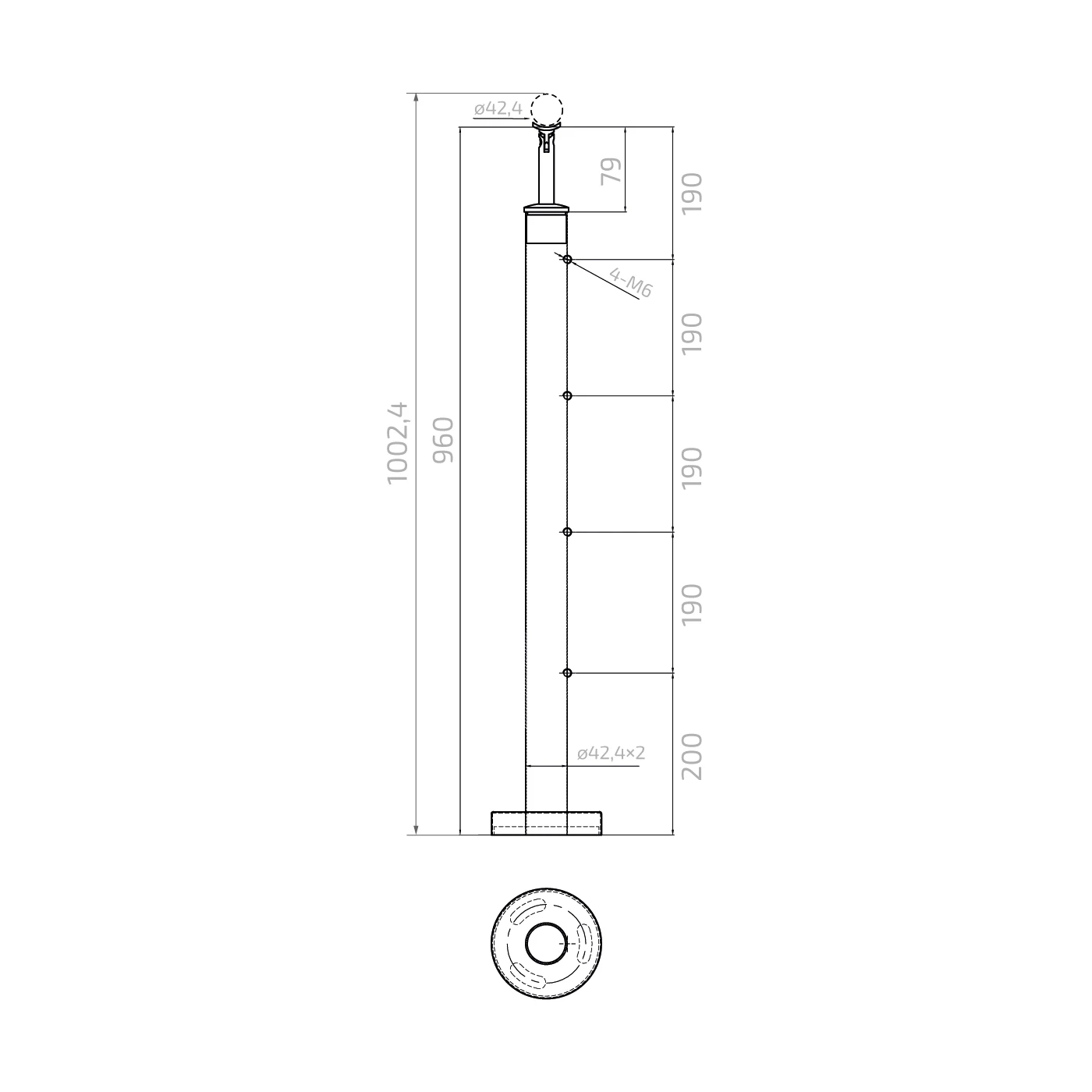

Post dimensional diagram

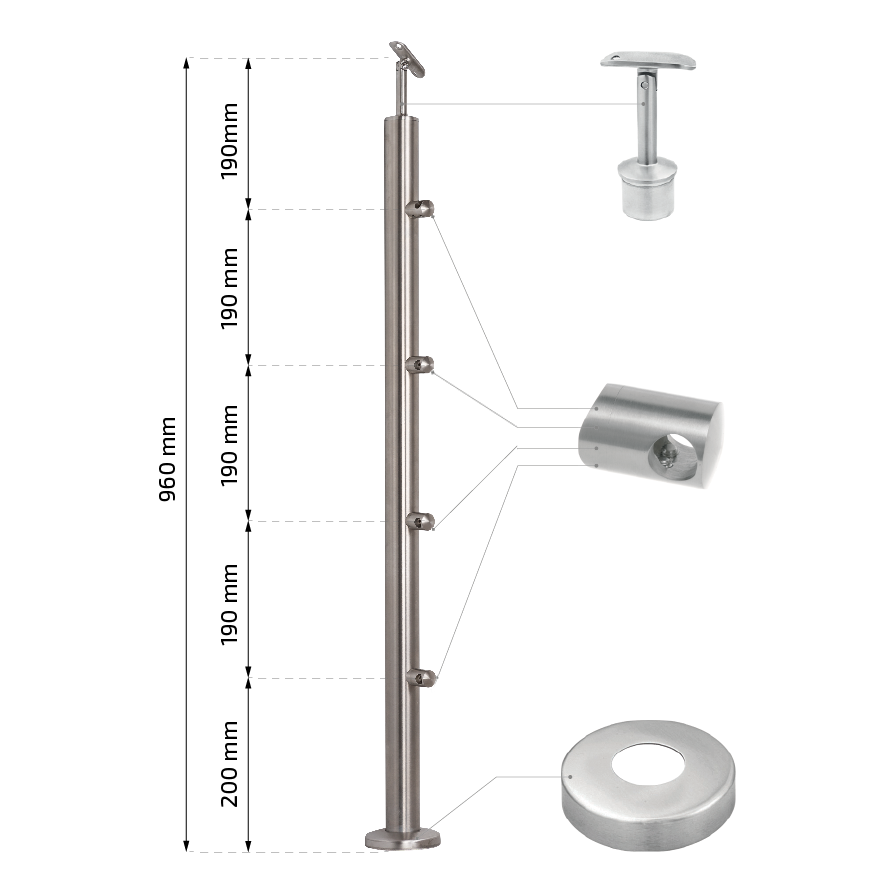

The drawing shows the arrangement of through holders on the post. The first holder is positioned 200 mm above floor level, with the next three at regular intervals of 190 mm. The total tube height is 960 mm, whilst after installing the connector and handrail, the height reaches 1002.4 mm.
Advantages for the installer
- Quick installation — complete kit with cover plate, holders and connector eliminates the need to source separate elements
- Adjustable handrail connector — not permanently glued, allowing precise adjustment to site conditions
- Possibility of shortening the post in case of floor unevenness
- Universal application — suitable for balcony and stair balustrades, system 42.4 ensures compatibility with a wide range of accessories
- AISI 304 steel in satin finish — durable, corrosion-resistant and aesthetic
