PSG Adjustable Welding Hinge M16 – AISI 304 Stainless Steel, Satin Finish
Description

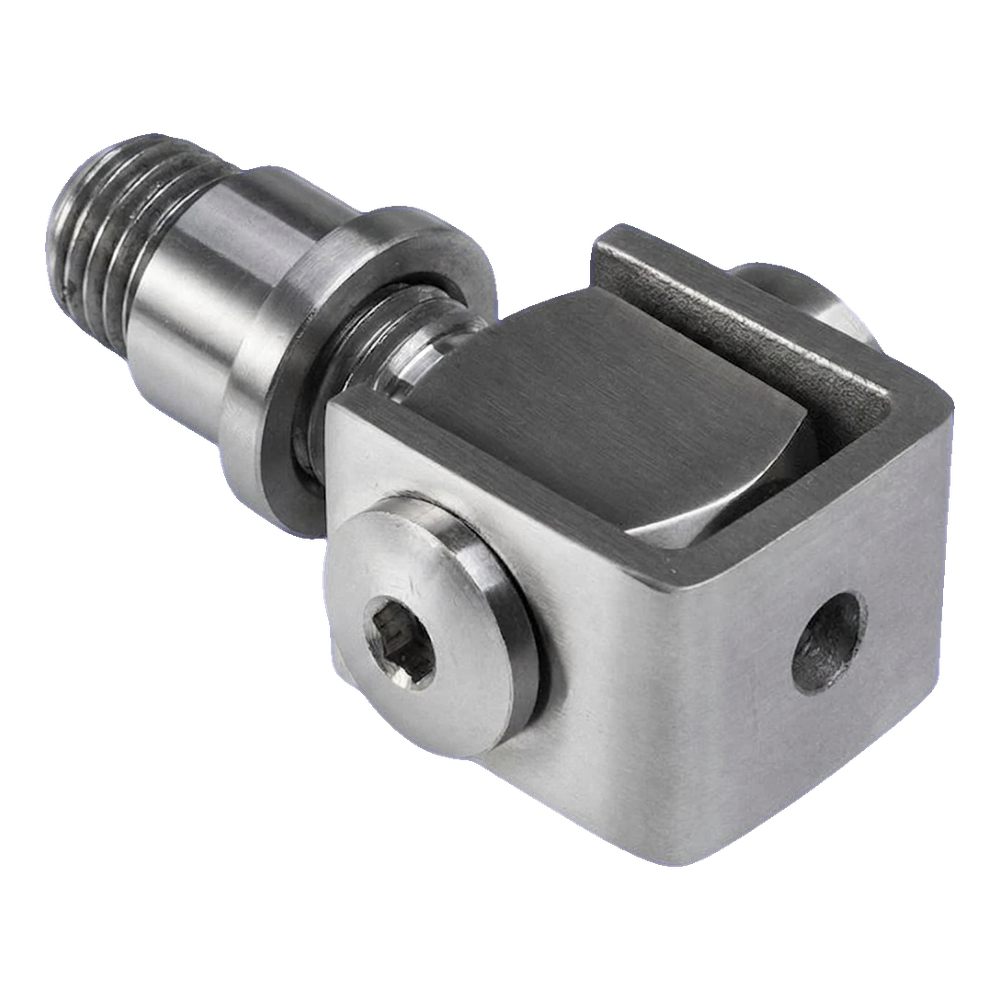

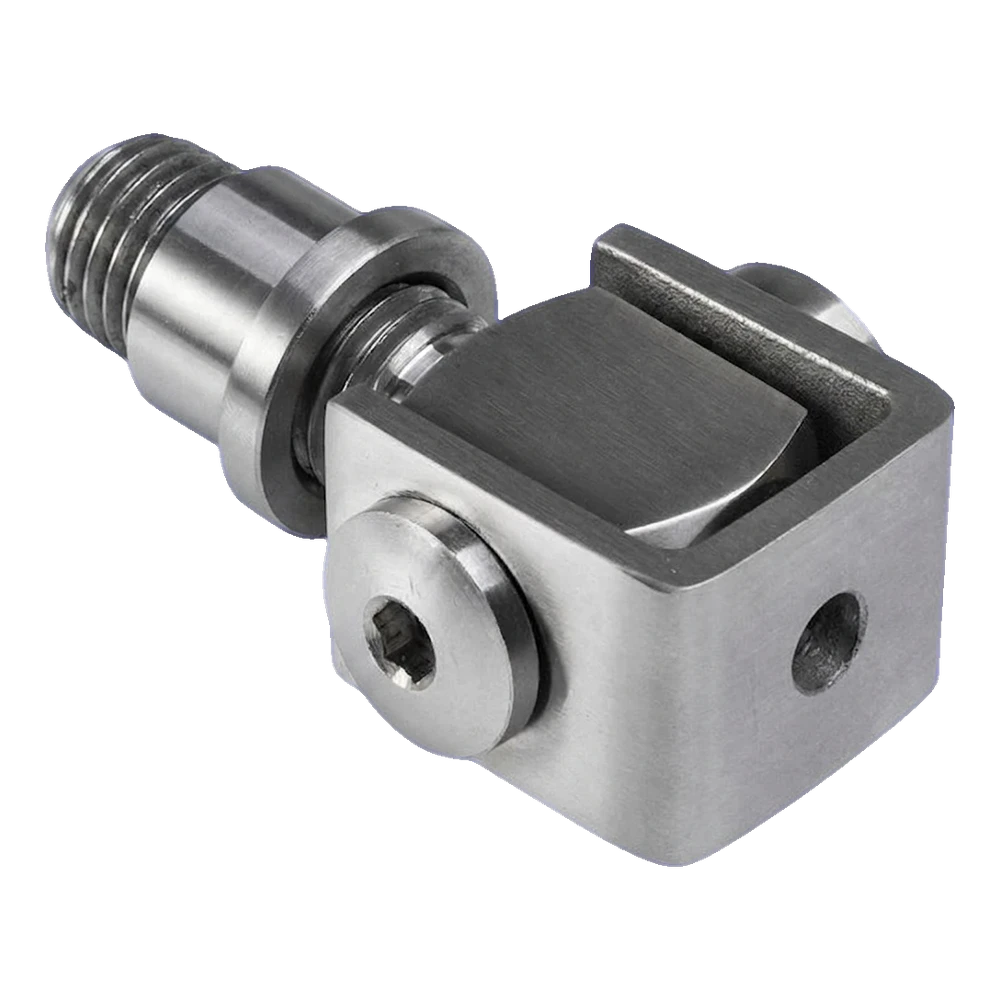

PSG Adjustable Welding Hinge M16 – AISI 304 Stainless Steel, Satin Finish
Adjustable (screw-type) welding hinge with M16 thread designed for mounting swing gates and wicket gates. Made from high-grade AISI 304 stainless steel with satin finish, ensuring durable and reliable operation even in demanding weather conditions. Universal design allows for left and right-hand installation, whilst post-welding adjustment capability allows precise gate leaf positioning without the need for dismantling.
This PSG brand product provides a ready-made solution for professional installation teams — simply weld the pin into the gate post to achieve a stable and adjustable suspension point for the gate leaf. The high corrosion resistance of AISI 304 steel eliminates the need for additional surface protection, reducing project completion time.
Key Features
- High corrosion resistance — AISI 304 stainless steel requires no additional protective coatings
- Post-installation adjustment — precise positioning of gate leaf after welding
- Quick installation — M16 threaded pin for direct welding into steel structure
- Universal application — suitable for swing gates and wicket gates, left and right-hand installation
- Satin finish — aesthetic, matt appearance complementing modern fencing

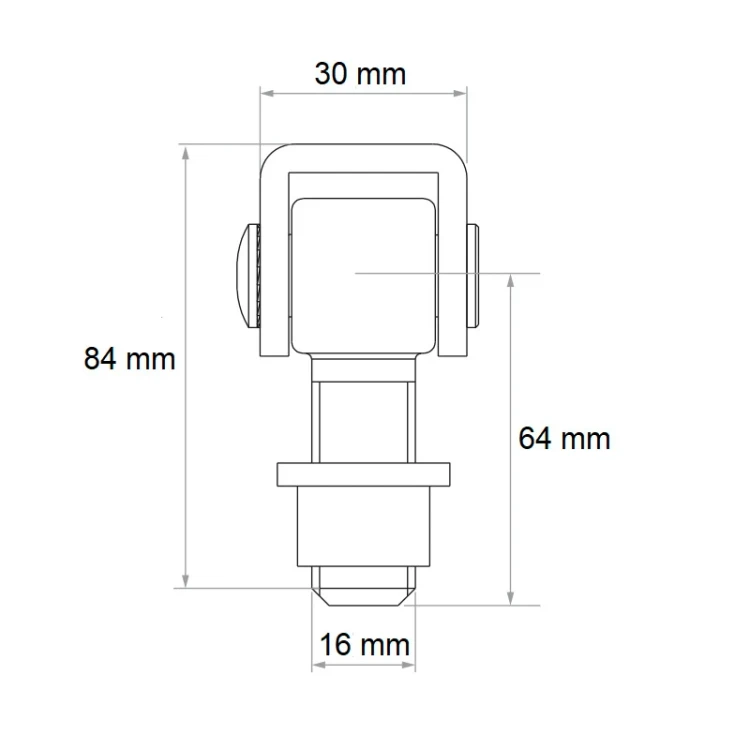

Dimensions and Technical Parameters
- Thread: M16
- Overall length: 84 mm
- Screw length (to pivot axis): 64 mm
- Lug width: 30 mm
- Threaded pin diameter: 16 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.24 kg
- EAN: 5901289674201
Application
The hinge is designed for welding into steel posts during installation of swing gates and wicket gates in fencing. Thanks to its adjustable screw construction, it allows correction of leaf positioning after welding work is completed — simply rotate the threaded pin to raise or lower the suspension point. This is particularly important when installing on uneven ground or when millimetre precision is required for gate positioning relative to the ground and bolt.
Selecting the appropriate hinge has a crucial impact on the smooth operation of the gate leaf and the durability of the entire gate structure. The M16 hinge made from AISI 304 stainless steel ensures long-term, maintenance-free operation even in conditions of increased humidity, air salinity, or contact with atmospheric precipitation.
Technical data
| Thread type | M16 |
| Mounting Method | Weld-On |
| Material | AISI 304 |
