PINOX – intermediate balustrade post non-armed ø 42.4 × 881 mm, stainless steel satin
0
Description

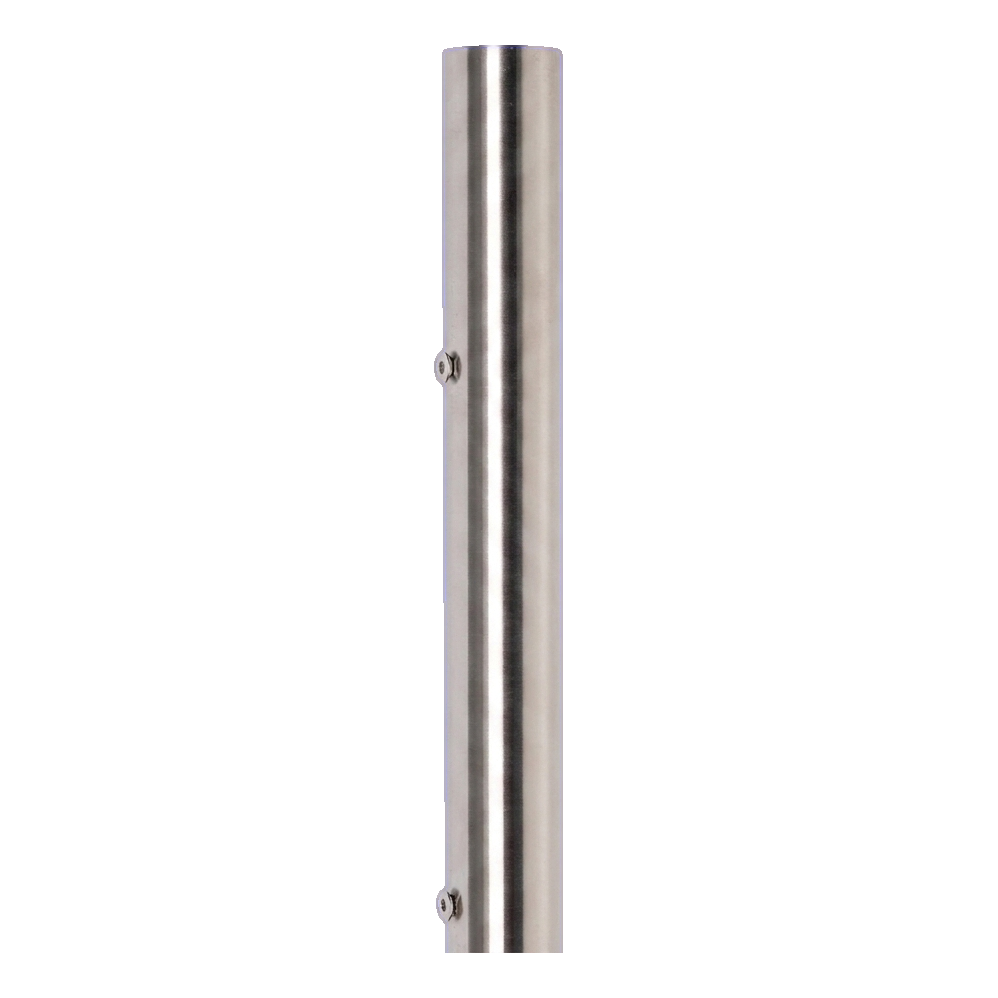

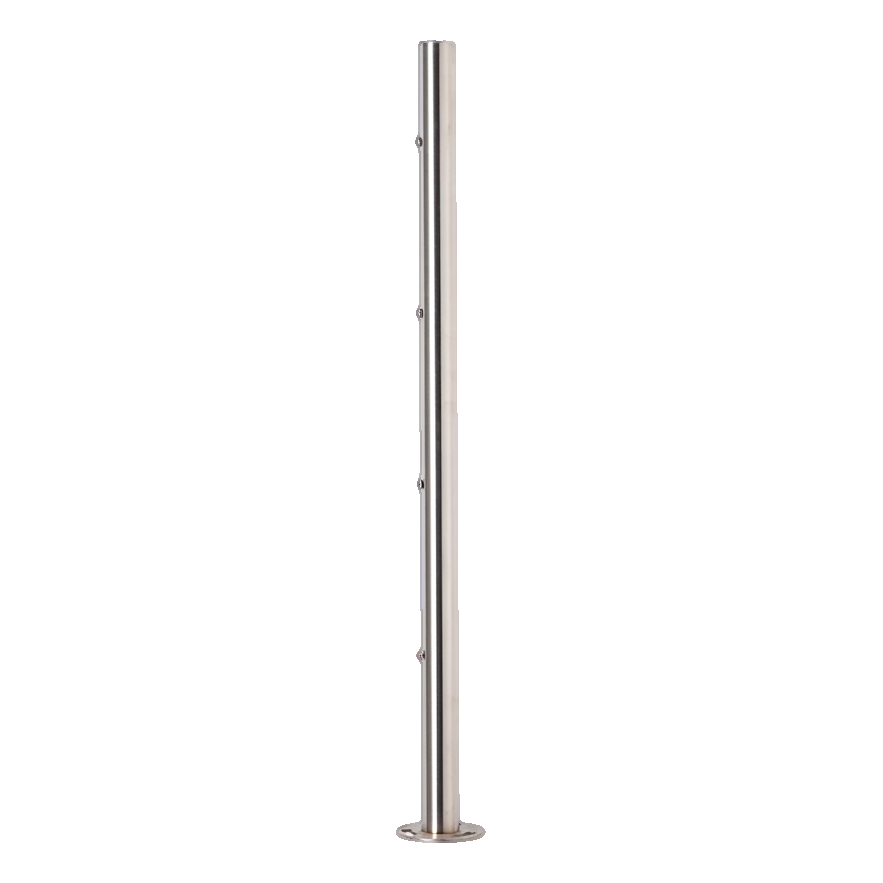

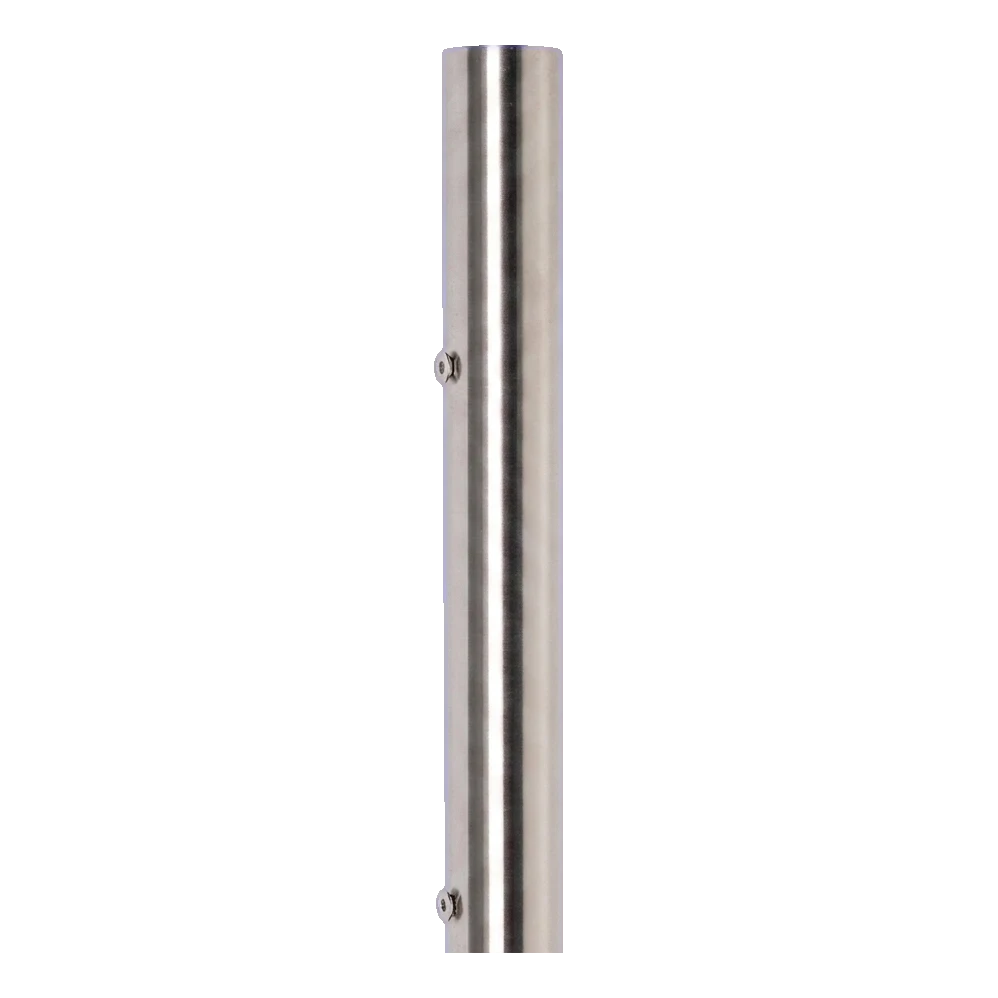

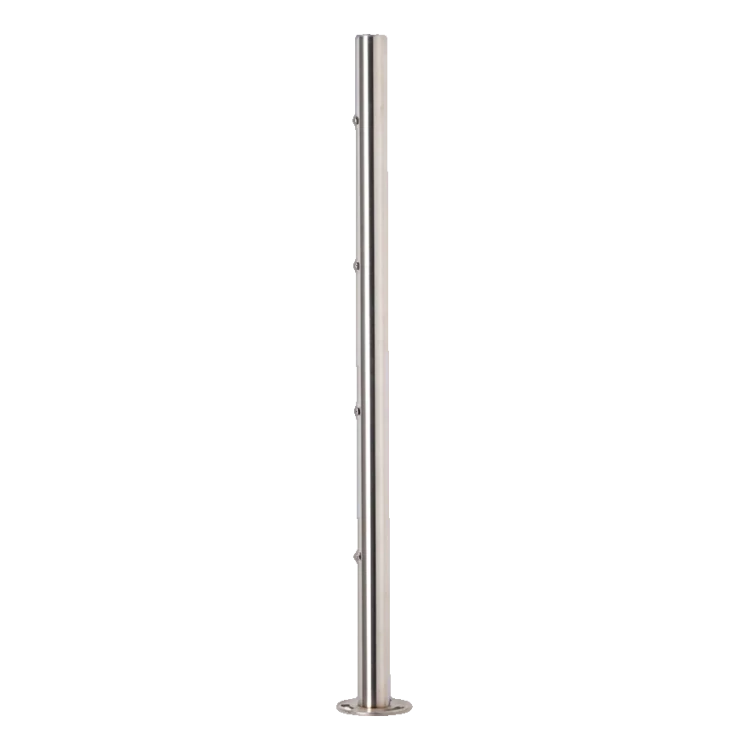

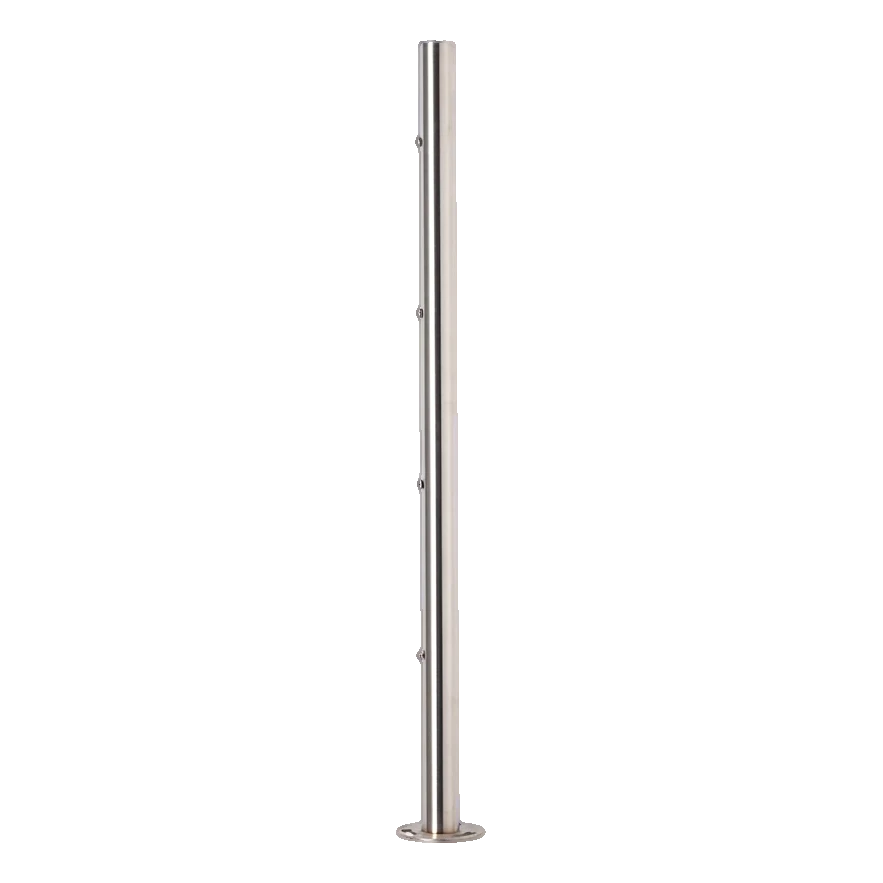

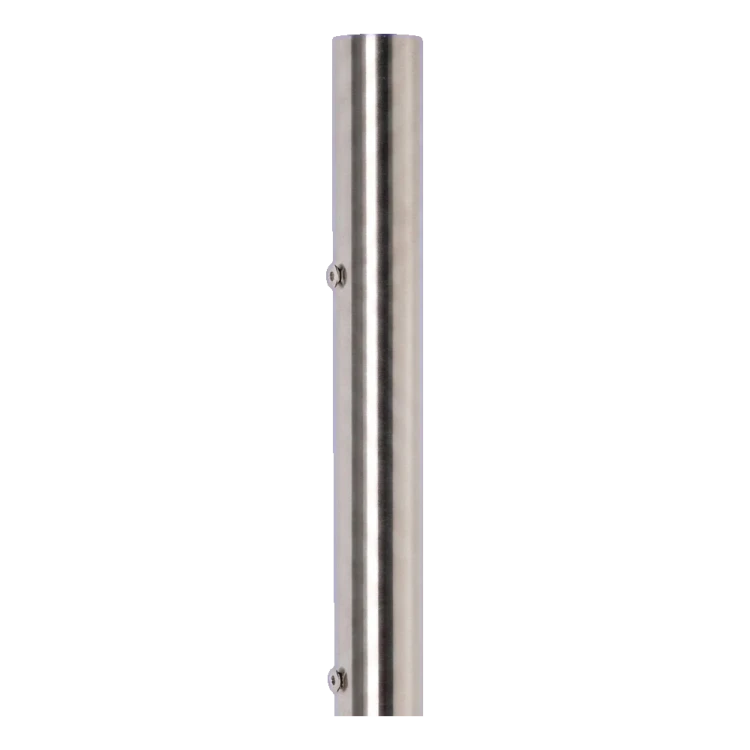

PINOX – intermediate balustrade post non-armed ø 42.4 × 881 mm, stainless steel satin
PINOX intermediate balustrade post in non-armed version is a professional structural element designed for building stainless steel balustrades. Thanks to 4 threaded holes M6 evenly spaced, the installer can decide on the selection of brackets and infills — providing full flexibility for both standard and bespoke projects.
AISI 304 stainless steel provides high resistance to corrosion and atmospheric conditions, making the post suitable for both indoor and outdoor use — on balconies, terraces or staircases. The satin surface finish gives the product a modern, matt appearance that perfectly complements other balustrade system components.
The welded mounting base with diameter ø100 mm featuring three slotted holes positioned every 120° is fixed directly into the floor. This mounting method guarantees stability and safety of the structure even in high-traffic areas such as stairs in public buildings, hotels or office buildings.
The non-armed version (without factory-fitted brackets) allows for individual accessory selection — simply screw chosen brackets into the threaded M6 holes to adapt the balustrade to specific project requirements and applications.
Technical specification
- Manufacturer: PINOX
- Type: intermediate post, non-armed
- Material: AISI 304 stainless steel
- Surface finish: satin
- Tube diameter: ø42.4 mm
- Tube wall thickness: 2 mm
- Total height: 881 mm
- Weight: 1.4 kg
- Mounting: floor-mounted
- Mounting holes: 4 pcs. with M6 thread
- EAN: 5903313205443
M6 hole spacing on post
- Distance from top edge to first hole: 111 mm
- Spacing between consecutive holes: 190 mm (3 × 190 mm)
- Distance from last hole to base: 200 mm

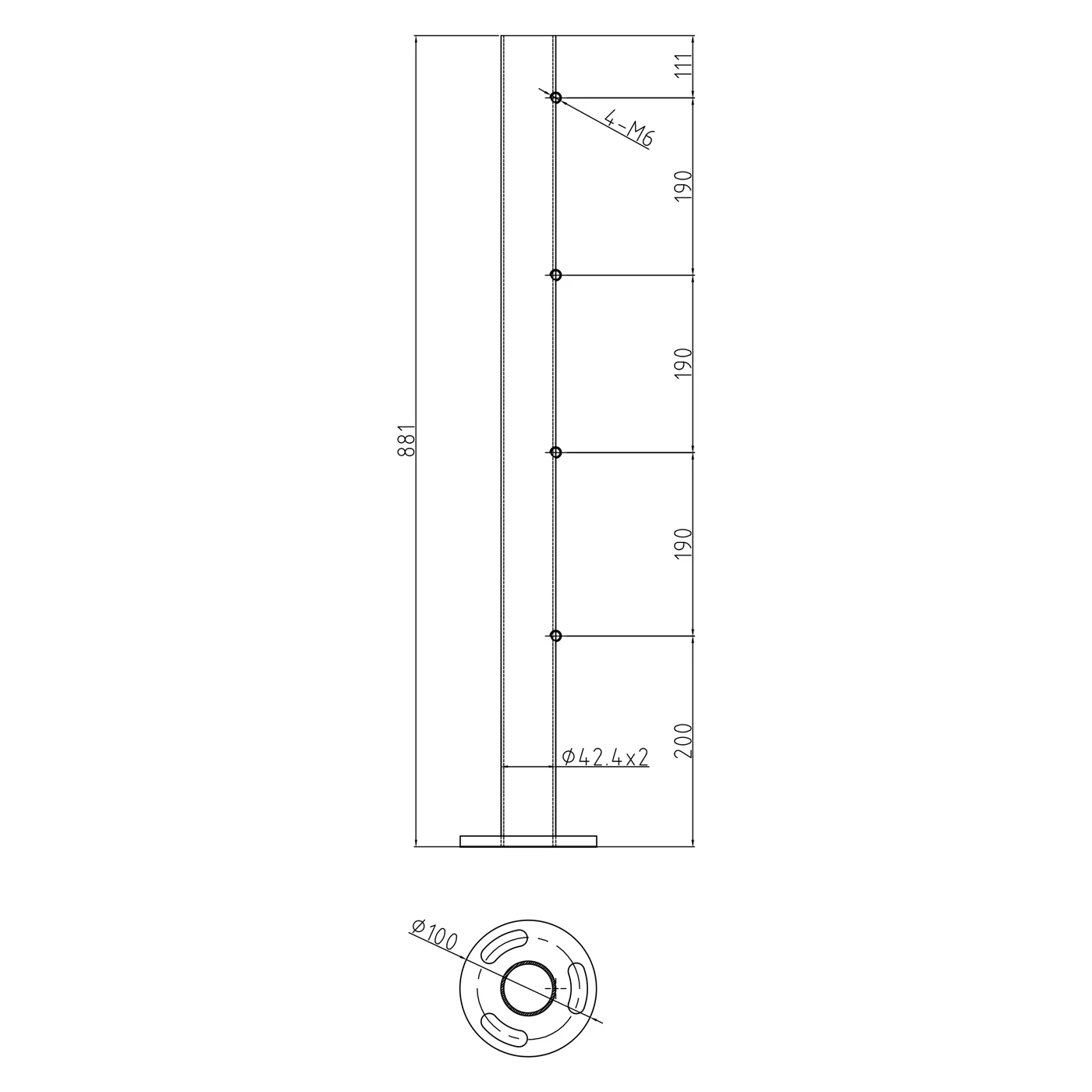

Technical drawing dimensions

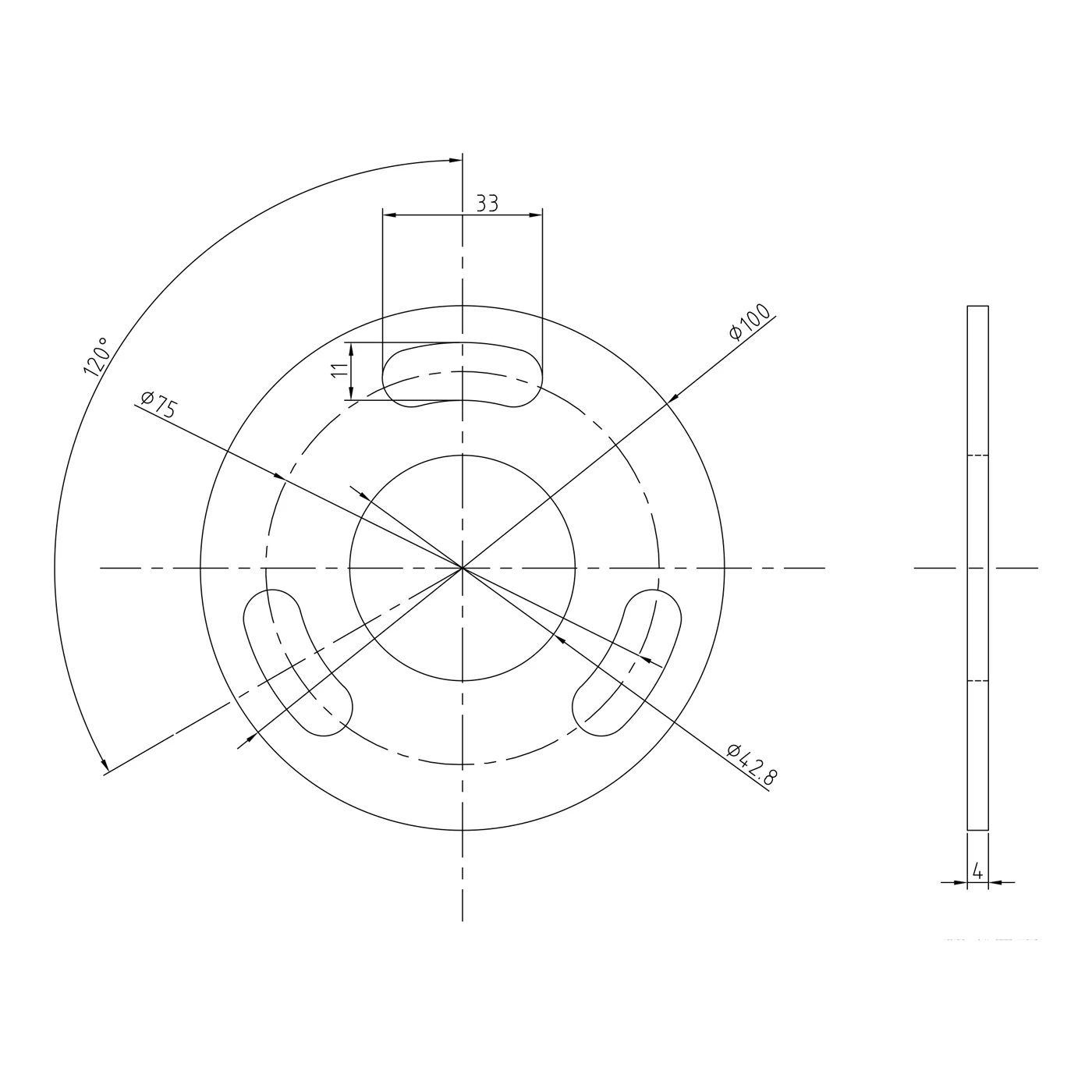

Mounting base parameters
- Base external diameter: ø100 mm
- Central hole diameter: ø42.8 mm
- Slotted holes pitch circle diameter: ø75 mm
- Slotted hole dimensions: 33 × 11 mm
- Hole positioning angle: 120°
- Base thickness: 4 mm
- Number of mounting holes in base: 3 pcs. (slotted)
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
