PINOX – intermediate balustrade post Ø 42.4 mm stainless steel AISI 304 satin
0
Description

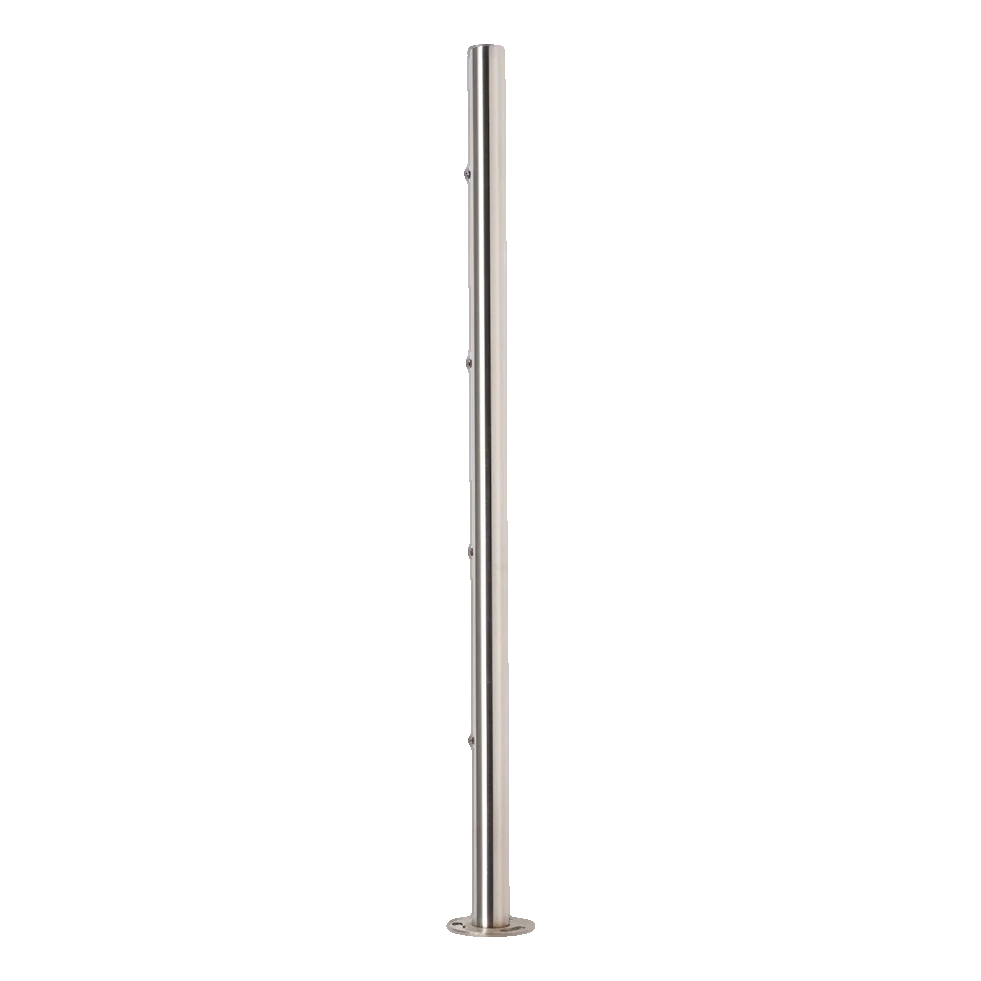

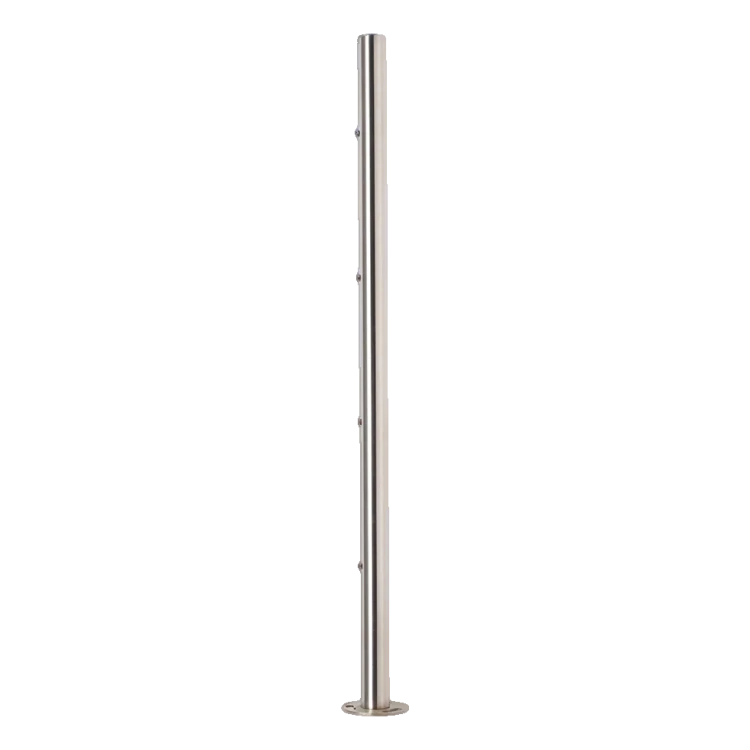

PINOX – intermediate balustrade post Ø 42.4 mm stainless steel AISI 304 satin

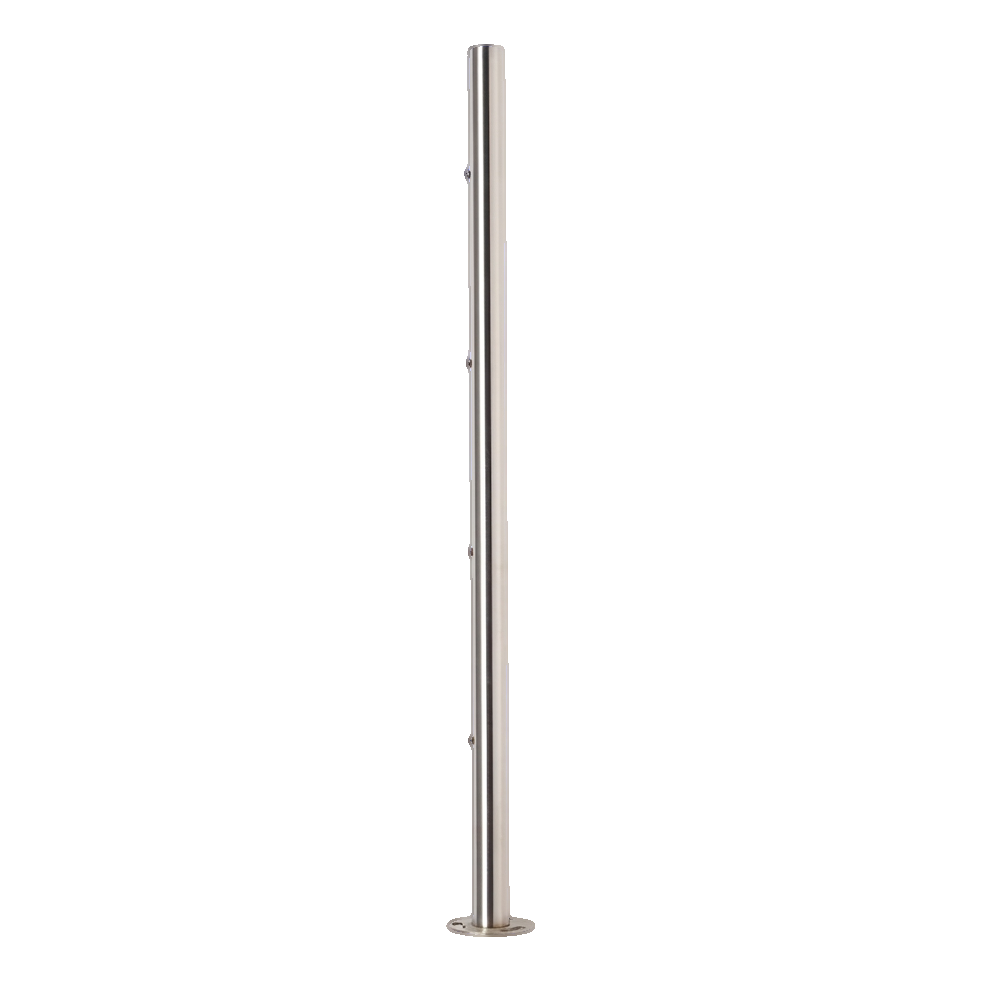

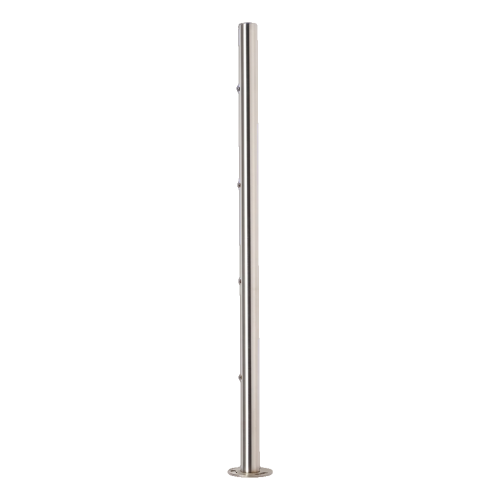

Intermediate balustrade post PINOX with diameter 42.4 mm and height 981 mm is a solid structural element for building modern internal and external balustrades. Made of stainless steel AISI 304 in elegant satin finish, it provides aesthetic appearance and years of corrosion resistance — even in areas exposed to moisture and intensive use.

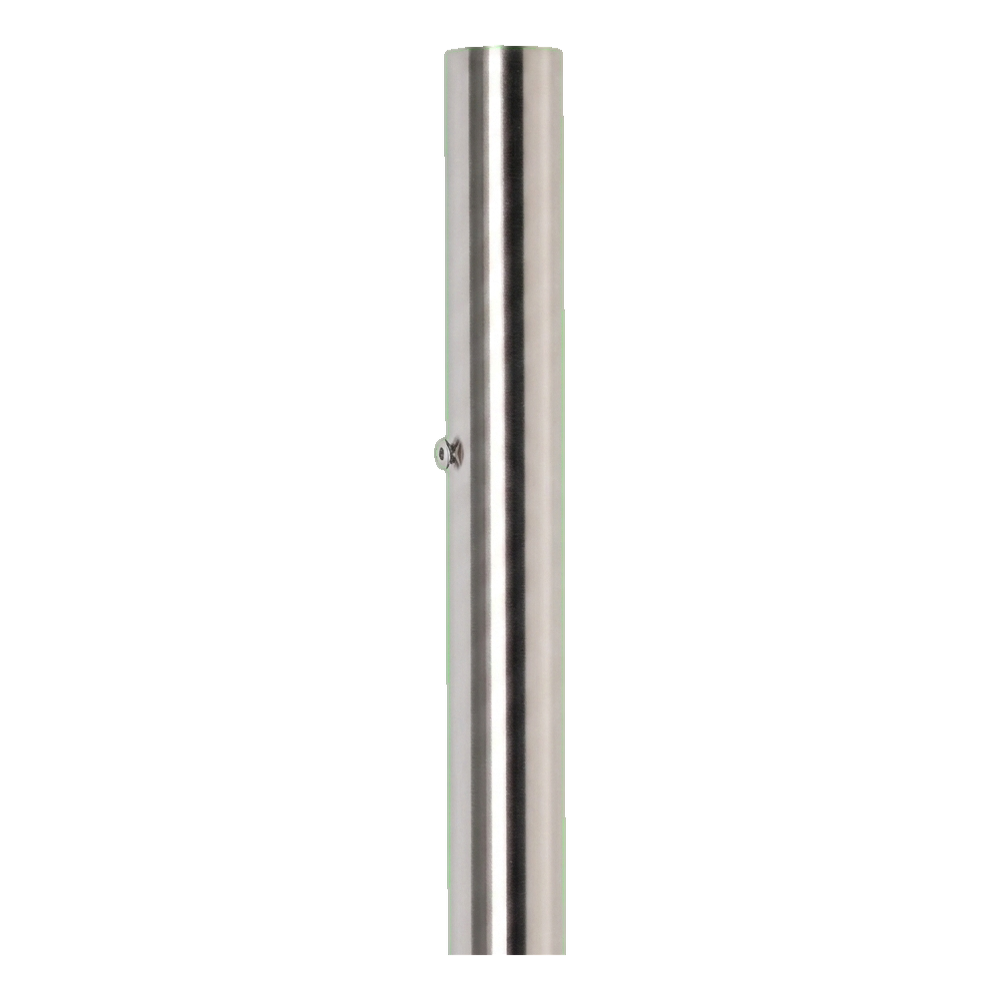

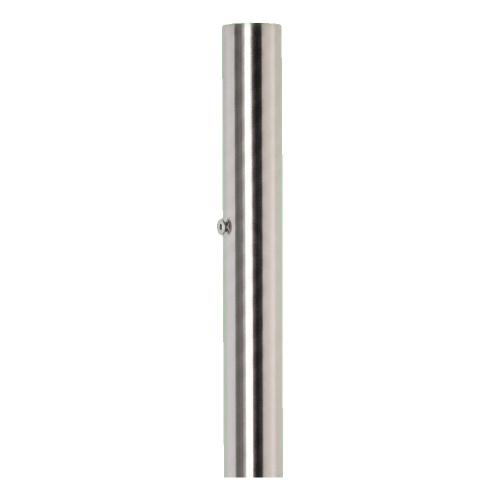

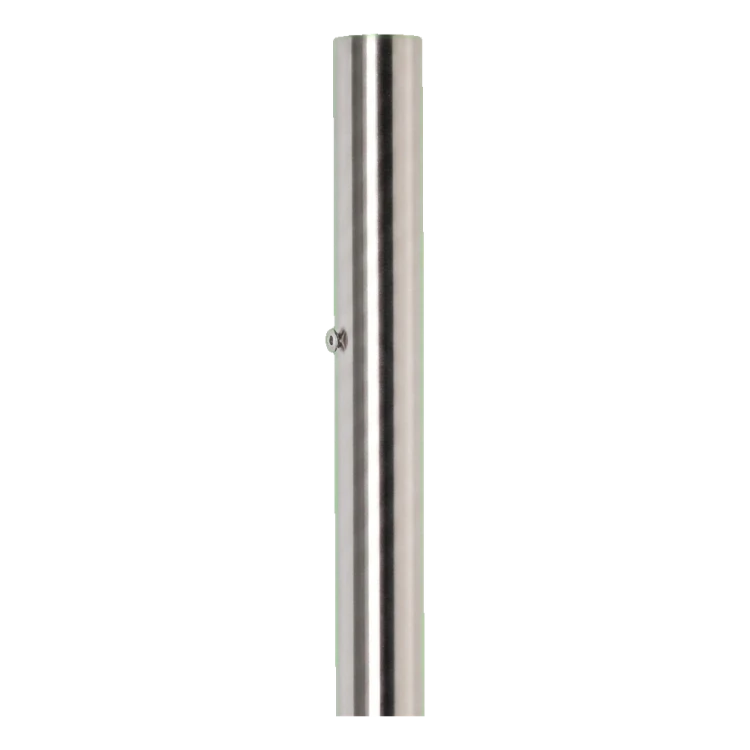

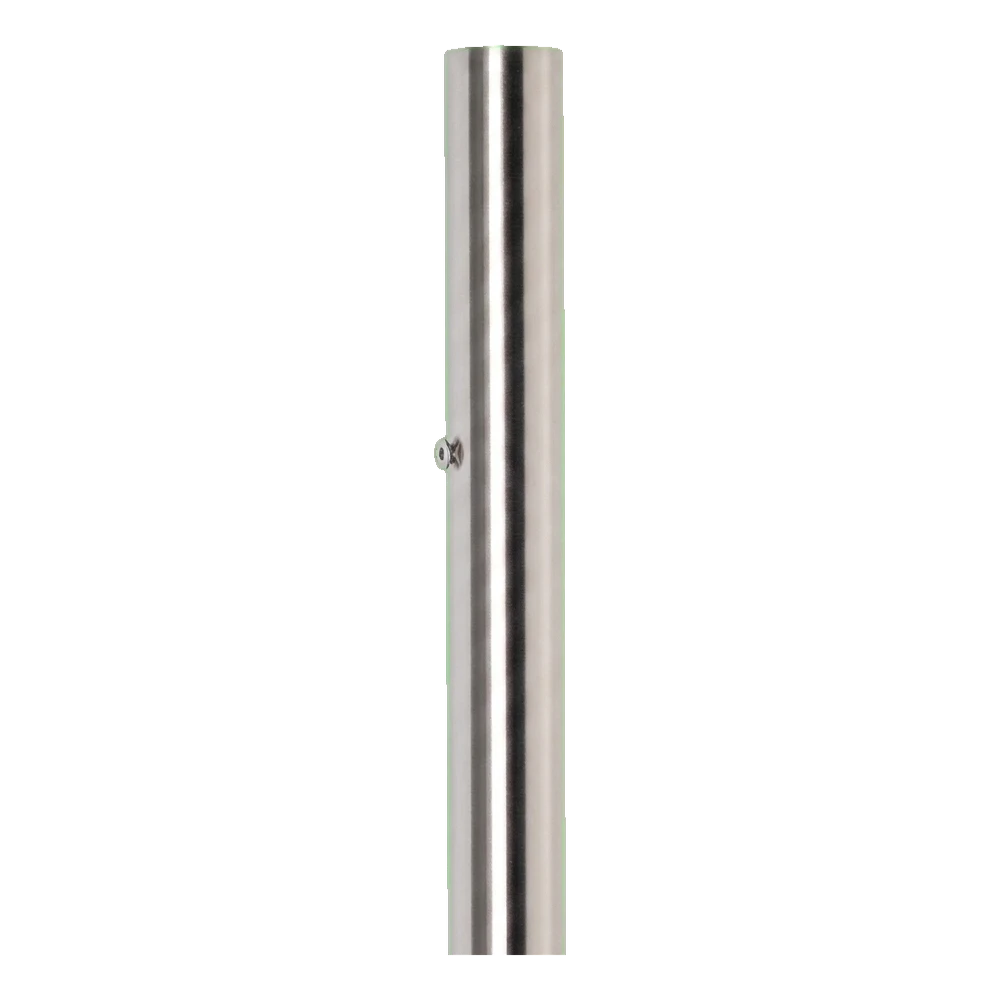

The post is of non-equipped type — it has 4 holes with M6 thread positioned at equal intervals of 210 mm, which allows for free selection and mounting of any bar holders, tubes or infills. This gives the installer full flexibility in configuring the balustrade for a specific project.

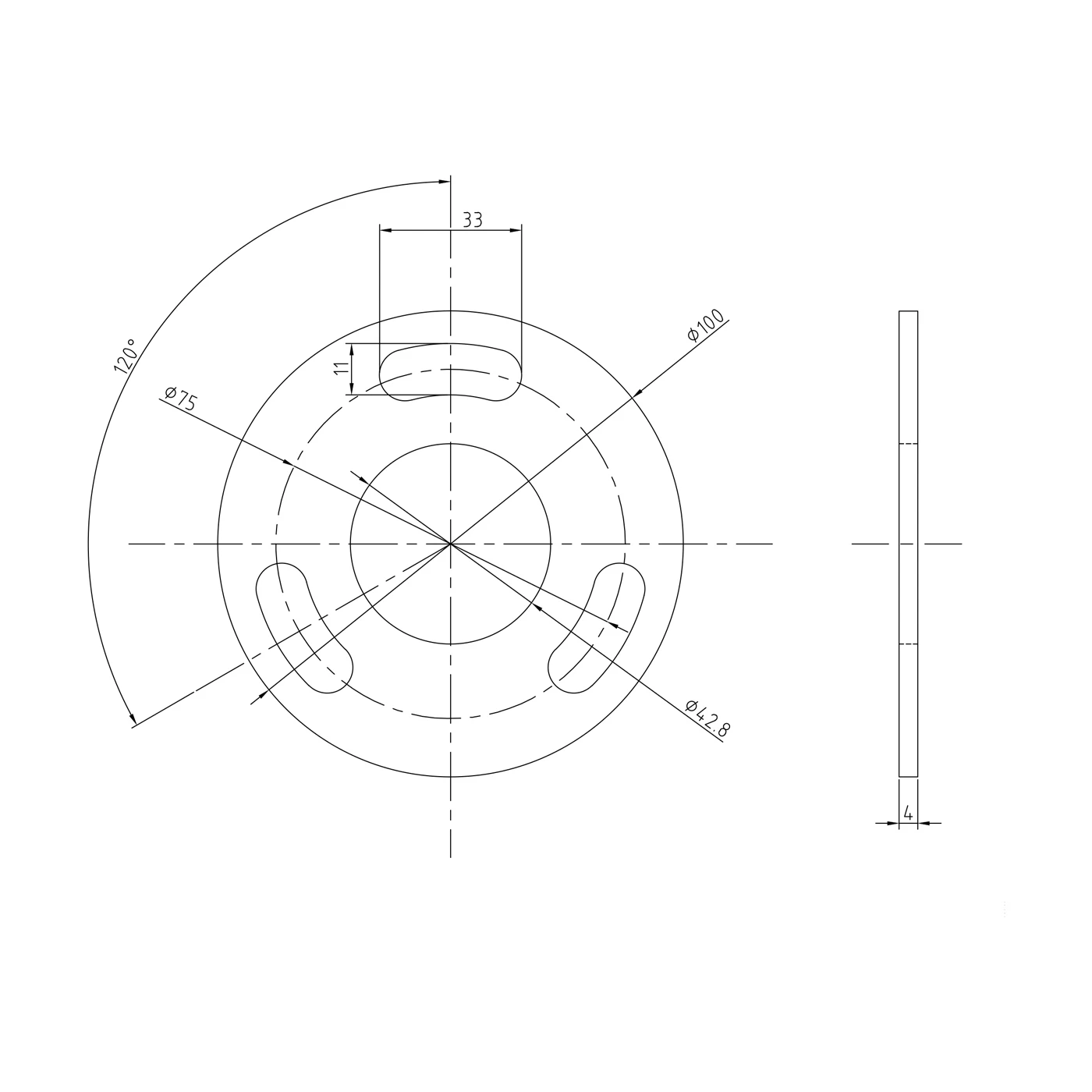

Floor mounting is achieved using welded bases with flange diameter Ø100 mm and thickness 4 mm. Three elongated mounting holes (slots 33 × 11 mm) positioned every 120° on circle Ø75 mm enable precise levelling and secure anchoring to the substrate — even on uneven surfaces.
The satin surface finish is resistant to visible scratches and fingerprints, which significantly facilitates maintenance of cleanliness in high-traffic areas — staircases, terraces, shopping centres or public buildings.
Technical specification
- Manufacturer: PINOX
- Type: intermediate, non-equipped
- Material: stainless steel AISI 304
- Finish: satin
- Tube diameter: Ø42.4 mm
- Tube wall thickness: 2 mm
- Total height: 981 mm
- Mounting holes in post: 4 pcs. with M6 thread
- Hole spacing: 210 mm
- Distance from top hole to post top: 141 mm
- Mounting: to floor — welded flange
- Flange diameter: Ø100 mm
- Flange thickness: 4 mm
- Holes in flange: 3 pcs. (slots 33 × 11 mm) on circle Ø75 mm, every 120°
- Weight: 2.1 kg
- EAN: 5903313205467

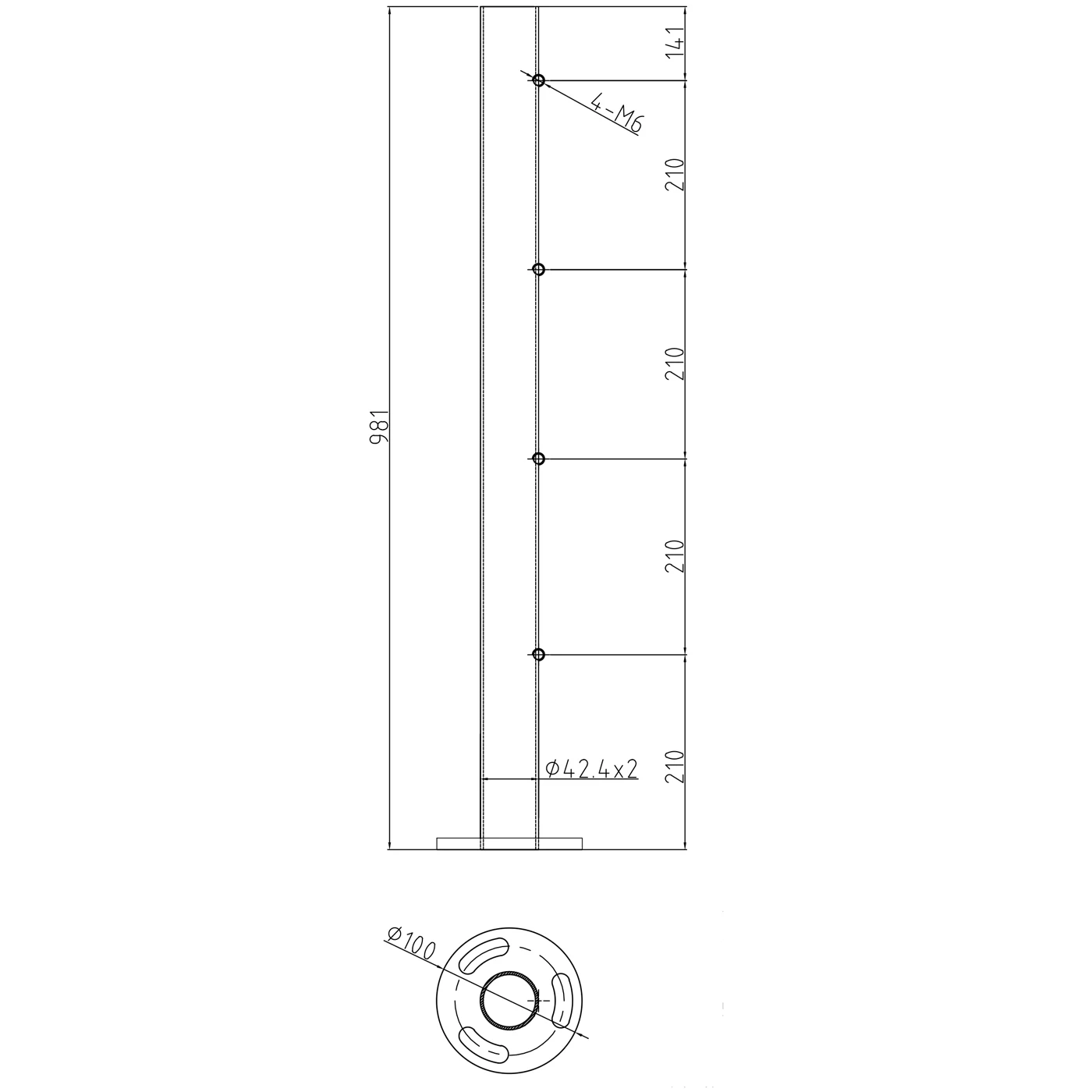

Dimensions — technical drawing
Technical data
| Mounting System | 42.4 mm |
| Material | AISI 304 |
| Finish | Satin |
