PINOX intermediate balustrade post Ø 42.4 mm × 981 mm – AISI 304 stainless steel, satin finish
0
Description

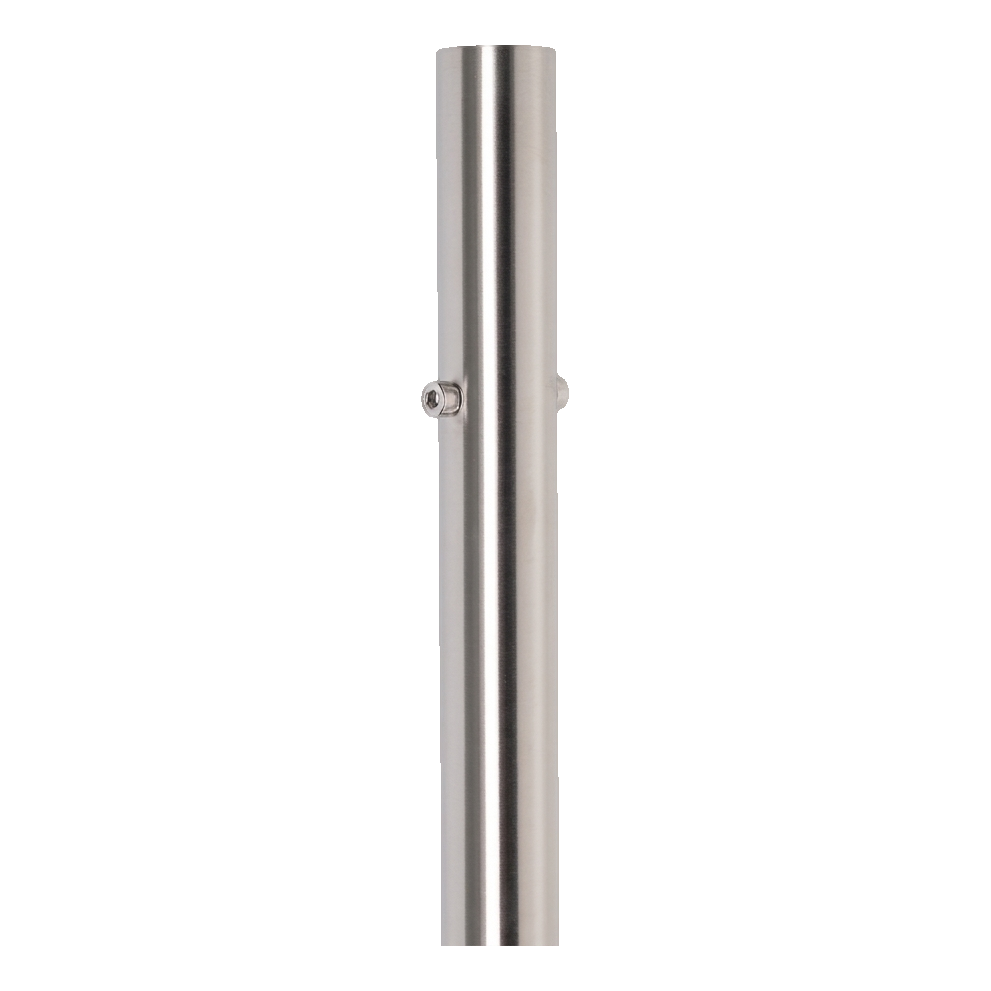

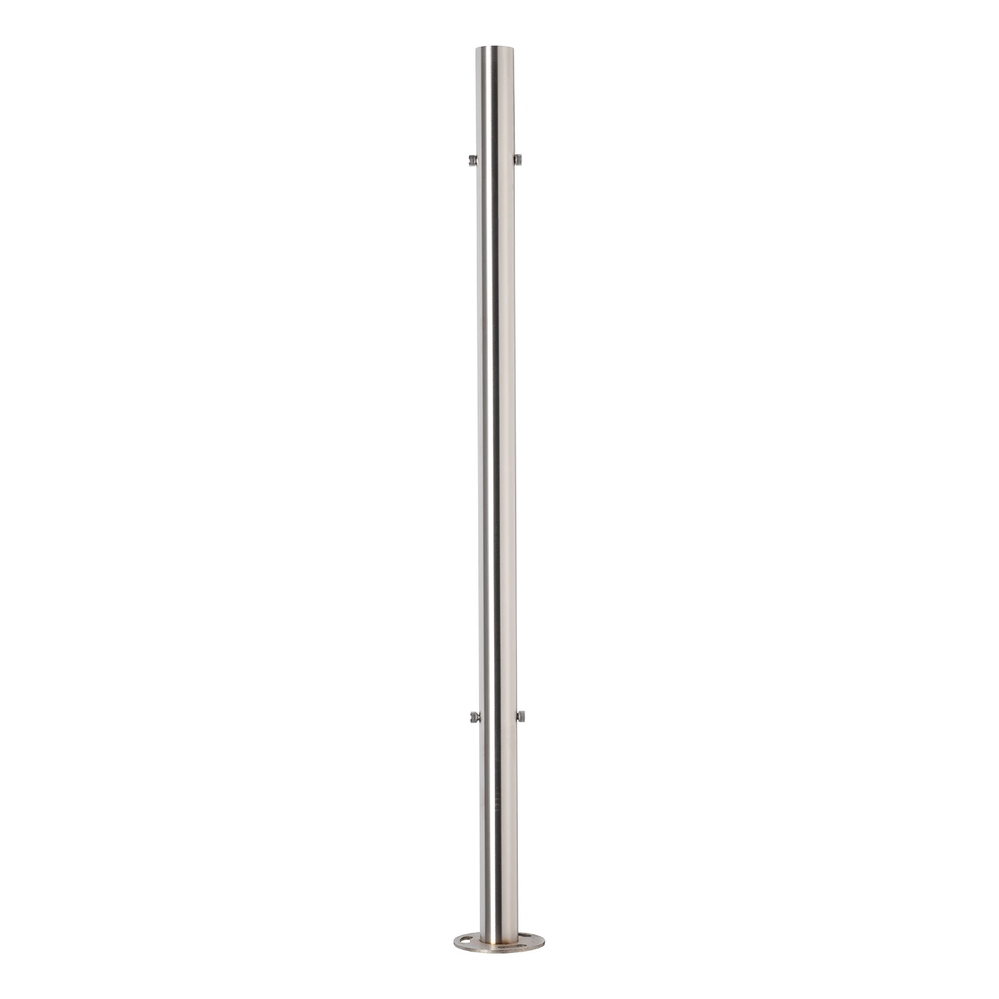

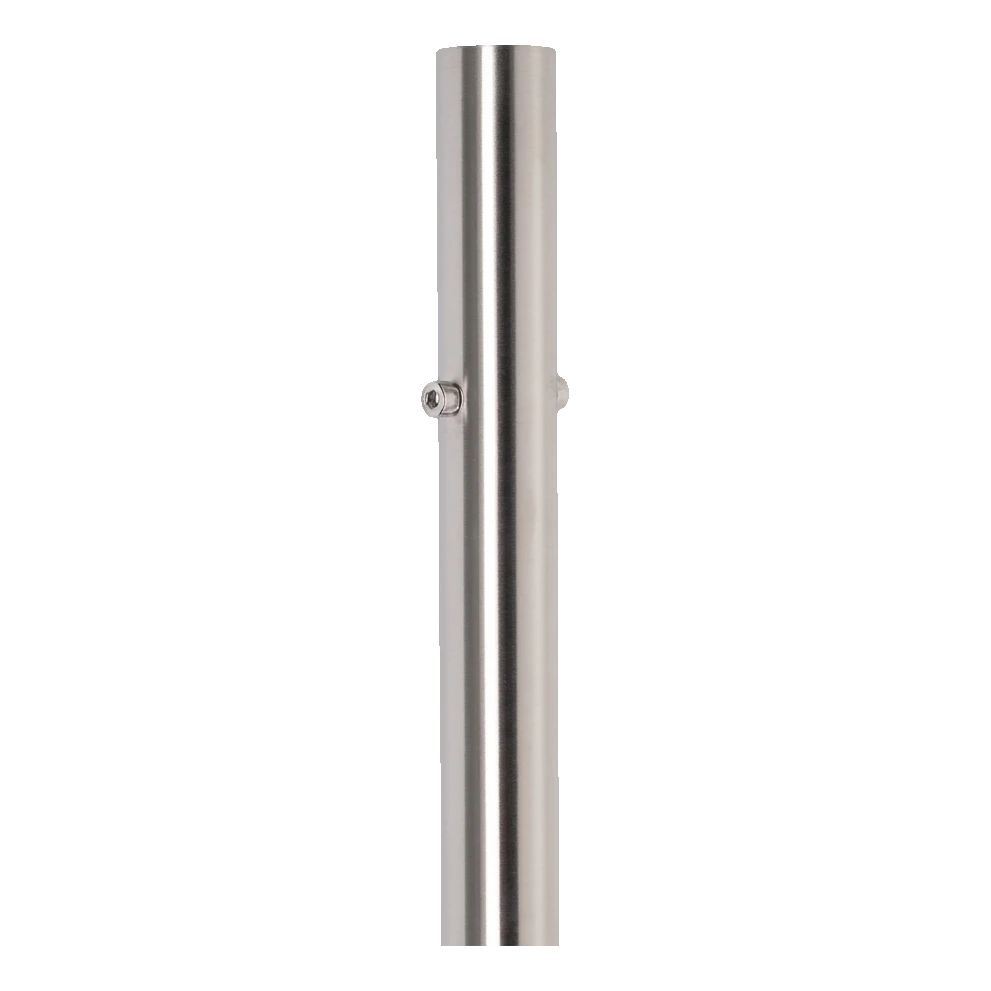

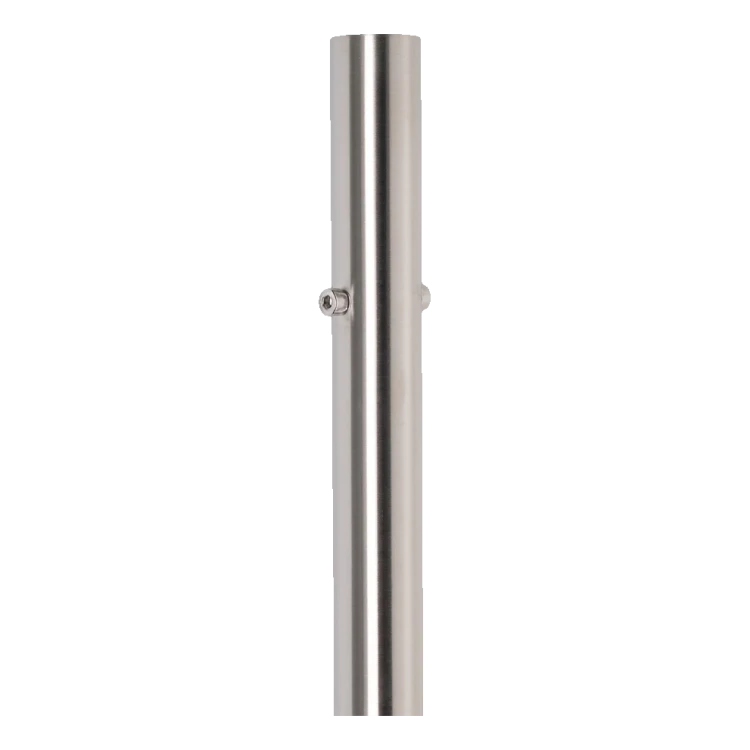

PINOX intermediate balustrade post Ø 42.4 mm × 981 mm – AISI 304 stainless steel, satin finish
PINOX intermediate post is a professional structural element for balustrades, manufactured from AISI 304 stainless steel with a satin finish. Designed with durability and aesthetics in mind – suitable for both interior and exterior building applications. Thanks to four M8 threaded holes arranged on two levels, the post enables quick and flexible mounting of handrail brackets, significantly reducing project completion time.
The welded mounting flange with a diameter of 100 mm featuring three slotted holes ensures stable floor fixing and easy position adjustment. The complete unit represents a ready, unassembled element of the 42.4 mm PINOX balustrade system, compatible with a wide range of through brackets and handrails.
Technical specification
- Manufacturer: PINOX
- Post type: intermediate (unassembled)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Tube diameter: Ø 42.4 mm
- Tube wall thickness: 2 mm
- Total height: 981 mm
- Weight: 2.1 kg
- Mounting: to floor (welded flange)
- System: 42.4
- EAN: 5903313205504

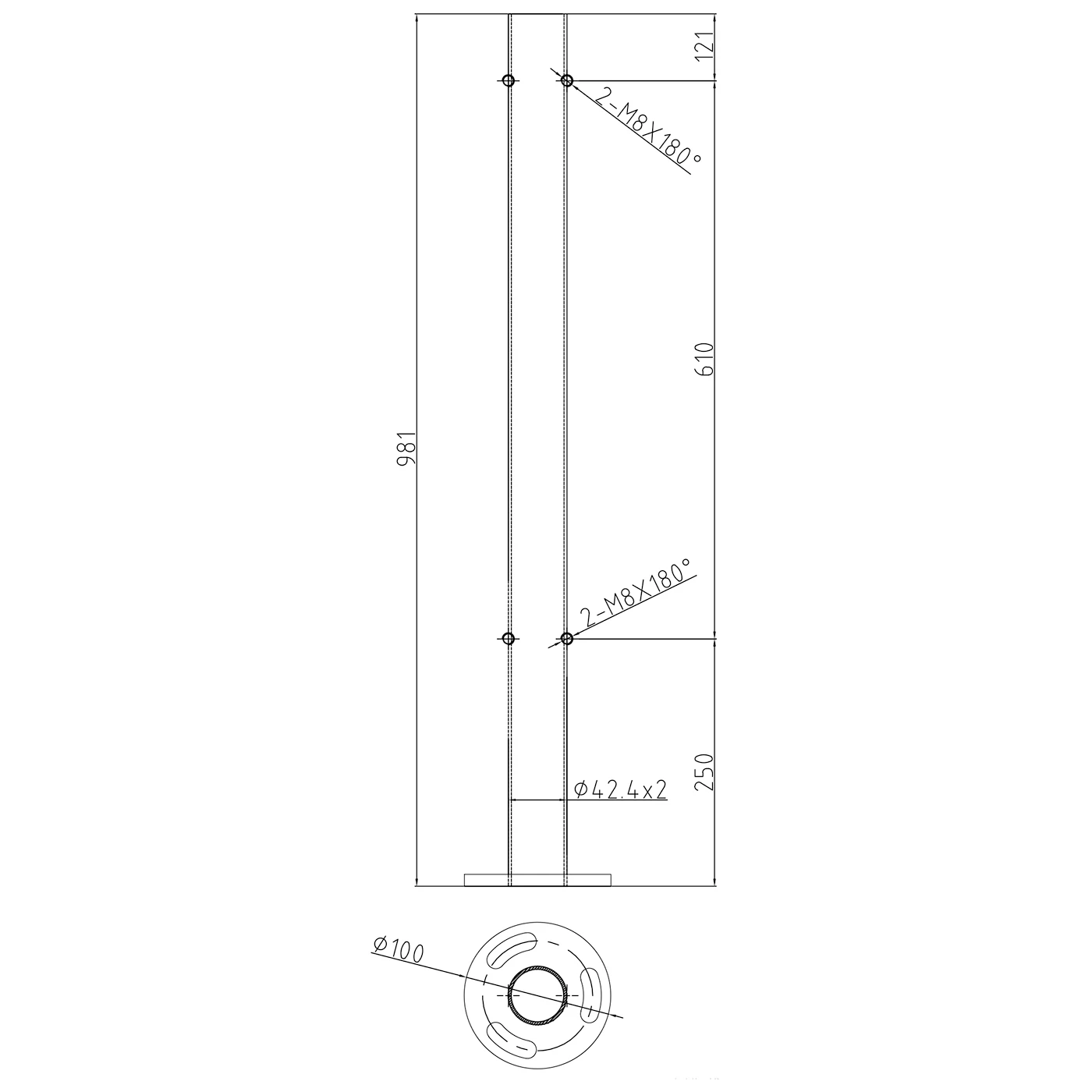

Mounting holes
- Number of holes: 4 pcs. (2 pairs of 2 holes opposite each other)
- Thread: M8
- Pair arrangement: every 180°
- Lower pair distance from base: 250 mm
- Vertical spacing between pairs: 610 mm
- Upper pair distance from top: 121 mm

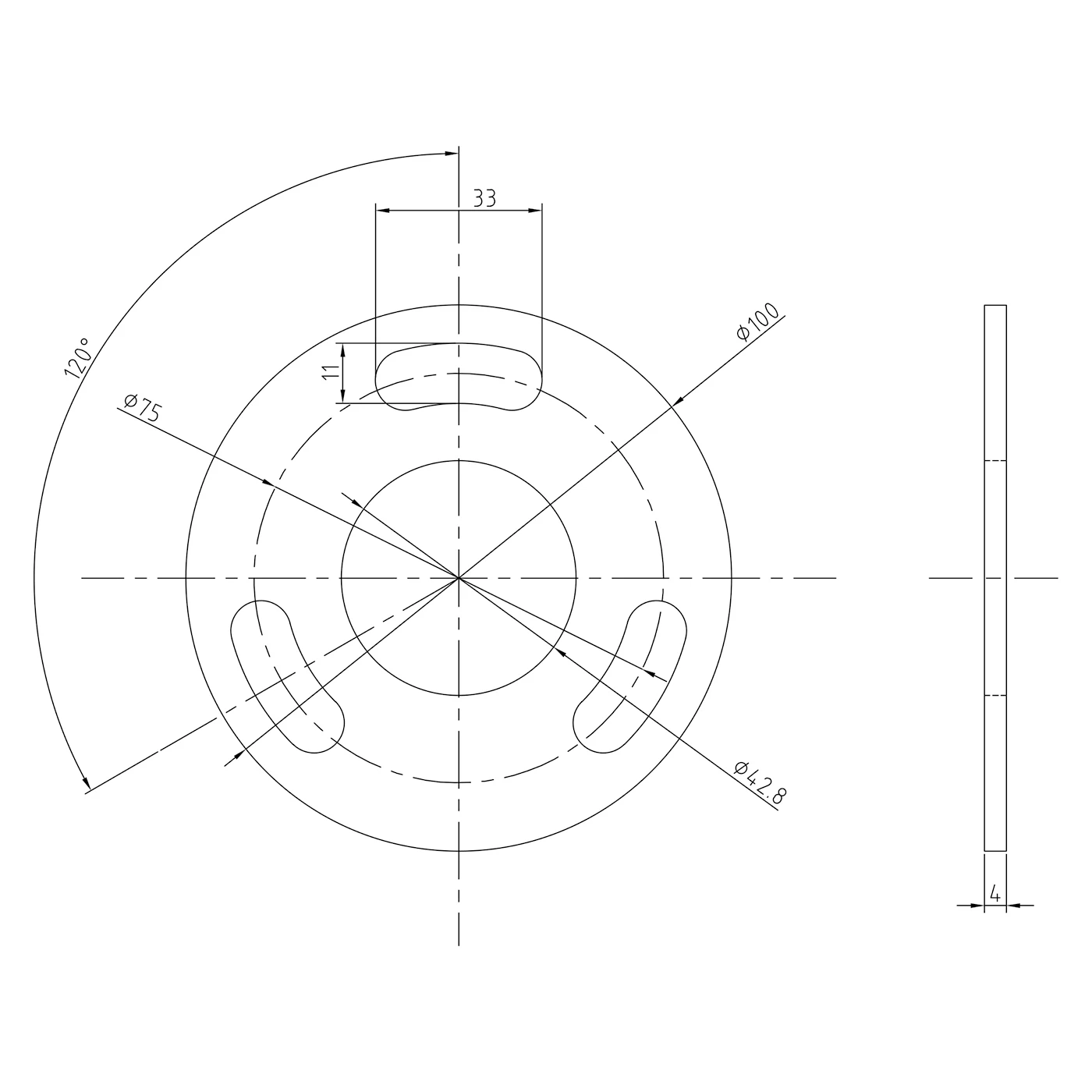

Mounting flange (base) dimensions
- Flange external diameter: Ø 100 mm
- Central hole diameter: Ø 42.8 mm
- Hole pitch circle diameter: Ø 75 mm
- Flange thickness: 4 mm
- Mounting holes: 3 × slotted (33 × 11 mm)
- Hole spacing angle: 120°
Application and mounting notes
The post is primarily intended for interior applications. It may be used on building exteriors provided regular cleaning and maintenance with appropriate stainless steel care products. AISI 304 steel is not recommended for use in swimming pools and pool areas, where elevated humidity and chemical substances may negatively affect material durability.
Technical drawings
Technical data
| Mounting System | 42.4 mm |
| Material | AISI 304 |
| Finish | Satin |
