PINOX intermediate balustrade post 40x40 mm h981 mm stainless steel satin

Go to Product feedback

PINOX intermediate balustrade post 40x40 mm h981 mm made from AISI 304 stainless steel, satin finish. Square profile 40x2 mm, 4 threaded M8 holes, base plate 105x105x4 mm. Weight 2.9 kg. For floor mounting.

Go to full description
with VAT without VAT
Price €38.58
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Cat 134 #134

  • Material AISI 304
  • Finish Satin
  • Mounting System Flat

Description

PINOX intermediate balustrade post 40x40 mm h981 mm stainless steel satin

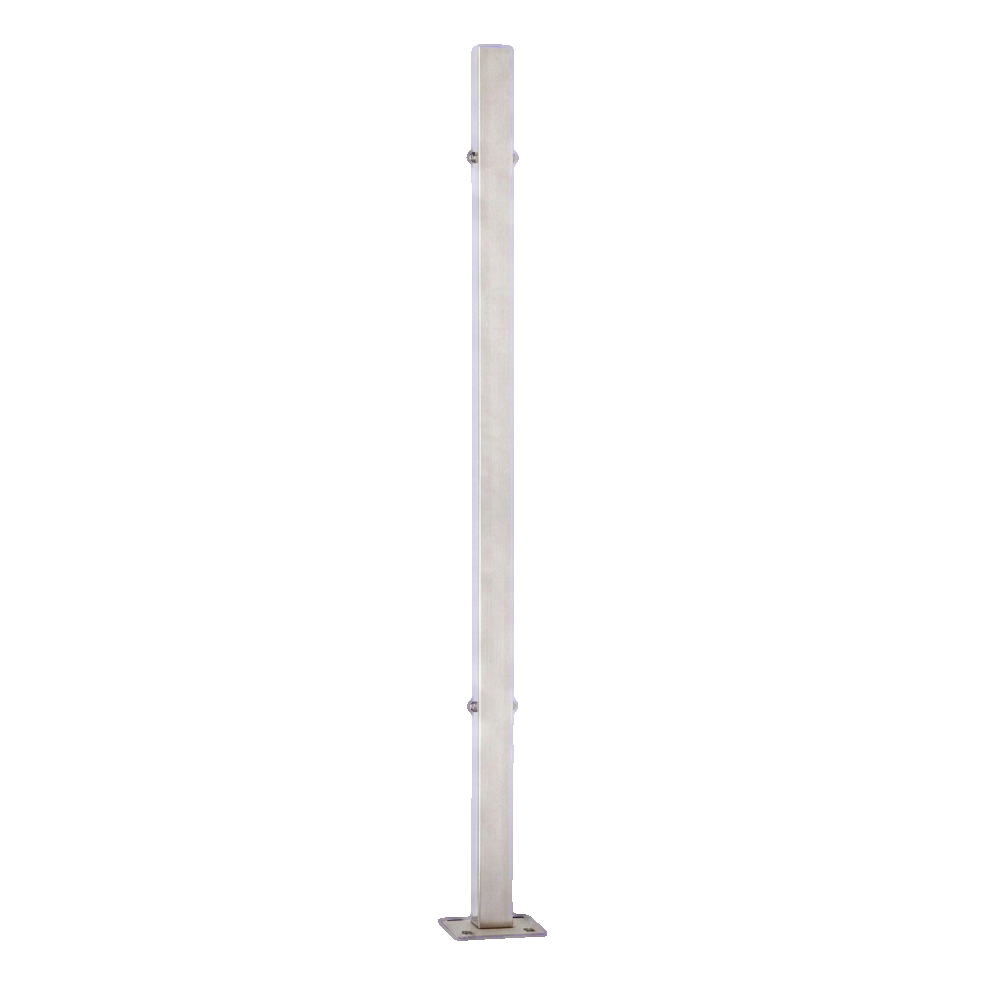

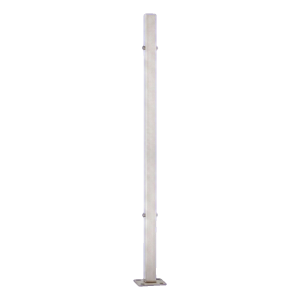

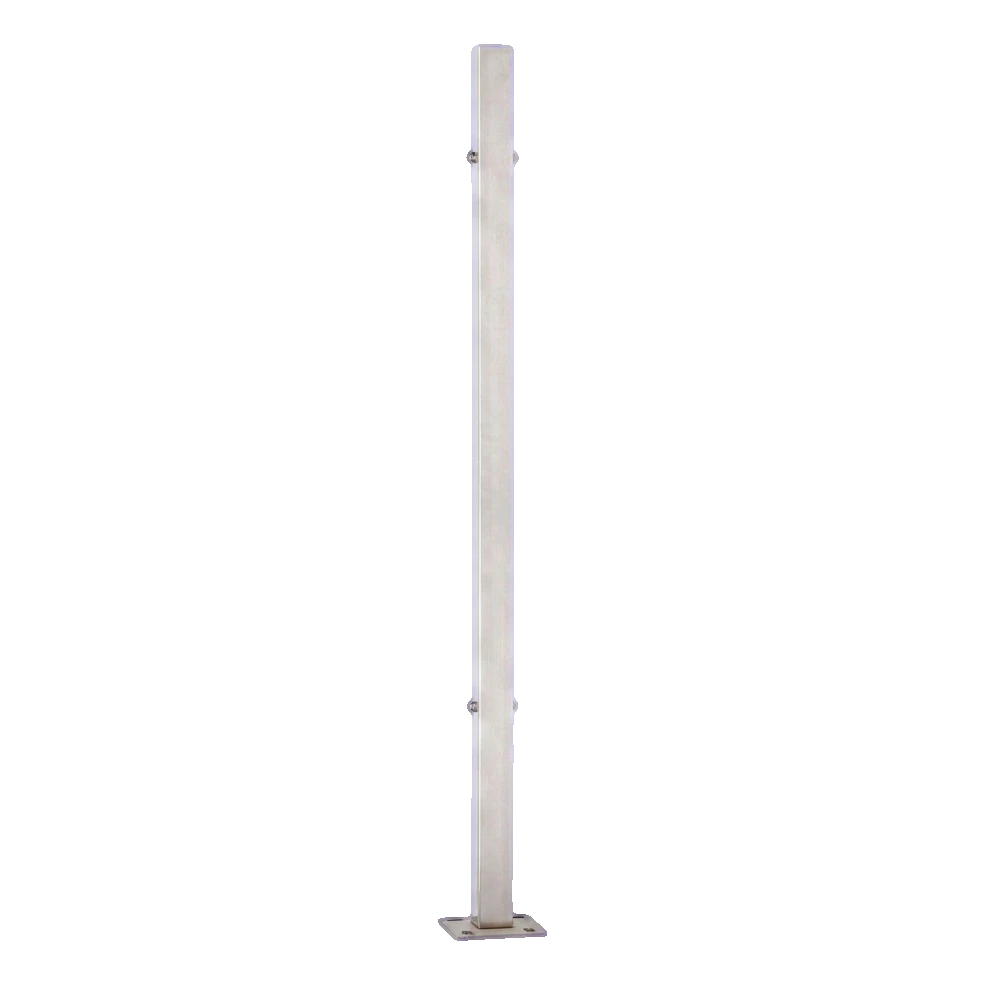

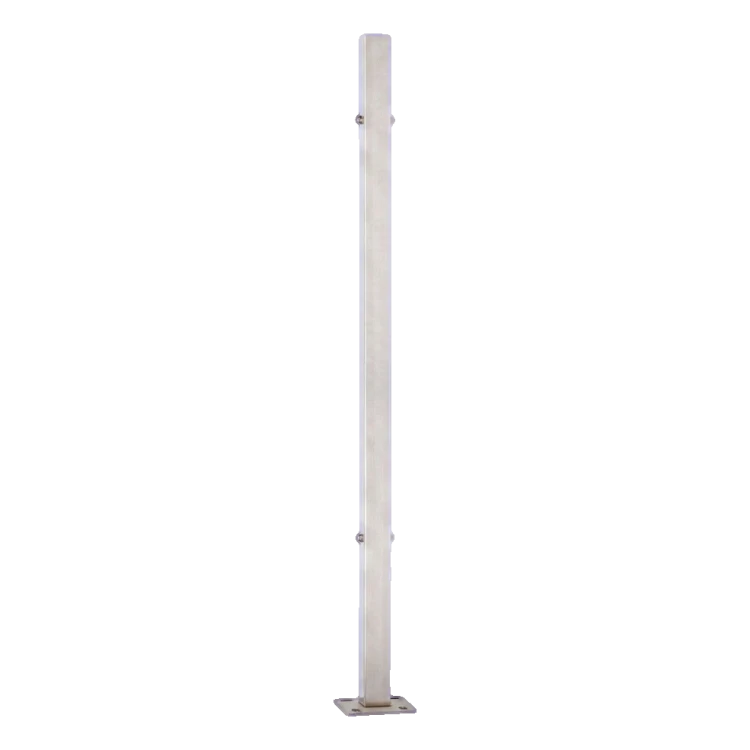

PINOX intermediate balustrade post 40x40x981 mm – full view with mounting base
PINOX intermediate balustrade post 40x40x981 mm – full view with mounting base

PINOX intermediate balustrade post with square profile 40×40 mm at height 981 mm — ready-to-install structural element for building balustrades in the 40×40 system. Made from AISI 304 stainless steel with satin surface finish, combining high corrosion resistance with modern aesthetics. Four threaded M8 holes positioned at two levels enable quick mounting of handrail brackets without the need for drilling and tapping on site.

The post is designed for direct floor mounting using a welded base plate measuring 105×105 mm. Four oval mounting holes (slots) in the base allow for precise position adjustment during installation, significantly speeding up assembly work and eliminating errors.

Features and application

  • Type: intermediate (non-armed) — mounted in the balustrade run, between corner or end posts
  • System: 40×40 mm — compatible with a wide range of PINOX balustrade brackets, handrails and accessories
  • Material: AISI 304 stainless steel — durable, corrosion-resistant, easy to maintain
  • Finish: satin — matt, brushed surface resistant to fingerprints
  • Threaded holes: 4 pcs M8 arranged in pairs at two levels (2 opposite each other at 180°)
  • Mounting: to floor using welded base plate
  • Weight: 2.9 kg
  • EAN: 5903313205528

Detailed dimensions

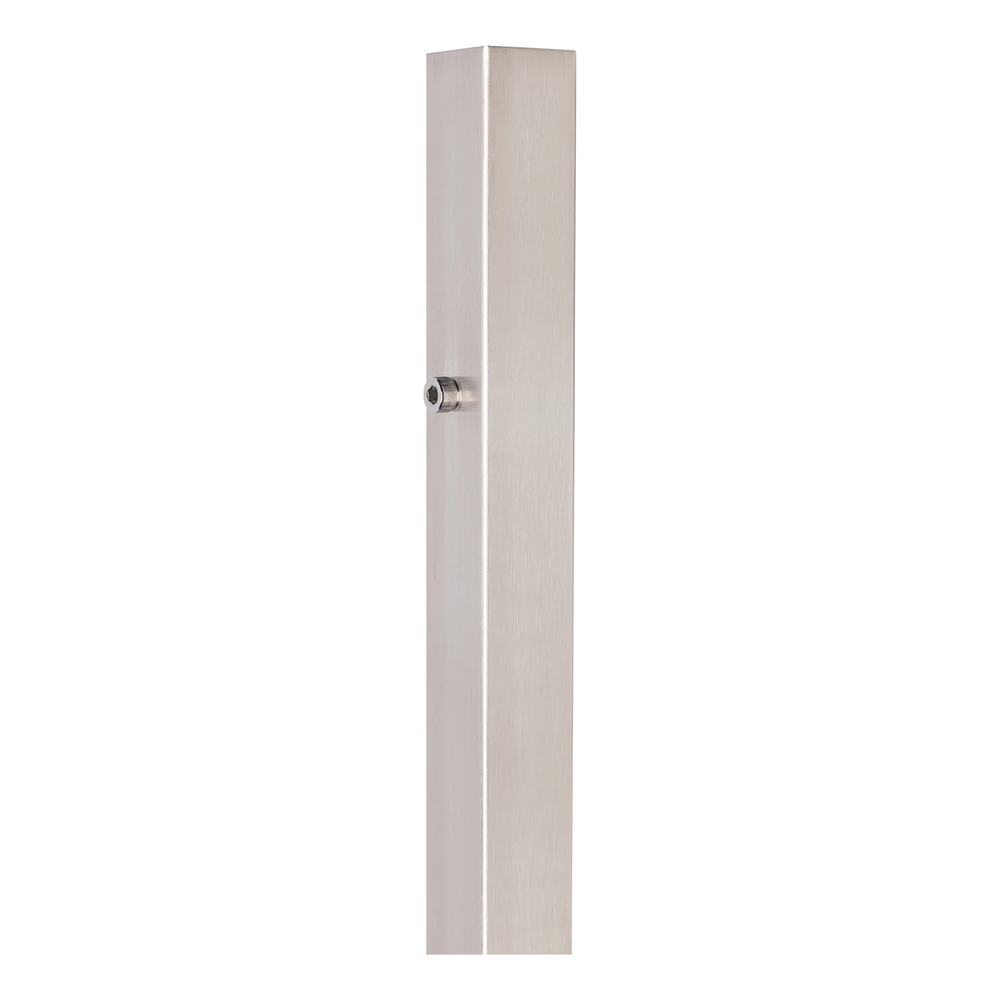

PINOX balustrade post – detail: threaded M8 hole in 40x40 mm square profile, satin finish
PINOX balustrade post – detail: threaded M8 hole in 40x40 mm square profile, satin finish
  • Total post height: 981 mm
  • Profile: square □40×2 mm (40 mm externally, wall thickness 2 mm)
  • Distance from top to axis of upper M8 hole pair: 121 mm
  • Centre distance between upper and lower hole pairs: 610 mm
  • Distance from base to axis of lower M8 hole pair: 250 mm
  • Base plate: 105×105×4 mm
  • Mounting holes in base: oval (slots) 20×11 mm, pitch 70×70 mm
  • Base corner radius: R4
  • Central hole corner radius in base: R2

Dimensional drawings

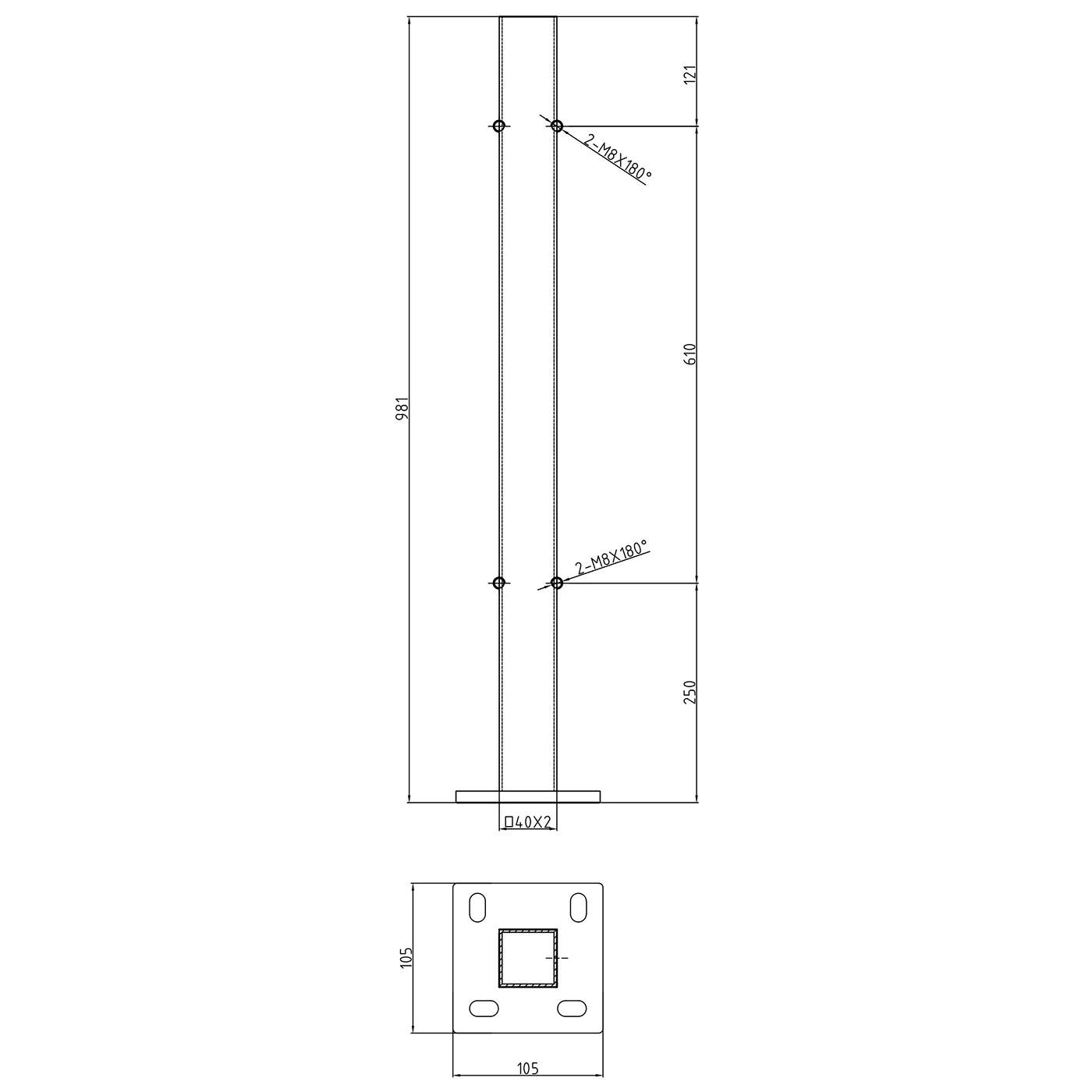

PINOX balustrade post dimensional drawing – front view with M8 hole layout and base view from below 105x105 mm
PINOX balustrade post dimensional drawing – front view with M8 hole layout and base view from below 105x105 mm

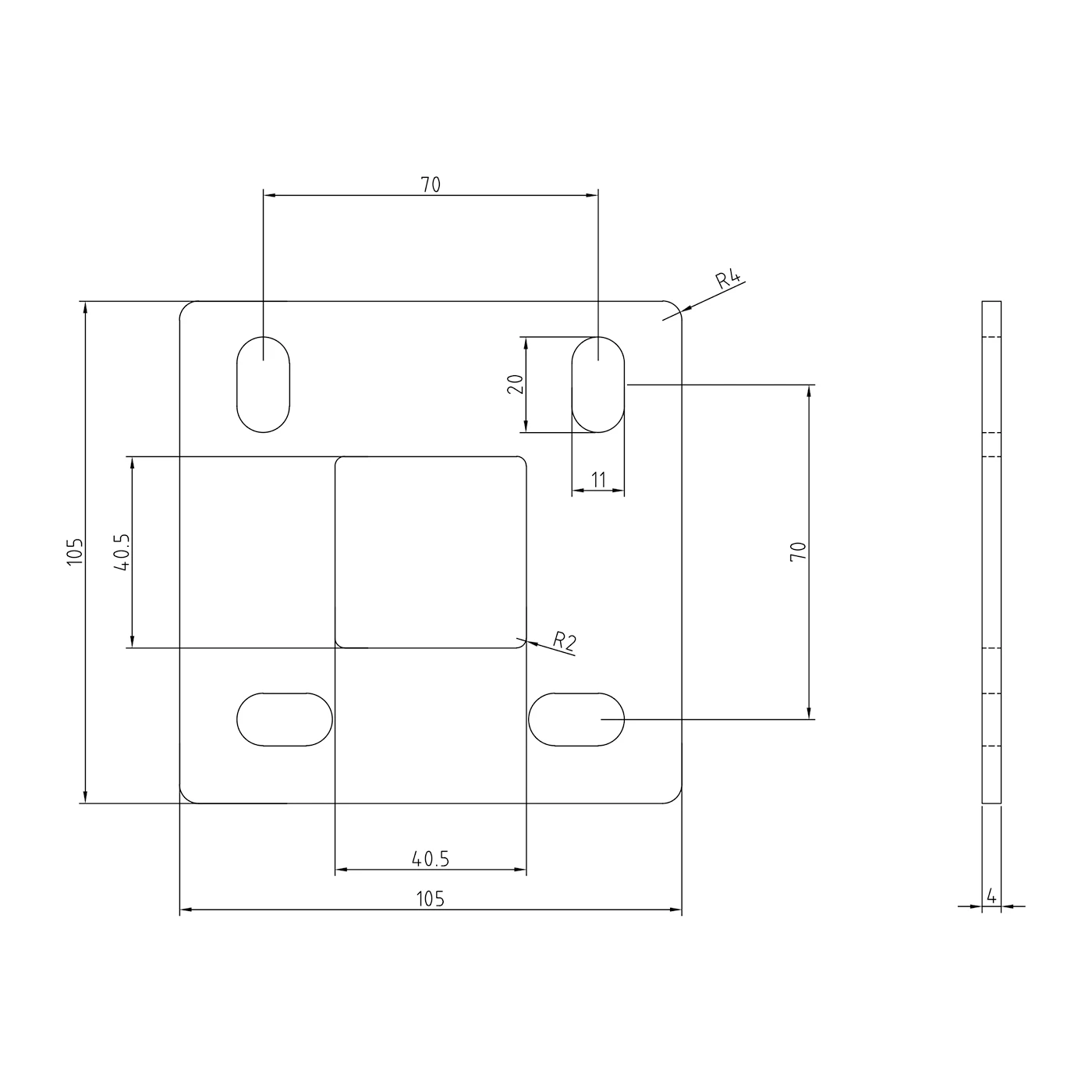

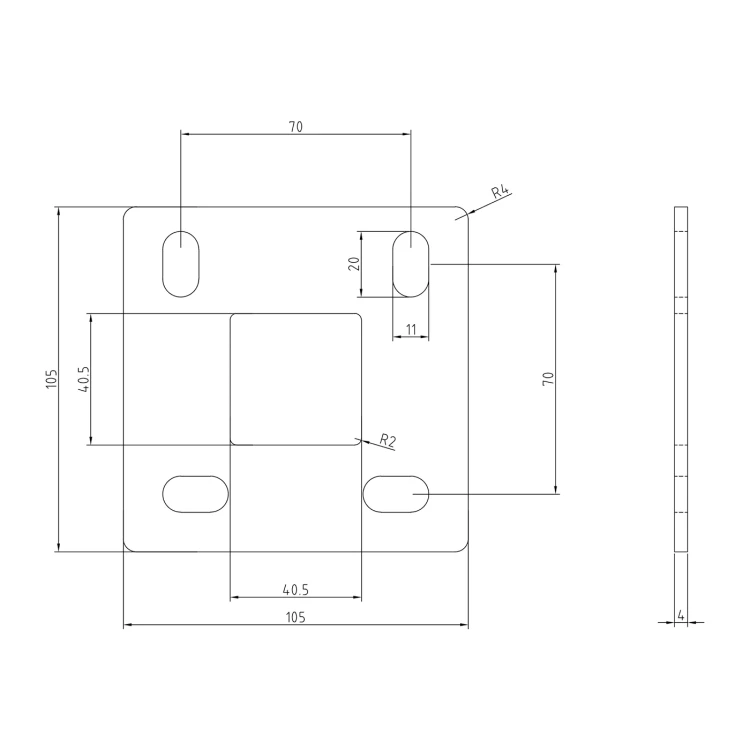

PINOX post base plate dimensional drawing – top view 105x105x4 mm with mounting holes and side view
PINOX post base plate dimensional drawing – top view 105x105x4 mm with mounting holes and side view

Maintenance and working environment

AISI 304 stainless steel is primarily intended for indoor use. With regular cleaning and the use of dedicated protective agents, the post can also be successfully mounted outdoors — except in pool, swimming pool environments and areas exposed to direct seawater action. The satin finish facilitates daily maintenance and is more resistant to visible soiling than a polished surface.
