PINOX hollow screw-in balustrade ball Ø100 mm M10 – satin stainless steel
0
Description

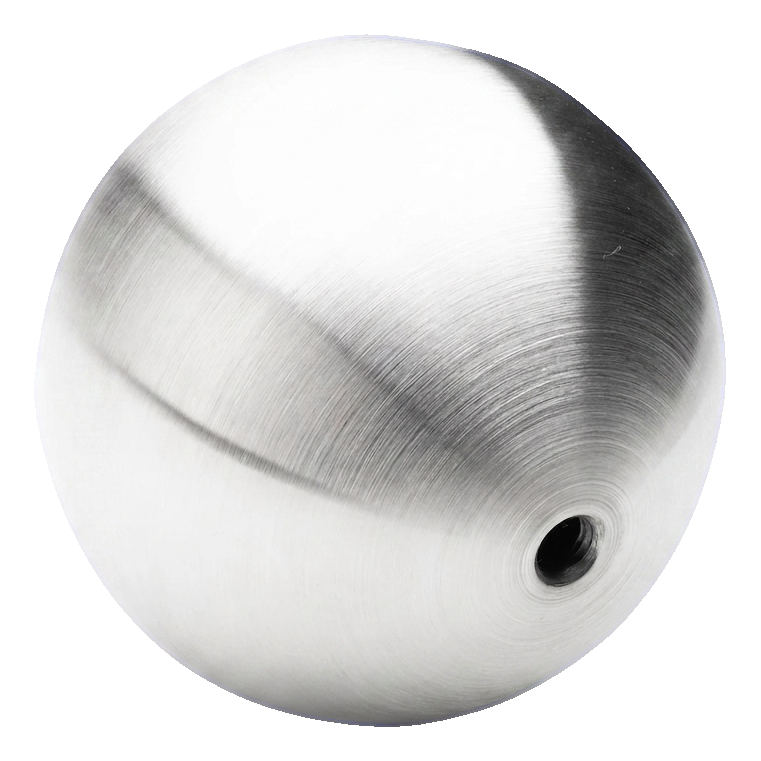

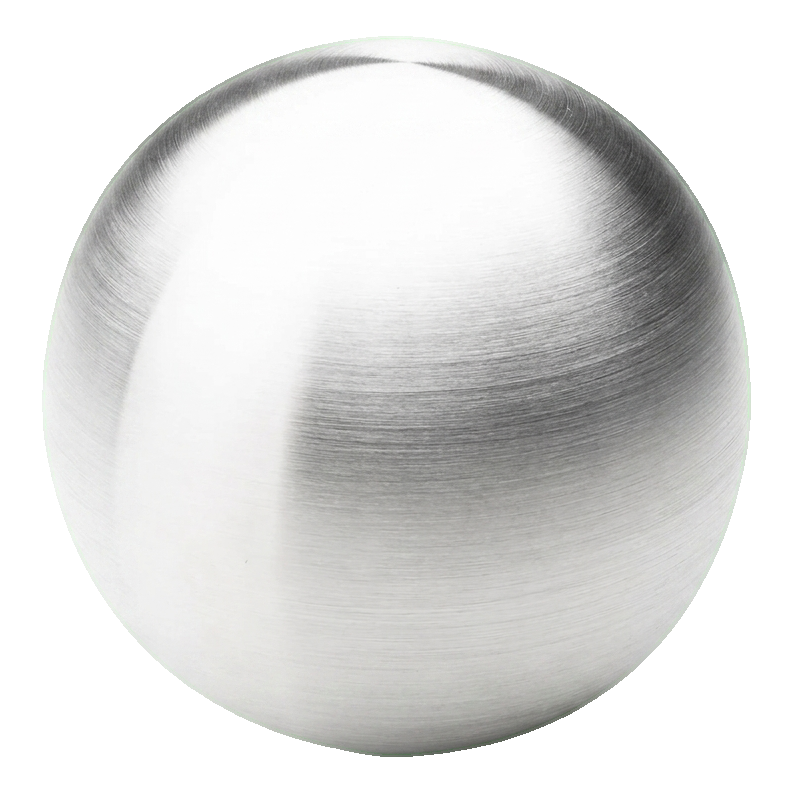

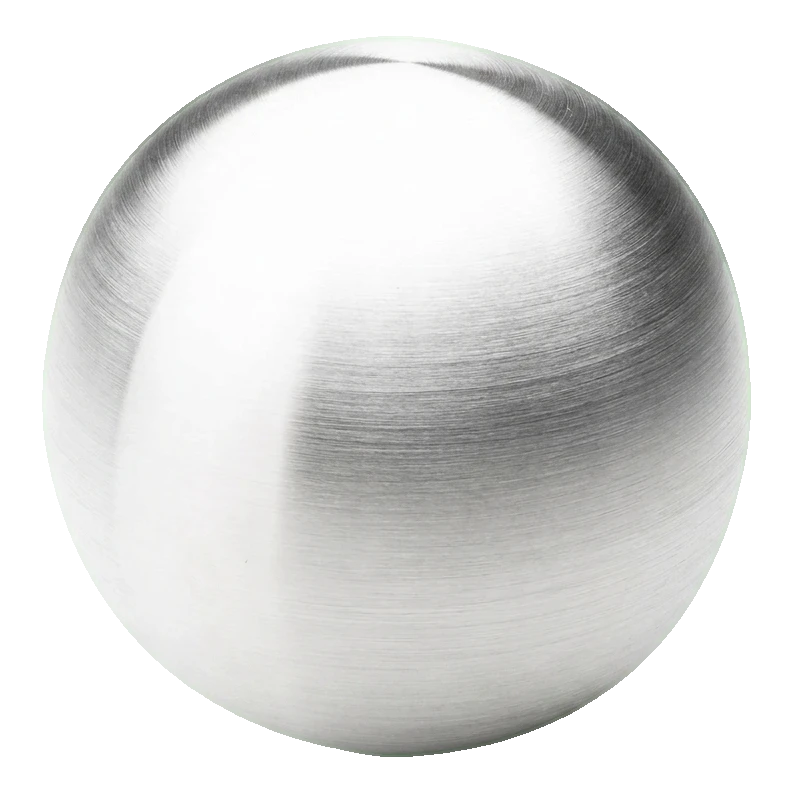

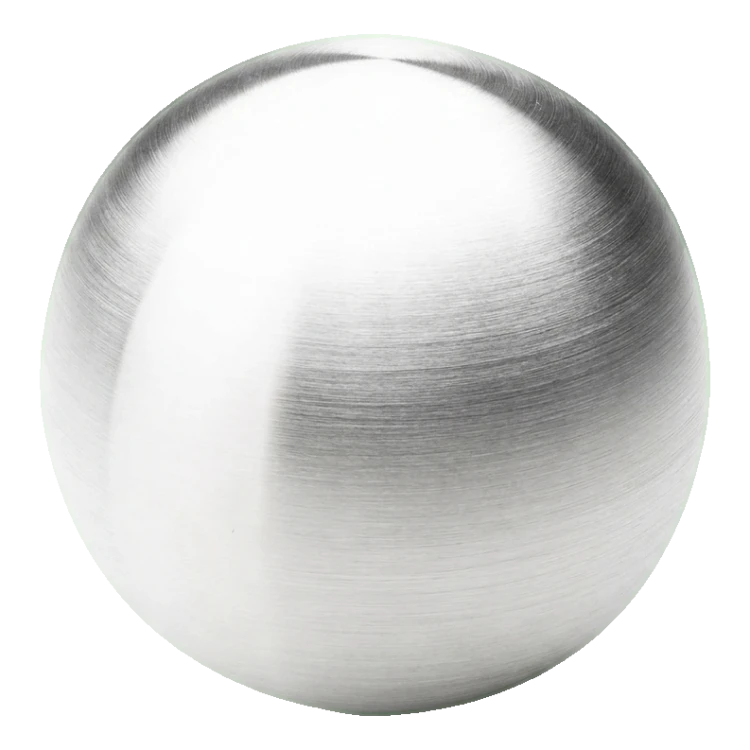

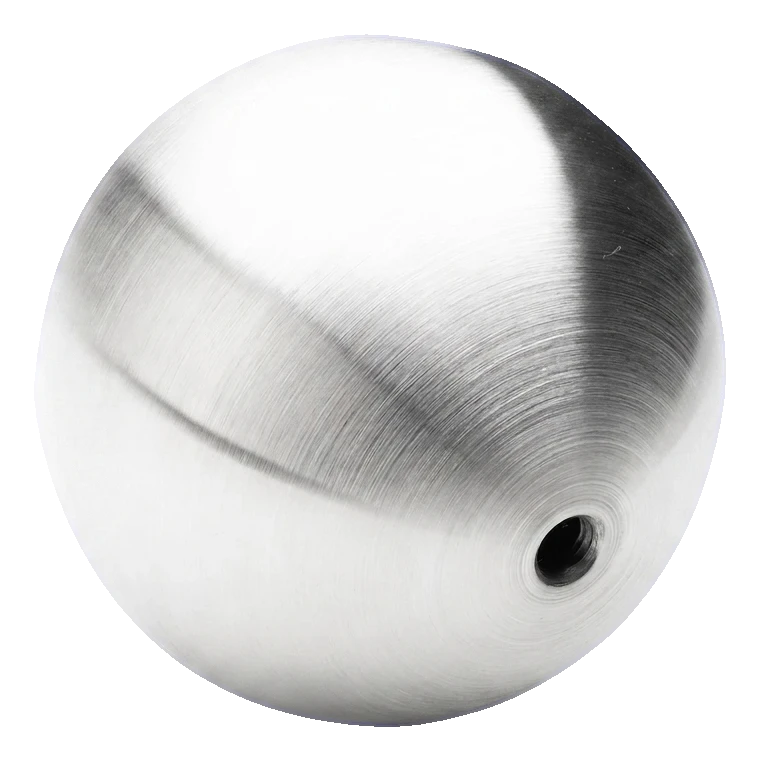

PINOX hollow screw-in balustrade ball Ø100 mm M10 – satin stainless steel
Hollow screw-in ball Ø100 mm from PINOX is an elegant finishing element for stainless steel balustrades. Made from AISI 304 grade with satin surface finish, it gives the balustrade an aesthetic, professional appearance. Thanks to the M10 thread, installation is quick and trouble-free — simply screw the ball onto a spindle or rod with the appropriate thread.
The hollow construction of the ball ensures low weight (0.44 kg) whilst maintaining stiffness and durability. Wall thickness of 2 mm guarantees mechanical resistance sufficient for balustrade applications, whilst maintaining a low component mass — which is important for large orders and transport.

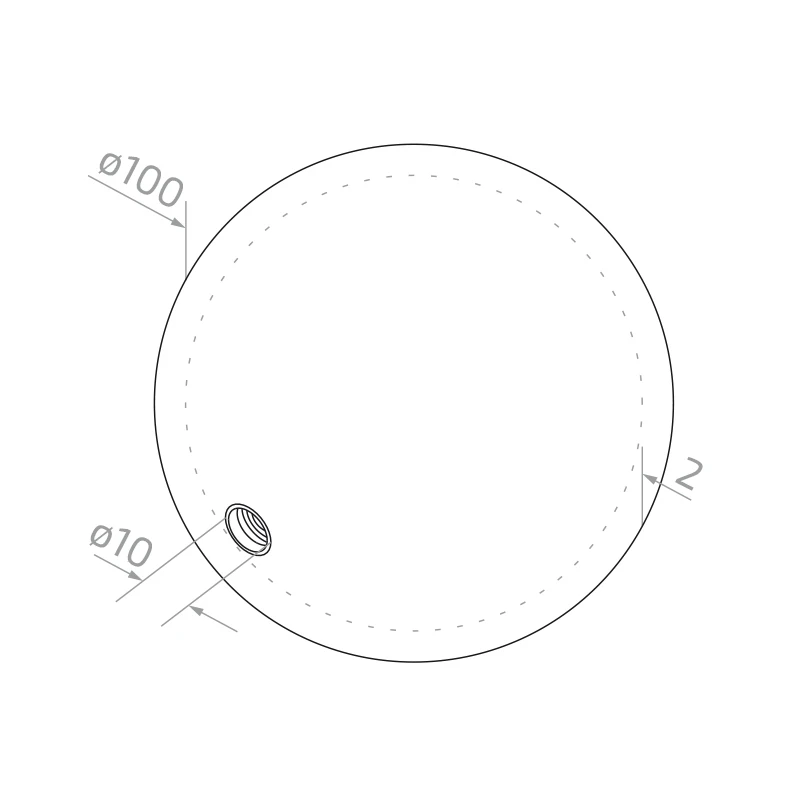

Dimensions and technical data
- Ball external diameter: Ø100 mm
- Wall thickness: 2 mm
- Mounting thread: M10
- Threaded hole diameter: Ø10 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Construction: hollow
- Weight: 0.44 kg
- Manufacturer: PINOX
- EAN: 5903313203869
Installation and application
The ball is designed to be screwed onto an element with M10 thread — it can serve as a decorative termination for posts, handrails or other elements of stainless steel balustrades. The satin surface harmoniously complements other brushed stainless steel components, creating a cohesive, modern appearance for the entire structure.
AISI 304 steel provides high corrosion resistance, allowing the ball to be used both inside buildings and outdoors. It is a universal finishing element that works well in balcony, staircase and terrace balustrades as well as in stair handrail systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
