PINOX end post 40x40 mm stainless steel AISI 304 satin finish – floor mounting
0
Description

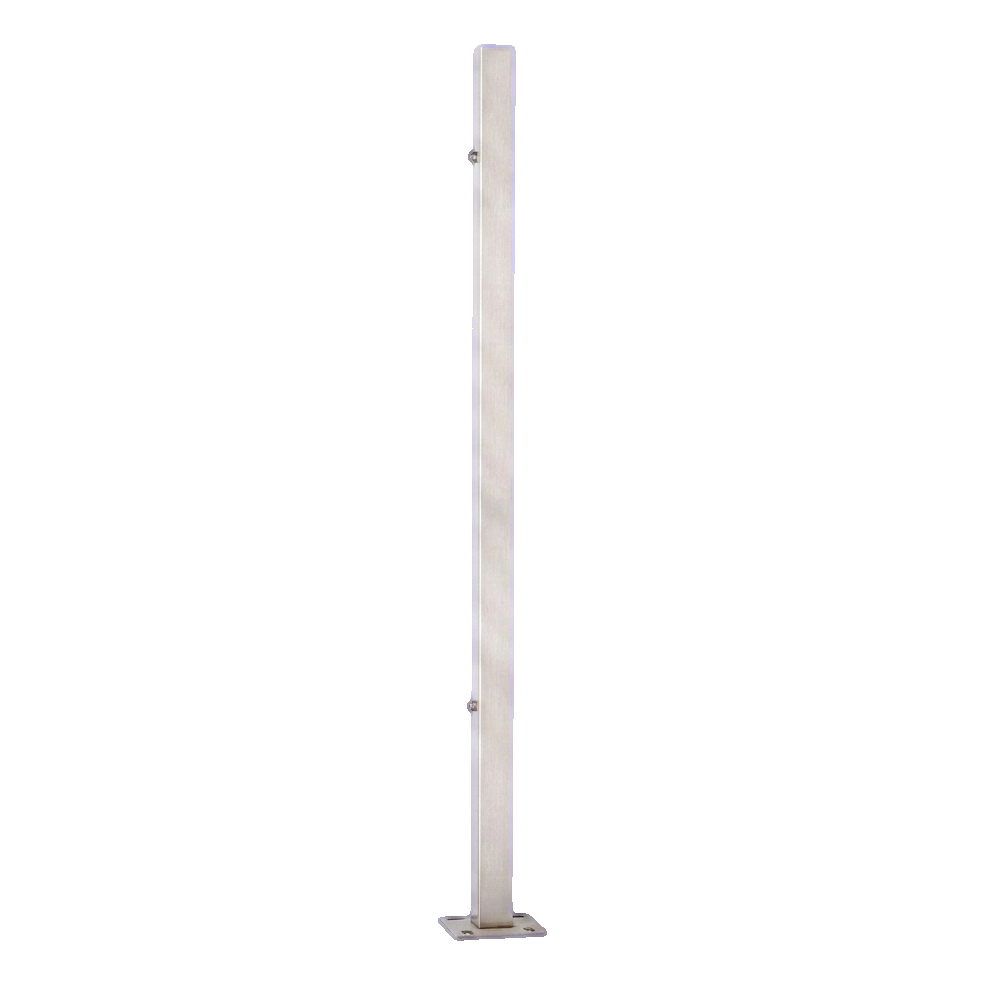

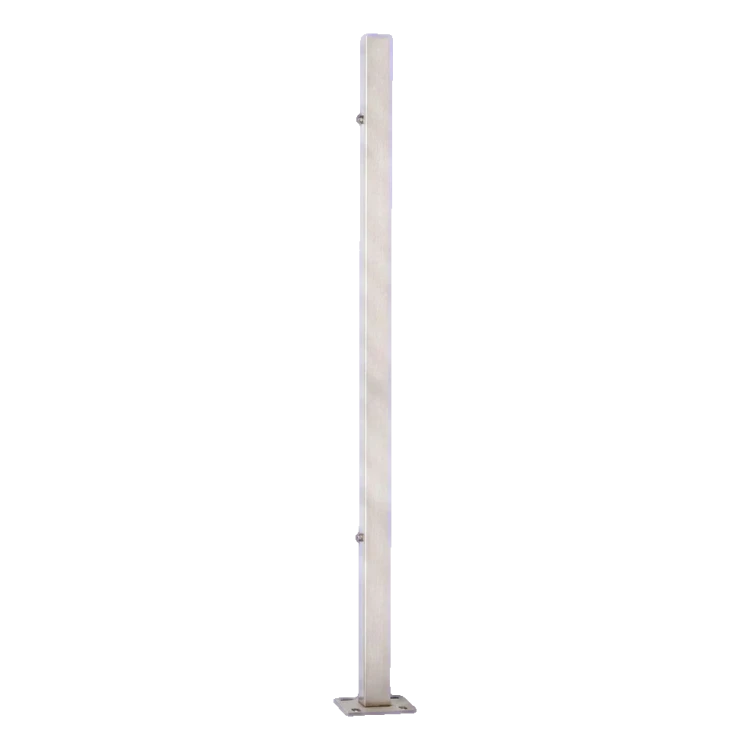

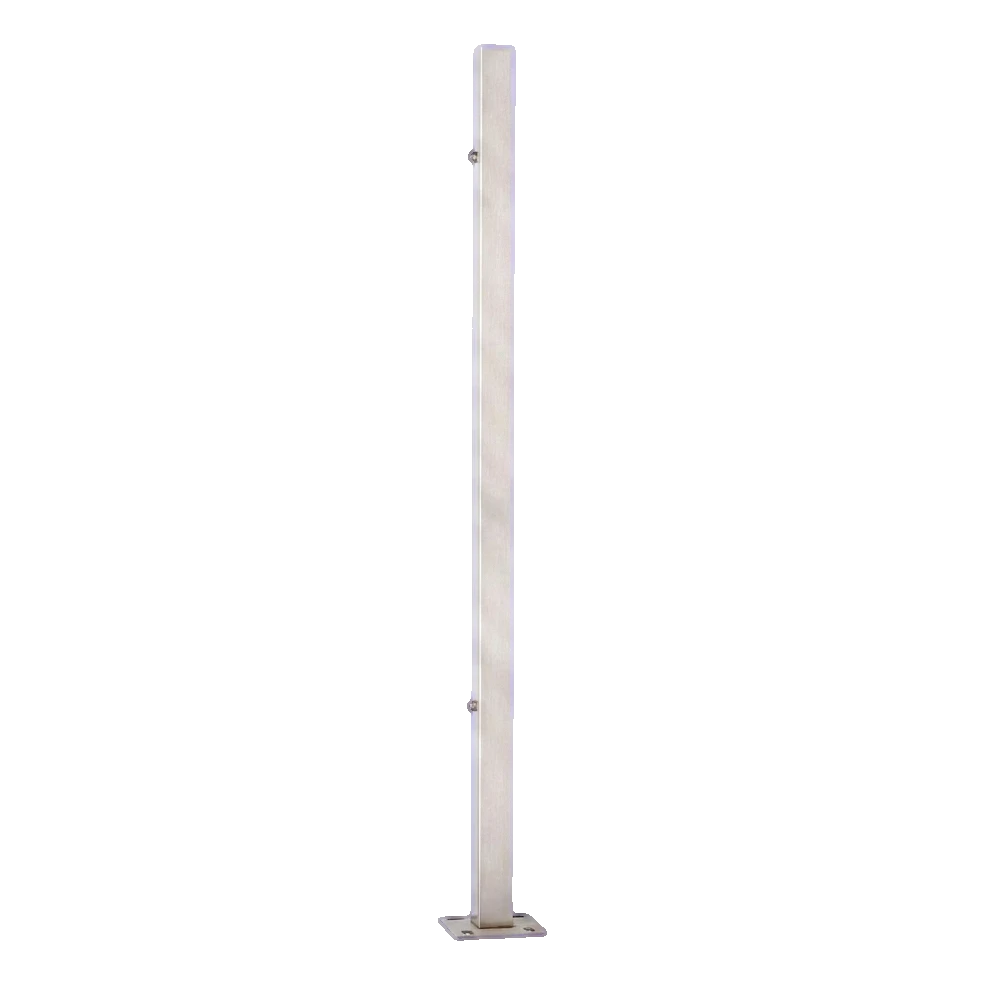

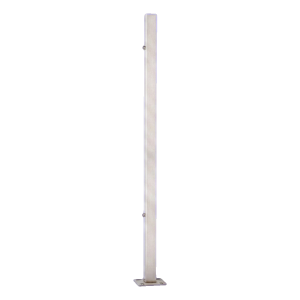

PINOX end post 40x40 mm stainless steel AISI 304 satin finish – floor mounting
PINOX end post is a professional element of the balustrade system 40×40 mm, made from stainless steel AISI 304 with satin finish. Designed for floor mounting — it provides a durable and aesthetic termination of balustrade construction in both residential buildings and commercial facilities. Thanks to precisely threaded holes M8 and welded mounting plate, installation is quick and requires no additional machining.
Square profile 40×40 mm with wall thickness 2 mm ensures high rigidity with low own weight of only 2.9 kg. Satin surface harmonises with modern interiors and is resistant to fingerprints, which minimises maintenance work.
Technical specification
- Manufacturer: PINOX
- Post type: end (unarmoured)
- System: 40×40 mm
- Total height: 981 mm
- Profile cross-section: 40×40 mm
- Profile wall thickness: 2 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Mounting: floor

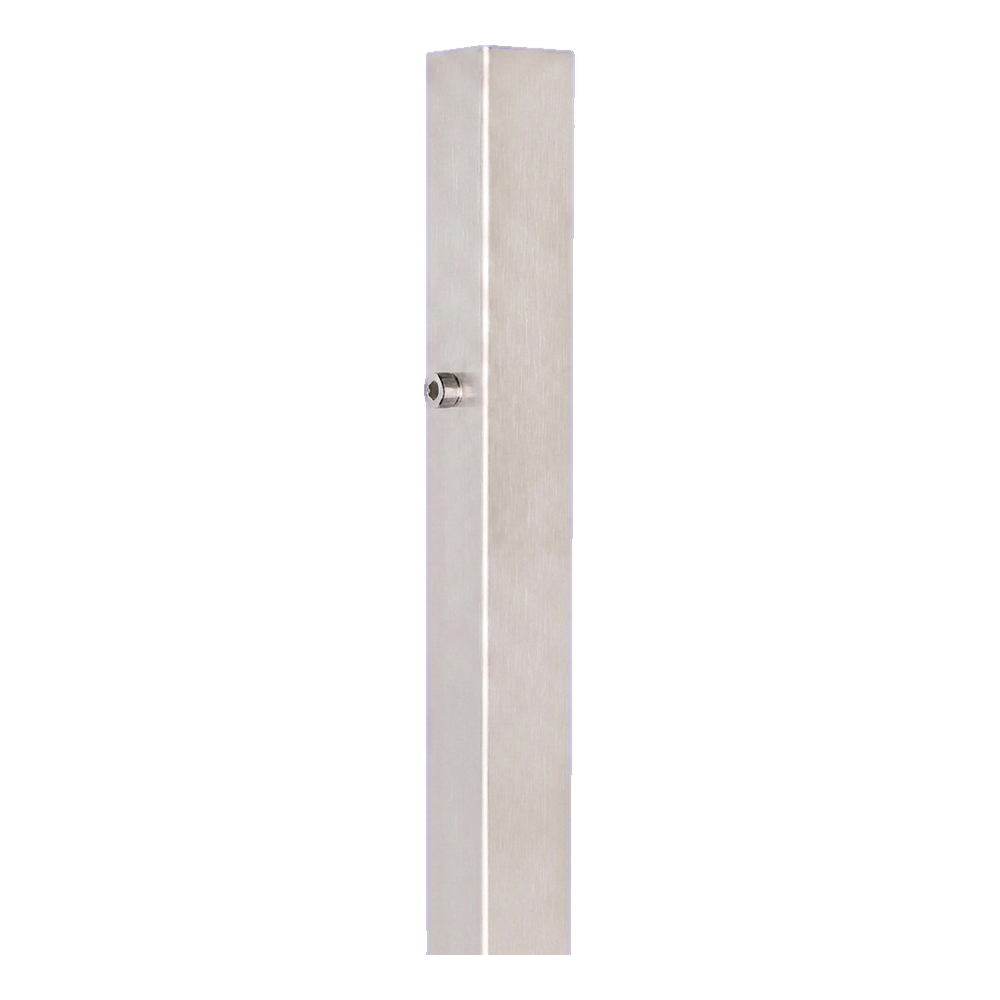

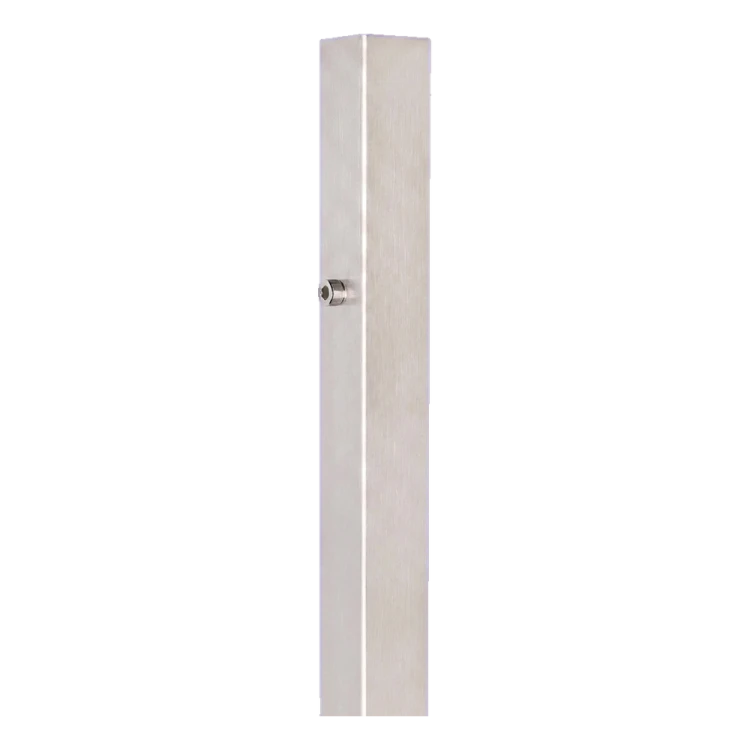

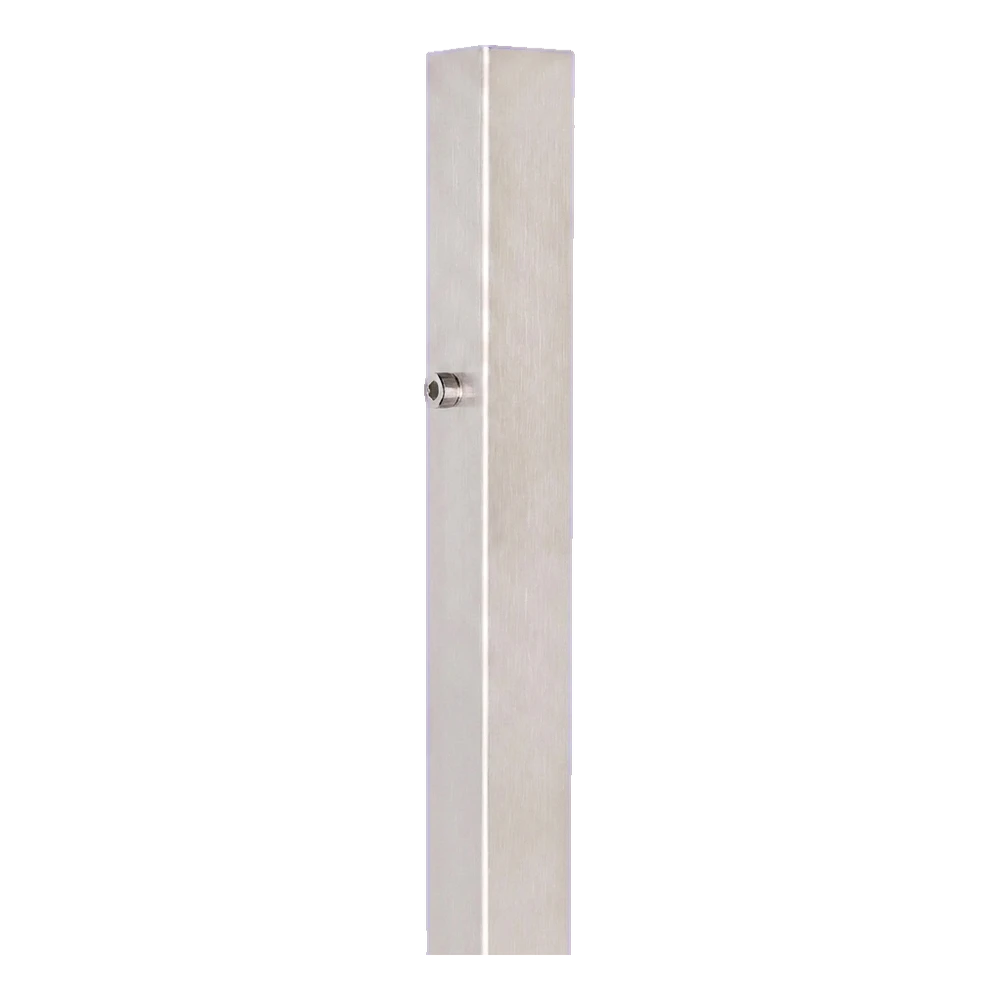

- Threaded holes: 2 pcs M8
- Weight: 2.9 kg
- EAN: 5903313205511

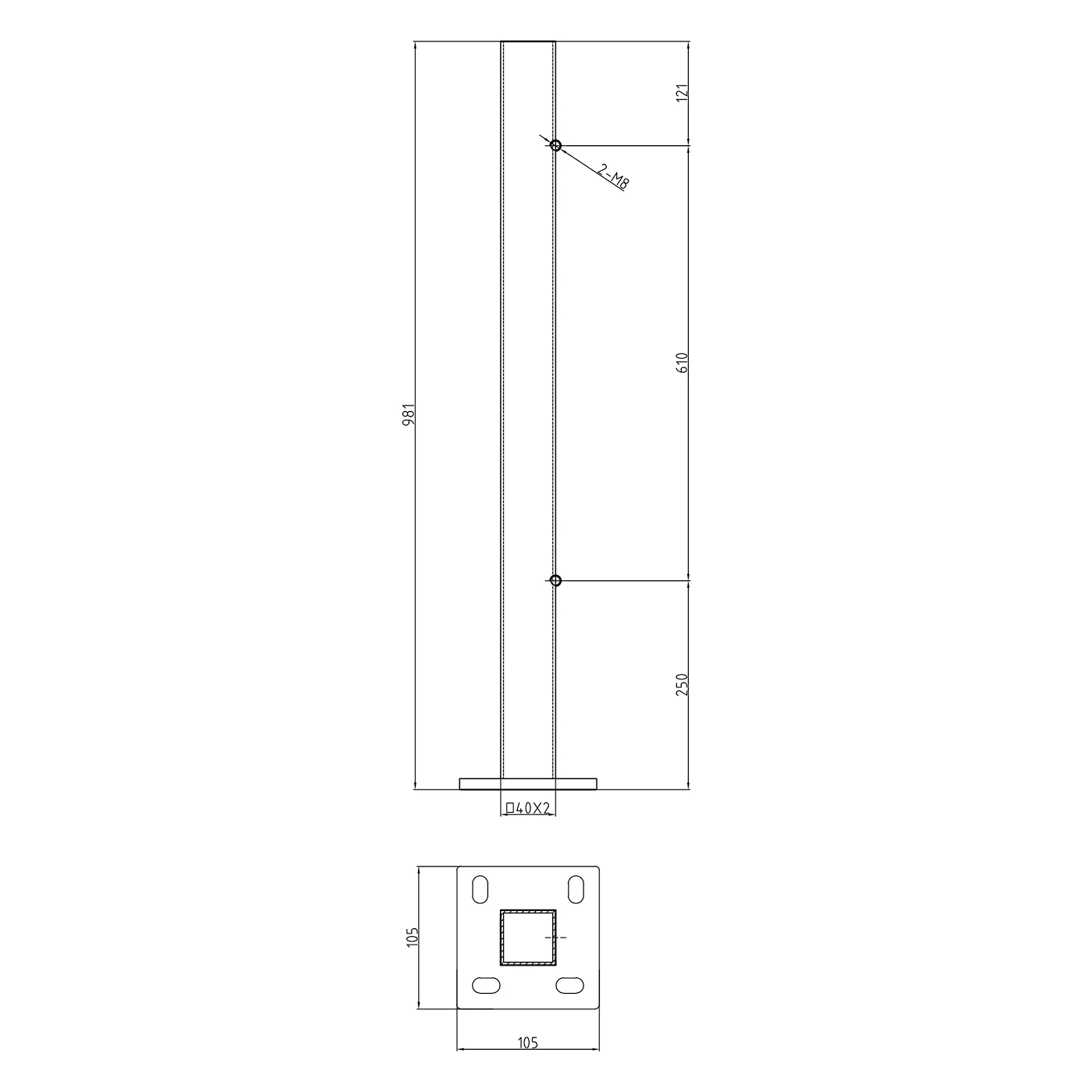

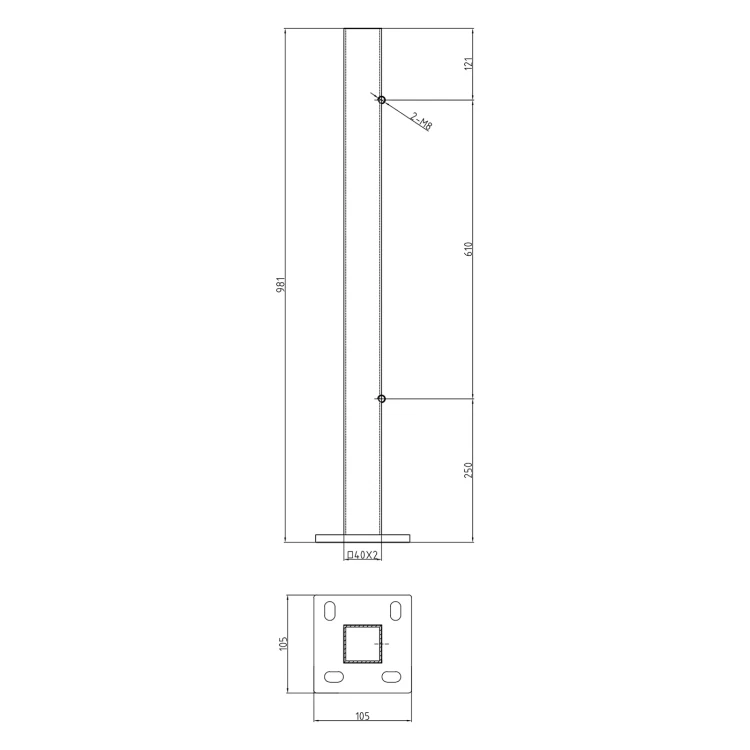

Mounting hole arrangement on the post
- Distance of upper hole from post top: 121 mm
- Spacing between hole centres: 610 mm
- Distance of lower hole from base: 250 mm

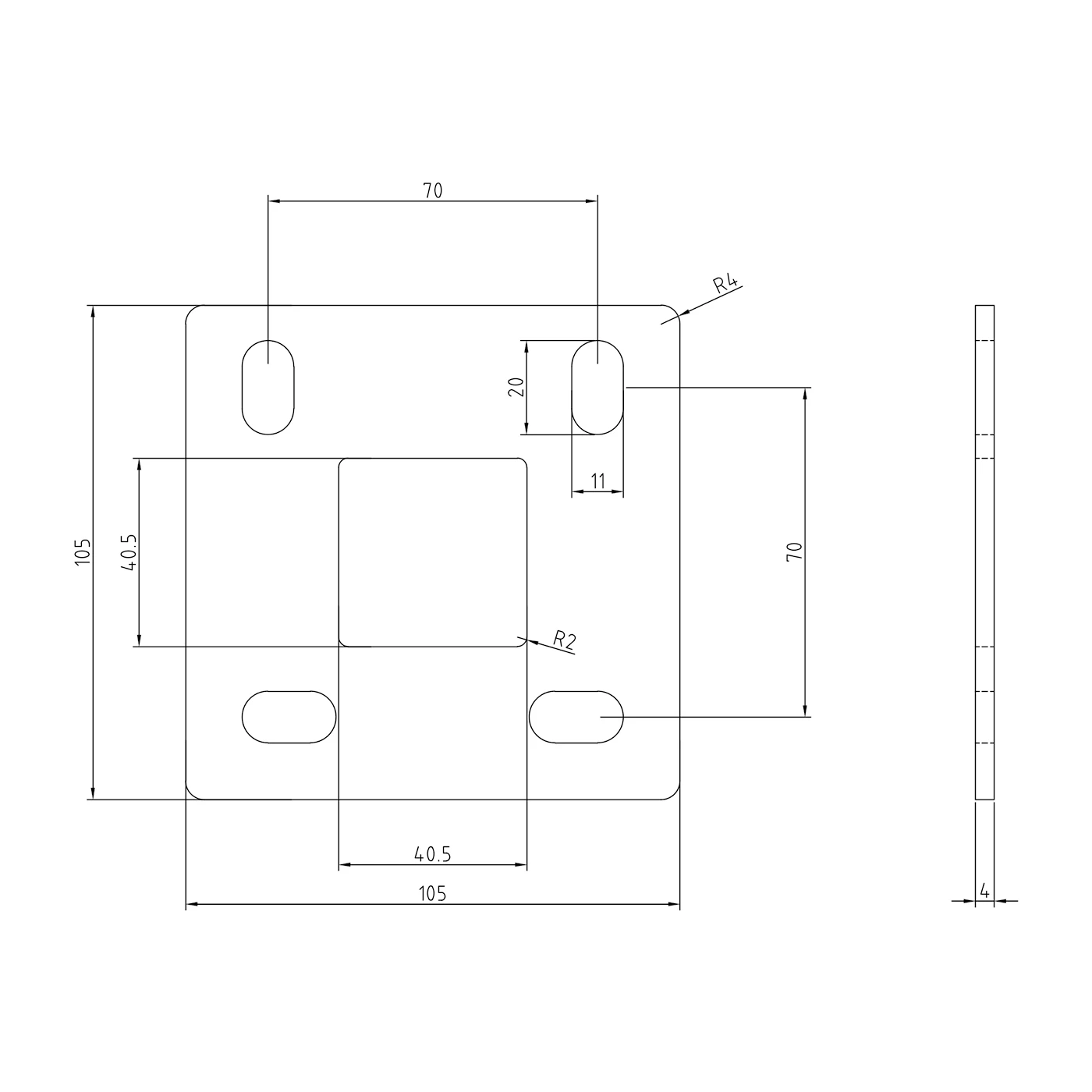

Mounting base (plate)
- Base dimensions: 105×105 mm
- Base thickness: 4 mm
- Central hole for profile: 40.5×40.5 mm
- Mounting hole spacing: 70×70 mm (centre to centre)
- Mounting holes (slots): 20×11 mm
- External corner radius: R4
- Internal corner radius: R2
- Base: welded to profile
Technical drawings
Application and maintenance
The post is primarily intended for indoor installation. AISI 304 steel guarantees corrosion resistance under standard operating conditions. With regular maintenance — cleaning and protection with dedicated stainless steel products — it can also be used outdoors, provided it is not exposed to direct action of sea salt. Use is not recommended in very high humidity environments such as swimming pools or baths.
Installation
The post is mounted directly to the floor using a welded base measuring 105×105 mm with four slotted holes. The oval shape of holes (20×11 mm) allows for adjustment during installation. Two threaded holes M8 arranged on the post with 610 mm spacing allow for quick mounting of handrail brackets without the need for drilling or threading on site.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
