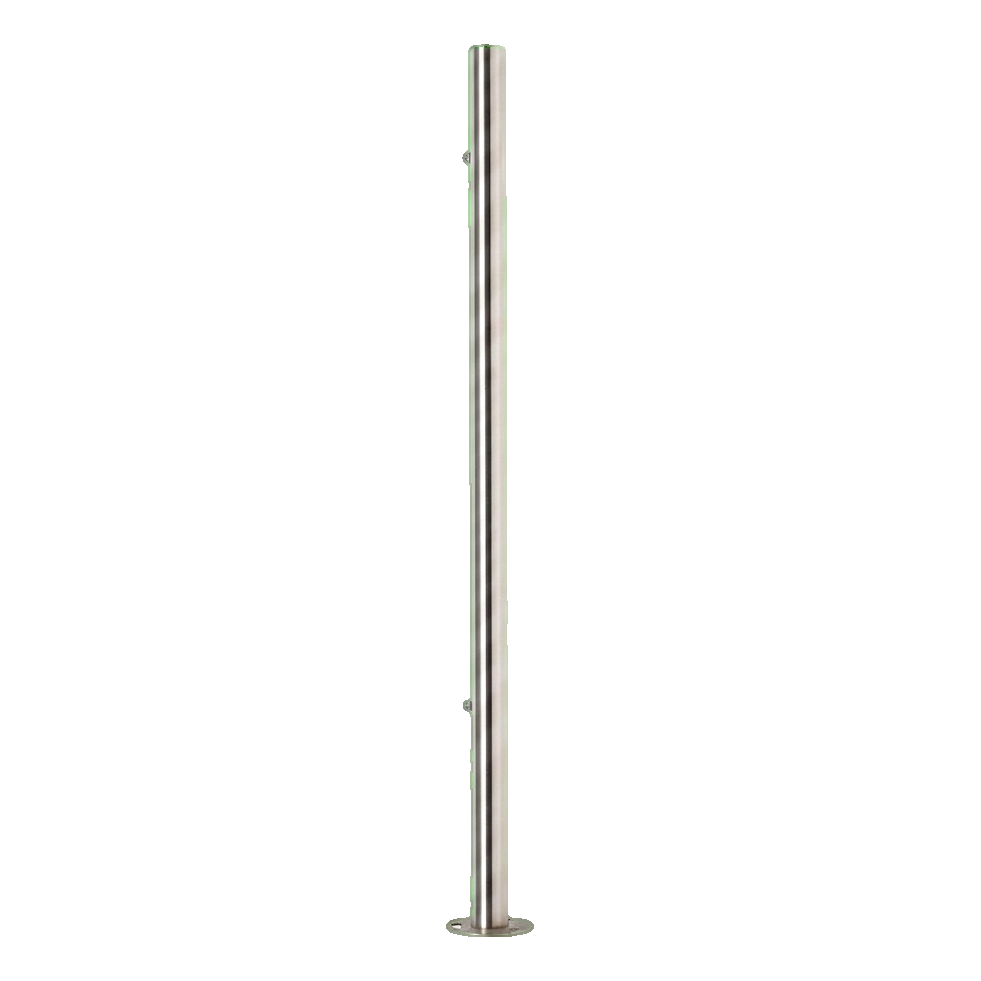

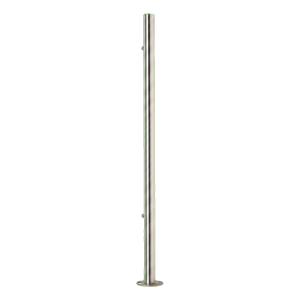

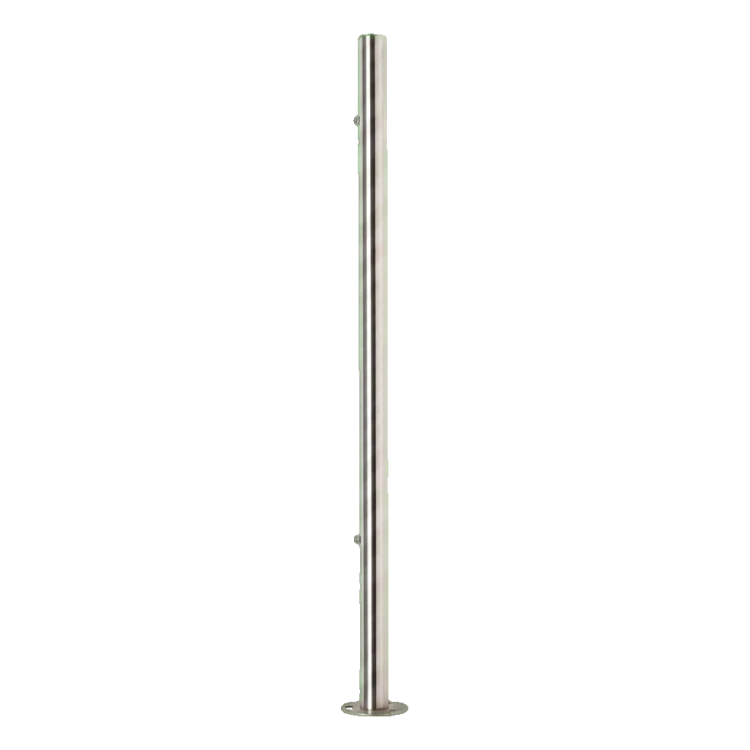

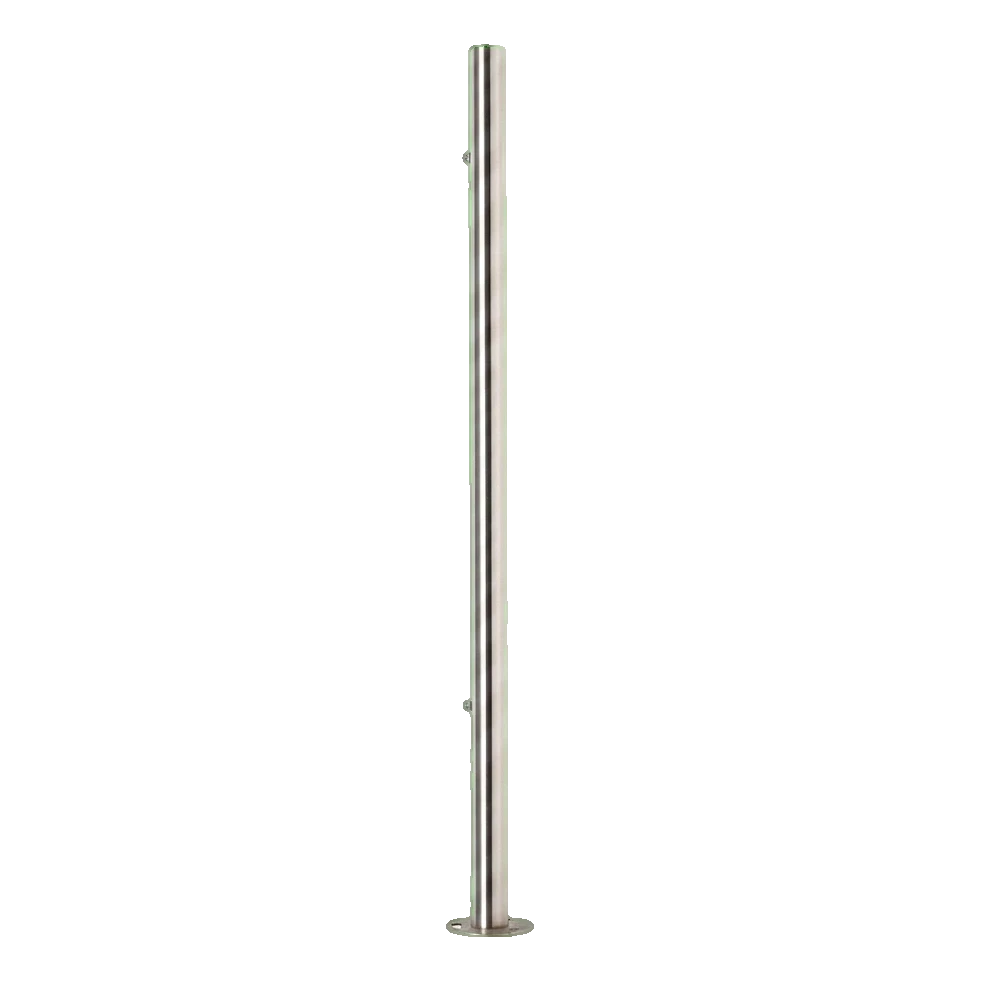

PINOX – end balustrade post ø 42.4 mm AISI 304 stainless steel satin finish
0
Description
PINOX – end balustrade post Ø 42.4 mm stainless steel AISI 304 satin
PINOX end balustrade post made from AISI 304 stainless steel with satin finish — a robust element for closing balustrade construction. Thanks to its undrilled construction with threaded holes M8, it allows for flexible configuration of brackets, providing full flexibility when designing internal and external balustrades.
Professional balustrade closure
The end post plays a key role in stabilising and aesthetically closing the balustrade construction. The welded base with diameter ø100 mm ensures secure floor mounting, guaranteeing durability and safety of the entire installation. The satin finish gives modern interiors an elegant character and perfectly complements various architectural styles — both in residential and commercial buildings.
The post is primarily designed for internal applications. With proper care — regular cleaning and use of appropriate protective products — it can also be successfully used outdoors, provided it is not exposed to intensive sea salt action.
Undrilled construction — complete mounting freedom

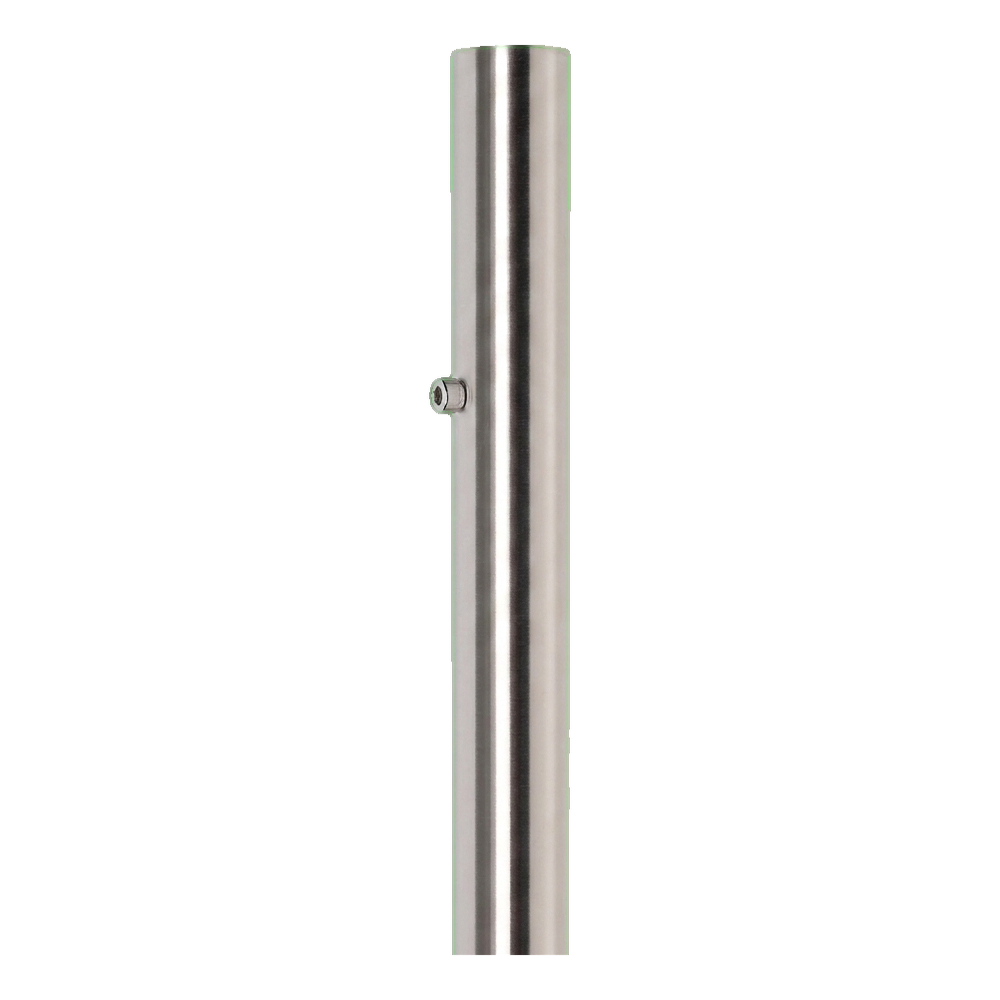

The post has 2 holes with M8 thread distributed on the body with spacing of 610 mm. The first hole is located 121 mm from the top edge, the second — 250 mm from the bottom edge of the post. This arrangement enables easy and quick screwing of any brackets for tubes, bars or glass, giving the installer full control over balustrade configuration.

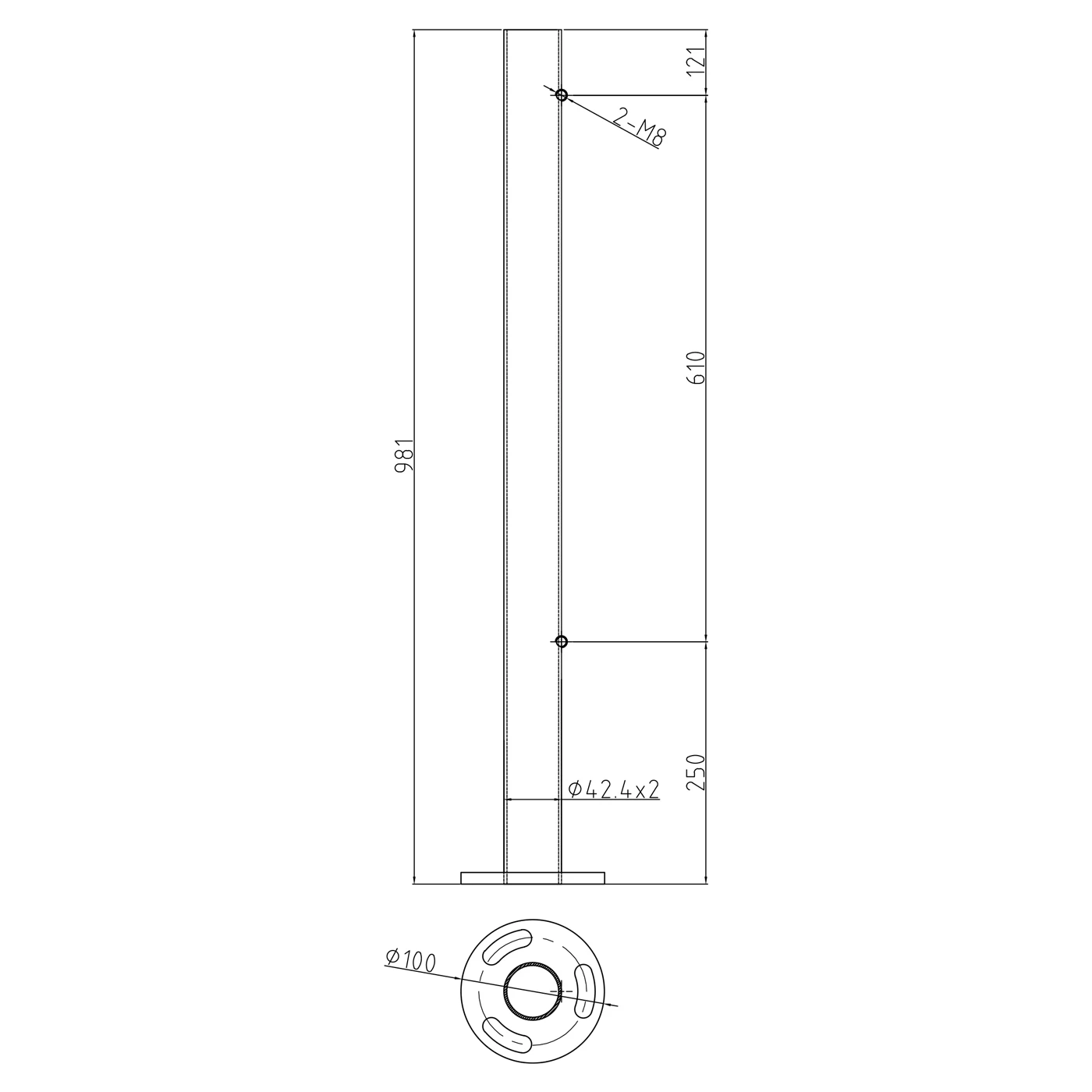

Post technical parameters
- Type: end, undrilled
- Material: AISI 304 stainless steel
- Finish: satin
- Total height: 981 mm
- Tube diameter: ø42.4 mm
- Tube wall thickness: 2 mm
- Mounting holes: 2 pcs. with M8 thread
- Hole spacing: 610 mm
- Distance from top to first hole: 121 mm
- Distance from bottom to second hole: 250 mm
- Mounting: to floor (welded base)
- Weight: 2.1 kg
- EAN: 5903313205481

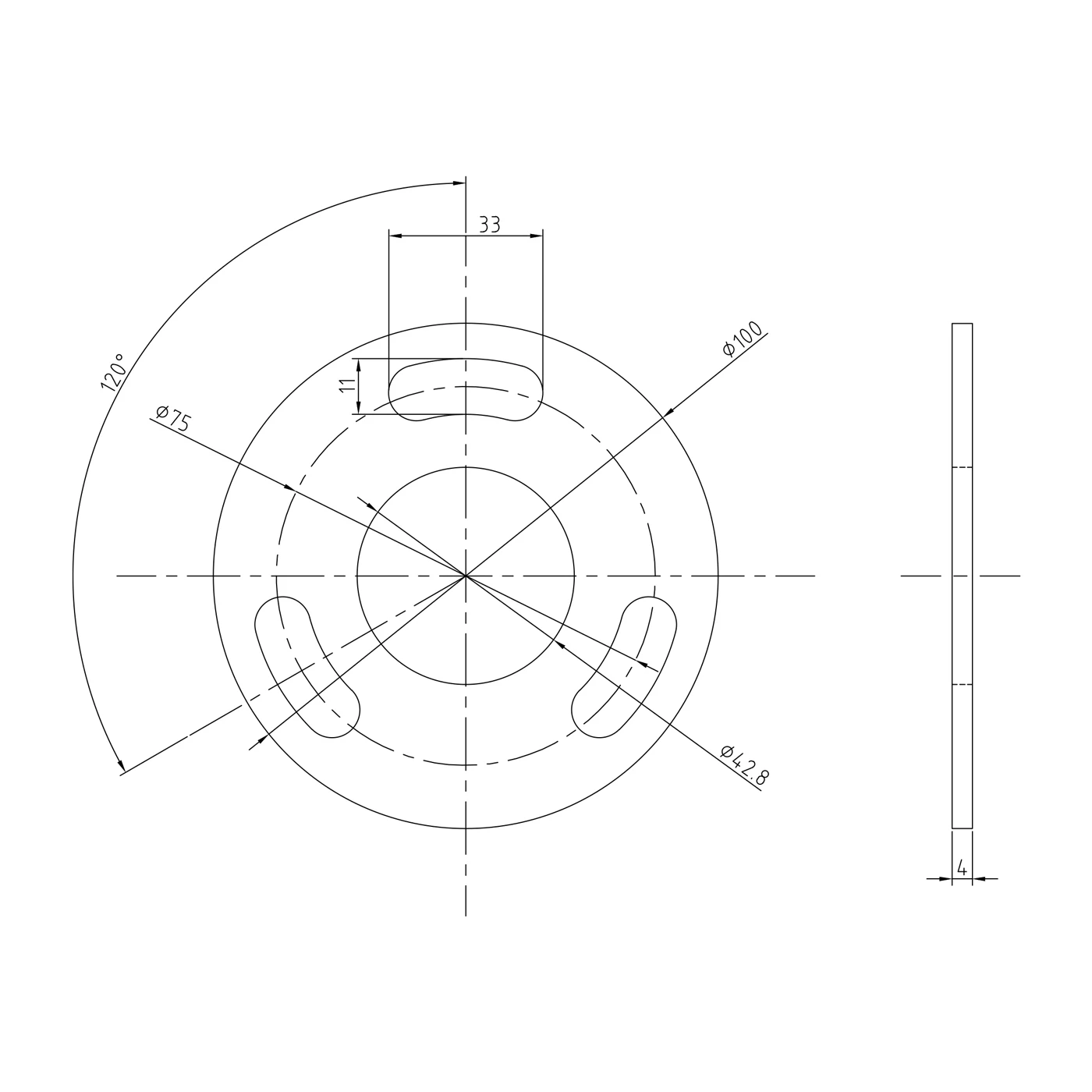

Mounting base (flange) dimensions
- Base external diameter: ø100 mm
- Central hole diameter: ø42.8 mm
- Base thickness: 4 mm
- Mounting holes pitch circle diameter: ø75 mm
- Mounting holes: 3 slots distributed every 120°
- Slot size: 33 × 11 mm
Technical data
| Mounting System | 42.4 mm |
| Material | AISI 304 |
| Finish | Satin |
