PINOX – corner balustrade post fi 42.4 mm unequipped AISI 304 satin
0
Description
PINOX – corner balustrade post fi 42.4 mm unequipped AISI 304 satin

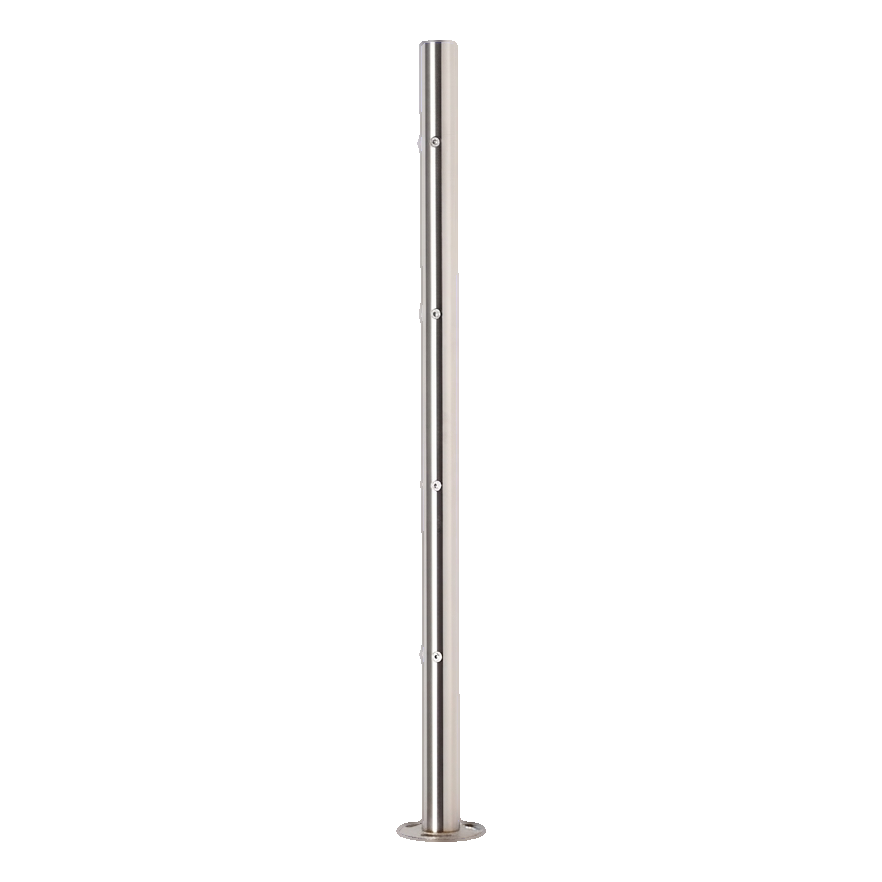

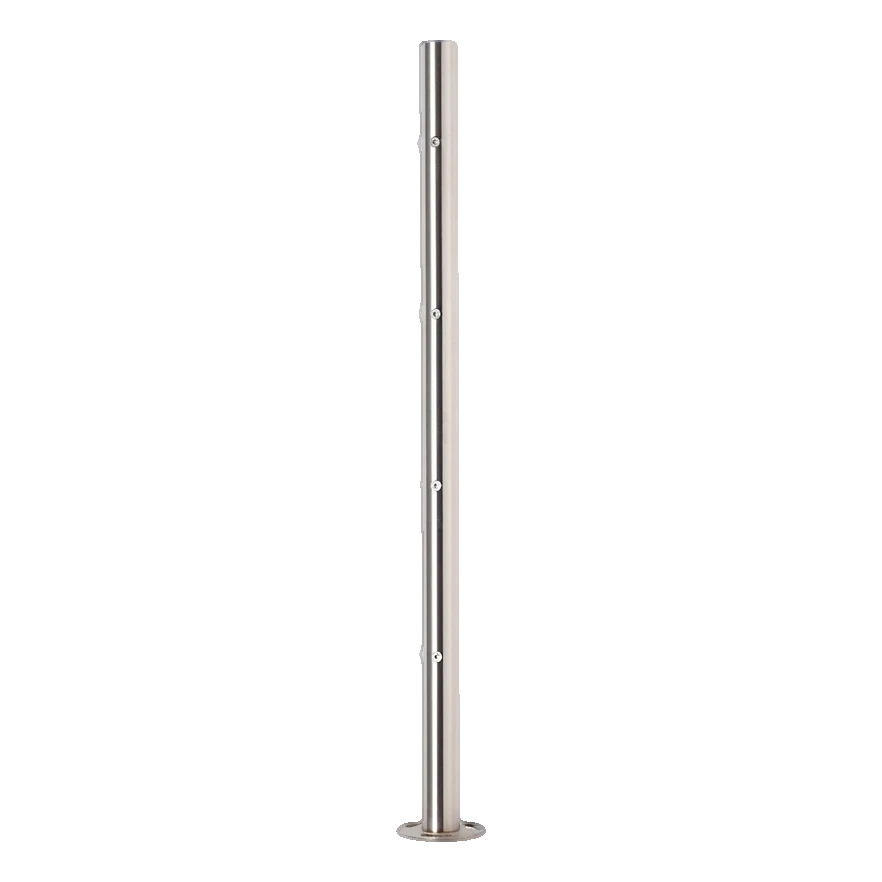

PINOX corner balustrade post with diameter 42.4 mm and height 881 mm is a ready solution for professional balustrade constructions in direction change locations. Made of AISI 304 stainless steel with satin finish, it combines durability with modern aesthetics. The unequipped version gives the installer complete freedom in selecting brackets and accessories — ideally suited for projects requiring non-standard configurations.
The post is primarily intended for indoor use. With proper care — regular cleaning and use of protective agents — it can be successfully used outdoors, provided it is not exposed to strong seawater salt action.
Unequipped version — complete mounting freedom

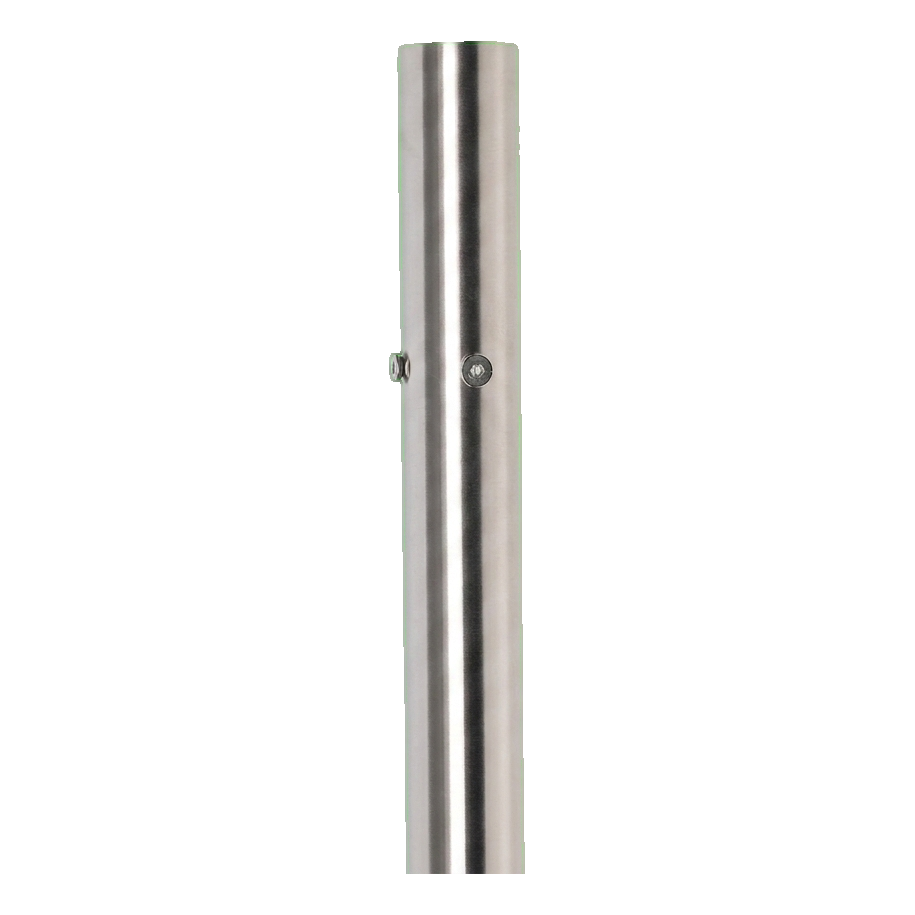

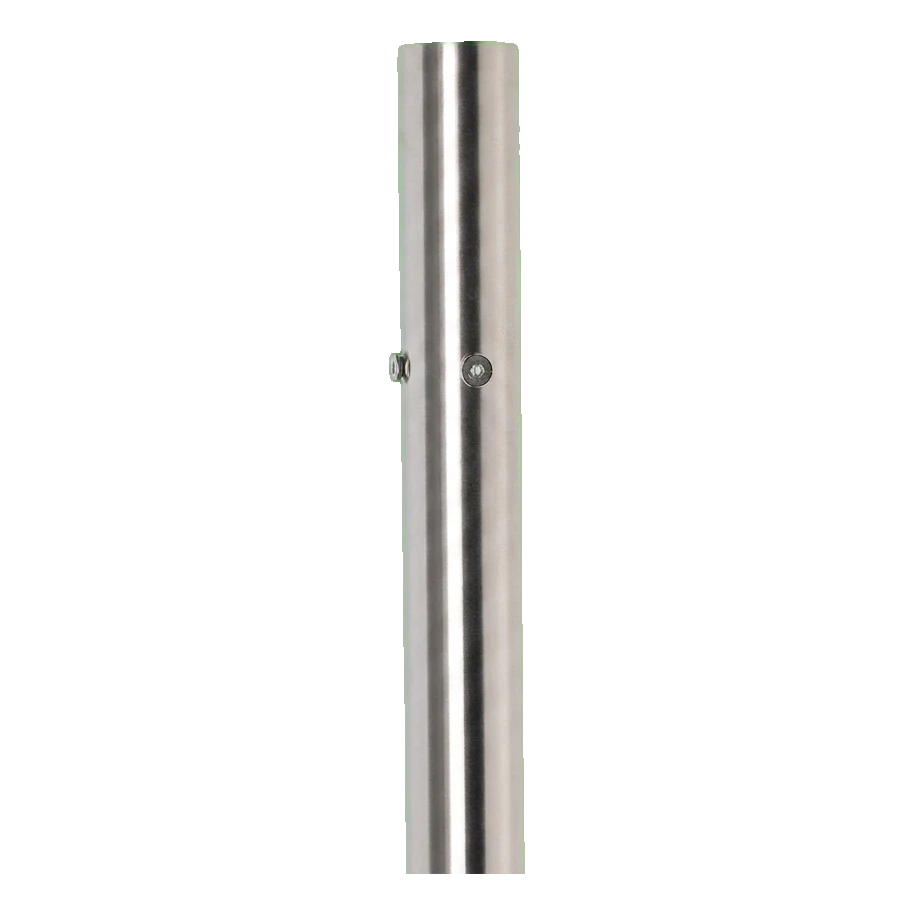

The post has 8 threaded holes M6 distributed across 4 levels (2 holes per level, in 2-M6×90° configuration). The threaded holes enable attachment of any brackets for bars, tubes or glass — without factory limitations. This solution is valued by installers who need flexibility when adapting elements to individual balustrade designs.
Stable floor mounting

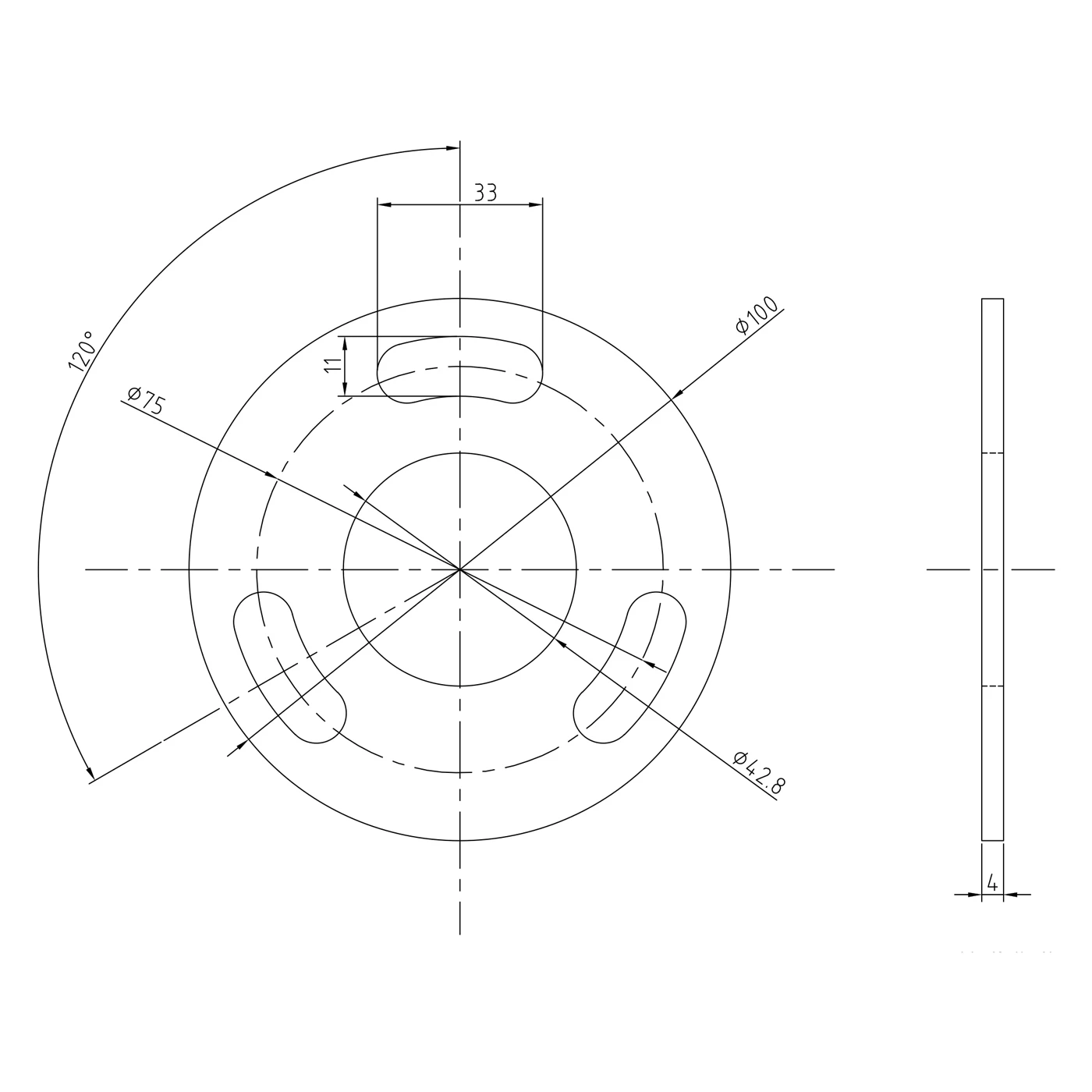

The welded base (flange) with diameter ø100 mm and thickness 4 mm ensures solid connection to the substrate. Three oval mounting holes spaced every 120° on pitch circle diameter ø75 mm enable secure anchoring. The mounting hole dimensions in the flange are 33 × 11 mm, allowing precise tightening even on slightly uneven surfaces.
Dimensions and technical parameters
- Manufacturer: PINOX
- Type: corner, unequipped
- Material: AISI 304 stainless steel
- Finish: satin
- Total height: 881 mm
- Tube diameter: ø42.4 mm
- Tube wall thickness: 2 mm
- Mounting holes in post: 8 pcs with M6 thread (4 levels × 2 holes)
- Vertical hole spacing: 190 mm (between levels)
- Distance from base to first level of holes: 200 mm
- Distance from last level of holes to top: 111 mm
- Mounting: to floor (welded flange)
- Flange diameter: ø100 mm
- Flange thickness: 4 mm
- Holes in flange: 3 pcs oval 33 × 11 mm, spaced every 120°
- Tube hole diameter: ø42.8 mm
- Weight: 1.4 kg
- EAN: 5903313205450

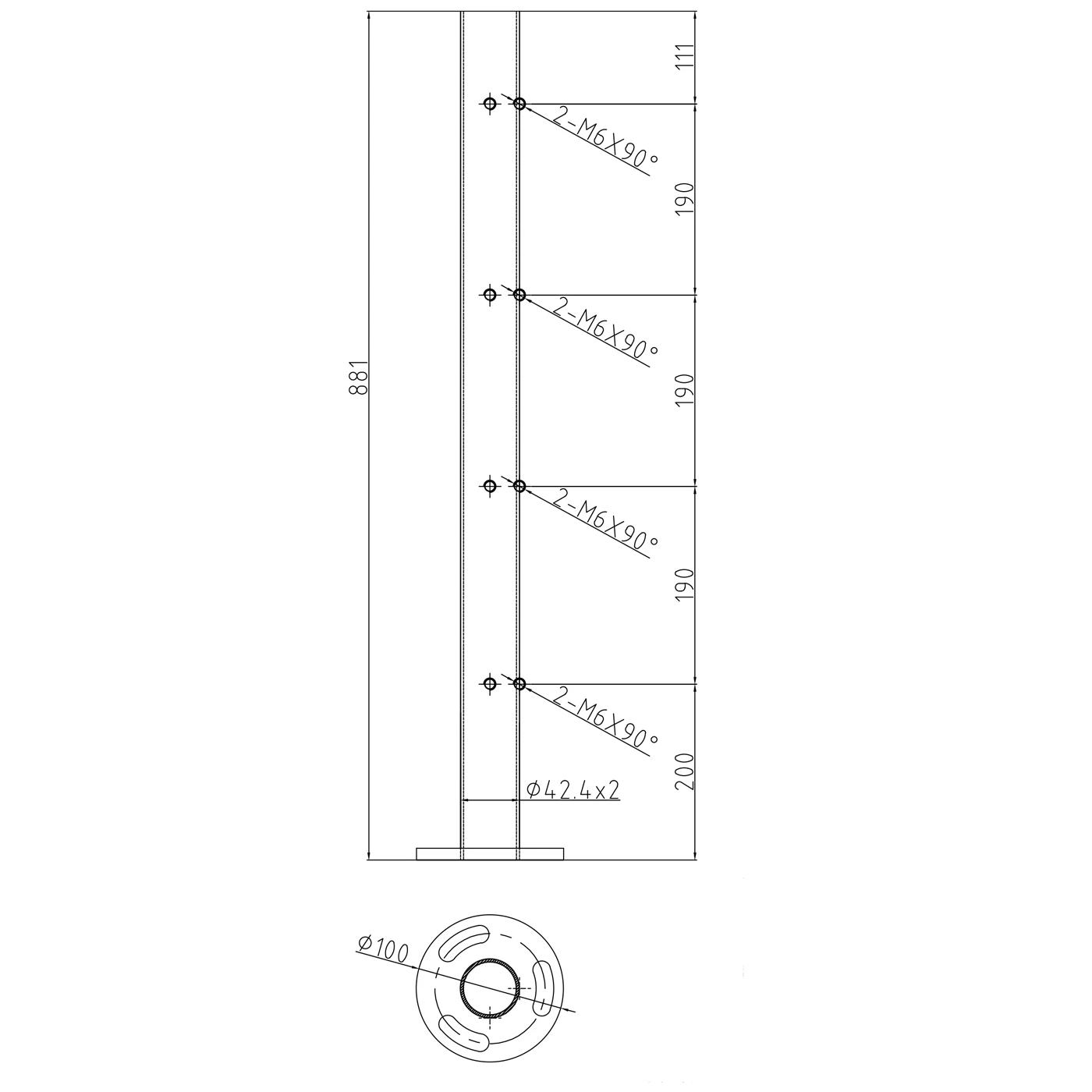

Dimensional drawings
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Material | AISI 304 |
