PINOX corner balustrade post fi 42.4 mm unassembled – stainless steel, satin
0
Description

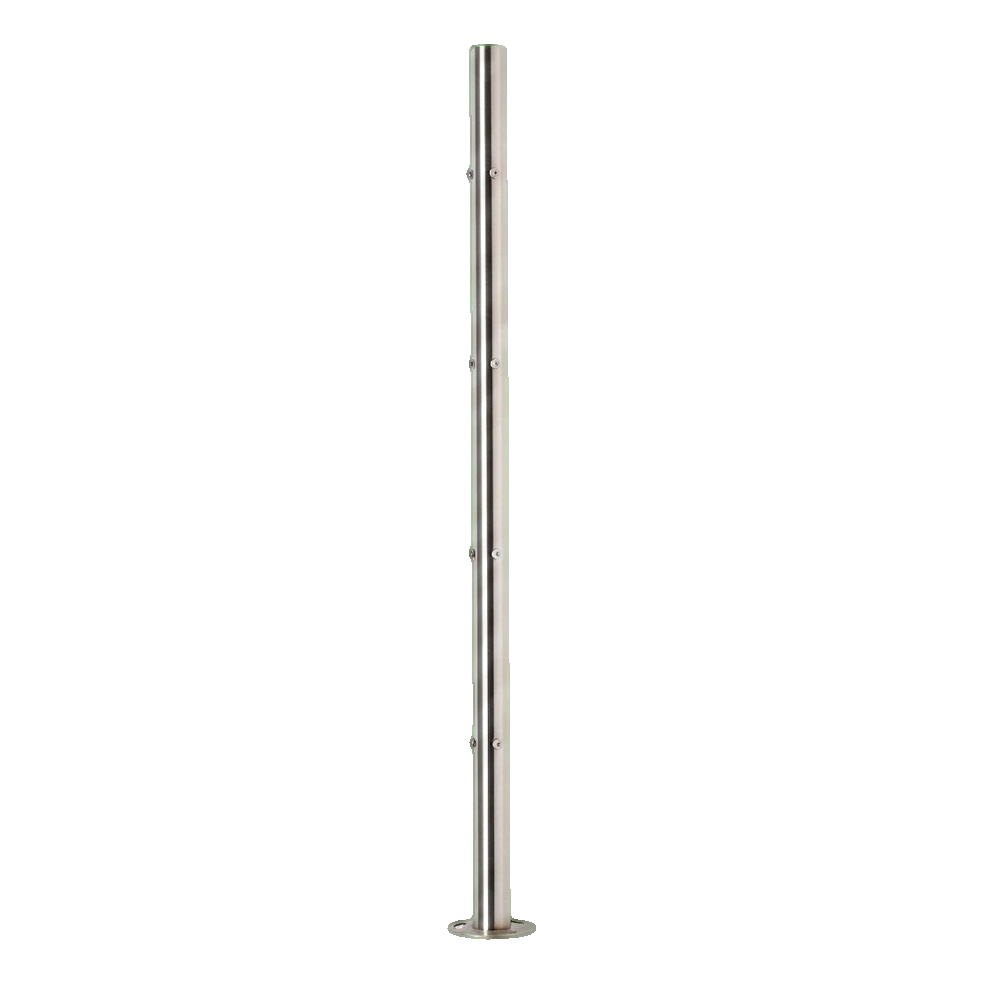

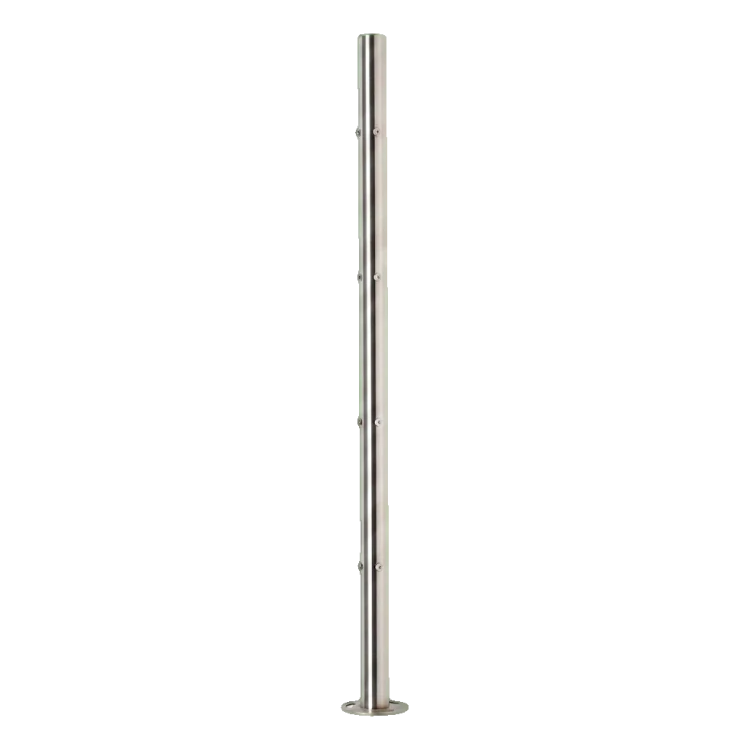

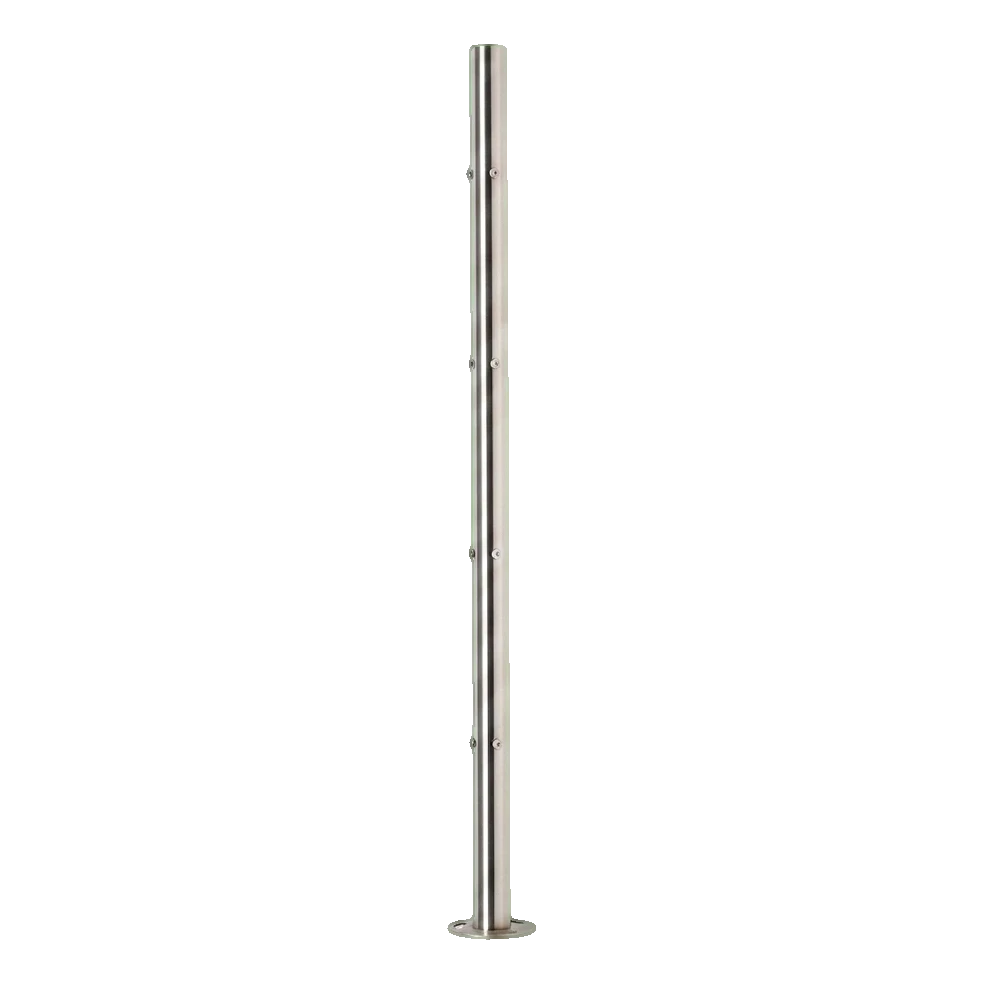

PINOX corner balustrade post fi 42.4 mm unassembled – stainless steel, satin
Corner balustrade post PINOX with diameter 42.4 mm and height 981 mm is a solid foundation for building elegant internal and external balustrades. Made from high-quality stainless steel AISI 304 with satin finish, it ensures durability, corrosion resistance and aesthetic appearance for years of service.
The unassembled version provides complete configuration freedom — 8 threaded M6 holes distributed across 4 levels enables mounting of any handrail brackets, glass infills or other balustrade accessories. This is an ideal solution for projects requiring bespoke solutions, where the installer selects components for specific balustrade layouts.
Main product features
- Type: corner — designed for locations where balustrades change direction
- Version: unassembled — without factory-fitted brackets, complete installation freedom
- Material: stainless steel AISI 304
- Finish: satin — resistant to scratches and fingerprints
- Mounting: floor-mounted using welded flange
- Mounting holes: 8 units with M6 thread, 2 on each of 4 levels, positioned at 90° angles to each other
- Weight: 2.1 kg
- EAN: 5903313205474
Post dimensions
- Total post height: 981 mm
- Tube diameter: Ø 42.4 mm
- Tube wall thickness: 2 mm
- Distance from base to 1st hole level: 210 mm
- Spacing between successive hole levels: 210 mm
- Distance from last hole level to top: 141 mm
- On each level: 2 M6 holes positioned at 90° angle

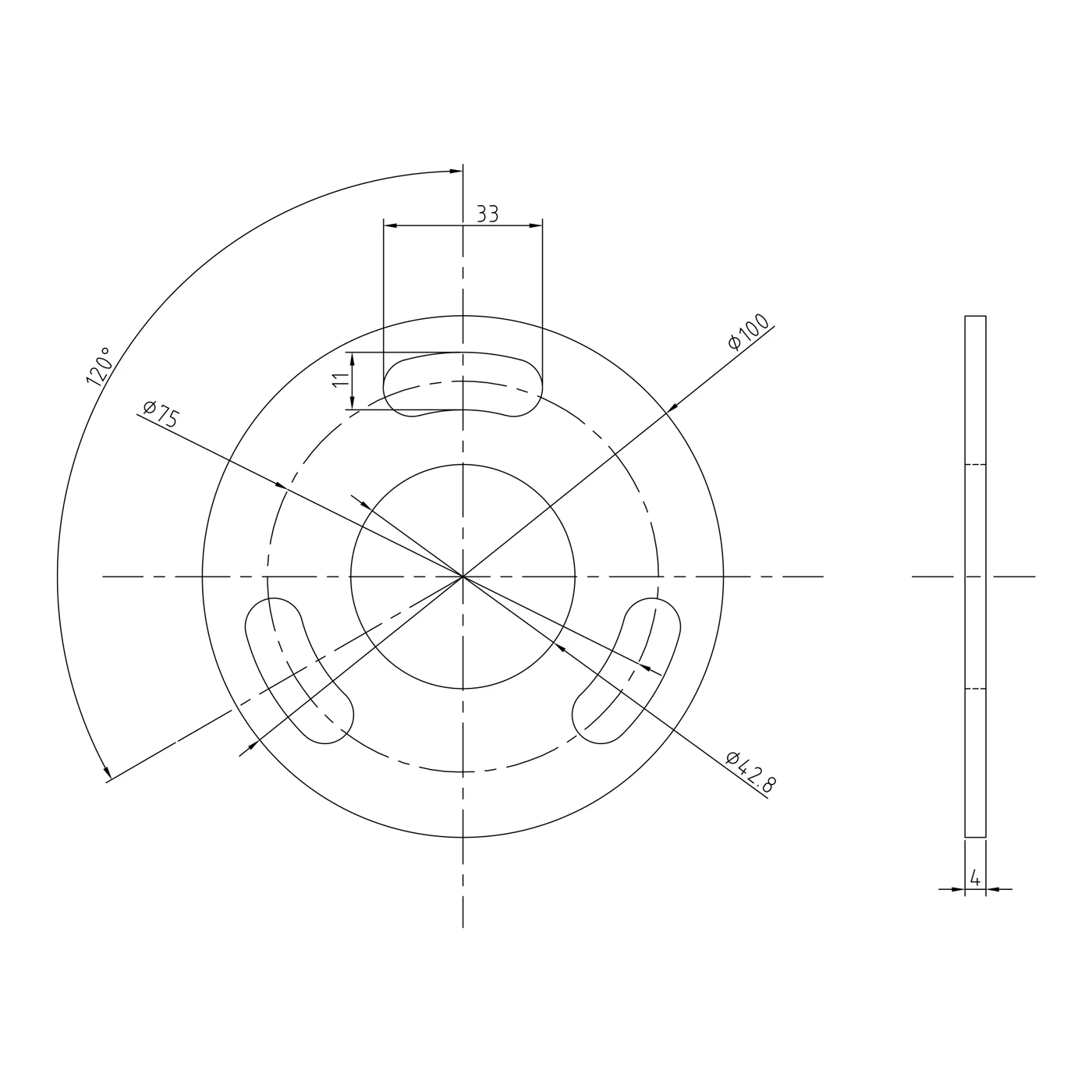

Mounting flange parameters
- Flange diameter: Ø 100 mm
- Flange thickness: 4 mm
- Central hole diameter (for tube): Ø 42.8 mm
- Pitch circle diameter for mounting holes (PCD): Ø 75 mm
- Kidney-shaped mounting holes: 33 × 11 mm
- Angle between holes: 120° (3 mounting holes)
Satin finish — aesthetics and practicality
The matt, satin surface finish gives the post a modern and elegant character that complements various architectural styles — from minimalist to classic. Compared with mirror-polished surfaces, satin is significantly less prone to visible scratches and fingerprints, which in heavy-use conditions (stairwells, office buildings, commercial properties) substantially reduces maintenance costs and cleaning requirements.
Stainless steel AISI 304 guarantees high corrosion resistance under standard environmental conditions, making this post suitable for both internal applications and, to a limited extent, external use (away from marine environments and highly chemically aggressive conditions).
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
