PINOX corner balustrade post 40x40x981 mm stainless steel AISI 304 satin
0
Description

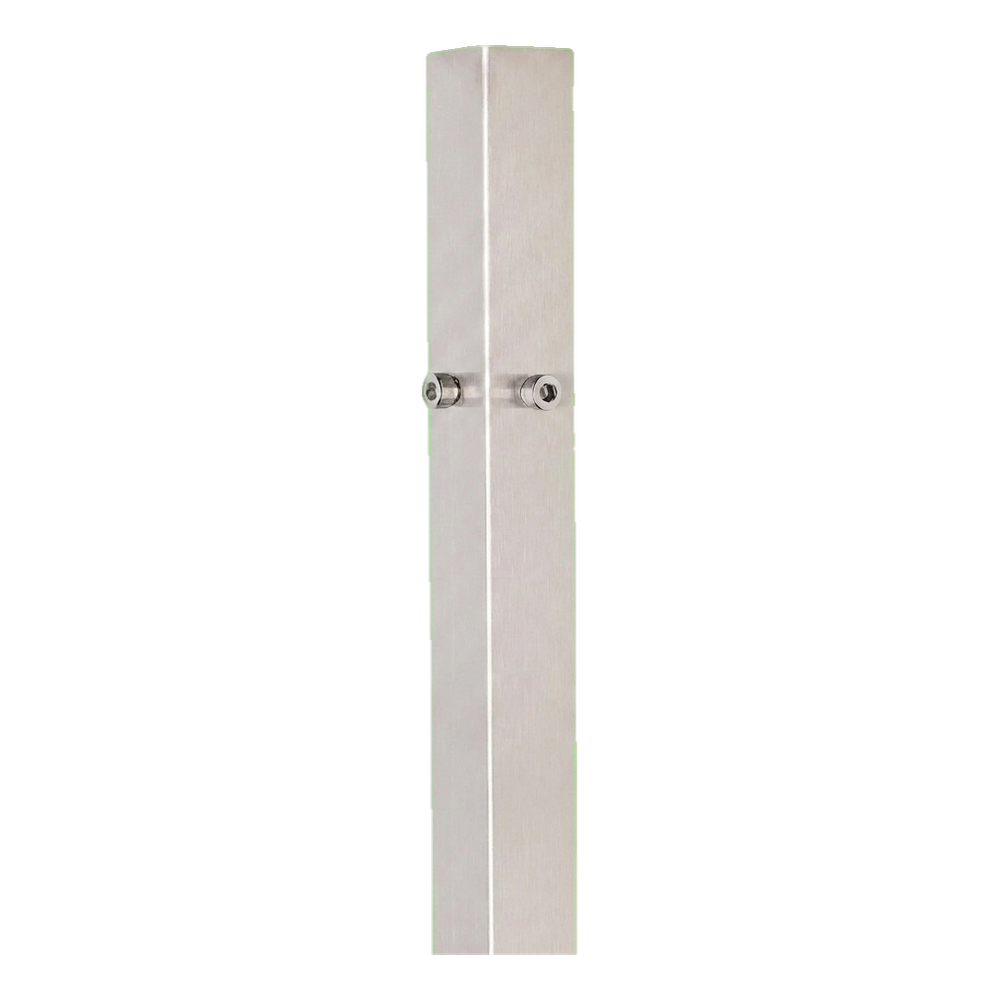

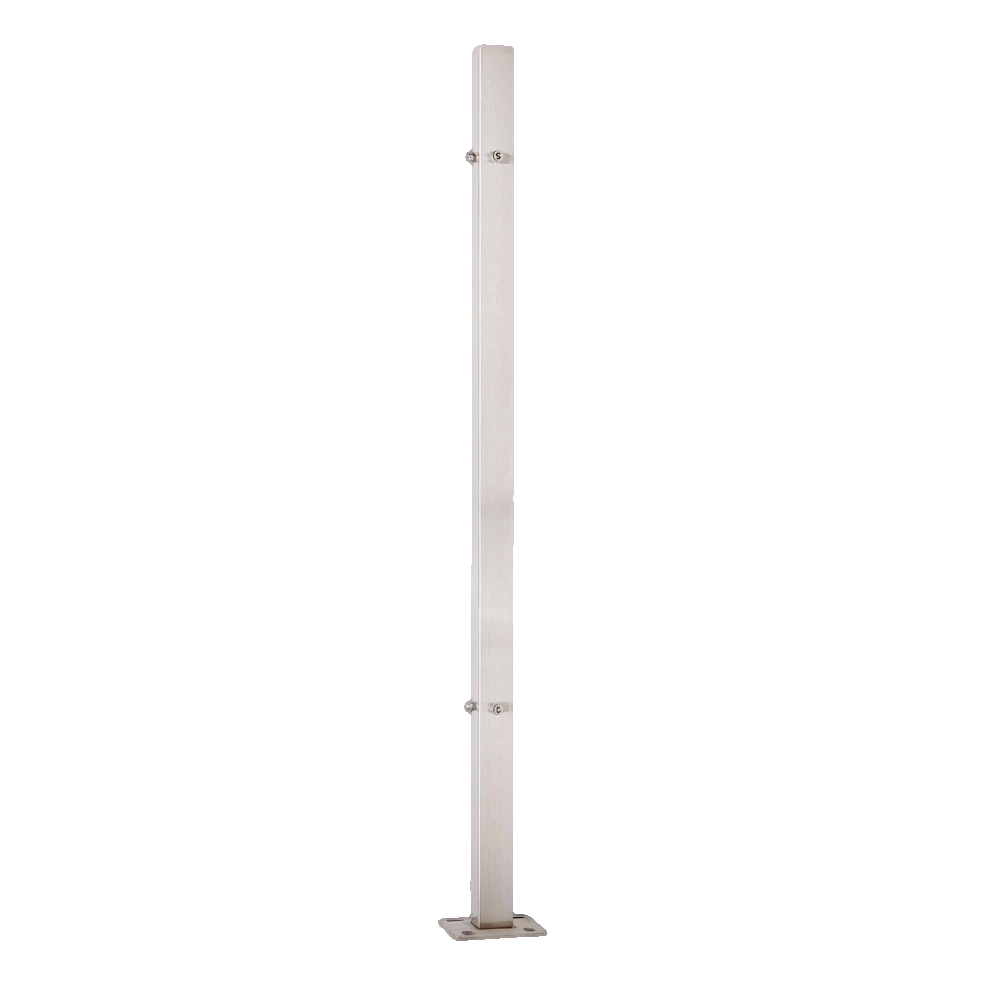

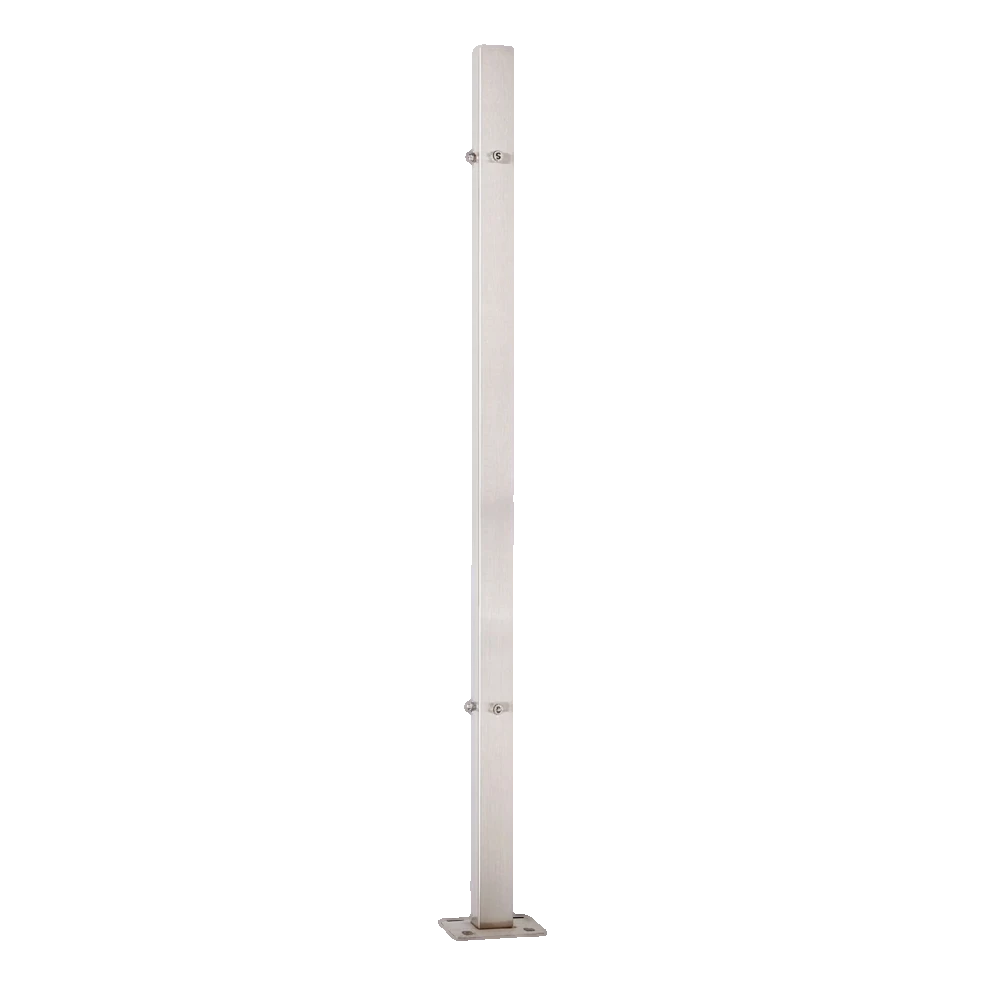

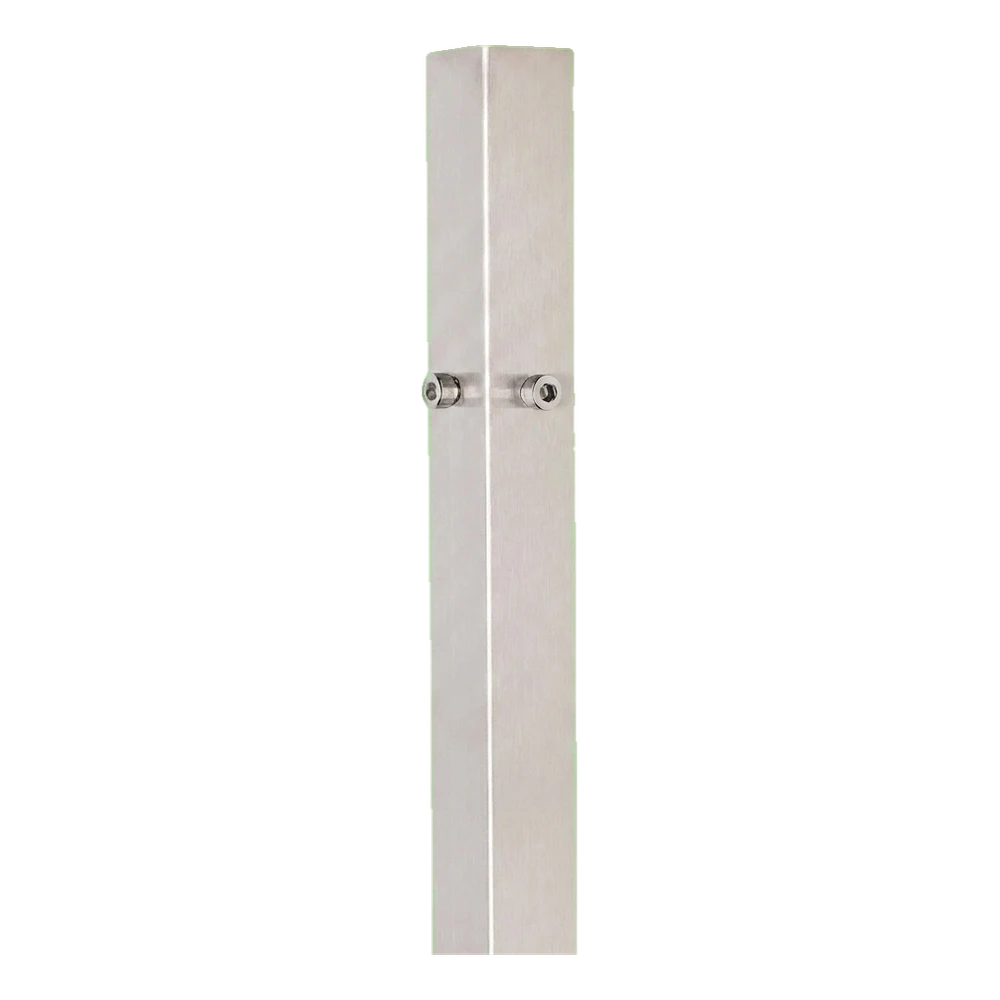

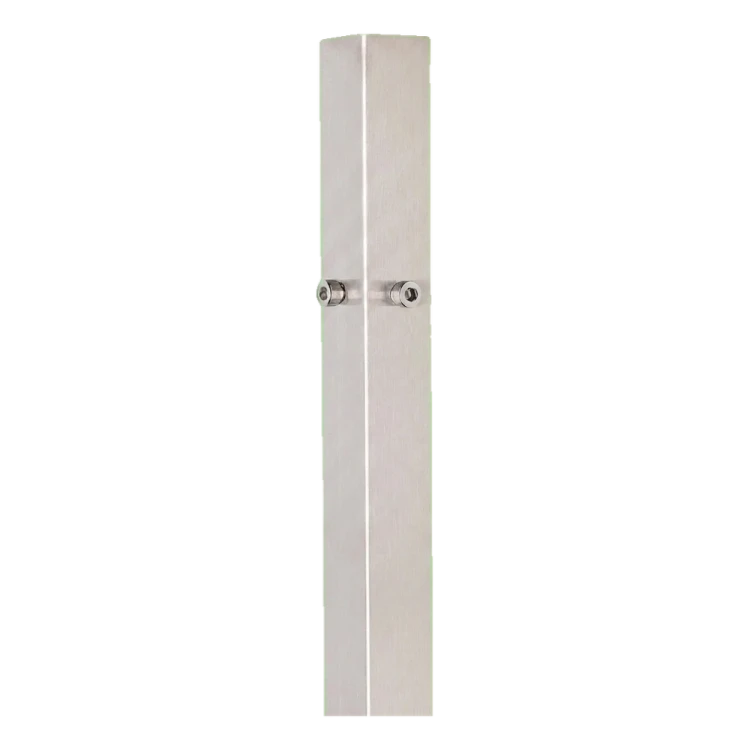

PINOX corner balustrade post 40x40x981 mm stainless steel AISI 304 satin
The PINOX corner balustrade post is a solid structural element made from AISI 304 stainless steel with a satin finish, designed for building modern balustrade systems. The 40×40 mm cross-section and 981 mm height provide a stable foundation for protective barriers in both residential and commercial buildings. Thanks to 4 M8 threaded holes, mounting of balustrade brackets is quick and precise — an ideal solution for professional installation teams.
Construction and material
The post is manufactured from AISI 304 stainless steel, valued for its high corrosion resistance and mechanical durability. The satin surface finish gives the product an elegant, modern character that complements various interior design styles perfectly. The post base is welded on, guaranteeing a permanent, rigid connection that eliminates the risk of components loosening during operation.
The post is of the unassembled type — this allows free selection of brackets and balustrade infills according to individual project requirements. The universal 40×40 mm system ensures compatibility with a wide range of balustrade accessories.
Mounting and threaded holes
The post is mounted to the floor, ensuring exceptional stability of the entire balustrade structure. It is equipped with 4 precisely drilled M8 threaded holes arranged on two levels (2 holes on each level), enabling quick attachment of any brackets and balustrade connectors. This hole configuration is optimally adapted for corner posts — allowing mounting of elements at a 90° angle.
Technical parameters
- Type: corner post (unassembled)
- System: 40×40 mm
- Post height: 981 mm
- Material: stainless steel AISI 304
- Finish: satin
- Mounting holes: 4 pcs. with M8 thread
- Mounting: to floor (welded base)
- Weight: 2.9 kg
- EAN: 5903313205535

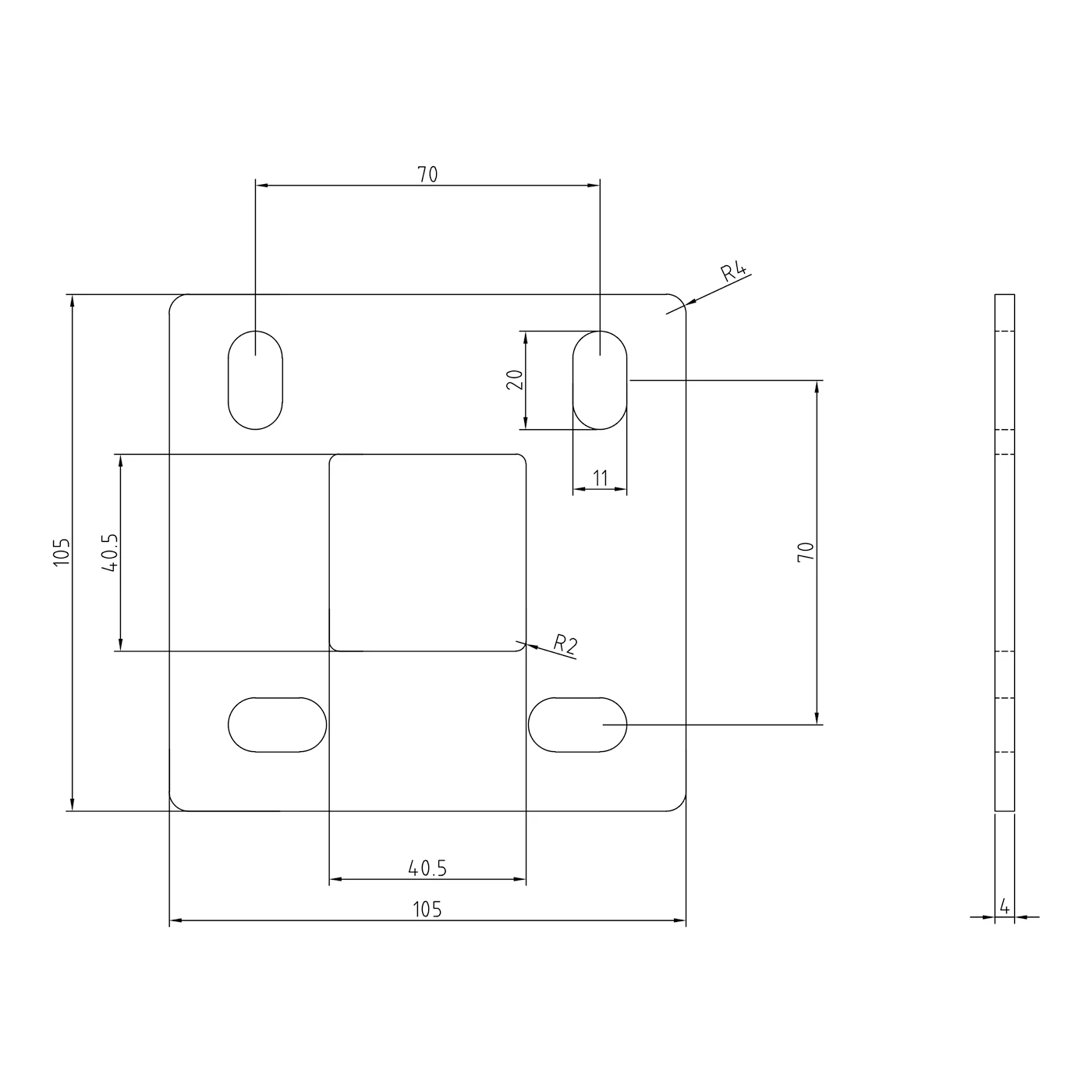

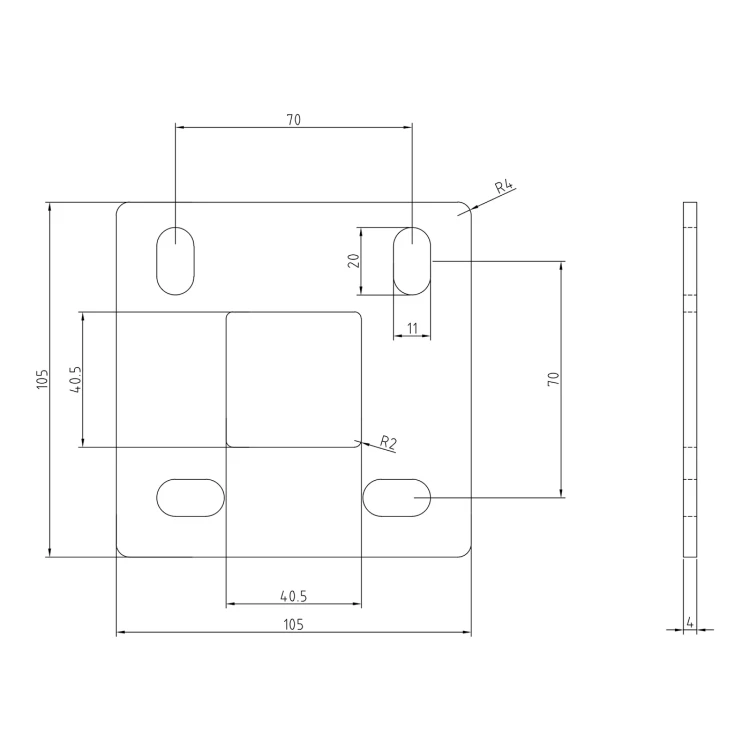

Base plate dimensions (mounting foot)
- Plate dimensions: 105×105 mm
- Plate thickness: 4 mm
- Central hole (for post): 40.5×40.5 mm
- Mounting hole spacing: 70×70 mm
- Mounting holes (slots): 20×11 mm
- External corner radius: R4
- Internal corner radius: R2
Application and maintenance
The PINOX post made from AISI 304 steel is primarily intended for indoor use. This steel is not recommended for use in high-humidity locations such as swimming pools or spa areas, due to potential corrosion risk. With proper maintenance — regular cleaning and use of protective agents — the post can be successfully installed outdoors as well, in locations not exposed to intensive sea salt action. For installers, this means application flexibility whilst maintaining high durability standards.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
