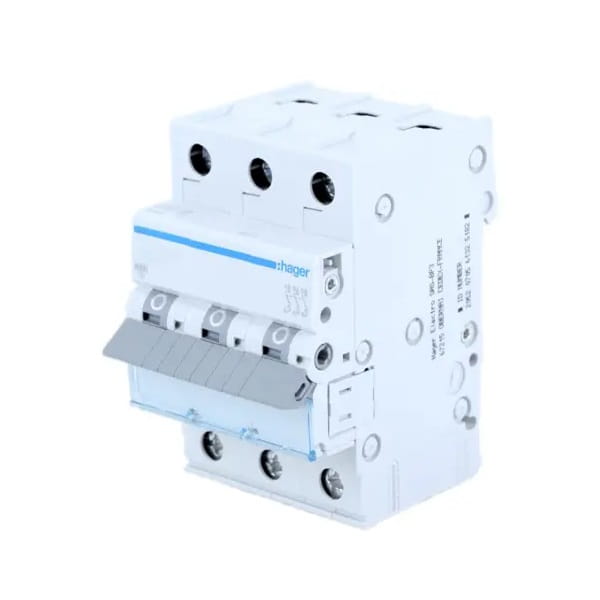

Overcurrent circuit breaker C 40A 3P 6kA MCN340E HAGER

Go to Product feedback

Overcurrent circuit breaker C 40A 3P 6kA MCN340E by HAGER also known as an installation circuit breaker, it protects cables and wires from overloads and short circuits. It is widely used in both residential and commercial applications.

Go to full description
with VAT without VAT
Price €31.29
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-nadpradowe-i-silnikowe #90

  • Trip characteristic C
  • Circuit breaker type overcurrent
  • Rated current [A] 40A
  • Number of poles 3P
  • Breaking capacity [kA] 6 kA
  • Brand HAGER

Description

Overcurrent circuit breaker C 40A 3P 6kA MCN340E HAGER

Overcurrent circuit breaker C 40A 3P 6kA MCN340E by HAGER also known as an installation circuit breaker, it protects cables and wires from overloads and short circuits. It is widely used in both residential and commercial applications.

This circuit breaker is designed for multiple operation and has a higher sensitivity than traditional fuse links (fuses). The Type C overcurrent circuit breaker is characterised by a delayed action, which makes it ideal for the protection of low-power supply installations reaching up to a few kilowatts.

Specification

Manufacturer
HAGER
Characteristics
C
Rated current [A]
40 A
Switching capacity [kA]
6 kA
Series and type
Overcurrent circuit breaker C 40A 3P 6kA MCN340E HAGER
Number of poles protected
3
Number of poles
3 P
Type of overcurrent circuit breaker
C
Rated short-circuit breaking capacity Icn
6 kA
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to standard
7.5 W
Total power loss for rated current
16.9 W
Power loss per pole for rated current
6 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input / output terminal capacitance for rigid wire (wire)
1/25 mm²
Input / output terminal capacitance for flexible wire (wire)
1/16 mm²
Degree of protection
IP20
Dimensions
70 x 83 x 52.5 mm
Standard
EN 60898-1
RoHs Directive
Compatible
Degree of contamination according to IEC 60664 / IEC 60947-2
2

Available Configuration

Product code

Catalogue no.
EAN
Model
GPV-401-128
next arrow image
MCN340E/HAG
3250614314018
MCN340E
