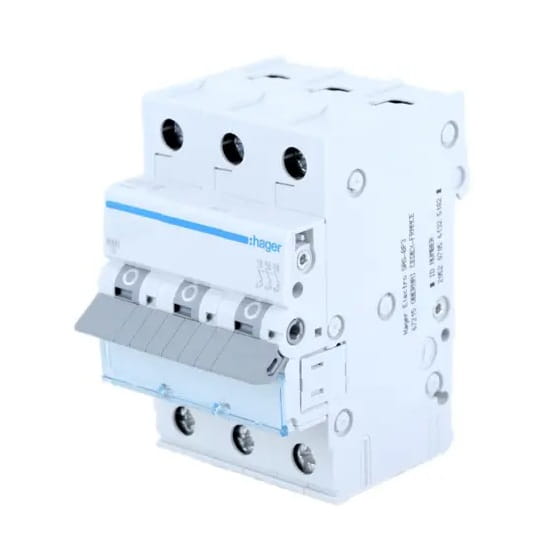

Overcurrent circuit breaker C 32A 3P 6kA MCN332E HAGER

Go to Product feedback

Overcurrent circuit breaker C 32A 3P 6kA MCN332E by HAGER also known as a circuit breaker, it protects cables and wires from the effects of overloads and short circuits. It is mainly used in residential and commercial construction.

Go to full description
with VAT without VAT
Price €28.05
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-nadpradowe-i-silnikowe #90

  • Trip characteristic C
  • Circuit breaker type overcurrent
  • Rated current [A] 32A
  • Number of poles 3P
  • Breaking capacity [kA] 6 kA
  • Brand HAGER

Description

Overcurrent circuit breaker C 32A 3P 6kA MCN332E HAGER

Overcurrent circuit breaker C 32A 3P 6kA MCN332E by HAGER also known as a circuit breaker, it protects cables and wires from the effects of overloads and short circuits. It is mainly used in residential and commercial construction.

This circuit breaker is rated for multiple tripping, offering greater sensitivity than traditional fuse links (fuses). Type C of the circuit breaker is characterized by delayed operation, making it ideal for the protection of power supply installations with small capacities of up to a few kilowatts.

Specifications

Series and type
Overcurrent circuit breaker C 32A 3P 6kA MCN332E HAGER
Number of poles protected
3
Number of poles
3 P
Type of overcurrent circuit breaker
C
Rated short-circuit switching capacity Icn
6 kA
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole according to standard
6 W
Total power losses for rated current
13 W
Power losses per pole for rated current
4.9 W
Electrical endurance (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input / output terminal capacity for rigid wire (wire)
1/25 mm²
Input /output terminal capacity for flexible cable (wire)
1/16 mm²
Degree of protection
IP20
Dimensions
70 x 83 x 52.5 mm

Key features

Standard
EN 60898-1
RoHs Directive
Compatible
Degree of pollution in accordance with IEC 60664 / IEC 60947-2
2

Available Configuration

Product code

Catalog no.
EAN
Model
GPV-401-75
next arrow image
MCN332E/HAG
3250614314001
MCN332E
