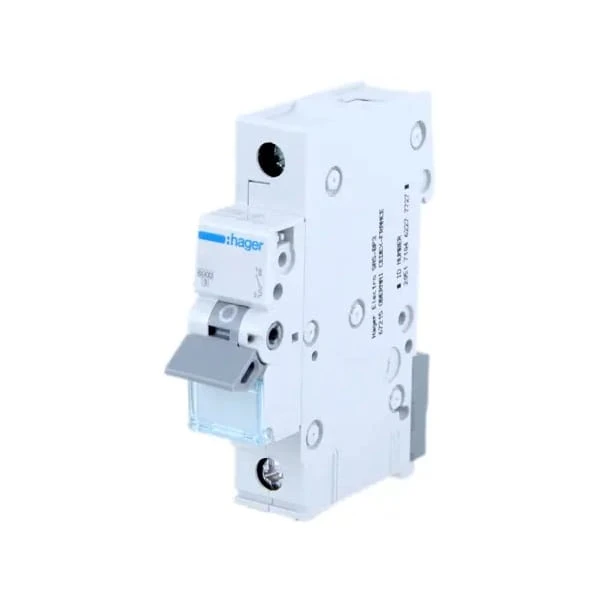

Overcurrent circuit breaker C 25A 1P 6kA MCN125E HAGER
Overcurrent circuit breaker C 25A 1P 6kA MCN125E HAGER is an installation circuit breaker that protects cables and wires against overloads and short circuits. It is used in both residential and commercial applications.
This circuit breaker, designed for multiple tripping, offers greater sensitivity than traditional fuse links (fuses). The type C overcurrent circuit breaker is characterised by a delayed action and is designed for the protection of power supply installations with smaller capacities of up to a few kilowatts.
Specification
Manufacturer
HAGER
Characteristics
C
Rated current [A]
25 A
Switching capacity [kA]
6 kA
Number of poles
1
Number of modules
1
Additional information
Can be connected by means of comb rails, cage clamps: - wire up to 25 mm2
Series and type
Overcurrent circuit breaker C 25A 1P 6kA MCN125E HAGER
Type of overcurrent circuit breaker
C
Rated switching voltage Ue
230 / 400 V
Rated frequency
50 / 60 Hz
Supply voltage type
AC
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4000 V
Rated short-circuit breaking capacity 230 V 50 Hz
6 kA
Rated operational short-circuit breaking current Ics
6 kA
Maximum power loss per pole in accordance with standard
4.5 W
Total power loss for rated current
3 W
Power loss per pole for rated current
3 W
Electrical strength (number of cycles)
4000 x
Mechanical strength (number of cycles)
20000 x
Tightening torque
2.8 Nm
Connection type
With screw
Input/output terminal capacitance for rigid wire (wire)
1/25 mm²
Input/output terminal capacitance for flexible wire (wire)
1/16 mm²
Degree of protection
IP20
Dimensions
70 x 83 x 17.5 mm
Standard
EN 60898-1
RoHs Directive
Compatible
Degree of contamination according to IEC 60664 / IEC 60947-2
2
Available Configuration
Technical data
| Trip characteristic | C |
| Circuit breaker type | overcurrent |
| Rated current [A] | 25A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | HAGER |
